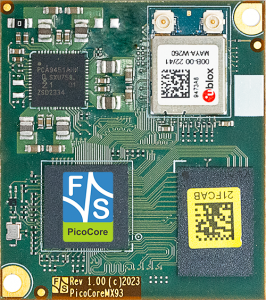

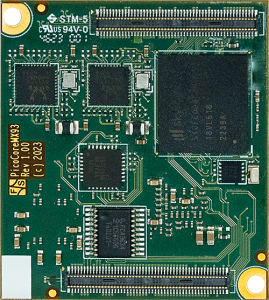

PicoCore™MX93-V5I-LIN

Computer On Module with NXP i.MX 93 CPU

For the start of development, we recommend:

Starterkit PicoCore™MX93 Linux
  360,- €
Tax not included

PicoCoreMX93 with Baseboard and cable, incl. PicoCoreMX93-V4XI-LIN, carrier board, Cable Kit, 7" LVDS display with PCAP Touch and cable kit, access to documentation and software

PicoCore™MX93-V5I-LIN
State Production
CPU
CPU NXP i.MX 93
Core ARM Cortex-A55
Cortex-M33
NPU
No of Cores 2x A55 + M33
Frequency 1,7GHz + 250MHz
L2-Cache 2x64kB L2 + 256kB L3
GPU PXP
Video NPU | Machine Learning
Operating System
Linux Yocto
(uboot installed)
Real Time FreeRTOS
Memory
Flash EEPROM
eMMC 64GB
RAM 2GB LPDDR4
Interfaces
SD-Card 2x
Ethernet 2x 100/1000 Mb
USB Host 1x OTG 2.0
USB Device 1x OTG 2.0
CAN 2x CAN-FD
UART 8x
I2C 6x
SPI 8x
Audio Line In/ Out/ Mic/ Headphone
ADC 4x
Touch Panel via I2C
Camera analog/digital MIPI-CSI
RTC PCF85263ATL
additional Interfaces max. 4x PWM, SPDIF, ESAI, SAI, SSI
Display
LVDS 1x 24 Bit
MIPI-DSI 1x 4 Lanes
Common
Supply Voltage +3.8V bis 5.5VDC
Power Consumption 3W typ.
Operating Temperature -20°C - +85°C
Size 35x40mm
(LxB)
Weight ~10g
Long Term Availability 2035

PCoreMX93 TOP Starterkit PicoCore™MX93 Linux
PicoCoreMX93 with Baseboard and cable, incl. PicoCoreMX93-V4XI-LIN, carrier board, Cable Kit, 7" LVDS display with PCAP Touch and cable kit, access to documentation and software
SKU: PCoreMX93-SKIT-LIN		 360,- €

PCoreMX93 TOP Starterkit PicoCore™MX93 W11
PicoCoreMX93 with Baseboard and cable, incl. PicoCoreMX93-V5I-W11, carrier board, Cable Kit, 7" LVDS display with PCAP Touch and cable kit, access to documentation and software
SKU: PCoreMX93-SKIT-W11		 360,- €


Software

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €


Displays and Display Kits

BLCD22front 3.5" MIPI-DSI Display with PCAP Touch (long-term available)
3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch)
SKU: B.LCD.22		 80,- €

B.LCD.24 FRONT 7" MIPI-DSI Display with PCAP Touch (long-term available)
7" TFT (800x1280) MIPI-DSI Display with PCAP Touch (TFT-7"-MIPI-DSI-PCAP Touch)
SKU: B.LCD.24		 100,- €

LCD 7 LVDS 1 front web 7” LVDS Display with PCAP Touch (long-term available)
7” LVDS LCD Display with PCAP Touch
SKU: LCD.7.LVDS.1		 95,- €

LCD 10 LVDS 1 front web 10” LVDS Display with PCAP Touch (long-term available)
10” LVDS LCD Display with PCAP Touch
SKU: LCD.10.LVDS.1		 130,- €


Touch-Kits

resistive Touch Kit armStoneA9 Resistive Touch Kit 2
For the connection of a resistive touch panel to boards with 6pol Hirose socket.
SKU: SINTF-ADP-RTI2C		 Request

Cables

B.MKAB47 Capacitive Touch Cable
6-pin cable with matching connector for connecting an I2C touch to F&S boards
SKU: B.MKAB.47		 10,- €

B.MKAB53 LVDS Cable
LVDS cable with JAE FI X30 on one side and open ends on the other side
SKU: B.MKAB.53		 22,- €

LVDS cable for 7"/10" LVDS Display and PicoCoreMX8MP/MX93
LVDS cable for connecting the 7"/10" LVDS display (LCD.7.LVDS.1 and LCD.10.LVDS.1).
SKU: B.MKAB.62		 12,- €

Backlight Cable
Backlight cable for connecting the 7"/10" LVDS displays (LCD.7.LVDS.1 and LCD.10.LVDS.1).
SKU: B.MKAB.35		 7,- €


Adapters

ADP NT24V2 OBLIQUE TOP Power Adapter
To supply armStone™ and PicoCore™ modules with 24V.
SKU: ADP-NT24V3		 40,- €

MIPI-DSI to LVDS Adapter
Allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket.
SKU: ADP-MIPI2LVDS1		 25,- €

ADP MIPI2RGB1 (quer) Adapter board MIPI-DSI (JILI30) to RGB for EDT Unified Series
Enables conversion of MIPI-DSI (JILI30) to RGB signals.
SKU: ADP-MIPI2RGB1		 30,- €


Plug Connectors

Workshops

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request
linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €


Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €

bant6 Patch Antenna
Patch antenna for WLAN/BT (2.4/ 5 GHz) for connection to F&S boards with WLAN/BT antenna socket.
SKU: B.ANT.6		 3,- €

SteelSpacerFamily WA SMSI M2 M2 5 SMD Steel Spacer for PicoCore™
Round SMD steel spacer/ Round Standoff Threaded M2x0.4 Steel 0.059" (1.50mm)
Helps you to connect your PicoCore module to the base board.
SKU: B.MSCHR.22		 70,- €

MHS.PC100.1 Board Oblique Heat Spreader PicoCore100
Heat spreader for cooling PicoCore boards.
SKU: MHS.PC100.1		 10,- €

B.MKUE.5 ASSMANN VR2032N Heat Sink PicoCore100
Heat sink for cooling PicoCore boards.
SKU: MHS.PC100.2		 12,- €


Varianten

PCoreMX93 TOP PicoCore™MX93-V2-LIN
NXP i.MX93 Solo Cortex®-A55 @ 1.7GHz no NPU, 1GB LPDDR4, 8GB eMMC, no Audio Codec, 1x Gbit LAN, 2x CAN, LVDS, MIPI-DSI, MIPI-CSI, RTC, no WLAN/BT
0°C - +70°C, Linux

SKU: PCoreMX93-V2-LIN		 Request
PCoreMX93 TOP PicoCore™MX93-V3XI-LIN
NXP i.MX 93 ARM Dual Cortex-A55 + Cortex-M33 + NPU, 1GB LPDDR4 RAM, 8GB eMMC, 2x Gbit Ethernet, Audio Line In/ Out/ Mic/ Headphone, MIPI-CSI Camera, Touch, LVDS + MIPI-DSI, -40°C - +85°C, 3.8V bis 5.5V DC Supply, Linux Yocto, FreeRTOS
SKU: PCoreMX93-V3XI-LIN		 Request
PCoreMX93 TOP PicoCore™MX93-V4XI-LIN
NXP i.MX 93 ARM Dual Cortex-A55 + Cortex-M33 + NPU, 1GB LPDDR4 RAM, 8GB eMMC, 2x 100/1000Mb Ethernet, WLAN/BT, Audio Line In/ Out/ Mic/ Headphone, MIPI-CSI Camera, Touch, LVDS + MIPI-DSI, -40°C - +85°C, 3.8V up to 5.5V DC Supply, Linux Yocto, FreeRTOS
SKU: PCoreMX93-V4XI-LIN		 Request
PCoreMX93 TOP PicoCore™MX93-V5I-LIN
NXP i.MX 93 ARM Dual Cortex-A55 + Cortex-M33 + NPU, 2GB LPDDR4 RAM, 8GB eMMC, 2x 100/1000Mb Ethernet,Audio Line In/ Out/ Mic/ Headphone, MIPI-CSI Camera, Touch, LVDS + MIPI-DSI, no WLAN/BT, -20°C - +85°C, 3.8V up to 5.5V DC Supply, Linux Yocto, FreeRTOS
SKU: PCoreMX93-V5I-LIN		 Request
PCoreMX93 TOP PicoCore™MX93-V5I-W11
NXP i.MX93 Dual Cortex®-A55 @ 1.5GHz 2GB LPDDR4, 64GB eMMC, Audio Codec, 2x Gbit LAN, 2x CAN, LVDS + MIPI-DSI, RTC, no Wi-Fi / BT, -20°C - +85°C, Windows 11 IoT
SKU: PCoreMX93-V5I-W11		 Request

Starterkit

PCoreMX93 TOP Starterkit PicoCore™MX93 Linux
PicoCoreMX93 with Baseboard and cable, incl. PicoCoreMX93-V4XI-LIN, carrier board, Cable Kit, 7" LVDS display with PCAP Touch and cable kit, access to documentation and software
SKU: PCoreMX93-SKIT-LIN		 360,- €

PCoreMX93 TOP Starterkit PicoCore™MX93 W11
PicoCoreMX93 with Baseboard and cable, incl. PicoCoreMX93-V5I-W11, carrier board, Cable Kit, 7" LVDS display with PCAP Touch and cable kit, access to documentation and software
SKU: PCoreMX93-SKIT-W11		 360,- €


Yocto Release Y2024.09

For the CPU NXP i.MX93 F&S offers a Yocto based environment. We offer the Linux BSP fsimx93-Y2024.09-pre, which is based on Yocto.

Our standard configuration, which is intended to give a first impression of the functionality of the board, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and many more.

The BSP is based on the following source code packages:

  • U-Boot: 2024.04
  • Linux-Kernel:  6.6.48
  • Yocto: 5.0.3 Scarthgap

Also included is our cross toolchain, some sample applications, and all binaries in the default configuration.

F&S offer a virtual machine (based on VirtualBox) with an installed Linux based on the distribution Fedora 36 for free download. All packages necessary to compile our software are already installed. Also, all services (NFS, TFTP) for working with our boards are installed. Our BSP is unpacked and precompiled in the correct directories. With this virtual machine it doesn't matter if you use Windows or Linux as host. Simply download the VHD, import it into VirtualBox and development can begin immediately.

➜ More information about the new Yocto release

Entwicklungsstart in unter einer Stunde
F&S Development Machine - Fedora 36


Zum schnellen Einstieg in die Entwicklung mit Linux stellen wir eine auf VirtualBox basierende virtuelle Festplatten VHD zum Download bereit. Die VHD verwendet Fedora 36 als Linux Distribution.

Mit dieser Maschine können Sie mit Ihrer Entwicklung in weniger als einer Stunde beginnen.

Für unsere Kunden ist die Maschine kostenlos.

login screen

VirtualBox ist ein leistungsstarkes Produkt für Firmenkunden und gleichzeitig auch die einzige professionelle Lösung, welche als Open Source Software unter den Bedingungen der GNU General Public License Version 2 frei erhältlich ist.
Die F&S Development Machine enthält vorinstallierte Board Support Packages für fsimx8mm, fsimx8mn und fsimx8mp (64 bit CPU).
In der VHD ist die passende F&S Toolchain installiert, der Source Code ist extrahiert und gebrauchsfertig.
Erforderliche System Packages und notwendige Tools sind ebenfalls bereits installiert.
Des weiteren enthält es eine konfigurierte Umgebung für QT Entwicklung mit Cross-Compile/ Debug Kit, Deployment Strategy und Demoapplikation.

qtcreator debugging 400px

Hinweis: Um die Development Machine herunterzuladen, müssen Sie auf unserer Website registriert sein.

➜ Mehr Informationen zur F&S Development Machine im F&S Support Forum
➜ Download F&S Development Machine - Fedora 36
➜ Quickstart Dokumentation

PicoCoreMX93 - Product Flyer

PicoCoreMX93 - Linux

PicoCoreMX93 - Hardware

Varianten

PCoreMX93 TOP PicoCore™MX93-V2-LIN
NXP i.MX93 Solo Cortex®-A55 @ 1.7GHz no NPU, 1GB LPDDR4, 8GB eMMC, no Audio Codec, 1x Gbit LAN, 2x CAN, LVDS, MIPI-DSI, MIPI-CSI, RTC, no WLAN/BT
0°C - +70°C, Linux

SKU: PCoreMX93-V2-LIN		 Request
PCoreMX93 TOP PicoCore™MX93-V3XI-LIN
NXP i.MX 93 ARM Dual Cortex-A55 + Cortex-M33 + NPU, 1GB LPDDR4 RAM, 8GB eMMC, 2x Gbit Ethernet, Audio Line In/ Out/ Mic/ Headphone, MIPI-CSI Camera, Touch, LVDS + MIPI-DSI, -40°C - +85°C, 3.8V bis 5.5V DC Supply, Linux Yocto, FreeRTOS
SKU: PCoreMX93-V3XI-LIN		 Request
PCoreMX93 TOP PicoCore™MX93-V4XI-LIN
NXP i.MX 93 ARM Dual Cortex-A55 + Cortex-M33 + NPU, 1GB LPDDR4 RAM, 8GB eMMC, 2x 100/1000Mb Ethernet, WLAN/BT, Audio Line In/ Out/ Mic/ Headphone, MIPI-CSI Camera, Touch, LVDS + MIPI-DSI, -40°C - +85°C, 3.8V up to 5.5V DC Supply, Linux Yocto, FreeRTOS
SKU: PCoreMX93-V4XI-LIN		 Request
PCoreMX93 TOP PicoCore™MX93-V5I-LIN
NXP i.MX 93 ARM Dual Cortex-A55 + Cortex-M33 + NPU, 2GB LPDDR4 RAM, 8GB eMMC, 2x 100/1000Mb Ethernet,Audio Line In/ Out/ Mic/ Headphone, MIPI-CSI Camera, Touch, LVDS + MIPI-DSI, no WLAN/BT, -20°C - +85°C, 3.8V up to 5.5V DC Supply, Linux Yocto, FreeRTOS
SKU: PCoreMX93-V5I-LIN		 Request
PCoreMX93 TOP PicoCore™MX93-V5I-W11
NXP i.MX93 Dual Cortex®-A55 @ 1.5GHz 2GB LPDDR4, 64GB eMMC, Audio Codec, 2x Gbit LAN, 2x CAN, LVDS + MIPI-DSI, RTC, no Wi-Fi / BT, -20°C - +85°C, Windows 11 IoT
SKU: PCoreMX93-V5I-W11		 Request

Starterkit

PCoreMX93 TOP Starterkit PicoCore™MX93 Linux
PicoCoreMX93 with Baseboard and cable, incl. PicoCoreMX93-V4XI-LIN, carrier board, Cable Kit, 7" LVDS display with PCAP Touch and cable kit, access to documentation and software
SKU: PCoreMX93-SKIT-LIN		 360,- €

PCoreMX93 TOP Starterkit PicoCore™MX93 W11
PicoCoreMX93 with Baseboard and cable, incl. PicoCoreMX93-V5I-W11, carrier board, Cable Kit, 7" LVDS display with PCAP Touch and cable kit, access to documentation and software
SKU: PCoreMX93-SKIT-W11		 360,- €


Link to our Forum

You will always find support in our Forum.

Current Contributions

31 Oct, 12:14

 U-boot Display

31 Oct, 10:25

 PicoCore Som version number

30 Oct, 09:41

 RTC - an occasional problem

29 Oct, 09:30

 Ethernet issue

28 Oct, 14:27

 Reset behaviour of GPIO-Pins

23 Oct, 13:19

 OSM Carrier Board Design Made Easy

22 Oct, 08:34

 Problem creating partitions using NBoot

17 Oct, 08:55

 How to install and configure the UDPusher driver

16 Oct, 07:57

 Wifi doesn't work.

10 Oct, 13:20

 Reset reason in U-Boot

Computer on Module with NXP i.MX 93

Another member of the compact PicoCore™ Computer On Module product family is offered with NXP i.MX 93 CPU.
The form factor size of only 35 x 40mm enables use in compact housings. The module has excellent multimedia capabilities and reliability makes it ideal for machine learning and industrial IoT applications.

Heterogeneous Multicore Processor Concept

Starting from the i.MX 8M Mini CPU and i.MX 8M Plus CPU, NXP's i.MX93 CPU rounds out the i.MX8/ 9 CPU series.
Several additional features and interfaces have been added, such as machine learning, Cortex-M33, RGB, LVDS, and MIPI-DSI as display interfaces, and CAN-FD, to name a few.

The i.MX 93 is a heterogeneous multicore application processor for embedded modules. It is used on the PicoCore™ System on Module and is ideal for applications requiring high-performance graphics processing and multimedia functions, machine learning, and Industry 4.0 applications.

The processor consists of a single or dual ARM® Cortex®-A55 core running at up to 1.7 GHz and a Cortex®-M33 core for real-time processing at 250 MHz. The processor also features a Neural Processing Unit (NPU).
The i.MX 93 has various audio and speech functions.

➜ more information about the NXP i.MX 93 application processor





Features and Interfaces

The PicoCore™MX93 has sufficient memory (RAM and eMMC Flash).
The module offers many interfaces on the 2x 100-pin connectors.
The PicoCore™MX93 has max. 2x Gigabit Ethernet (opt. RGMII), WIFI6, BT5.2, 1x USB Host 2.0, 1x USB Device OTG 2.0, max. 2x CAN-FD, max. 8x UART, max. 6x I2C, max. 8x SPI and Audio Line In/ Out/ Mic/ Headphone or I2S, additionally RTC, max. 4x PWM, SPDIF, ESAI, SAI, and SSI available.
An RGB, MIPI-DSI interface with 4 lanes or LVDS interfaces with 24 bits are available for controlling displays.
Touch panels can be connected externally via I2C.

Operating System

The operating system adapted for the PicoCore™MX93 is Linux. Linux Yocto supports all interfaces, ensuring easy software development without extensive hardware knowledge.
FreeRTOS is available to control the real-time kernel M33.

NXP i.MX 93 Linux Development Board

For easy entry into development, we offer an out-of-the-box PicoCore™MX93 starter kit with an embedded board, baseboard, display, cables, and access to documentation and software. The software includes the board support package and toolchain for Bare Metal or FreeRTOS.
This is rounded off by our wide range of software services, workshops, and free support via the forum, e-mail, and telephone.
