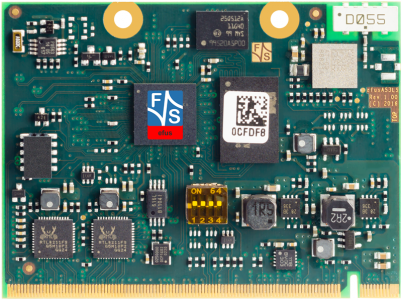

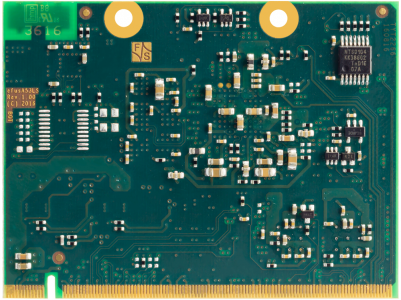

efus™A53LS

Computer On Module with NXP QorlQ® LS1012A (Layerscape) Processor

For the start of the development, we recommend:

	efus™A53LS
State	Samples
CPU
CPU	NXP QorlIQ LS1012A (Layerscape)
Core	ARM Cortex-A53
No of Cores	1
Frequency	max. 800MHz
L2-Cache	64 kB
Operating System
Linux	Buildroot Yocto (uboot installed)
Memory
Flash	max. 64MB QSPI NOR
RAM	max. 512MB DDR3L
Interfaces
SD-Card	1x extern (opt.)
Ethernet	2x 100/1000Mb
WiFi	IEEE802.11b/g/n/ac*
USB Host	1x OTG
CAN	1x (opt.)
UART	1x
I2C	2x
SPI	1x (opt.)
Digital I/O	max. 27
PCIe	1x
SATA	1x
RTC	on board/ external IC
additional Interfaces	BT 2.1 + EDR, 4.0/4.1 with antenna socket opt. chip antenna
Display
Common
Supply Voltage	+5VDC/ ±5%
Power Consumption	1W typ.
Operating Temperature	0°C - +70°C opt. -20°C - +85°C
Size	47x62.1x11mm (LxBxH)
Weight	~15g
Long Term Availability	2031

	efus™A53LS-V1-LIN
State	Samples
CPU	-
CPU	NXP QorlIQ LS1012A (Layerscape)
Core	ARM Cortex-A53
No of Cores	1
Frequency	max. 800MHz
L2-Cache	64 kB
Operating System	-
Linux	Buildroot Yocto (uboot installed)
Memory	-
Flash	max. 64MB QSPI NOR
RAM	max. 512MB DDR3L
Interfaces	-
Ethernet	2x 100/1000Mb
WiFi	IEEE802.11b/g/n/ac*
USB Host	1x OTG
UART	1x
I2C	2x
SPI	1x (opt.)
Digital I/O	max. 27
PCIe	1x
SATA	1x
RTC	on board/ external IC
additional Interfaces	BT 2.1 + EDR, 4.0/4.1 with antenna socket opt. chip antenna
Display	-
Common	-
Supply Voltage	+5VDC/ ±5%
Power Consumption	1W typ.
Operating Temperature	0°C - +70°C
Size	47x62.1x11mm (LxBxH)
Weight	~15g
Long Term Availability	2031
	efus™A53LS-V1-LIN

Starterkit efus™A53LS Linux
efusA53LS-V1-LIN, base board, cable kit, access data to documentation and software
SKU: efusA53LS-SKIT-LIN

169,- €

	MXM-2 Connector For connecting efus™- or QBliss-modules via goldfinger contacts. SKU: B.MST.2R230PL.1	43,- €
	Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1	Request
	efus™ Latch Allows to mount efus™ modules on the base board. SKU: B.MST.VR.5	36,- €
	Patch Antenna Patch antenna for WLAN/ BT (2.4 GHz) to connect F&S modules with WLAN/ BT antenna socket SKU: B.ANT.5	10,- €
	Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW	700,- €
	Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux	1,000,- €

The Linux BSP (fsimx6-V2.0) is based on Buildroot, a software to create Root filesystems. Up to circa 400 different software packages can be added menu-driven to the Root filesystem. The functions range from easy libraries and utilities to a complete Java environment up to full graphic enviroments like Qt or X11, including applications such as a HTML5-capable web browser. All this offers an easy way to compile a customized Linux system.
Our standard configuration should give you a first impression of the function range of the module, it contains among other features:

Busybox, gdb, alsa-utils, gstreamer, directFB, fbv, X11R7, matchbox, feh, openssl, openssh, glib2, tslib, libv4l, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, u.v.m.

The BSP contains the F&S customized source code packages of U-boot (2014.01), Linux Kernel (based on 3.0.35) and Buildroot (2014.02). We have also added our Cross-Toolchain, some example applications, as well as all Binaries in the standard configuration. Last but not least, it includes comprehensive hardware documents and a First-Steps documentation for an easy start.

Regardless of the regular BSP, we also offer a pre-configured Ubuntu Root filesystem for download. The complete function range of a Ubuntu distribution is available via the internal package management.

efusA53LS - Product Flyer

Usage

By downloading you accept our general terms and conditions.

Download

Deutsch (818 KB, pdf) - 05/04/2018

Usage

By downloading you accept our general terms and conditions.

Download

English (814 KB, pdf) - 05/04/2018

Usage

By downloading you accept our general terms and conditions.

Download

efus Standard (678 KB, pdf) - 30/10/2015

Usage

By downloading you accept our general terms and conditions.

Download

Customer Specific Boards (93 KB, pdf) - 20/09/2017

Variant

efus™A53LS-V1-LIN
NXP QorlQ LS1012A (Layerscape) ARM Cortex-A53, 512MB DDR3L RAM, 64MB QSPI NOR Flash, 2x Gb Ethernet, 0°C - +70°C, 5V Versorgung, Linux Buildroot/Yocto
SKU: efusA53LS-V1-LIN

Request

Starterkit

Starterkit efus™A53LS Linux
efusA53LS-V1-LIN, base board, cable kit, access data to documentation and software
SKU: efusA53LS-SKIT-LIN

169,- €

Accessories

	MXM-2 Connector For connecting efus™- or QBliss-modules via goldfinger contacts. SKU: B.MST.2R230PL.1	43,- €
	Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1	Request
	efus™ Latch Allows to mount efus™ modules on the base board. SKU: B.MST.VR.5	36,- €
	Patch Antenna Patch antenna for WLAN/ BT (2.4 GHz) to connect F&S modules with WLAN/ BT antenna socket SKU: B.ANT.5	10,- €
	Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW	700,- €
	Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux	1,000,- €

Link to the Forum

You will always find support in our Forum.

Recent Contributions

16 Dec, 17:51	Repartitioning NAND Flash (via Yocto/ Patch)
12 Dec, 09:21	SPIDEV probe function not called
11 Dec, 12:16	CANscan: Powerful CAN Bus Testing and Communication Tool with Avalonia UI
10 Dec, 09:13	request to introduce a github repo also for the toolchain with corresponding history
05 Dec, 06:29	WEC 2013: How to close UDP Ports 137 and 138 / how to disable NetBIOS over TCP/IP
04 Dec, 12:48	New i.MX8MP GPU Driver
04 Dec, 09:32	Prevent efusA9 with WEC 2013 from sending Device Info
03 Dec, 08:58	Change to winter time
02 Dec, 15:12	Question: eMMC vs NAND storage
30 Nov, 11:59	armStone A5 in a Plexlog Datalogger

Easy, Functional..		..Universal, Small
efus™A53LS is another compact and inexpensive module in efus™ form factor. It is perfectly suited for battery-powered applications with numerous interfaces like routers or IoT networks. Easy Baseboard Along with the attribute of an easy baseboard (EasyLayout), efus™ has a size of 47x62mm only and is therefore suitable for compact housings. The low power loss of only 1 Watt (typ.) makes it easy to cool the module. Processor efus™A53LS is based on a NXP QorlIQ® LS1012A (Layerscape) Processor and has a Cortex®-A53 Core with 800MHz. The QorIQ® LS1012A processor is optimized for battery-backed or USB-powered, space-constrained networking and IoT applications. ➜ More Information on QorIQ® LS1012A (Layerscape) Processor		Long-Term Availability up to 2031 Another highlight feature of the NXP QorlIQ® LS1012A (Layerscape) is the long availability up to 2031. efus™A53LS comes with up to 512MB DDR3 DRAM and up to 64MB QSPI NOR Flash. Numerous Interfaces The module offers interfaces like 2x 10/100/1000Mb Ethernet, WLAN, BT 4.0/4.1, 1x Serial, USB 3.0 OTG, 1x CAN, 1x SDIO, 1x SATA und 1x PCIe. The customized Linux supports all interfaces, enabling an easy software development without deeper hardware knowledge. efus™A53LS is pin compatible to all other efus™ modules.

Easy, Functional..

..Universal, Small

efus™A53LS is another compact and inexpensive module in efus™ form factor. It is perfectly suited for battery-powered applications with numerous interfaces like routers or IoT networks.

Easy Baseboard

Along with the attribute of an easy baseboard (EasyLayout), efus™ has a size of 47x62mm only and is therefore suitable for compact housings. The low power loss of only 1 Watt (typ.) makes it easy to cool the module.

Processor

efus™A53LS is based on a NXP QorlIQ® LS1012A (Layerscape) Processor and has a Cortex®-A53 Core with 800MHz.
The QorIQ® LS1012A processor is optimized for battery-backed or USB-powered, space-constrained networking and IoT applications.

➜ More Information on QorIQ® LS1012A (Layerscape) Processor

Long-Term Availability up to 2031

Another highlight feature of the NXP QorlIQ® LS1012A (Layerscape) is the long availability up to 2031.

efus™A53LS comes with up to 512MB DDR3 DRAM and up to 64MB QSPI NOR Flash.

Numerous Interfaces

The module offers interfaces like 2x 10/100/1000Mb Ethernet, WLAN, BT 4.0/4.1, 1x Serial, USB 3.0 OTG, 1x CAN, 1x SDIO, 1x SATA und 1x PCIe.

The customized Linux supports all interfaces, enabling an easy software development without deeper hardware knowledge.

efus™A53LS is pin compatible to all other efus™ modules.
