NetDCUA7

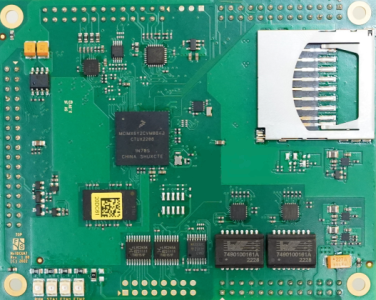

System On Module with NXP i.MX 6ULL CPU



NetDCUA7
State Production
CPU
CPU NXP i.MX6ULL
Core ARM Cortex-A7
No of Cores 1
Frequency max. 900MHz
L2-Cache 128kB
GPU PXP
Operating System
Linux Buildroot/ YOCTO
Windows WCE 7.0
WEC 2013
Memory
Flash max. 512MB NAND
eMMC max. 32GB
RAM max. 1GB
Interfaces
SD-Card 1x on-board
Ethernet 2x 10/100Mb
USB Host 1x
USB Device 1x
CAN 2x
UART 3x
I2C 1x
SPI 1x
Audio Line In/Out/Mic
Digital I/O x
Touch Panel 4-wire, analog resistive
PCAP Touch via I2C
Display
RGB 18bit
Common
Supply Voltage +5V DC/ ±5%
Power Consumption 1,5W typ.
Operating Temperature 0°C - +70°C
opt. -40°C - +85°C
Size 100x80x11mm
(LxBxH)
Weight ~45g
Long Term Availability 2031


NetDCUA7-V1I-LIN NetDCUA7-V1I-W13 NetDCUA7-V2I-LIN NetDCUA7-V2I-W13
State Production Production Q4/2023 Q4/2023
CPU - - - -
CPU NXP i.MX6ULL NXP i.MX6ULL NXP i.MX6ULL NXP i.MX6ULL
Core ARM Cortex-A7 ARM Cortex-A7 ARM Cortex-A7 ARM Cortex-A7
No of Cores 1 1 1 1
Frequency 800MHz 800MHz 800MHz 800MHz
L2-Cache 128kB 128kB 128kB 128kB
GPU PXP PXP PXP PXP
Operating System - - - -
Linux Buildroot/ YOCTO - Buildroot/ YOCTO -
Windows - WEC2013 Entry Lizenz - WEC2013 Entry Lizenz
Memory - - - -
Flash 256MB 256MB - -
eMMC - - 8GB 8GB
RAM 512MB 512MB 1GB 1GB
Interfaces - - - -
SD-Card 1x on-board 1x on-board 1x on-board 1x on-board
Ethernet 2x 10/100Mb 2x 10/100Mb 2x 10/100Mb 2x 10/100Mb
USB Host 1x 1x 1x 1x
USB Device 1x 1x 1x 1x
CAN 2x 2x 2x 2x
UART 3x 3x 3x 3x
I2C 1x 1x 1x 1x
SPI 1x 1x 1x 1x
Audio Line In/Out/Mic Line In/Out/Mic Line In/Out/Mic Line In/Out/Mic
Digital I/O x x x x
Touch Panel 4-wire, analog resistive
PCAP Touch via I2C		 4-wire, analog resistive
PCAP Touch via I2C		 4-wire, analog resistive
PCAP Touch via I2C		 4-wire, analog resistive
PCAP Touch via I2C
Display - - - -
RGB 18bit 18bit 18bit 18bit
Common - - - -
Supply Voltage +5V DC/ ±5% +5V DC/ ±5% +5V DC/ ±5% +5V DC/ ±5%
Power Consumption 1,5W typ. 1,5W typ. 1,5W typ. 1,5W typ.
Operating Temperature -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C
Size 100x80x11mm
(LxBxH)		 100x80x11mm
(LxBxH)		 100x80x11mm
(LxBxH)		 100x80x11mm
(LxBxH)
Weight ~45g ~45g ~45g ~45g
Long Term Availability 2031 2031 2031 2031
NetDCUA7-V1I-LIN NetDCUA7-V1I-W13 NetDCUA7-V2I-LIN NetDCUA7-V2I-W13

Software

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €

software accessory Display Customization (MIPI-DSI Display under Linux)
Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board.
The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display.

SKU: EW-SW-MIPI-DSI-Linux		 1,000,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €


Display and Display Kit

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15		 120,- €

armStone efus RGB Kit Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT		 170,- €


Cable

B.MKAB.23 40poles Film Cable
Film Cable, A40pol., 0,5mm, l=200mm for displays
To connect a 7" EDT Display (B.LCD.15)
SKU: B.MKAB.23		 10,- €


Adapters

I2C Extension I2C Erweiterung
Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus.
SKU: NDCU-ADP/I2C		 80,- €

JTAG Debug Adapter JTAG Debug Adapter
To program Cortex-M4.
SKU: ADP-CMSIS		 69,- €

Adapter RGB to DVI NetDCU/ PicoCOM DVI Adapter
Connects NetDCUA5/ PicoCOMA5/ A9X to a DVI/ HDMI screen.
SKU: ADP-RGB2DVI		 50,- €


Workshop

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


Buildroot und Yocto

Das Linux-BSP "fsimx6ul-B2023.12" basiert auf Buildroot, einer Software zur Erstellung von Root-Filesystemen. Über Buildroot können menügesteuert ca. 1400 verschiedene Softwarepakete dem Root-Filesystem hinzugefügt werden. Der Funktionsumfang reicht hier von einfachen Bibliotheken und Utilities über eine komplette Java-Umgebung bis hin zu vollständigen grafischen Umgebungen wie Qt oder Wayland/Weston, inklusive Applikationen wie z.B. einem HTML5-fähigen Webbrowser. Auf diese Weise lässt sich sehr einfach ein maßgeschneidertes Linux-System zusammenstellen.

Alternativ zu Buildroot gibt es auch eine Yocto-basierte Umgebung. Wir bieten das Linux BSP "fsimx6ul-Y2024.03" an, das auf Yocto basiert.

Unsere Standardkonfiguration, die einen ersten Eindruck vom Funktionsumfang der Baugruppe geben soll, enthält unter anderem folgende Features: Busybox, gdb, alsa-utils, gstreamer, ewston-wayland, feh, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, u.v.m.

Beide BSPs beinhalten die von F&S angepassten Quelltextpakete von U-Boot (2021.04), Linux-Kernel (basierend auf 5.15.131/5.15.148) und Buildroot (2023.02.06) oder Yocto (4.0). Außerdem ist unsere Cross-Toolchain beigefügt, einige Beispielsapplikationen, sowie alle Binaries in der Standardkonfiguration. Und nicht zuletzt sind ausführliche Dokumente zur Hardware enthalten sowie die First-Steps-Dokumentation für den leichten Einstieg.

F&S bietet auch eine Virtuelle Maschine (basierend auf VirtualBox) mit einem installierten Linux basierend auf der Distribution Fedora 36 zum kostenlosen Download an. Alle zum Übersetzen unserer Software notwendigen Pakete sind bereits installiert. Ebenfalls sind alle Services (NFS, TFTP) zum Arbeiten mit unseren Boards installiert. Unser BSP liegt ausgepackt und vorkompiliert in den richtigen Verzeichnissen. Mit dieser virtuellen Maschine spielt es keine Rolle ob sie als Host Windows oder Linux verwenden. Einfach die VHD downloaden, in VirtualBox importieren und die Entwicklung kann sofort beginnen.

➜ Mehr Informationen über das neue Buildroot Release B2023.12
➜ Mehr Informationen über das neue YOCTO Release Y2024.03

Entwicklungsstart in unter einer Stunde - F&S Development Machine - Fedora 27


Zum schnellen Einstieg in die Entwicklung mit Linux stellen wir zwei virtuellen Festplatten VHDs zum Download bereit. Eine VHD stellt die Entwicklungsumgebung für alle Boards mit 32 bit CPU bereit, die andere die Entwicklungsumgebung für alle auf 64bit CPU basierenden Boards. Beide VHDs verwenden Fedora 27 als Linux Distribution.

Mit dieser Maschine können Sie mit Ihrer Entwicklung in weniger als einer Stunde beginnen.

Für unsere Kunden ist die Maschine kostenlos.

login screen

VirtualBox ist ein leistungsstarkes Produkt für Firmenkunden und gleichzeitig auch die einzige professionelle Lösung, welche als Open Source Software unter den Bedingungen der GNU General Public License Version 2 frei erhältlich ist.
Die F&S Development Machine enthält vorinstallierte Board Support Packages für fsimx6, fsimx6sx, fsimx6ul und fsimx7ulp (32 bit CPU) oder fsimx8mm (64 bit CPU).
In der HVD ist die passende F&S Toolchain installiert, der Source Code ist extrahiert und gebrauchsfertig.
Erforderliche System Packages und notwendige Tools sind ebenfalls bereits installiert.
Des weiteren enthält es eine konfigurierte Umgebung für QT Entwicklung (QT5) mit Cross-Compile/ Debug Kit, Deployment Strategy und Demoapplikation.

qtcreator debugging 400px

Hinweis: Um die Development Machine herunterzuladen, müssen Sie auf unserer Website registriert sein.

➜ Download F&S Development Machine - Fedora 27
➜ Quickstart Dokumentation

Windows Embedded Lifetime

Feature Available until  End of Mainstream Support End of Extended Support
Windows Embedded Compact 2013 31.05.2028  10.09.2018 10.10.2023
Windows Embedded Compact 7 28.02.2026  12.04.2016 13.04.2021
Windows CE 6.0 28.02.2022  09.04.2013 10.04.2018

Windows Embedded Compact 2013

The highly flexible and real-time operating system has kernel, interface drivers and bootloader. It benefits from all the features of a modern CPU, such as ARMv7 THUMB2 command structure or NEON co-processor.
Complete images and the BSP are available in our download area.
Development is done with the latest Microsoft tools like Visual Studio 2015 (C, C++, C# or VB.NET) and Expression Blend 5.
Interfaces like I²C, CAN or SPI can be used in the same way like a RS232 interface.
XAML for Windows Embedded helps to separate visualisation and program the easy way.

Our FailSafe Flash File System F3S is also available in Compact 2013.

Windows Embedded Features for i.MX6

General

Feature Description i.MX6 WEC 2013
.NET Support Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework ✔ ✔
AnalogIn Stream driver to easily access the analog inputs ✔ ✔
Audio Codec Support for Microphone, LineIn and LineOut.
Implements Mixer interface and special F&S mixer control panel applet to easily change settings.		 ✔ ✔
BusEnum2 Support for asynchronous loading of drivers. Use events to start loading of drivers.  ✔ ✔
Broadcast Stream driver
Boards can be easily identified and configured over LAN connection		 ✔ ✔
CAN Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication. ✔ ✔
Digital I/O  Stream driver to configure pins as input, output or interrupt.
Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry.		 ✔ ✔
Display Display driver can be configured by registry settings without modifying operating system. ✔ ✔
Display Multi-Monitor Support
Adjustable by registry		 ✔  ✔
Display 2D software acceleration using NEON co-processor
Multiple overlays with alpha blending 		 ✔ ✔
Display 2D hardware acceleration
3D OpenGL ES 1.1 and 2.0 hardware acceleration
Multiple overlays with alpha blending
Multiple monitor support (incl. 2D acceleration and Video support)		 ✔  ✔
Firmware Update Software to update Bootloader and/or operating system from running operating system. ✔ ✔
Software Update Program to update application and registry settings from USB stick, SD card or other source.
Includes automatic detection. Can incorporate with Firmware Update		 ✔ ✔
I²C Stream driver
Support for hardware I²C controller (NI2C)
Support for using GPIOs as I²C (I²C)		 ✔ ✔
Keyboard Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409
Matrix keyboard support: Use IO pins for keyboard		 ✔ ✔
SPI Stream driver
Support for hardware SPI controller		 ✔ ✔
Touch Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others
Extended USB mouse driver to accept absolute coordinates		 ✔ ✔
USB Host EHCI and OHCI driver ✔ ✔
USB Device   ✔ ✔
KBDHID Extended MS kbdhid - Support for all keys on the keyboard ✔ ✔
MOUTOUCHHID Support for absolute coordinates ✔ ✔
Power Management Support for screen saver and touch activation ✔ ✔
PWM Stream driver ✔ ✔
Video Streaming Filter framework for streaming video over HTTP ✔ ✔
VoIP Voice over IP sample solution ✔

File System

Feature Description i.MX6 WEC 2013
F&S BinFS Bug fixed BinFS file system for XIP images ✔ ✔
F3S F&S Secure Flash File System
Optimized throughput on all file operations
Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector)
Transaction-based concept already cooperates with a lot of applications  		 ✔ ✔
Filesystem
Filter Driver		 Used to limit access to file system.
Possible restrictions: Move, Delete, Rename		 ✔ ✔
FAT/TFAT Microsoft Windows Embedded FAT/TFAT solution. ✔ ✔
NAND Driver 16 bit hardware ECC   ✔

Services

Feature Description i.MX6 WEC 2013
Telnet Server Enabled by default. Easy access to command shell. ✔ ✔
FTP Server   ✔ ✔
HTTPD Server Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera) ✔ ✔
OpenSSH Offers SSH server functionality for Windows Embedded. Based on OpenSSH
SFTP
SCP
SMTP		 ✔ ✔
SSH SCP/SFTP server SSH Library (also used from SMTP).  ✔ ✔
SMTP SMTP library to send EMail ✔ ✔

Tools

Feature Description i.MX6 WEC 2013
Bootscreen Showing custom image during boot. ✔ ✔
Control Panel Standard Windows Embedded Control Panel with additional tools. ✔ ✔
CE Remote Display Driver and application to access desktop of device remotely. ✔ ✔
ndcucfg Command line configuration tool.
Can be used locally, over Telnet connection and over serial connection.
Registry editing
Reading/writing of boot loaders and splash screen
User administration
Certificate administration
....
Usage:
* Can be used in own applications as DLL.
* As a command line tool from telnet or serial debug console		 ✔ ✔
Update tool Update of boot loader
Update on WinCE image
Registry changes
Update of user application
Runs from SD/USB/LAN		 ✔ ✔
F&S 2D control utility Control panel applet
Change 2D acceleration on the fly		 ✔ ✔
F&S Board Config Control panel applet
Check hardware revision, version of boot loader, version of WinCE image and much more.
Change system startup and registry.		 ✔ ✔
F&S Audio Mixer Control panel applet
Change audio features like volume, bass, treble, input ...		 ✔ ✔
F&S SSH/SMTP control utility Control panel applet
Start stop SSHD service
Send test EMail by SMTP		 ✔ ✔
F&S USB Loader Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information.
Can be used to update software or to automate production.		 ✔ ✔
F&S Mfg Tool Modified NXP Tool for board bring up and software installation ✔ ✔

Windows Embedded Features for i.MX6

General

Feature Description i.MX6 WEC 2013
.NET Support Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework ✔ ✔
AnalogIn Stream driver to easily access the analog inputs ✔ ✔
Audio Codec Support for Microphone, LineIn and LineOut.
Implements Mixer interface and special F&S mixer control panel applet to easily change settings.		 ✔ ✔
BusEnum2 Support for asynchronous loading of drivers. Use events to start loading of drivers.  ✔ ✔
Broadcast Stream driver
Boards can be easily identified and configured over LAN connection		 ✔ ✔
CAN Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication. ✔ ✔
Digital I/O  Stream driver to configure pins as input, output or interrupt.
Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry.		 ✔ ✔
Display Display driver can be configured by registry settings without modifying operating system. ✔ ✔
Display Multi-Monitor Support
Adjustable by registry		 ✔  ✔
Display 2D software acceleration using NEON co-processor
Multiple overlays with alpha blending 		 ✔ ✔
Display 2D hardware acceleration
3D OpenGL ES 1.1 and 2.0 hardware acceleration
Multiple overlays with alpha blending
Multiple monitor support (incl. 2D acceleration and Video support)		 ✔  ✔
Firmware Update Software to update Bootloader and/or operating system from running operating system. ✔ ✔
Software Update Program to update application and registry settings from USB stick, SD card or other source.
Includes automatic detection. Can incorporate with Firmware Update		 ✔ ✔
I²C Stream driver
Support for hardware I²C controller (NI2C)
Support for using GPIOs as I²C (I²C)		 ✔ ✔
Keyboard Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409
Matrix keyboard support: Use IO pins for keyboard		 ✔ ✔
SPI Stream driver
Support for hardware SPI controller		 ✔ ✔
Touch Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others
Extended USB mouse driver to accept absolute coordinates		 ✔ ✔
USB Host EHCI and OHCI driver ✔ ✔
USB Device   ✔ ✔
KBDHID Extended MS kbdhid - Support for all keys on the keyboard ✔ ✔
MOUTOUCHHID Support for absolute coordinates ✔ ✔
Power Management Support for screen saver and touch activation ✔ ✔
PWM Stream driver ✔ ✔
Video Streaming Filter framework for streaming video over HTTP ✔ ✔
VoIP Voice over IP sample solution ✔

File System

Feature Description i.MX6 WEC 2013
F&S BinFS Bug fixed BinFS file system for XIP images ✔ ✔
F3S F&S Secure Flash File System
Optimized throughput on all file operations
Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector)
Transaction-based concept already cooperates with a lot of applications  		 ✔ ✔
Filesystem
Filter Driver		 Used to limit access to file system.
Possible restrictions: Move, Delete, Rename		 ✔ ✔
FAT/TFAT Microsoft Windows Embedded FAT/TFAT solution. ✔ ✔
NAND Driver 16 bit hardware ECC   ✔

Services

Feature Description i.MX6 WEC 2013
Telnet Server Enabled by default. Easy access to command shell. ✔ ✔
FTP Server   ✔ ✔
HTTPD Server Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera) ✔ ✔
OpenSSH Offers SSH server functionality for Windows Embedded. Based on OpenSSH
SFTP
SCP
SMTP		 ✔ ✔
SSH SCP/SFTP server SSH Library (also used from SMTP).  ✔ ✔
SMTP SMTP library to send EMail ✔ ✔

Tools

Feature Description i.MX6 WEC 2013
Bootscreen Showing custom image during boot. ✔ ✔
Control Panel Standard Windows Embedded Control Panel with additional tools. ✔ ✔
CE Remote Display Driver and application to access desktop of device remotely. ✔ ✔
ndcucfg Command line configuration tool.
Can be used locally, over Telnet connection and over serial connection.
Registry editing
Reading/writing of boot loaders and splash screen
User administration
Certificate administration
....
Usage:
* Can be used in own applications as DLL.
* As a command line tool from telnet or serial debug console		 ✔ ✔
Update tool Update of boot loader
Update on WinCE image
Registry changes
Update of user application
Runs from SD/USB/LAN		 ✔ ✔
F&S 2D control utility Control panel applet
Change 2D acceleration on the fly		 ✔ ✔
F&S Board Config Control panel applet
Check hardware revision, version of boot loader, version of WinCE image and much more.
Change system startup and registry.		 ✔ ✔
F&S Audio Mixer Control panel applet
Change audio features like volume, bass, treble, input ...		 ✔ ✔
F&S SSH/SMTP control utility Control panel applet
Start stop SSHD service
Send test EMail by SMTP		 ✔ ✔
F&S USB Loader Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information.
Can be used to update software or to automate production.		 ✔ ✔
F&S Mfg Tool Modified NXP Tool for board bring up and software installation ✔ ✔

NetDCUA7 - Product Flyer


NetDCUA7 - Hardware


NetDCUA7 - Linux


NetDCUA7 - Windows Embedded CE/Compact


NetDCUA7 - Display

Variants

NetDCUA7-V1I-LIN
NXP i.MX6ULL Cortex-A7, 512MB RAM, 256MB NAND Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, -40°C - +85°C, 5V Versorgung, Linux
SKU: NDCUA7-V1I-LIN		 Request
NetDCUA7-V2I-LIN
NXP i.MX6ULL Cortex-A7, 1GB RAM, 8 GB eMMC Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, -40°C - +85°C, 5V Versorgung, Linux
SKU: NDCUA7-V2I-LIN		 Request
NetDCUA7-V1I-W13
NXP i.MX6ULL Cortex-A7, 512MB RAM, 256MB NAND Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, -40°C - +85°C, 5V Versorgung, Windows
SKU: NDCUA7-V1I-W13		 Request
NetDCUA7-V2I-W13
NXP i.MX6ULL Cortex-A7, 1GB RAM, 8GB eMMC Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, -40°C - +85°C, 5V supply, Windows
SKU: NDCUA7-V2I-W13		 Request

Software

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

software accessory Display Customization (MIPI-DSI Display under Linux)
Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board.
The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display.

SKU: EW-SW-MIPI-DSI-Linux		 1,000,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €


Display und Display Kit

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15		 120,- €

armStone efus RGB Kit Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT		 170,- €


Cable

B.MKAB.23 40poles Film Cable
Film Cable, A40pol., 0,5mm, l=200mm for displays
To connect a 7" EDT Display (B.LCD.15)
SKU: B.MKAB.23		 10,- €


Adapters

I2C Extension I2C Erweiterung
Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus.
SKU: NDCU-ADP/I2C		 80,- €

JTAG Debug Adapter JTAG Debug Adapter
To program Cortex-M4.
SKU: ADP-CMSIS		 69,- €

Adapter RGB to DVI NetDCU/ PicoCOM DVI Adapter
Connects NetDCUA5/ PicoCOMA5/ A9X to a DVI/ HDMI screen.
SKU: ADP-RGB2DVI		 50,- €


Workshop

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Additional Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


Description Description

Robust Module

Many applications in the industrial and medical area demand for a high-performance module to control displays, to connect controlling elements (touch panel, key panel, incremental encoder,...) and to communicate via modern interfaces (Ethernet, USB,CAN, ...).

A special feature of this product family is the possibility to use a simple base board. The NetDCUA5 can be used easily as an upgrade for NetDCU8/10, NetDCUA5 and NetDCUA9.

Long Term Availability

This NXP Processor i.MX6ULL is available for a minimum of 10 years.



The board is equipped with up to 1GB RAM and up to 512MB SLC NAND flash or 8GB eMMC.

Various Interfaces

The module can be set up with an additional SD-Card.
The NetDCUA7 offers interfaces like USB Host/ Device, 2x LAN, RS232, 2x CAN, SPI, I²C and Audio (IN/ OUT/ MIC).

Additionally, a display interface with 86Bit colors via TTL RGB is available.

There is an interface for the connection of a resisitive touch panel and capacitive touch panels are connected via I²C.

Support

Telefon: +49 711 123722 0

Info: info@fs-net.de
Verkauf: sales@fs-net.de
Kunden-Support: support@fs-net.de
Webmaster: webmaster@fs-net.de

LinkedIn icon youtube icon twitter icon maps icon email icon

Anschrift

F&S Elektronik Systeme GmbH
Untere Waldplätze 23
70569 Stuttgart - Germany

Contact us

Datenschutzerklärung |  Disclaimer |  Impressum |  AGB |  Bestellhinweise
