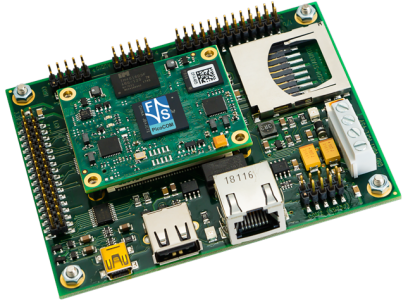

Starterkit PicoCOMA7 Linux/ Windows

Starterkit PicoCOMA7 Linux/ Windows
  299,- €
Tax not included

PicoCOMA7-V1-LIN/-WEC7/-W13, base board, cable kit, access data to documentation and software

With the starter kit, you have the option of connecting external peripherals to the PicoCOMA7 during the development phase. In its form as a plug-in module, it carries all signals to an 80-pin connector.

The base board included in the kit leads all interfaces of the PicoCOMA7 to common sockets or pin headers.

The PicoCOMA7 starter kit contains a PicoCOMA7-V1-LIN / -WEC7 / -W13 with Cortex-A7 CPU, 512MB RAM, 256MB Flash, audio, Ethernet, CAN and resistive touch controller. A boot loader and a Linux / WEC 7 / WEC 2013 kernel are already installed. For test purposes, it is also possible to install a different operating system than the pre-installed one (e.g. WEC7) and thus develop software for the PicoCOMA7.

The starter kit consists of a base board with a PicoCOMA7 and a cable set. The base board offers connection options for the following interfaces: Ethernet, USB host, USB device, 2x RS232, SD card, I²C, SPI, audio (line in, line out) and I / O ports. 5V are required as power supply. The starter kit also includes a 7 "WVGA TFT with resistive touch panel (ET070080) and the matching display adapter with film cable and touch cable. Documentation and software are available in our download area.

We also offer a four-hour workshop. The aim of the workshop is to learn how to use the PicoCOMA7 starter kit and to complete the workshop with an executable system.

PCOMA7 V3 TOP
PCOMA7-V1-LIN/-WEC7/-W13
NXP i.MX 6ULL Cortex-A7, 256MB RAM, 256MB Flash, 1x Ethernet, 1x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Linux/ Windows Embedded Compact 7/ 2013
SKU: PCOMA7-V1-LIN/-WEC7/-W13

PCOM STARTINTF2 TOP
PicoCOMA5/A9X/A7 Base Board
Offers connection options for Ethernet, USB Host, USB Device, 2x RS232, SD Karte, I²C, SPI, Audio (Line In, Line Out) and E/A-Ports.
SKU: PCOM4-SKIT-FERT1

armStone efus RGB Kit
Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT

starterkit cable kit
Cable Kit

SKU: SINTF-CABKIT

B.MKAB.23
40poles Film Cable
Film Cable, A40pol., 0,5mm, l=200mm for displays
To connect a 7" EDT Display (B.LCD.15)
SKU: B.MKAB.23

ET070080 B.LCD.15 Display
7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15

Software

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €

software accessory Display Customization (MIPI-DSI Display under Linux)
Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board.
The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display.

SKU: EW-SW-MIPI-DSI-Linux		 1,000,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €


Displays and Display Kits

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15		 120,- €

B.LCD.18 7" RGB Display with PCAP Touch
7" TFT (800x480) Display Endrich MI0700AJT-54CP with capacitive Touch
SKU: B.LCD.18		 150,- €

armStone efus RGB Kit Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT		 170,- €

armStone efus RGB Kit Displaykit RGB 2
7" WVGA Display with RGB interface and touch panel, connection cable (40pol film cable), display adapter and touch cable
SKU: aSt-RGBKIT		 170,- €

KIT TFT 7RGB Displaykit 7" RGB - PCAP Touch
7" Display with RGB interface and capacitive touch panel, connection cable (50pol film cable) and display adapter.
SKU: KIT-TFT-7RGB		 210,- €


Touch Kits

resistive Touch Kit Resistive Touch Kit
For connecting a resistive Touch panel to F&S boards with 4-poles touch connector.
SKU: SINTF-ADP-RESTOUCH		 35,- €

resistive Touch Kit armStoneA9 Resistive Touch Kit 2
For the connection of a resistive touch panel to boards with 6pol Hirose socket.
SKU: SINTF-ADP-RTI2C		 Request
SINTF ADP EDTTOUCH2 PCAP Touch Kit for EDT
Kit to connect an EDT PCAP touch panel
SKU: ADP-EDTTOUCH2		 35,- €


Cables

B.MKAB.23 40poles Film Cable
Film Cable, A40pol., 0,5mm, l=200mm for displays
To connect a 7" EDT Display (B.LCD.15)
SKU: B.MKAB.23		 10,- €

B.MKAB.23 50poles Film Cable
Cable for 7" RGB Endrich Display (B.LCD.18)
FFC cable, A50pol., pitch=0,5mm, l=200mm
SKU: B.MKAB.41		 10,- €


Adapters

I2C Extension I2C Erweiterung
Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus.
SKU: NDCU-ADP/I2C		 80,- €

armStone efus EDT Adapter Display Adapter Board to EDT Unified Series
Helps to connect a 7" WVGA display by EDT (ET070080DH6/B.LCD.15) with RGB interface and resistive touch panel
SKU: aSt-ADP-EDT1		 50,- €

Adapter RGB to DVI NetDCU/ PicoCOM DVI Adapter
Connects NetDCUA5/ PicoCOMA5/ A9X to a DVI/ HDMI screen.
SKU: ADP-RGB2DVI		 50,- €

aSt-ADP-MIT1 Adapter for Endrich iSi50 Displays
Adapter to connect Endrich iSi50 displays to F&S boards
SKU: aSt-ADP-MIT1		 50,- €


Workshops

linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


PCOMA7 SINTF Starterkit PicoCOMA7 Linux/ Windows
PicoCOMA7-V1-LIN/-WEC7/-W13, base board, cable kit, access data to documentation and software
SKU: PCOMA7-SKIT-LIN/-W13		 299,- €


Linux



Das Linux BSP (imx6-linux-3.0.35-f+s-V0.2) beinhaltet den von F&S angepassten Linux Kernel Source Code (v3.0.35), den angepassten U-Boot Source Code (2009.08) und ein angepasstes Buildroot (2012.08), sowie unsere Cross-Toolchain. Zudem sind unsere Standard Binaries des Linux Kernel Images, U-Boot und ein UBIFS Root Filesystem beigefügt. Um einen ersten Eindruck von dem Funktionsumfang der Baugruppe zu bekommen, sind in dem auf Buildroot basierenden Root Filesystem unter anderem folgende Features installiert:

Busybox 1.20.x, gdb 6.8, alsa-utils, gstreamer, directFB, fbv, X11-R7, Fluxbox, feh, openssl, openssh, freetype, glib2, tslib, libv4l, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, u.v.m.

Darüber hinaus bieten wir ein vorkonfiguriertes Ubuntu Root Filesystem an. Über die interne Paketverwaltung steht dabei eine Vielzahl weiterer Software-Pakete zu Verfügung.

Das BSP enthält neben anderen Dokumenten auch unsere First-Steps Dokumentation, sowie einige Beispielapplikationen.

Windows Embedded Compact 7

Windows Embedded Compact 7 für die QBlissA9 ist in Vorbereitung.

Windows Embedded Compact 7 auf der QBlissA9 installiert, bietet Bootloader, Schnittstellentreiber und Kernel (mit z.B. Silverlight, Mediaplayer oder IE).
Die Schnittstellentreiber fast aller angebotenen Schnittstellen stehen schon fertig zur Verfügung (Ein Zugangscode zu dieser Software liegt dem Starterkit bei).
Mühsames Arbeiten mit dem Platformbuilder entfällt, diese Arbeit haben wir Ihnen schon abgenommen.

Software wird mit Visual Studio .NET (nicht im Starterkit enthalten) in den Sprachen C, C++, C# oder VB.NET erstellt.
Verwenden Sie Schnittstellen wie z.B. I²C auf die gleiche Weise wie eine RS232 Schnittstelle ohne sich mit der darunterliegenden Hardware auseinandersetzen zu müssen.
Konfigurieren Sie das Display und andere Einstellungen mit dem F&S Konfigurationstool.

QBlissA9 - Hardware Dokumentation

Sorry, there are no files to show.

General Documentations

Sorry, there are no files to show.

PicoCOMA7 - Product Flyer

PicoCOMA7 - Hardware


PicoCOMA7 - Linux

Variants

PCOMA7 V3 TOP PCOMA7-V1-LIN/-WEC7/-W13
NXP i.MX 6ULL Cortex-A7, 256MB RAM, 256MB Flash, 1x Ethernet, 1x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Linux/ Windows Embedded Compact 7/ 2013
SKU: PCOMA7-V1-LIN/-WEC7/-W13		 Request
PCOMA7 V3 TOP PCOMA7-V3-LIN/-WEC7/-W13
NXP i.MX 6ULL Cortex-A7, 256MB RAM, 256MB Flash, 2x Ethernet, 1x CAN, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Linux/ Windows Embedded Compact 7/ 2013
SKU: PCOMA7-V3-LIN/-WEC7/-W13		 Request

Starterkits

PCOMA7 SINTF Starterkit PicoCOMA7 Linux/ Windows
PicoCOMA7-V1-LIN/-WEC7/-W13, base board, cable kit, access data to documentation and software
SKU: PCOMA7-SKIT-LIN/-W13		 299,- €
