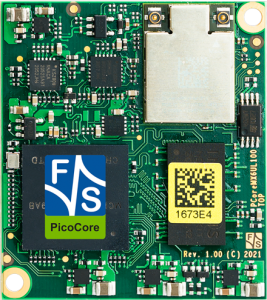

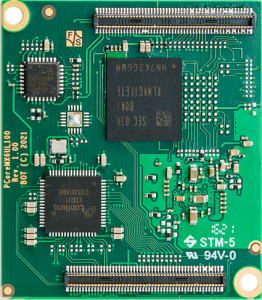

PicoCore™MX6UL100

Computer On Module with NXP i.MX 6ULL CPU

For the start of developement, we recommend

Starterkit PicoCore™MX6UL100 Linux
  360,- €
Tax not included

PicoCore™MX6UL-V4-LIN, Baseboard, 7" LVDS Display, cable kit, access data to documentation and software


RGB Starterkit PicoCore™MX6UL100 Linux
  360,- €
Tax not included

PicoCore™MX6UL-V1I-LIN, Base board, 7" RGB Display, cable kit, access data to documentation and software

PicoCore™MX6UL100
State Production
CPU
CPU NXP i.MX 6ULL
Core ARM Cortex-A7
No of Cores 1
Frequency max. 900MHz
L2-Cache 128KB
Operating System
Linux Buildroot/ Yocto
(uboot installed)
Memory
Flash max. 512MB SLC NAND
EEPROM
eMMC max. 64GB
RAM 512MB DDR3L
Interfaces
SD-Card 1x SDIO
Ethernet max. 2x 100 Mb
opt. RGMII
WiFi 802.11 ac/a/b/g/n
BT 5.0 LE
USB Host 1x 2.0
USB Device 1x OTG 2.0
CAN max. 2x
UART max. 4x
I2C max. 4x
SPI max. 2x
Audio Line In/ Out/ Mic/ Headphone
opt. I2S
Touch Panel analog resistive
und PCAP Touch
ext. via I2C
RTC PCF85263ATL
additional Interfaces max. 4x PWM,
SPDIF, ESAI,
SAI, SSI
Display
RGB 18 Bit
LVDS 1x 4 Lanes
Common
Supply Voltage +3.8V bis 5.5VDC
Power Consumption 2W typ.
Operating Temperature 0°C - +70°C
-20°C - +85°C
-40°C - +85°C
Size 35x40mm
Weight ~10g
Long Term Availability 2035


PicoCore™MX6UL100-V1I-LIN PicoCore™MX6UL100-V3I-LIN PicoCore™MX6UL100-V4-LIN
State Production Production Production
CPU - - -
CPU NXP i.MX 6ULL NXP i.MX 6ULL NXP i.MX 6ULL
Core ARM Cortex-A7 ARM Cortex-A7 ARM Cortex-A7
No of Cores 1 1 1
Frequency 800MHz 800 MHz 900 MHz
L2-Cache 128KB 128KB 128KB
Operating System - - -
Linux Buildroot/ Yocto
(uboot installed)		 Buildroot/ Yocto
(uboot installed)		 Buildroot/ Yocto
(uboot installed)
Memory - - -
Flash max. 512MB SLC NAND
EEPROM		 512MB SLC EEPROM
eMMC 4GB max. 64GB 4GB
RAM 512MB DDR3L 512MB DDR3L 512MB DDR3L
Interfaces - - -
SD-Card 1x SDIO 1x SDIO 1x external
Ethernet 2x 10/100 Mbit 2x 100 Mb 2x 100 Mb
WiFi 802.11 ac/a/b/g/n 802.11 ac/a/b/g/n 802.11 ac/a/b/g/n
BT 5.0 LE 5.0 LE 5.0 LE
USB Host 1x 2.0 1x 2.0 1x 2.0
USB Device 1x OTG 2.0 1x OTG 2.0 1x OTG 2.0
CAN max. 2x max. 2x max. 2x
UART max. 4x max. 4x max. 4x
I2C max. 4x max. 4x max. 4x
SPI max. 2x max. 2x max. 2x
Audio I2S Line In/ Out/ Mic/
Headphone		 Line In/ Out/ Mic/
Headphone
Touch Panel analog resistive
und PCAP Touch
ext. via I2C		 analog resistive
und PCAP Touch
ext. via I2C		 analog resistive
und PCAP Touch
ext. via I2C
RTC PCF85263ATL PCF85263ATL PCF85263ATL
additional Interfaces max. 4x PWM, SPDIF,
ESAI, SAI, SSI		 max. 4x PWM,
SPDIF, ESAI,
SAI, SSI		 max. 4x PWM,
SPDIF, ESAI,
SAI, SSI
Display - - -
RGB 18 Bit 18 Bit 18 Bit
LVDS 1x 4 Lanes 1x 4 Lanes 1x 4 Lanes
Common - - -
Supply Voltage +3.8V bis 5.5VDC +3.8V bis 5.5VDC +3.8V bis 5.5VDC
Power Consumption 2W typ. 2W typ. 3W typ.
Operating Temperature -20°C - +85°C -20°C - +85°C 0°C - +70°C
Size 35x40mm 35x40mm 35x40mm
Weight ~10g ~10g ~10g
Long Term Availability 2035 2035 2035
PicoCore™MX6UL100-V1I-LIN PicoCore™MX6UL100-V3I-LIN PicoCore™MX6UL100-V4-LIN

Starterkit PicoCore™MX6UL100 Linux
PicoCore™MX6UL-V4-LIN, Baseboard, 7" LVDS Display, cable kit, access data to documentation and software
SKU: PCoreMX6UL100-SKIT-LIN		 360,- €

RGB Starterkit PicoCore™MX6UL100 Linux
PicoCore™MX6UL-V1I-LIN, Base board, 7" RGB Display, cable kit, access data to documentation and software
SKU: PCoreMX6UL100-SKIT2		 360,- €


Software

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €


Displays and Display Kits

armStone efus RGB Kit Displaykit RGB 2
7" WVGA Display with RGB interface and touch panel, connection cable (40pol film cable), display adapter and touch cable
SKU: aSt-RGBKIT		 170,- €

KIT TFT 7RGB Displaykit 7" RGB - PCAP Touch
7" Display with RGB interface and capacitive touch panel, connection cable (50pol film cable) and display adapter.
SKU: KIT-TFT-7RGB		 210,- €


Touch-Kits

resistive Touch Kit armStoneA9 Resistive Touch Kit 2
For the connection of a resistive touch panel to boards with 6pol Hirose socket.
SKU: SINTF-ADP-RTI2C		 Request

Cable

B.MKAB53 LVDS Cable
LVDS cable with JAE FI X30 on one side and open ends on the other side
SKU: B.MKAB.53		 22,- €


Adapters

Plug Connector

b.mbu.2r280ps.3 PicoCore™ 100 pins Connector
To connect PicoCore™ modules to the base board (20 pcs).
SKU: B.MBU.2R100PS.3		 30,- €


Workshops

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request
linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €


Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €

SteelSpacerFamily WA SMSI M2 M2 5 SMD Steel Spacer for PicoCore™
Round SMD steel spacer/ Round Standoff Threaded M2x0.4 Steel 0.059" (1.50mm)
Helps you to connect your PicoCore module to the base board.
SKU: B.MSCHR.22		 70,- €

bant6 Patch Antenna
Patch antenna for WLAN/BT (2.4/ 5 GHz) for connection to F&S boards with WLAN/BT antenna socket.
SKU: B.ANT.6		 3,- €

kuehlkoerper Heat Sink
Finned heat sink to stick on for cooling the CPU
SKU: MHS.HS1919.1		 10,- €

MHS.PC100.1 Board Oblique Heat Spreader PicoCore100
Heat spreader for cooling PicoCore boards.
SKU: MHS.PC100.1		 10,- €

B.MKUE.5 ASSMANN VR2032N Heat Sink PicoCore100
Heat sink for cooling PicoCore boards.
SKU: MHS.PC100.2		 12,- €


Buildroot and Yocto

The Linux BSP "fsimx6ul-B2023.12" is based on Buildroot, a software for creating root file systems. About 1400 different software packages can be added to the root file system using menu control. The range of functions ranges from simple libraries and utilities to a complete Java environment to complete graphical environments such as Qt or Wayland/Weston, including applications such as an HTML5-capable web browser. In this way, it is very easy to put together a customized Linux system.

As an alternative to Buildroot, there is also a Yocto-based environment. We offer the Linux BSP fsimx6ul-Y2024.03, which is based on Yocto.

Our standard configuration, which should give a first impression of the functional scope of the module, contains the following features: Busybox, gdb, alsa-utils, gstreamer, wayland-weston, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and much more.

Both BSPs include the source code packages from U-Boot (2021.04), Linux kernel (based on 5.15.131/5.15.148) and Buildroot (2023.02.06) or Yocto (4.0) adapted by F&S. In addition, our cross toolchain is included, some sample applications and all binaries in the standard configuration. And last but not least, detailed documents on the hardware are included as well as the first steps documentation for easy entry.

F&S also offers a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora 36 distribution for free download. All packages necessary to translate our software are already installed. All services (NFS, TFTP) for working with our boards are also installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it doesn't matter whether you use Windows or Linux as the host. Simply download the VHD, import it into VirtualBox and development can begin immediately.

➜ More information about the new Buildroot Release B2023.12
➜ More information about the new YOCTO release Y2024.03

Start Your Development in Less Than an Hour - F&S Development Machine - Fedora 27

Fedora 27 is a VirtualBox Appliance based on Fedora 27, provided by F&S.
You will need less than an hour to start your development with this machine!
It is available for our customers for free.

login screen

VirtualBox is a high performance product for enterprise customers, it is also the only professional solution that is freely available as Open Source Software under the terms of the GNU General Public License (GPL) version 2.
The F&S Development Machine contains installed Board Support Packages for fsimx6, fsimx6sx, fsimx6ul and fsimx7ulp.
The F&S toolchain is installed, the source code is extracted and ready to run. Needed system packages and essential tools are installed, too.
Besides that, it contains a configured environment for Qt development (QT5) with cross-compile/debug kit, deployment strategy and demo application.

qtcreator debugging 400px

Please notice that it is required to register on our website to download this machine.

➜ Download F&S Development Machine - Fedora 27
➜ Quickstart Dokumentation

PicoCoreMX6UL100 - Product Flyer


PicoCoreMX6UL100 - Linux


PicoCoreMX6UL100 - Hardware

Variants

PCoreMX6UL100 TOP PicoCore™MX6UL100-V1I-LIN
NXP i.MX 6ULL ARM Cortex-A7, 512MB RAM, 4GB eMMC, 2x Ethernet, 2x CAN, Audio, Touch, RGB, -20°C - +85°C, 3.8V..5,5V Supply, Linux Buildroot/Yocto
SKU: PCoreMX6UL100-V1I-LIN		 Request
PCoreMX6UL100 TOP PicoCore™MX6UL100-V3I-LIN
NXP i.MX 6ULL ARM Cortex-A7, 512MB RAM, 512MB SLC NAND Flash, 2x 100Mb Ethernet, 2x CAN, Audio, Touch, LVDS, -20°C - +85°C, 3.8V..5,5V Supply, Linux Buildroot/Yocto
SKU: PCoreMX6UL100-V3I-LIN		 Request
PCoreMX6UL100 TOP PicoCore™MX6UL100-V4-LIN
NXP i.MX 6ULL ARM Cortex-A7, 1GB RAM, 4GB eMMC EEPROM Flash, 2x 100 Mb Ethernet, 2x CAN, Audio Line In/ Out/ Mic/
Headphone, WLAN 802.11 ac/a/b/g/n, BT 5.0 LE, Touch, 0°C - +70°C, 3.8V..5,5V Supply, Linux Buildroot/Yocto
SKU: PCoreMX6UL100-V4-LIN		 Request

Starterkit

Starterkit PicoCore™MX6UL100 Linux
PicoCore™MX6UL-V4-LIN, Baseboard, 7" LVDS Display, cable kit, access data to documentation and software
SKU: PCoreMX6UL100-SKIT-LIN		 360,- €

RGB Starterkit PicoCore™MX6UL100 Linux
PicoCore™MX6UL-V1I-LIN, Base board, 7" RGB Display, cable kit, access data to documentation and software
SKU: PCoreMX6UL100-SKIT2		 360,- €


Software

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €


Displays and Display Kits

armStone efus RGB Kit Displaykit RGB 2
7" WVGA Display with RGB interface and touch panel, connection cable (40pol film cable), display adapter and touch cable
SKU: aSt-RGBKIT		 170,- €

KIT TFT 7RGB Displaykit 7" RGB - PCAP Touch
7" Display with RGB interface and capacitive touch panel, connection cable (50pol film cable) and display adapter.
SKU: KIT-TFT-7RGB		 210,- €


Touch-Kits

resistive Touch Kit armStoneA9 Resistive Touch Kit 2
For the connection of a resistive touch panel to boards with 6pol Hirose socket.
SKU: SINTF-ADP-RTI2C		 Request

Cable

B.MKAB53 LVDS Cable
LVDS cable with JAE FI X30 on one side and open ends on the other side
SKU: B.MKAB.53		 22,- €


Adapters

Plug Connector

b.mbu.2r280ps.3 PicoCore™ 100 pins Connector
To connect PicoCore™ modules to the base board (20 pcs).
SKU: B.MBU.2R100PS.3		 30,- €


Workshops

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request
linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €


Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €

SteelSpacerFamily WA SMSI M2 M2 5 SMD Steel Spacer for PicoCore™
Round SMD steel spacer/ Round Standoff Threaded M2x0.4 Steel 0.059" (1.50mm)
Helps you to connect your PicoCore module to the base board.
SKU: B.MSCHR.22		 70,- €

bant6 Patch Antenna
Patch antenna for WLAN/BT (2.4/ 5 GHz) for connection to F&S boards with WLAN/BT antenna socket.
SKU: B.ANT.6		 3,- €


Computer on Module with NXP i.MX 6ULL

The PicoCore™ Computer On Module product family has a new member - the PicoCoreMX6UL100, based on the NXP i.MX 6ULL ARM® CPU. The small size (35 x 40mm) makes the module an ideal partner for compact devices. The module is characterized by low cost and low power dissipation and is ideally suited for all applications with or without display (RGB or LVDS).

Thus, this PicoCoreMX6UL100 complements the pin-compatible product family with i.MX8M Mini/ Nano and Plus at the bottom.

An NXP CPU with ARM® Cortex®-A7 core with 900MHz is used. This makes the PicoCore™MX6UL100 a very low-cost COM module. The power dissipation of about 1W is excellent for portable, battery-powered devices. This makes it excellent for projects where cost, size, and power consumption need to be kept low.

➜ more information about the NXP i.MX 6ULL applications processor

Long-term Availability until 2031

Another feature is the long availability until at least 2031.

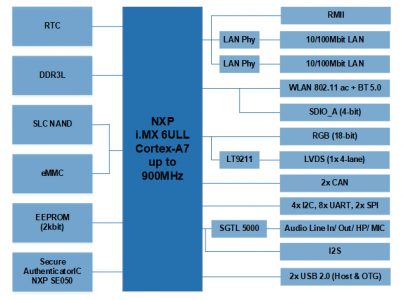

Equipment and Interfaces

The PicoCore™MX6UL100 has sufficient memory (RAM, SLC NAND Flash, eMMC Flash).

The module offers many interfaces on the 2x 100-pin connectors.



Available interfaces are 2x Ethernet or RGMII, audio codec or I2S, USB host and device, UARTs, SPIs, I2Cs GPIOs, CAN and RGB or LVDS for display control. The touch panel is connected via I2C. As an option, this PicoCore is also offered with a pre-certified WLAN (2.4/ 5GHz) and BT (5.0 LE) module with an antenna socket.

Due to the multiple assignments of signal lines of the CPU with different interfaces, it is possible to select the desired interfaces through registry entries. A list of the possible interfaces and also the pin assignment on the connector can be found in the hardware specification.

Please note that not all available interfaces are available at the same time.

Operating System

The operating system adapted for the PicoCore™MX6UL100 is Linux (Buildroot and Yocto are available) and supports all interfaces, thus ensuring simple software development without extensive hardware knowledge.
