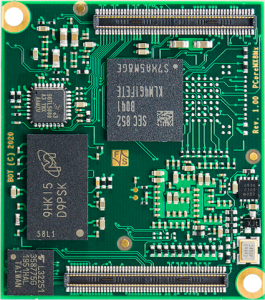

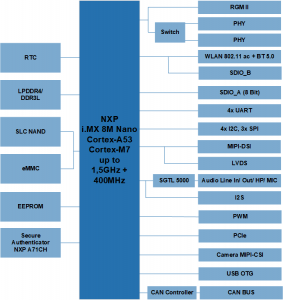

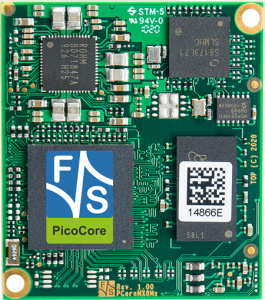

PicoCore™MX8MN

Computer On Module with NXP i.MX 8M Nano CPU

For the start of development we recommend:

Starterkit PicoCore™MX8MN Linux
  360,- €
Tax not included

PicoCore™MX8MN-V5-LIN, base board, display, cable kit, access data to documentation and Software

 The PicoCore™MX8MN is mentioned in the February issue of Computer&Automation. Read the article (German only) on page 21.

The digital magazine Elektroniknet also reports on the PicoCore™MX8MN. Read the article here (German only).

PicoCore™MX8MN
State Production
CPU
CPU NXP i.MX 8M Nano
Core ARM Cortex-A53 + Cortex-M7
No of Cores 1, 2, 4 + M7
Frequency max. 1,5GHz + 650MHz
L2-Cache 512KB
GPU 3D GC7000 UltraLite (2 shader)
Operating System
Linux Buildroot/ Yocto
(uboot installed)
Real Time FreeRTOS
Memory
Flash max. 512MB SLC NAND
eMMC max. 64GB
RAM max. 4GB LPDDR4/ DDR3L
Interfaces
SD-Card 2x extern
Ethernet max. 2x 100/1000Mb
opt. RGMII
USB Device 1x OTG 2.0
CAN 1x
UART max. 4x
I2C max. 4x
SPI max. 2x
Audio Line In/ Out/ Mic/ Headphone/I2S
Touch Panel analog resistive and PCAP Touch ext. via I2C
Camera analog/digital MIPI-CSI
RTC external
additional Interfaces max. 4x PWM, SPDIF, ESAI, SAI, SSI
Display
LVDS 1x 24bit
MIPI-DSI 1x 4 Lanes
Common
Supply Voltage +3.8V bis 5.5VDC
Power Consumption 2W typ.
Operating Temperature 0°C - +70°C
opt. -20°C - +85°C
Size 35x40mm
(LxB)
Weight ~10g
Long Term Availability 2034


PicoCore™MX8MN-V1-LIN PicoCore™MX8MN-V5-LIN
State Production MOQ 500 pieces Production
CPU - -
CPU NXP i.MX 8M Nano NXP i.MX 8M Nano
Core ARM Cortex-A53 + Cortex-M7 ARM Cortex-A53 + Cortex-M7
No of Cores 4 4
Frequency 1,5GHz + 650MHz 1.5GHz + 630MHz
L2-Cache 512KB 512KB
GPU 3D GC7000 UltraLite (2 shader) 3D GC7000 UltraLite (2 shader)
Operating System - -
Linux Buildroot/ Yocto
(uboot installed)		 Buildroot/ Yocto
(uboot installed)
Real Time FreeRTOS FreeRTOS
Memory - -
Flash 256MB NAND 4GB eMMC
eMMC max. 64GB max. 64GB
RAM 256MB DDR3L 512MB DDR3L
Interfaces - -
SD-Card 2x extern 2x external
Ethernet - 2x 100/1000Mb
USB Device 1x OTG 2.0 1x OTG 2.0
CAN - 1x
UART max. 4x max. 4x
I2C max. 4x max. 4x
SPI max. 2x max. 2x
Audio I2S Line In/Out/Mic/Headphone
Touch Panel analog resistive and PCAP Touch ext. via I2C analog resistive and PCAP Touch ext. via I2C
Camera analog/digital MIPI-CSI MIPI-CSI
RTC external external
additional Interfaces max. 8x PWM, SPDIF, ESAI, SAI, SSI, ADR Data Bus max. 8x PWM, SPDIF, ESAI, SAI, SSI, ADR Data Bus
Display - -
LVDS - 2x 24bit
MIPI-DSI 1x 4 Lanes -
Common - -
Supply Voltage +3.8V bis 5.5VDC +3.8V bis 5.5VDC
Power Consumption 2W typ. 2W typ.
Operating Temperature 0°C - +70°C 0°C - +70°C
Size 35x40mm
(LxB)		 35x40mm
(LxB)
Weight ~10g ~10g
Long Term Availability 2034 2034
PicoCore™MX8MN-V1-LIN PicoCore™MX8MN-V5-LIN

PCoreMX8MN V5 SINTF OBLIQUE Starterkit PicoCore™MX8MN Linux
PicoCore™MX8MN-V5-LIN, base board, display, cable kit, access data to documentation and Software
SKU: PCoreMX8MN-SKIT-LIN		 360,- €


Software

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €

software accessory Display Customization (MIPI-DSI Display under Linux)
Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board.
The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display.

SKU: EW-SW-MIPI-DSI-Linux		 1,000,- €


Displays

BLCD22front 3.5" MIPI-DSI Display with PCAP Touch (long-term available)
3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch)
SKU: B.LCD.22		 80,- €


Touch Kits

resistive Touch Kit Resistive Touch Kit
For connecting a resistive Touch panel to F&S boards with 4-poles touch connector.
SKU: SINTF-ADP-RESTOUCH		 35,- €

resistive Touch Kit armStoneA9 Resistive Touch Kit 2
For the connection of a resistive touch panel to boards with 6pol Hirose socket.
SKU: SINTF-ADP-RTI2C		 Request

Cables

B.MKAB53 LVDS Cable
LVDS cable with JAE FI X30 on one side and open ends on the other side
SKU: B.MKAB.53		 22,- €

B.MKAB.23 30poles Film Cable
Film cable, 30pol., 0,5mm, l=100mm for displays
To connect our B.LCD.22 display via ADP-MIPI2MIPI1
SKU: B.MKAB.55		 10,- €

B.MKAB LVDS/MIPI Adapter Cable
LVDS/MIPI cable with two 30pin connectors each (JAE X30HL-B to JAE X30HL-B)
SKU: B.MKAB.44		 22,- €


Adapters

ADP-MIPICAM1 MIPI Camera Kit
Adapter module with camera
SKU: ADP-MIPICAM1		 100,- €

MIPI-DSI to LVDS Adapter
Allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket.
SKU: ADP-MIPI2LVDS1		 25,- €

ADP mPCIe WLAN OBLIQUE mPCIe Module with WLAN/BT
mPCIe-Full-Mini Type F1 or mPCIe-Half-Mini Type H1 module with WLAN 2.4/ 5 GHz und BT5.0 LE

SKU: ADP-mPCIe-WLAN		 40,- €

ADP MIPI2RGB1 (quer) Adapter board MIPI-DSI (JILI30) to RGB for EDT Unified Series
Enables conversion of MIPI-DSI (JILI30) to RGB signals.
SKU: ADP-MIPI2RGB1		 30,- €

ADP MIPI2MIPI1 MIPI-DSI (FFC) to MIPI-DSI (JILI30) Adapter
Enables the conversion of 30pol FFC connections of the 3.5" MIPI Display from F&S to JILI30 (JAE X30HL-B).
SKU: ADP-MIPI2MIPI1 		25,- €


Plug Connector

b.mbu.2r280ps.3 PicoCore™ 100 pins Connector
To connect PicoCore™ modules to the base board (20 pcs).
SKU: B.MBU.2R100PS.3		 30,- €


Workshops

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request
linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €


Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €

SteelSpacerFamily WA SMSI M2 M2 5 SMD Steel Spacer for PicoCore™
Round SMD steel spacer/ Round Standoff Threaded M2x0.4 Steel 0.059" (1.50mm)
Helps you to connect your PicoCore module to the base board.
SKU: B.MSCHR.22		 70,- €

MHS.PC100.1 Board Oblique Heat Spreader PicoCore100
Heat spreader for cooling PicoCore boards.
SKU: MHS.PC100.1		 10,- €


Buildroot and Yocto

The Linux BSP "fsimx8mn-B2020.xx" is based on Buildroot, a software for the creation of root file systems. About 1400 different software packages can be added to the root file system via Buildroot. The range of functions extends from simple libraries and utilities to a complete Java environment to complete graphical environments such as Qt or Wayland / Weston, including applications such as an HTML5-capable web browser. In this way, a tailor-made Linux system can be put together very easily.

As an alternative to Buildroot, there will also be a Yocto-based environment. We offer the Linux BSP fsimx8mn-Y2020.xx, which is based on Yocto.

Our standard configuration, which is intended to give a first impression of the functional range of the board, includes the following features: busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and many more.

Both BSPs will contain the source code packages of U-Boot, Linux kernel and buildroot or Yocto, which have been adapted by F&S. Also included is our cross toolchain, some sample applications, and all binaries in the standard configuration. And last but not least, detailed documents about the hardware are included as well as the first-steps documentation for an easy start.

F&S will offer a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora 27 distribution for free download. All packages necessary to compile our software are already installed. Also all services (NFS, TFTP) for working with our boards are installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it does not matter if you use Windows or Linux as host. Just download the VHD, import it into VirtualBox and the development can start immediately.

➜ Mehr Informationen über das neue Buildroot Release B2023.11
➜ Mehr Informationen über das neue Yocto Release Y2024.02



PicoCoreMX8MN - Product Flyer


PicoCoreMX8MN - Hardware


PicoCoreMX8MN - Linux



Variants

pcoremx8mn v1 preis1 PicoCore™MX8MN-V1-LIN
NXP i.MX 8M Nano ARM Cortex-A53 + Cortex-M7, 256MB RAM, 256MB Flash, Audio, MIPI-CSI Camera, Touch, MIPI-DSI, 0°C - +70°C, 3.8V Supply, Linux Buildroot/ Yocto, FreeRTOS
SKU: PCoreMX8MN-V1-LIN		 Request
PCoreMX8MN V5 TOP PicoCore™MX8MN-V5-LIN
NXP i.MX 8M Nano ARM Cortex-A53 + Cortex-M7, 512MB RAM, 4GB eMMC, 2x Gbit Ethernet, 1x CAN, Audio, MIPI-CSI Camera, Touch, LVDS, 0°C - +70°C, 3.8V Supply, Linux Buildroot/ Yocto, FreeRTOS
SKU: PCoreMX8MN-V5-LIN		 Request

Starterkit

PCoreMX8MN V5 SINTF OBLIQUE Starterkit PicoCore™MX8MN Linux
PicoCore™MX8MN-V5-LIN, base board, display, cable kit, access data to documentation and Software
SKU: PCoreMX8MN-SKIT-LIN		 360,- €


Software

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €

software accessory Display Customization (MIPI-DSI Display under Linux)
Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board.
The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display.

SKU: EW-SW-MIPI-DSI-Linux		 1,000,- €


Displays

BLCD22front 3.5" MIPI-DSI Display with PCAP Touch (long-term available)
3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch)
SKU: B.LCD.22		 80,- €


Touch Kits

resistive Touch Kit Resistive Touch Kit
For connecting a resistive Touch panel to F&S boards with 4-poles touch connector.
SKU: SINTF-ADP-RESTOUCH		 35,- €

resistive Touch Kit armStoneA9 Resistive Touch Kit 2
For the connection of a resistive touch panel to boards with 6pol Hirose socket.
SKU: SINTF-ADP-RTI2C		 Request

Cables

B.MKAB53 LVDS Cable
LVDS cable with JAE FI X30 on one side and open ends on the other side
SKU: B.MKAB.53		 22,- €

B.MKAB.23 30poles Film Cable
Film cable, 30pol., 0,5mm, l=100mm for displays
To connect our B.LCD.22 display via ADP-MIPI2MIPI1
SKU: B.MKAB.55		 10,- €


Adapters

ADP-MIPICAM1 MIPI Camera Kit
Adapter module with camera
SKU: ADP-MIPICAM1		 100,- €

MIPI-DSI to LVDS Adapter
Allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket.
SKU: ADP-MIPI2LVDS1		 25,- €

ADP mPCIe WLAN OBLIQUE mPCIe Module with WLAN/BT
mPCIe-Full-Mini Type F1 or mPCIe-Half-Mini Type H1 module with WLAN 2.4/ 5 GHz und BT5.0 LE

SKU: ADP-mPCIe-WLAN		 40,- €

ADP MIPI2RGB1 (quer) Adapter board MIPI-DSI (JILI30) to RGB for EDT Unified Series
Enables conversion of MIPI-DSI (JILI30) to RGB signals.
SKU: ADP-MIPI2RGB1		 30,- €

ADP MIPI2MIPI1 MIPI-DSI (FFC) to MIPI-DSI (JILI30) Adapter
Enables the conversion of 30pol FFC connections of the 3.5" MIPI Display from F&S to JILI30 (JAE X30HL-B).
SKU: ADP-MIPI2MIPI1 		25,- €


Plug Connector

b.mbu.2r280ps.3 PicoCore™ 100 pins Connector
To connect PicoCore™ modules to the base board (20 pcs).
SKU: B.MBU.2R100PS.3		 30,- €


Workshops

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request
linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €


Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €

SteelSpacerFamily WA SMSI M2 M2 5 SMD Steel Spacer for PicoCore™
Round SMD steel spacer/ Round Standoff Threaded M2x0.4 Steel 0.059" (1.50mm)
Helps you to connect your PicoCore module to the base board.
SKU: B.MSCHR.22		 70,- €
