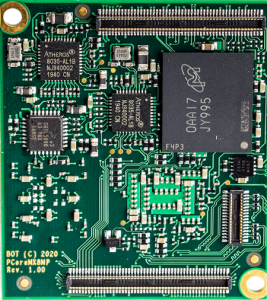

PicoCore™MX8MP

Computer On Module with NXP i.MX 8M Plus CPU

The PicoCore™MX8MP is mentioned in the February issue of Computer&Automation. Read the article (German only) on page 21.

The digital magazine Elektroniknet reports about the PicoCore™MX8MP. Read the article here (German only).

The PicoCore™MX8MP is also featured on HackerBoards, one of the largest databases for SBCs in the world (English only).

CNX Software introduces NXP i.MX 8M Plus modules. Read the article on the PicoCore™MX8MP here.

Electronics-lab reports about the PicoCore™MX8MP module as well. Read the article here.

	PicoCore™MX8MP
State	Production
CPU
CPU	NXP i.MX 8M Plus
Core	ARM Cortex-A53 + Cortex-M7
No of Cores	2, 4 + M7
Frequency	max. 1,8GHz + 800MHz
L2-Cache	512KB
GPU	3D/2D, ES 3.1/3.0, CL™ 1.2 VG™ 1.1
VPU	1080p60, h.265/4, VP9, VP8, Video Encode: 1080p60, h.265/4
Operating System
Linux	Yocto (uboot installed)
Real Time	FreeRTOS
Memory
Flash	EEPROM
eMMC	max.64GB
RAM	max. 8GB LPDDR4
Interfaces
SD-Card	max. 2x external
Ethernet	max. 2x 100/1000Mb opt. RGMII
WiFi	802.11 ac/a/b/g/n
BT	5.0 LE
USB Host	1x 2.0/ 3.0
USB Device	1x OTG 2.0/ 3.0
CAN	max. 2x
UART	max. 4x
I2C	max. 4x
SPI	max. 2x
Audio	Line In/ Out/ Mic/ Headphone/ I2S
Touch Panel	analog resistive and PCAP Touch ext. via I2C
Camera analog/digital	max. 2x MIPI-CSI
PCIe	1x
RTC	CPU or external IC
additional Interfaces	max. 4x PWM, SPDIF, ESAI, SAI, SSI
Display
LVDS	1-2x 4 Lanes or 1x 8 Lanes
CRT/DVI	-/1x
MIPI-DSI	1x 4 Lanes
Common
Supply Voltage	+3.8V bis 5.5VDC
Power Consumption	3W typ.
Operating Temperature	0°C - +70°C opt. -20°C - +85°C opt. -40°C - +85°C
Size	35x40mm (LxB)
Weight	~10g
Long Term Availability	2036

	PicoCore™MX8MPr2-V2-LIN	PicoCore™MX8MPr2-V3I-LIN	PicoCore™MX8MPr2-V3XI-LIN	PicoCore™MX8MP-V4I-LIN	PicoCore™MX8MPr2-V4XI-LIN	PicoCore™MX8MP-V5I-W10
State	Production	Production	Production	Production	Production	Production
CPU	-	-	-	-	-	-
CPU	NXP i.MX 8M Plus	NXP i.MX 8M Plus	NXP i.MX 8M Plus	NXP i.MX 8M Plus	NXP i.MX 8M Plus	NXP i.MX 8M Plus
Core	ARM Cortex-A53 + Cortex-M7	ARM Cortex-A53 + Cortex-M7 NPU, ISP, HIFI4	ARM Cortex-A53 + Cortex-M7 NPU, ISP, HIFI4	ARM Cortex-A53 + Cortex-M7 NPU, ISP, HIFI4	ARM Cortex-A53 + Cortex-M7 NPU, ISP, HIFI4	ARM Cortex-A53 + Cortex-M7 NPU, ISP, HIFI4
No of Cores	4x A53 + 1x M7	4x A53 + 1x M7	4x A53 + 1x M7	4x A53 + 1x M7	4x A53 + 1x M7	4x A53 + 1x M7
Frequency	1,8GHz + 800MHz	1,6GHz + 800MHz	1,6GHz + 800MHz	1,6GHz + 800MHz	1,6GHz + 800MHz	1,6GHz + 800MHz
L2-Cache	512KB	512KB	512KB	512KB	512KB	512KB
GPU	3D/2D, ES 3.1/3.0, CL™ 1.2 VG™ 1.1	3D/2D, ES 3.1/3.0, CL™ 1.2 VG™ 1.1	3D/2D, ES 3.1/3.0, CL™ 1.2 VG™ 1.1	3D/2D graphic acceleration ES 3.1/3.0, CL™ 1.2 VG™ 1.1	3D/2D graphic acceleration ES 3.1/3.0, CL™ 1.2 VG™ 1.1	3D/2D graphic acceleration ES 3.1/3.0, CL™ 1.2 VG™ 1.1
VPU	-	1080p60, h.265/4, VP9, VP8, Video Encode: 1080p60, h.265/4	1080p60, h.265/4, VP9, VP8, Video Encode: 1080p60, h.265/4	1080p60, h.265/4, VP9, VP8 Video Encode: 1080p60, h.265/4	1080p60, h.265/4, VP9, VP8 Video Encode: 1080p60, h.265/4	1080p60, h.265/4, VP9, VP8 Video Encode: 1080p60, h.265/4
Operating System	-	-	-	-	-	-
Linux	Yocto (uboot installed)	Buildroot/ Yocto (uboot installed)	Yocto (uboot installed)	Yocto (uboot installed)	Yocto (uboot installed)	-
Windows	-	-	-	-	-	10 IoT Enterprise
Real Time	FreeRTOS	FreeRTOS	FreeRTOS	FreeRTOS	FreeRTOS	-
Memory	-	-	-	-	-	-
Flash	4GB eMMC	8GB eMMC 2k EEPROM	8GB eMMC 2k EEPROM	8GB eMMC 2k EEPROM	8GB eMMC 2k EEPROM	2kbit EEPROM
eMMC	max.64GB	max.64GB	max.64GB	max.64GB	max.64GB	32GB
RAM	1GB LPDDR4	2GB LPDDR4	2GB LPDDR4	2GB LPDDR4	2GB LPDDR4	4GB LPDDR4
Interfaces	-	-	-	-	-	-
SD-Card	1x extern	1x extern	1x extern	1x extern	1x external	1x external
Ethernet	2x GBit LAN	2x 100/1000Mb	2x 100/1000Mb	2x 100/1000Mb	2x 100/1000Mb	2x 100/1000Mb
WiFi	-	802.11 ac/a/b/g/n	802.11 ac/a/b/g/n	802.11 ac/a/b/g/n	802.11 ac/a/b/g/n	-
BT	-	5.0 LE	5.0 LE	5.0 LE	5.0 LE	-
USB Host	1x 2.0	1x 3.0	1x 3.0	1x 3.0	1x 3.0	1x 3.0
USB Device	1x OTG 2.0	1x OTG 3.0	1x OTG 3.0	1x OTG 3.0	1x OTG 3.0	1x OTG 3.0
CAN	2x	max. 2x	max. 2x	2x	2x	2x
UART	max. 4x	max. 4x	max. 4x	max. 4x	max. 4x	max. 4x
I2C	max. 4x	max. 4x	max. 4x	max. 4x	max. 4x	max. 4x
SPI	max. 2x	max. 2x	max. 2x	max. 2x	max. 2x	max. 2x
Audio	Line In/ Out/ Mic/ Headphone	Line In/ Out/ Mic/ Headphone	Line In/ Out/ Mic/ Headphone	Line In/ Out/ Mic/ Headphone	Line In/ Out/ Mic/ Headphone	Line In/ Out/ Mic/ Headphone
Touch Panel	analog resistive and PCAP Touch ext. via I2C	analog resistive and PCAP Touch ext. via I2C	analog resistive and PCAP Touch ext. via I2C	analog resistive and PCAP Touch ext. via I2C	analog resistive and PCAP Touch ext. via I2C	analog resistive and PCAP Touch ext. via I2C
Camera analog/digital	1x MIPI CSI	2x MIPI CSI	2x MIPI-CSI	2x MIPI-CSI	2x MIPI-CSI	2x MIPI-CSI
PCIe	1x	1x	1x	1x	1x	1x
RTC	external IC	external IC	external IC	external IC	external IC	PCF85263ATL
additional Interfaces	max. 4x PWM, SPDIF, ESAI, SAI, SSI	max. 4x PWM, SPDIF, ESAI, SAI, SSI	max. 4x PWM, SPDIF, ESAI, SAI, SSI	max. 4x PWM, SPDIF, ESAI, SAI, SSI	max. 4x PWM, SPDIF, ESAI, SAI, SSI	max. 4x PWM, SPDIF, ESAI, SAI, SSI
Display	-	-	-	-	-	-
LVDS	1x 8 Lanes	-	-	1x 4 Lanes	1x 4 Lanes	1x 4 Lanes
CRT/DVI	-	1x DVI	1x DVI	-	-	-
MIPI-DSI	-	1x 4 Lanes	1x 4 Lanes	1x 4 Lanes	1x 4 Lanes	1x 4 Lanes
Common	-	-	-	-	-	-
Supply Voltage	+3.8V bis 5.5VDC	+3.8V bis 5.5VDC	+3.8V bis 5.5VDC	+3.8V bis 5.5VDC	+3.8V bis 5.5VDC	+3.8V bis 5.5VDC
Power Consumption	3W typ.	4W typ.	4W typ.	3W typ.	3W typ.	3W typ.
Operating Temperature	0°C - +70°C	-20°C - +85°C	-40°C - +85°C	-20°C - +85°C	-40°C - +85°C	-20°C - +85°C
Size	35x40mm (LxB)	35x40mm (LxB)	35x40mm (LxB)	35x40mm (LxB)	35x40mm (LxB)	35x40mm (LxB)
Weight	~10g	~10g	~10g	~10g	~10g	~10g
Long Term Availability	2036	2036	2036	2036	2036	2036
	PicoCore™MX8MPr2-V2-LIN	PicoCore™MX8MPr2-V3I-LIN	PicoCore™MX8MPr2-V3XI-LIN	PicoCore™MX8MP-V4I-LIN	PicoCore™MX8MPr2-V4XI-LIN	PicoCore™MX8MP-V5I-W10

	Starterkit PicoCore™MX8MP Linux NXP i.MX 8MP Evaluation Board PCoreMX8MPr2-V4I-LIN, baseboard, display, cable kit, access data to documentation and software SKU: PCoreMX8MP-SKIT-LIN	360,- €
	Starterkit PicoCore™MX8MP Windows 10 IoT NXP i.MX8M Plus with Windows 10 IoT evaluation kit. Includes carrier board, 7" LVDS PCAP display and access to software and documentation. SKU: PCoreMX8MP-SKIT-W	360,- €

Software

	Secure Boot as a Service The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme. SKU: Linux-SBS	500,- €
	Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW	700,- €
	Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux	1,000,- €

Displays

3.5" MIPI-DSI Display with PCAP Touch (long-term available)
3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch)
SKU: B.LCD.22

80,- €

Touch Kits

	Resistive Touch Kit For connecting a resistive Touch panel to F&S boards with 4-poles touch connector. SKU: SINTF-ADP-RESTOUCH	35,- €
	Resistive Touch Kit 2 For the connection of a resistive touch panel to boards with 6pol Hirose socket. SKU: SINTF-ADP-RTI2C	Request

Cables

	LVDS Cable LVDS cable with JAE FI X30 on one side and open ends on the other side SKU: B.MKAB.53	22,- €
	30poles Film Cable Film cable, 30pol., 0,5mm, l=100mm for displays To connect our B.LCD.22 display via ADP-MIPI2MIPI1 SKU: B.MKAB.55	10,- €
	LVDS/MIPI Adapter Cable LVDS/MIPI cable with two 30pin connectors each (JAE X30HL-B to JAE X30HL-B) SKU: B.MKAB.44	22,- €

Adapters

	MIPI-DSI to LVDS Adapter Allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket. SKU: ADP-MIPI2LVDS1	25,- €
	mPCIe Module with WLAN/BT mPCIe-Full-Mini Type F1 or mPCIe-Half-Mini Type H1 module with WLAN 2.4/ 5 GHz und BT5.0 LE SKU: ADP-mPCIe-WLAN	40,- €
	Adapter board MIPI-DSI (JILI30) to RGB for EDT Unified Series Enables conversion of MIPI-DSI (JILI30) to RGB signals. SKU: ADP-MIPI2RGB1	30,- €
	MIPI-DSI (FFC) to MIPI-DSI (JILI30) Adapter Enables the conversion of 30pol FFC connections of the 3.5" MIPI Display from F&S to JILI30 (JAE X30HL-B). SKU: ADP-MIPI2MIPI1	25,- €

Plug Connector

PicoCore™ 100 pins Connector
To connect PicoCore™ modules to the base board (20 pcs).
SKU: B.MBU.2R100PS.3

30,- €

Workshops

	Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1	Request
	Secure Boot as a Package Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software. SKU: WS-SBP	500,- €

Other Accessories

	USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1	20,- €
	SMD Steel Spacer for PicoCore™ Round SMD steel spacer/ Round Standoff Threaded M2x0.4 Steel 0.059" (1.50mm) Helps you to connect your PicoCore module to the base board. SKU: B.MSCHR.22	70,- €
	Patch Antenna Patch antenna for WLAN/BT (2.4/ 5 GHz) for connection to F&S boards with WLAN/BT antenna socket. SKU: B.ANT.6	3,- €
	Heat Sink Finned heat sink to stick on for cooling the CPU SKU: MHS.HS1919.1	10,- €
	Heat Spreader PicoCore100 Heat spreader for cooling PicoCore boards. SKU: MHS.PC100.1	10,- €
	Heat Sink PicoCore100 Heat sink for cooling PicoCore boards. SKU: MHS.PC100.2	12,- €

Varianten

	PicoCore™MX8MPr2-V2-LIN NXP i.MX 8M Plus ARM Cortex-A53 + Cortex-M7, 1GB LPDDR4 RAM, 4GB eMMC, 1x 100/1000Mb Ethernet, Audio Line In/ Out/ Mic/ Headphone , PCIe, MIPI-CSI Kamera, Touch, LVDS, 0°C - +70°C, 3.8V to 5.5VDC Supply, Linux Buildroot/ Yocto, FreeRTOS SKU: PCoreMX8MPr2-V2-LIN	Request
	PicoCore™MX8MPr2-V3I-LIN NXP i.MX 8M Plus ARM Cortex-A53 + Cortex-M7, 2GB LPDDR4 RAM, 8GB eMMC 2k EEPROM, 2x 100/1000Mb Ethernet, Audio Line In/ Out/ Mic/ Headphone , PCIe, 2x MIPI-CSI Kamera, Touch, DVI, -20°C - +85°C, 3.8V to 5.5VDC Supply, Linux Buildroot/ Yocto, FreeRTOS SKU: PCoreMX8MPr2-V3I-LIN	Request
	PicoCore™MX8MPr2-V3XI-LIN NXP i.MX 8M Plus ARM Cortex-A53 + Cortex-M7, 2GB LPDDR4 RAM, 8GB eMMC 2k EEPROM, 2x 100/1000Mb Ethernet, Audio Line In/ Out/ Mic/ Headphone , PCIe, 2x MIPI-CSI Kamera, Touch, DVI, -40°C - +85°C, 3.8V to 5.5VDC Supply, Linux Buildroot/ Yocto, FreeRTOS SKU: PCoreMX8MPr2-V3XI-LIN	Request
	PicoCore™MX8MP-V4I-LIN NXP i.MX 8M Plus ARM Cortex-A53 + Cortex-M7, 2GB LPDDR4 RAM, 8GB eMMC 2k EEPROM, 2x Gigabit Ethernet, Audio, WLAN, BT, PCIe, MIPI-CSI Camera, Touch, LVDS, MIPI-DSI, -20°C - +85°C, 3.8V Supply, Linux Buildroot/ Yocto, FreeRTOS SKU: PCoreMX8MPr2-V4I-LIN	Request
	PicoCore™MX8MPr2-V4XI-LIN NXP i.MX 8M Plus ARM Cortex-A53 + Cortex-M7, 2GB LPDDR4 RAM, 8GB eMMC 2k EEPROM, 2x Gigabit Ethernet, Audio, WLAN, BT, PCIe, MIPI-CSI Camera, Touch, LVDS, MIPI-DSI, -40°C - +85°C, 3.8V Supply, Linux Buildroot/ Yocto, FreeRTOS SKU: PCoreMX8MPr2-V4XI-LIN	Request
	PicoCore™MX8MP-V5I-W10 NXP i.MX8M Plus Quad 1,6GHz, 4GB DRAM, 32GB eMMC, 1xMIPI-DSI, 1xLVDS, 2xGbit LAN, 2x MIPI-CSI, Audio Codec, RTC, SECO, no WLAN/BT 2x 100pol Stecker, 1x 30pol Stecker -25°C .. +85°C Win 10 IOT LTSC License SKU: PCoreMX8MPr2-V5I-W10	Request

Starterkit

	Starterkit PicoCore™MX8MP Linux NXP i.MX 8MP Evaluation Board PCoreMX8MPr2-V4I-LIN, baseboard, display, cable kit, access data to documentation and software SKU: PCoreMX8MP-SKIT-LIN	360,- €
	Starterkit PicoCore™MX8MP Windows 10 IoT NXP i.MX8M Plus with Windows 10 IoT evaluation kit. Includes carrier board, 7" LVDS PCAP display and access to software and documentation. SKU: PCoreMX8MP-SKIT-W	360,- €

Yocto Release Y2024.07

For the CPU NXP i.MX8M Plus F&S offers a Yocto based environment. We offer the Linux BSP fsimx8mp-Y2024.07, which is based on Yocto.

Our standard configuration, which is intended to give a first impression of the functionality of the board, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and many more.

The BSP contains the source code packages of U-Boot (2021.04), Linux kernel (based on 5.15.160) and Yocto (4.0.20 Kirkstone) adapted by F&S. Also included is our cross toolchain, some sample applications, and all binaries in the default configuration. Last but not least, detailed documents on the hardware are included, as well as the First Steps documentation for an easy start.

F&S offer a virtual machine (based on VirtualBox) with an installed Linux based on the distribution Fedora 36 for free download. All packages necessary to compile our software are already installed. Also, all services (NFS, TFTP) for working with our boards are installed. Our BSP is unpacked and precompiled in the correct directories. With this virtual machine it doesn't matter if you use Windows or Linux as host. Simply download the VHD, import it into VirtualBox and development can begin immediately.

➜ More information about the new Yocto release Y2024.07

Development start in under an hour
F&S Development Machine - Fedora 36

For a quick start into development with Linux we provide a VirtualBox-based virtual hard disk VHD for download. The VHD uses Fedora 36as Linux distribution.

With this machine you can start your development in less than an hour.

The machine is free of charge for our customers.

VirtualBox is a powerful product for corporate customers and at the same time the only professional solution which is freely available as Open Source Software under the terms of the GNU General Public License Version 2.
The F&S Development Machine contains pre-installed board support packages for fsimx8mm, fsimx8mn and fsimx8mp (64 bit CPU).
The appropriate F&S toolchain is installed in the VHD, the source code is extracted and ready to use.
Necessary system packages and tools are also already installed.
Furthermore, it contains a configured environment for QT development with cross-compile/debug kit, deployment strategy and demo application.
