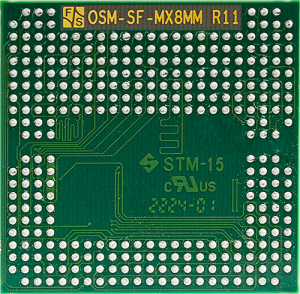

FS 8MM OSM-SF
OSM size S with NXP i.MX 8M Mini Processor
|
|
Für den Start in die Entwicklung empfehlen wir: |
The news platform CNX-Software reports on the OSM module FS 8MM by F&S. Read the article here.
| FS 8MM OSM-SF | ||
| State | Samples | |
| CPU | ||
| CPU | NXP i.MX 8M Mini | |
| Core | ARM Cortex-A53 Cortex-M4 |
|
| No of Cores | 1/2/4 A53 + M4 | |
| Frequency | max. 1.8GHz + 400MHz | |
| L2-Cache | 512kB | |
| GPU | 2D, 3D | |
| VPU | 1080p60 HEVC H.265, VP9, H.264, VP8 | |
| Operating System | ||
| Linux | Yocto (uboot installed) |
|
| Real Time | FreeRTOS | |
| Memory | ||
| Flash | 64 kbit EEPROM | |
| eMMC | max. 64GB | |
| RAM | max. 8GB LPDDR4 | |
| Interfaces | ||
| SD-Card | 2x SDIO | |
| Ethernet | 1x RGMII | |
| USB Host | 1x OTG 2.0 | |
| USB Device | 1x OTG 2.0 | |
| UART | 4x | |
| I2C | 4x | |
| SPI | 2x | |
| Audio | 1x I2S | |
| Digital I/O | 22 GPIO_A/_B/_C |
|
| Touch Panel | Touch via I2C | |
| Camera analog/digital | MIPI-CSI (4 lanes) |
|
| PCIe | 1x | |
| RTC | PCF85263ATL | |
| additional Interfaces | 3x PWM, BL-PWM | |
| Display | ||
| MIPI-DSI | 1x 4 Lanes | |
| Common | ||
| Supply Voltage | 5V DC/±5% | |
| Power Consumption | 3W typ. | |
| Operating Temperature | 0°C - +70°C -25°C - +85°C -40°C - +85°C |
|
| Size | 30x30mm | |
| Weight | ~5g | |
| Long Term Availability | 2034 |
| FS 8MM OSM-SF-V1I | FS 8MM OSM-SF-V2I | |
| State | Samples | Samples |
| CPU | - | - |
| CPU | NXP i.MX 8M Mini | NXP i.MX 8M Mini |
| Core | ARM Cortex-A53 Cortex-M4 |
ARM Cortex-A53 Cortex-M4 |
| No of Cores | 1/2/4 A53 + M4 | 1/2/4 A53 + M4 |
| Frequency | 1,6GHz + 400MHz | 1,6GHz + 400MHz |
| L2-Cache | 512kB | 512kB |
| GPU | 2D, 3D | 2D, 3D |
| VPU | 1080p60 HEVC H.265, VP9, H.264, VP8 | 1080p60 HEVC H.265, VP9, H.264, VP8 |
| Operating System | - | - |
| Linux | Yocto (uboot installed) |
Yocto (uboot installed) |
| Real Time | FreeRTOS | FreeRTOS |
| Memory | - | - |
| Flash | 64 kbit EEPROM | 64 kbit EEPROM |
| eMMC | 8GByte | 16GByte |
| RAM | 1GByte LPDDR4 | 2GByte LPDDR4 |
| Interfaces | - | - |
| SD-Card | 2x SDIO | 2x SDIO |
| Ethernet | 1x RGMII | 1x RGMII |
| USB Host | 1x OTG 2.0 | 1x OTG 2.0 |
| USB Device | 1x OTG 2.0 | 1x OTG 2.0 |
| UART | 4x | 4x |
| I2C | 4x | 4x |
| SPI | 2x | 2x |
| Audio | 1x I2S | 1x I2S |
| Digital I/O | 22 GPIO_A/_B/_C |
22 GPIO_A/_B/_C |
| Touch Panel | Touch via I2C | Touch via I2C |
| Camera analog/digital | MIPI-CSI (4 lanes) |
MIPI-CSI (4 lanes) |
| PCIe | 1x | 1x |
| RTC | PCF85263ATL | PCF85263ATL |
| additional Interfaces | 3x PWM, BL-PWM | 3x PWM, BL-PWM |
| Display | - | - |
| MIPI-DSI | 1x 4 Lanes | 1x 4 Lanes |
| Common | - | - |
| Supply Voltage | 5V DC/±5% | 5V DC/±5% |
| Power Consumption | 3W typ. | 3W typ. |
| Operating Temperature | -20°C - +85°C | -20°C - +85°C |
| Size | 30x30mm | 30x30mm |
| Weight | ~5g | ~5g |
| Long Term Availability | 2034 | 2034 |
| FS 8MM OSM-SF-V1I | FS 8MM OSM-SF-V2I |
 |
Starterkit FS 8MM OSM-SF Linux Evaluation kit for FS 8MM OSM-SF with baseboard, OSM-Adapter, cable kit, MIPI-DSI to LVDS adapter, 7" LVDS Display and access data to documentation and software. SKU: OSM8MM-SKIT-LIN |
360,- € |
Software
 |
Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux |
1,000,- € | ||
|
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € | ||
|
Secure Boot as a Service The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme. SKU: Linux-SBS |
500,- € |
Displays and Display Kits
 |
3.5" MIPI-DSI Display with PCAP Touch (long-term available) 3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch) SKU: B.LCD.22 |
80,- € | ||
 |
7" MIPI-DSI Display with PCAP Touch (long-term available) 7" TFT (800x1280) MIPI-DSI Display with PCAP Touch (TFT-7"-MIPI-DSI-PCAP Touch) SKU: B.LCD.24 |
100,- € |
Touch-Kits
 |
Resistive Touch Kit 2 For the connection of a resistive touch panel to boards with 6pol Hirose socket. SKU: SINTF-ADP-RTI2C |
Request | ||
 |
PCAP Touch Kit for EDT Kit to connect an EDT PCAP touch panel SKU: ADP-EDTTOUCH2 |
35,- € | ||
Cables
 |
Capacitive Touch Cable 6-pin cable with matching connector for connecting an I2C touch to F&S boards SKU: B.MKAB.47 |
10,- € |
Adapters
| MIPI-DSI to LVDS Adapter Allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket. SKU: ADP-MIPI2LVDS1 |
25,- € | |||
 |
Adapter board MIPI-DSI (JILI30) to RGB for EDT Unified Series Enables conversion of MIPI-DSI (JILI30) to RGB signals. SKU: ADP-MIPI2RGB1 |
30,- € |
Workshops
 |
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
Other Accessories
 |
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € | ||
 |
Heat Spreader OSM Size-S Heat Spreader for cooling the OSM Size-S modules SKU: MHS.OSM.1 |
10,- € |
Variants
 |
FS 8MM OSM-SF-V1I i.MX8M Mini Quad Cortex-A53 @ 1.6GHz, 1GB LPDDR4, 8GB eMMC, EEPROM, 1x RGMII, 2x USB, UART, I2C, SPI, I2S, MIPI-DSI, RTC, -20°C +85°C, Linux SKU: OSM8MM-V1I |
Request | ||
|
FS 8MM OSM-SF-V2I i.MX8M Mini Quad Cortex-A53 @ 1.6GHz, 2GB RAM, 16GB eMMC, EEPROM, 1x RGMII, 2x USB, UART, I2C, SPI, I2S, MIPI-DSI, RTC, -20°C +85°C, Linux SKU: OSM8MM-V2I |
Request | ||
Starterkit
|
Starterkit FS 8MM OSM-SF Linux Evaluation kit for FS 8MM OSM-SF with baseboard, OSM-Adapter, cable kit, MIPI-DSI to LVDS adapter, 7" LVDS Display and access data to documentation and software. SKU: OSM8MM-SKIT-LIN |
360,- € |
Buildroot und Yocto
Das Linux-BSP "fsimx8mm-B2023.11" basiert auf Buildroot, einer Software zur Erstellung von Root-Filesystemen. Über Buildroot können menügesteuert ca. 1400 verschiedene Softwarepakete dem Root-Filesystem hinzugefügt werden. Der Funktionsumfang reicht hier von einfachen Bibliotheken und Utilities über eine komplette Java-Umgebung bis hin zu vollständigen grafischen Umgebungen wie Qt oder Wayland / Weston, inklusive Applikationen wie z.B. einem HTML5-fähigen Webbrowser. Auf diese Weise lässt sich sehr einfach ein maßgeschneidertes Linux-System zusammenstellen.
Alternativ zu Buildroot gibt es auch eine Yocto-basierte Umgebung. Wir bieten das Linux BSP fsimx8mm-Y2023.10 an, das auf Yocto basiert.
Unsere Standardkonfiguration, die einen ersten Eindruck vom Funktionsumfang der Baugruppe geben soll, enthält unter anderem folgende Features: Busybox, gdb, alsa-utils, gstreamer, wayland-weston, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, u.v.m.
Beide BSPs beinhaltet die von F&S angepassten Quelltextpakete von U-Boot (2021.04), Linux-Kernel (basierend auf 5.15.131) und Buildroot (2023.02.06) oder Yocto (4.0 Kirkstone). Außerdem ist unsere Cross-Toolchain beigefügt, einige Beispielsapplikationen, sowie alle Binaries in der Standardkonfiguration. Und nicht zuletzt sind ausführliche Dokumente zur Hardware enthalten sowie die First-Steps-Dokumentation für den leichten Einstieg.
F&S wird eine Virtuelle Maschine (basierend auf VirtualBox) mit einem installierten Linux basierend auf der Distribution Fedora 36 zum kostenlosen Download anbieten. Alle zum Übersetzen unserer Software notwendigen Pakete sind bereits installiert. Ebenfalls sind alle Services (NFS, TFTP) zum Arbeiten mit unseren Boards installiert. Unser BSP liegt ausgepackt und vorkompiliert in den richtigen Verzeichnissen. Mit dieser virtuellen Maschine spielt es keine Rolle ob sie als Host Windows oder Linux verwenden. Einfach die VHD downloaden, in VirtualBox importieren und die Entwicklung kann sofort beginnen.
➜ Mehr Informationen über das neue Buildroot Release B2023.11
➜ Mehr Informationen über das neue Yocto Release Y2023.10
FreeRTOS
Die CPU NXP i.MX8M Mini verfügt neben den 4 Cortex-A53 Kernen auch über einen Cortex-M4 Kern. Der Cortex-M4 Kern ist besonders für Echtzeitaufgaben geeignet oder zur Stromeinsparung geeignet.
F&S bietet für die Verwendung des Cortex-M4 ein komplett getestetes BSP für FreeRTOS oder Bare Metal Anwendung an.
➜ Mehr Informationen über das aktuelle FreeRTOS Release V2021.07
➜ Mehr Informationen zu FreeRTOS und der Verwendung auf F&S Boards
