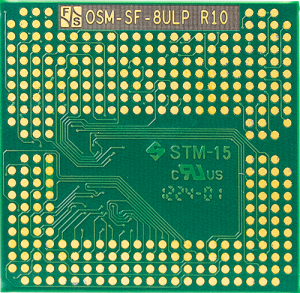

FS 8ULP OSM-SF
OSM Size S with NXP i.MX 8ULP Processor
|
|
For the start of development, we recommend: |
| FS 8ULP OSM-SF | ||
| State | Samples | |
| CPU | ||
| CPU | NXP i.MX 8ULP | |
| Core | ARM Cortex-A35 Cortex-M33 Hifi 4 DSP |
|
| No of Cores | 1/2 A35 + M33 + Hifi 4 DSP | |
| Frequency | 800MHz + 216MHz + 600MHz | |
| L2-Cache | 500kB | |
| GPU | 2D, 3D, OpenGL/CL 3.1 | |
| Operating System | ||
| Linux | Yocto (uboot installed) |
|
| Real Time | FreeRTOS | |
| Memory | ||
| Flash | 64 kbit EEPROM | |
| eMMC | max. 64GB | |
| RAM | max. 2GB LPDDR4x32 | |
| Interfaces | ||
| SD-Card | 1x SDIO | |
| Ethernet | 1x RMII | |
| USB Host | 1x OTG 2.0 | |
| USB Device | 1x OTG 2.0 | |
| CAN | 1x | |
| UART | 5x | |
| I2C | 3x | |
| SPI | 2x | |
| Audio | 2x I2S_A/_B |
|
| Digital I/O | 18 GPIO_A/_B/_C[4..7] |
|
| Touch Panel | Touch via I2C | |
| Camera analog/digital | MIPI-CSI (2 lanes) |
|
| RTC | PCF85263ATL | |
| additional Interfaces | 5x PWM, BL-PWM | |
| Display | ||
| RGB | 18 (24) bit | |
| MIPI-DSI | 1x 4 Lanes | |
| Common | ||
| Supply Voltage | 5V DC/±5% | |
| Power Consumption | 2W typ. | |
| Operating Temperature | 0°C - +70°C -25°C - +85°C -40°C - +85°C |
|
| Size | 30x30mm | |
| Weight | ~5g | |
| Long Term Availability | 2038 |
| FS 8ULP OSM-SF-V1I-LIN | FS 8ULP OSM-SF-V2I-LIN | |
| State | Samples | Samples |
| CPU | - | - |
| CPU | NXP i.MX 8ULP | NXP i.MX 8ULP |
| Core | ARM Cortex-A35 Cortex-M33 Hifi 4 DSP |
ARM Cortex-A35 Cortex-M33 Hifi 4 DSP |
| No of Cores | 2x A35 + M33 + Hifi 4 DSP | 2x A35 + M33 + Hifi 4 DSP |
| Frequency | 800MHz + 216MHz + 600MHz | 800MHz + 216MHz + 600MHz |
| L2-Cache | 500kB | 500kB |
| GPU | 2D, 3D, OpenGL/CL 3.1 | 2D, 3D, OpenGL/CL 3.1 |
| Operating System | - | - |
| Linux | Yocto (uboot installed) |
Yocto (uboot installed) |
| Real Time | FreeRTOS | FreeRTOS |
| Memory | - | - |
| Flash | 64 kbit EEPROM | 64 kbit EEPROM |
| eMMC | 8GB eMMC, 64k EEPROM | 8GB eMMC, 64k EEPROM |
| RAM | 1GB LPDDR4x32 | 2GB LPDDR4x32 |
| Interfaces | - | - |
| SD-Card | 1x SDIO | 1x SDIO |
| Ethernet | 1x RMII | 1x RMII |
| USB Host | 1x OTG 2.0 | 1x OTG 2.0 |
| USB Device | 1x OTG 2.0 | 1x OTG 2.0 |
| CAN | 1x | 1x |
| UART | 5x | 5x |
| I2C | 3x | 3x |
| SPI | 2x | 2x |
| Audio | 2x I2S_A/_B |
2x I2S_A/_B |
| Digital I/O | 18 GPIO_A/_B/_C[4..7] |
18 GPIO_A/_B/_C[4..7] |
| Touch Panel | Touch via I2C | Touch via I2C |
| Camera analog/digital | MIPI-CSI (2 lanes) |
MIPI-CSI (2 lanes) |
| RTC | PCF85263ATL | PCF85263ATL |
| additional Interfaces | 5x PWM, BL-PWM | 5x PWM, BL-PWM |
| Display | - | - |
| RGB | 18 (24) bit | 18 (24) bit |
| MIPI-DSI | 1x 4 Lanes | 1x 4 Lanes |
| Common | - | - |
| Supply Voltage | 5V DC/±5% | 5V DC/±5% |
| Power Consumption | 2W typ. | 2W typ. |
| Operating Temperature | -20°C - +85°C | -20°C - +85°C |
| Size | 30x30mm | 30x30mm |
| Weight | ~5g | ~5g |
| Long Term Availability | 2038 | 2038 |
| FS 8ULP OSM-SF-V1I-LIN | FS 8ULP OSM-SF-V2I-LIN |
 |
Starterkit FS 8ULP OSM-SF Linux Evaluation kit for FS 8ULP OSM-SF with base board, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8ULP-SKIT1 |
360,- € |
Software
 |
Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux |
1,000,- € | ||
|
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € | ||
|
Secure Boot as a Service The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme. SKU: Linux-SBS |
500,- € |
Displays and Display Kits
 |
3.5" MIPI-DSI Display with PCAP Touch (long-term available) 3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch) SKU: B.LCD.22 |
80,- € | ||
 |
7" MIPI-DSI Display with PCAP Touch (long-term available) 7" TFT (800x1280) MIPI-DSI Display with PCAP Touch (TFT-7"-MIPI-DSI-PCAP Touch) SKU: B.LCD.24 |
100,- € |
Touch-Kits
 |
Resistive Touch Kit 2 For the connection of a resistive touch panel to boards with 6pol Hirose socket. SKU: SINTF-ADP-RTI2C |
Request | ||
 |
PCAP Touch Kit for EDT Kit to connect an EDT PCAP touch panel SKU: ADP-EDTTOUCH2 |
35,- € | ||
Cables
 |
Capacitive Touch Cable 6-pin cable with matching connector for connecting an I2C touch to F&S boards SKU: B.MKAB.47 |
10,- € |
Adapters
| MIPI-DSI to LVDS Adapter Allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket. SKU: ADP-MIPI2LVDS1 |
25,- € | |||
 |
Adapter board MIPI-DSI (JILI30) to RGB for EDT Unified Series Enables conversion of MIPI-DSI (JILI30) to RGB signals. SKU: ADP-MIPI2RGB1 |
30,- € |
Workshops
 |
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
Other Accessories
 |
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € | ||
 |
Heat Spreader OSM Size-S Heat Spreader for cooling the OSM Size-S modules SKU: MHS.OSM.1 |
10,- € |
Variants
 |
FS 8ULP OSM-SF-V1I-LIN NXP i.MX 8ULP ARM Cortex-A35 + Cortex-M33, 1GB RAM, 8GB eMMC, Audio, RGB, MIPI-DSI, -20°C - +85°C, 5V Power supply, Linux Yocto SKU: OSM8ULP-V1I |
Request | ||
|
FS 8ULP OSM-SF-V2I-LIN NXP i.MX 8ULP ARM Cortex-A35 + Cortex-M33, 2GB RAM, 8GB eMMC, I2S, RGB, MIPI-DSI, MIPI-CSI, -20°C - +85°C, 5V Versorgung, Linux Yocto SKU: OSM8ULP-V2I |
Request | ||
Starterkit
|
Starterkit FS 8ULP OSM-SF Linux Evaluation kit for FS 8ULP OSM-SF with base board, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8ULP-SKIT1 |
360,- € |
We provide a tested software environment for the OSM modules with NXPs i.MX8ULP.Part of this environment is the Linux Yocto release and the BSP for the Cortex-M33.Announcements about new versions of this package are made in the support forum.
Yocto Release Y2024.09
For the CPU NXP i.MX8 ULP F&S offers a Yocto based environment. We offer the Linux BSP fsimx8ulp-Y2024.09-pre, which is based on Yocto.
Our standard configuration, which is intended to give a first impression of the functionality of the board, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and many more.
The BSP is based on the following source code packages:
- U-Boot: 2024.04
- Linux-Kernel: 6.6.48
- Yocto: 5.0.3 Scarthgap
Also included is our cross toolchain, some sample applications, and all binaries in the default configuration.
F&S offer a virtual machine (based on VirtualBox) with an installed Linux based on the distribution Fedora 36 for free download. All packages necessary to compile our software are already installed. Also, all services (NFS, TFTP) for working with our boards are installed. Our BSP is unpacked and precompiled in the correct directories. With this virtual machine it doesn't matter if you use Windows or Linux as host. Simply download the VHD, import it into VirtualBox and development can begin immediately.
➜ More information about the new Yocto release
Start Your Development in Less Than an Hour - F&S Development Machine - Fedora 36
Fedora 36 is a VirtualBox Appliance based on Fedora 36, provided by F&S.
You will need less than an hour to start your development with this machine!
It is available for our customers for free.
VirtualBox is a high performance product for enterprise customers, it is also the only professional solution that is freely available as Open Source Software under the terms of the GNU General Public License (GPL) version 2.
The F&S Development Machine contains installed Board Support Packages for:
- fsimx8mp-Y2023.09 (/home/developer/fsimx8mp-Y2023.09)
- fsimx8mm-Y2023.10 (/home/developer/fsimx8mm-Y2023.10)
- fsimx8mm-B2023.11 (/home/developer/fsimx8mm-B2023.11)
- fsimx8mn-Y2024.02 (/home/developer/fsimx8mn-B2024.02)
More BSP will be included. Please see our support forum for updates.
The F&S toolchain is installed, the source code is extracted and ready to run. Needed system packages and essential tools are installed, too.
Besides that, it contains a configured environment for Qt development (Qt) with cross-compile/debug kit, deployment strategy and demo application.
Please notice that it is required to register on our website to download this machine.
➜ Download F&S Development Machine - Fedora 26
➜ Quickstart Dokumentation
FS 8ULP OSM-SF - Product Flyer
- Product Flyer (355 KB, pdf) - 17/10/2024
Usage
By downloading you accept our general terms and conditions.
FS 8ULP OSM-SF - Hardware By downloading you accept our general terms and conditions. By downloading you accept our general terms and conditions. By downloading you accept our general terms and conditions. By downloading you accept our general terms and conditions. By downloading you accept our general terms and conditions. By downloading you accept our general terms and conditions.
Usage
Usage
Usage
Usage
Usage
Usage
FS 8ULP OSM-SF - Linux By downloading you accept our general terms and conditions. By downloading you accept our general terms and conditions. By downloading you accept our general terms and conditions.
Usage
Usage
Usage
Variants
|
FS 8ULP OSM-SF-V1I-LIN NXP i.MX 8ULP ARM Cortex-A35 + Cortex-M33, 1GB RAM, 8GB eMMC, Audio, RGB, MIPI-DSI, -20°C - +85°C, 5V Power supply, Linux Yocto SKU: OSM8ULP-V1I |
Request | ||
|
FS 8ULP OSM-SF-V2I-LIN NXP i.MX 8ULP ARM Cortex-A35 + Cortex-M33, 2GB RAM, 8GB eMMC, I2S, RGB, MIPI-DSI, MIPI-CSI, -20°C - +85°C, 5V Versorgung, Linux Yocto SKU: OSM8ULP-V2I |
Request | ||
Starterkit
|
Starterkit FS 8ULP OSM-SF Linux Evaluation kit for FS 8ULP OSM-SF with base board, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8ULP-SKIT1 |
360,- € |
Link to the Forum
You will always find support in our Forum.
Recent Contributions
|
16 Dec, 17:51 |
Repartitioning NAND Flash (via Yocto/ Patch) |
|
12 Dec, 09:21 |
SPIDEV probe function not called |
|
11 Dec, 12:16 |
CANscan: Powerful CAN Bus Testing and Communication Tool with Avalonia UI |
|
10 Dec, 09:13 |
request to introduce a github repo also for the toolchain with corresponding history |
|
05 Dec, 06:29 |
WEC 2013: How to close UDP Ports 137 and 138 / how to disable NetBIOS over TCP/IP |
|
04 Dec, 12:48 |
New i.MX8MP GPU Driver |
|
04 Dec, 09:32 |
Prevent efusA9 with WEC 2013 from sending Device Info |
|
03 Dec, 08:58 |
Change to winter time |
|
02 Dec, 15:12 |
Question: eMMC vs NAND storage |
|
30 Nov, 11:59 |
armStone A5 in a Plexlog Datalogger |
| OSM | with NXP i.MX 8ULP | |
|---|---|---|
|
The advantages of an OSM module are machine assembly, and a lot of power and functions in a small space. It eliminates both the cost and the risk of using connectors. Our OSM module in size S is perfectly matched to the i.MX 8ULP CPU from NXP. Heterogeneous multicore processor conceptThe i.MX 8ULP is a heterogeneous multicore application processor for embedded modules. It is ideal for applications that require high-performance graphics processing and multimedia functions, as well as for Industry 4.0 applications. The processor consists of a single or dual ARM® Cortex®-A35 cores running at up to 1 GHz and a Cortex®-M33 core running at 216 MHz for real-time processing. The processor also features a HIFI 4 DSP. The i.MX 8ULP offers various audio and voice functions via I2S. |
In addition to the OSM module, F&S Elektronik also offers the development and manufacture of a suitable baseboard and then supplies the complete unit soldered, tested, and, if desired, with the customer's software installed, so that all that remains is to unpack, install and switch on. The operating system adapted for the OSM modules is Linux. Linux Yocto supports all interfaces so that simple software development can be guaranteed without great hardware knowledge. Development BoardFor an easy start into development, we offer an out-of-the-box OSM starter kit with OSM modules, baseboard, 3.5" MIPI display, cables, and access to documentation and software. The software includes the board support package and toolchain for Bare Metal or FreeRTOS. The offer is rounded off by a wide range of software services, workshops, and free support via the forum, e-mail, and telephone. |
