FS 8ULP OSM-SF-V1I-LIN

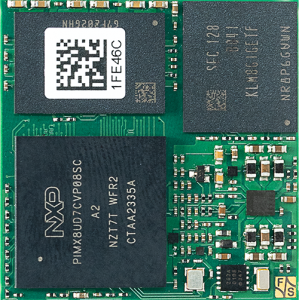

OSM Size S with NXP i.MX 8ULP CPU
|
|
For the start of development, we recommend: |
| FS 8ULP OSM-SF-V1I-LIN | ||
| State | Samples | |
| CPU | ||
| CPU | NXP i.MX 8ULP | |
| Core | ARM Cortex-A35 + Cortex-M33 + Hifi 4 DSP | |
| No of Cores | 2x A35 + M33 + Hifi 4 DSP | |
| Frequency | 800MHz + 216MHz + 600MHz | |
| L2-Cache | 512kB | |
| GPU | 2D, 3D | |
| Operating System | ||
| Linux | Yocto (uboot installed) |
|
| Real Time | FreeRTOS | |
| Memory | ||
| Flash | 64 kbit EEPROM | |
| eMMC | 8GB eMMC, 64k EEPROM | |
| RAM | 1GB LPDDR4x32 | |
| Interfaces | ||
| SD-Card | 1x SDIO | |
| Ethernet | 1x RMII | |
| USB Host | 1x OTG 2.0 | |
| USB Device | 1x OTG 2.0 | |
| CAN | 1x | |
| UART | 5x | |
| I2C | 3x | |
| SPI | 2x | |
| Audio | 2x I2S_A/_B |
|
| Digital I/O | 18 GPIO_A/_B/_C[4..7] |
|
| Touch Panel | Touch via I2C | |
| Camera analog/digital | MIPI-CSI (2 lanes) | |
| RTC | PCF85263ATL | |
| additional Interfaces | 5x PWM, Watchdog, SPDIF | |
| Display | ||
| RGB | 18 (24) bit | |
| MIPI-DSI | 1x 4 Lanes | |
| Common | ||
| Supply Voltage | 5V DC/±5% | |
| Power Consumption | 1W typ. | |
| Operating Temperature | -20°C - +85°C | |
| Size | 30x30mm (LxB) |
|
| Weight | ~5g | |
| Long Term Availability | 2035 |
 |
Starterkit FS 8ULP OSM-SF Linux Evaluation kit for FS 8ULP OSM-SF with base board, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8ULP-SKIT1 |
360,- € |
Software
 |
Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux |
1,000,- € | ||
|
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € | ||
|
Secure Boot as a Service The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme. SKU: Linux-SBS |
500,- € |
Displays and Display Kits
 |
3.5" MIPI-DSI Display with PCAP Touch (long-term available) 3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch) SKU: B.LCD.22 |
80,- € | ||
 |
7" MIPI-DSI Display with PCAP Touch (long-term available) 7" TFT (800x1280) MIPI-DSI Display with PCAP Touch (TFT-7"-MIPI-DSI-PCAP Touch) SKU: B.LCD.24 |
100,- € |
Touch-Kits
 |
Resistive Touch Kit 2 For the connection of a resistive touch panel to boards with 6pol Hirose socket. SKU: SINTF-ADP-RTI2C |
Request | ||
 |
PCAP Touch Kit for EDT Kit to connect an EDT PCAP touch panel SKU: ADP-EDTTOUCH2 |
35,- € | ||
Cables
 |
Capacitive Touch Cable 6-pin cable with matching connector for connecting an I2C touch to F&S boards SKU: B.MKAB.47 |
10,- € |
Adapters
| MIPI-DSI to LVDS Adapter Allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket. SKU: ADP-MIPI2LVDS1 |
25,- € | |||
 |
Adapter board MIPI-DSI (JILI30) to RGB for EDT Unified Series Enables conversion of MIPI-DSI (JILI30) to RGB signals. SKU: ADP-MIPI2RGB1 |
30,- € |
Workshops
 |
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
Other Accessories
 |
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € | ||
 |
Heat Spreader OSM Size-S Heat Spreader for cooling the OSM Size-S modules SKU: MHS.OSM.1 |
10,- € |
Variants
 |
FS 8ULP OSM-SF-V1I-LIN NXP i.MX 8ULP ARM Cortex-A35 + Cortex-M33, 1GB RAM, 8GB eMMC, Audio, RGB, MIPI-DSI, -20°C - +85°C, 5V Power supply, Linux Yocto SKU: OSM8ULP-V1I |
Request | ||
|
FS 8ULP OSM-SF-V2I-LIN NXP i.MX 8ULP ARM Cortex-A35 + Cortex-M33, 2GB RAM, 8GB eMMC, I2S, RGB, MIPI-DSI, MIPI-CSI, -20°C - +85°C, 5V Versorgung, Linux Yocto SKU: OSM8ULP-V2I |
Request | ||
Starterkit
|
Starterkit FS 8ULP OSM-SF Linux Evaluation kit for FS 8ULP OSM-SF with base board, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8ULP-SKIT1 |
360,- € |
We provide a tested software environment for the OSM modules with NXPs i.MX8ULP.Part of this environment is the Linux Yocto release and the BSP for the Cortex-M33.Announcements about new versions of this package are made in the support forum.
Yocto Release Y2024.09
For the CPU NXP i.MX8 ULP F&S offers a Yocto based environment. We offer the Linux BSP fsimx8ulp-Y2024.09-pre, which is based on Yocto.
Our standard configuration, which is intended to give a first impression of the functionality of the board, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and many more.
The BSP is based on the following source code packages:
- U-Boot: 2024.04
- Linux-Kernel: 6.6.48
- Yocto: 5.0.3 Scarthgap
Also included is our cross toolchain, some sample applications, and all binaries in the default configuration.
F&S offer a virtual machine (based on VirtualBox) with an installed Linux based on the distribution Fedora 36 for free download. All packages necessary to compile our software are already installed. Also, all services (NFS, TFTP) for working with our boards are installed. Our BSP is unpacked and precompiled in the correct directories. With this virtual machine it doesn't matter if you use Windows or Linux as host. Simply download the VHD, import it into VirtualBox and development can begin immediately.
