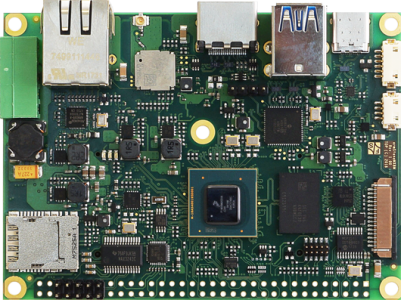

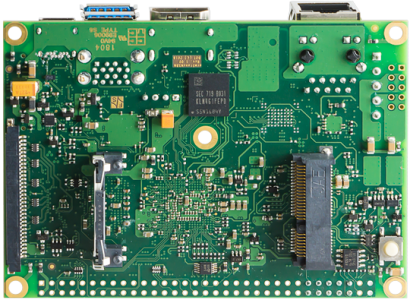

armStone™MX8M
Single Board Computer in PicoITX Form Factor with NXP i.MX 8M Processor
|
|
For the start of development, we recommend:
|
| armStone™MX8M | ||
| State | Samples | |
| CPU | ||
| CPU | NXP i.MX 8M | |
| Core | ARM Cortex-A53 + Cortex-M4 | |
| No of Cores | Dual/ Quad | |
| Frequency | max. 1,5GHz | |
| GPU | 3D GC7000 Lite (4 shader) | |
| VPU | MPEG2, MPEG4p2 H 263 up to 4Kp60 | |
| Operating System | ||
| Linux | Yocto | |
| Memory | ||
| Flash | max. 1GB SLC NAND | |
| eMMC | max. 64GB | |
| RAM | max. 8GB LPDDR4 | |
| Interfaces | ||
| SD-Card | 1x optional | |
| Ethernet | 1x 10/100/1000 Mbit | |
| WiFi | IEEE 802.11a/b/g/n | |
| BT | BT 2.1+EDR, 4.1 LE | |
| USB Host | 2x USB 3.0 2x USB 2.0 |
|
| USB Device | 1x USB3.0 OTG | |
| CAN | 1x | |
| UART | 3x (1x RS232, 2x TTL) |
|
| I2C | 4x | |
| SPI | 2x | |
| Audio | Line In/Out/Mic | |
| Digital I/O | max. 32 | |
| Touch Panel | analog reistive and PCAP Touch ext. via I2C | |
| Camera analog/digital | 0/MIPI-CSI | |
| PCIe | 1x with SIM Card Slot | |
| RTC | | |
| Display | ||
| LVDS | 2x 24bit | |
| CRT/DVI | 0/DVI | |
| Common | ||
| Supply Voltage | 5V DC/±5% | |
| Power Consumption | tbd | |
| Operating Temperature | 0°C - +70°C opt. -20°C - +85°C |
|
| Size | 100x72x15mm (LxBxH) |
|
| Weight | ~60g | |
| Long Term Availability | 2033 |
| aStoneMX8M-V4-LIN | |
| State | Samples |
| CPU | - |
| CPU | NXP i.MX 8M |
| Core | ARM Cortex-A53 + Cortex-M4 |
| No of Cores | Quad |
| Frequency | 1GHz |
| L2-Cache | 1MB |
| GPU | 3D GC7000 Lite (4 shader) |
| VPU | MPEG2, MPEG4p2 H 263 up to 4Kp60 |
| Operating System | - |
| Linux | Yocto |
| Memory | - |
| Flash | 256MB SLC 4GB eMMC |
| eMMC | max. 64GB |
| RAM | 1GB DDR3L |
| Interfaces | - |
| SD-Card | 1x optional |
| Ethernet | 1x 10/100/1000 Mbit |
| USB Host | 2x USB 3.0 2x USB 2.0 |
| USB Device | 1x USB3.0 OTG |
| CAN | 1x |
| UART | 3x (1x RS232, 2x TTL) |
| I2C | 4x |
| SPI | 2x |
| Audio | Line In/Out/Mic |
| Digital I/O | max. 32 |
| Touch Panel | analog reistive and PCAP Touch ext. via I2C |
| Camera analog/digital | 0/MIPI-CSI |
| PCIe | 1x with SIM Card Slot |
| RTC | |
| Display | - |
| LVDS | 2x 24bit |
| CRT/DVI | 0/DVI |
| Common | - |
| Supply Voltage | 5V DC/±5% |
| Power Consumption | tbd |
| Operating Temperature | 0°C - +70°C |
| Size | 100x72x15mm (LxBxH) |
| Weight | ~60g |
| Long Term Availability | 2033 |
| aStoneMX8M-V4-LIN |
 |
Starterkit armStone™MX8M Linux armStone™MX8M-V4-LIN, cable kit, power adapter, access data to documentation and software SKU: aStoneMX8M-SKIT-LIN |
360,- € |
Software
 |
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € | ||
|
Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux |
1,000,- € |
Display
Cables
 |
LVDS Cable LVDS cable with JAE FI X30 on one side and open ends on the other side SKU: B.MKAB.53 |
22,- € |
Adapters
 |
MIPI Camera Kit Adapter module with camera SKU: ADP-MIPICAM1 |
100,- € | ||
 |
mPCIe Module with WLAN/BT mPCIe-Full-Mini Type F1 or mPCIe-Half-Mini Type H1 module with WLAN 2.4/ 5 GHz und BT5.0 LE SKU: ADP-mPCIe-WLAN |
40,- € |
Workshop
 |
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
Other Accessories
 |
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € | ||
 |
Patch Antenna Patch antenna for WLAN/ BT (2.4 GHz) to connect F&S modules with WLAN/ BT antenna socket SKU: B.ANT.5 |
10,- € |
Buildroot und Yocto
Das Linux-BSP "fsimx8m-B2020.01-pre" basiert auf Buildroot, einer Software zur Erstellung von Root-Filesystemen. Über Buildroot können menügesteuert ca. 1400 verschiedene Softwarepakete dem Root-Filesystem hinzugefügt werden. Der Funktionsumfang reicht hier von einfachen Bibliotheken und Utilities über eine komplette Java-Umgebung bis hin zu vollständigen grafischen Umgebungen wie Qt oder Wayland / Weston, inklusive Applikationen wie z.B. einem HTML5-fähigen Webbrowser. Auf diese Weise lässt sich sehr einfach ein maßgeschneidertes Linux-System zusammenstellen.
Alternativ zu Buildroot wird es auch eine Yocto-basierte Umgebung geben. Wir bieten das Linux BSP fsimx8m-Y2020.xx an, das auf Yocto basiert.
Unsere Standardkonfiguration, die einen ersten Eindruck vom Funktionsumfang der Baugruppe geben soll, enthält unter anderem folgende Features: Busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, u.v.m.
Beide BSPs beinhaltet die von F&S angepassten Quelltextpakete von U-Boot (2018.03), Linux-Kernel (basierend auf 4.14.78) und Buildroot (2019.05.01) oder Yocto (2.2). Außerdem ist unsere Cross-Toolchain beigefügt, einige Beispielsapplikationen, sowie alle Binaries in der Standardkonfiguration. Und nicht zuletzt sind ausführliche Dokumente zur Hardware enthalten sowie die First-Steps-Dokumentation für den leichten Einstieg.
F&S wird eine Virtuelle Maschine (basierend auf VirtualBox) mit einem installierten Linux basierend auf der Distribution Fedora 27 zum kostenlosen Download anbieten. Alle zum Übersetzen unserer Software notwendigen Pakete sind bereits installiert. Ebenfalls sind alle Services (NFS, TFTP) zum Arbeiten mit unseren Boards installiert. Unser BSP liegt ausgepackt und vorkompiliert in den richtigen Verzeichnissen. Mit dieser virtuellen Maschine spielt es keine Rolle ob sie als Host Windows oder Linux verwenden. Einfach die VHD downloaden, in VirtualBox importieren und die Entwicklung kann sofort beginnen.
➜ Mehr Informationen über das neue Buildroot Release B2020.01-pre
armStoneMX8M - Product Flyer
- Deutsch (886 KB, pdf) - 19/10/2020
- Englisch (894 KB, pdf) - 19/10/2020
- Customer Specific Boards (93 KB, pdf) - 20/09/2017
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
armStoneMX8M - Hardware
- 3D Step Model (7.8 MB, zip) - 09/07/2024
- armStoneMX8M Hardware Documentation (1.6 MB, pdf) - 18/09/2020
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
armStoneMX8M - Linux
- armStoneMX8M Linux First Steps (1014 KB, pdf) - 19/05/2020
- GPIO Reference Card (48 KB, pdf) - 03/02/2020
- Advice for Linux on PC (2 MB, pdf) - 10/01/2018
- Application Development with Eclipse (2.4 MB, pdf) - 18/10/2022
- Steps Required For Creating A Progress Bar In Linux (473 KB, pdf) - 12/07/2019
- Linux on F&S Boards (2.9 MB, pdf) - 20/12/2023
- Mono on F&S Boards (2.6 MB, pdf) - 17/11/2023
- How to Write SD Card Image (121 KB, pdf) - 29/03/2021
- DOTNET on F&S Boards (1.1 MB, pdf) - 19/06/2024
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Variants
|
aStoneMX8M-V4-LIN NXP i.MX 8M Quad Cortex-A53 + Cortex-M4, 1GB RAM, 256MB Flash, 4GB eMMC, Gb Ethernet, 1x CAN, Audio, PCIe, MIPI-CSI Camera, 2x LVDS, DVI, 0°C-+70°C, 5V Supply, Linux Buildroot/Yocto SKU: aStoneMX8M-V4-LIN |
Request | ||
Starterkit
|
Starterkit armStone™MX8M Linux armStone™MX8M-V4-LIN, cable kit, power adapter, access data to documentation and software SKU: aStoneMX8M-SKIT-LIN |
360,- € |
Software
|
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € | ||
|
Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux |
1,000,- € |
Display
Cables
|
LVDS Cable LVDS cable with JAE FI X30 on one side and open ends on the other side SKU: B.MKAB.53 |
22,- € |
Adapters
|
MIPI Camera Kit Adapter module with camera SKU: ADP-MIPICAM1 |
100,- € | ||
|
mPCIe Module with WLAN/BT mPCIe-Full-Mini Type F1 or mPCIe-Half-Mini Type H1 module with WLAN 2.4/ 5 GHz und BT5.0 LE SKU: ADP-mPCIe-WLAN |
40,- € |
Workshop
|
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
Other Accessories
|
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € | ||
|
Patch Antenna Patch antenna for WLAN/ BT (2.4 GHz) to connect F&S modules with WLAN/ BT antenna socket SKU: B.ANT.5 |
10,- € |
Link to the Forum
You will always find support in our Forum.
Recent Contributions
|
16 Dec, 17:51 |
Repartitioning NAND Flash (via Yocto/ Patch) |
|
12 Dec, 09:21 |
SPIDEV probe function not called |
|
11 Dec, 12:16 |
CANscan: Powerful CAN Bus Testing and Communication Tool with Avalonia UI |
|
10 Dec, 09:13 |
request to introduce a github repo also for the toolchain with corresponding history |
|
05 Dec, 06:29 |
WEC 2013: How to close UDP Ports 137 and 138 / how to disable NetBIOS over TCP/IP |
|
04 Dec, 12:48 |
New i.MX8MP GPU Driver |
|
04 Dec, 09:32 |
Prevent efusA9 with WEC 2013 from sending Device Info |
|
03 Dec, 08:58 |
Change to winter time |
|
02 Dec, 15:12 |
Question: eMMC vs NAND storage |
|
30 Nov, 11:59 |
armStone A5 in a Plexlog Datalogger |
| SBC.... | ...for Complex Tasks | |
|---|---|---|
|

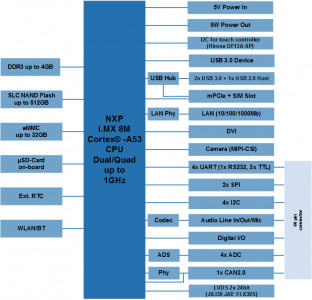

The advantage of Single Board Computers (SBC) is, that they can be applied without a base board, and therefore they are especially suited for quick "Time-To-Market". Asymmetric MultiprocessingarmStone™MX8M is based on a multimedia CPU i.MX 8M from NXP (4x ARM Cortex-A53 (64 Bit) with 1.5GHz & Cortex-M4 CPU) . The advantage of this architecture is the strict isolation of real-time tasks – for example a control algorithm – from the rest of the system. The NXP i.MX 8M processor provides industry-leading audio, voice and video processing for applications and is therefore suitable for a wide range of applications. This powerful module in PicoITX form factor is suitable for complex multimedia tasks and is perfect for applications with demanding graphics in building automation, all types of HMI in industrial and medical technology, as well as POS and POI terminals. Numerous InterfacesarmStone™MX8M comes with up to 8GByte LPDDR4, up to 1GB SLC NAND Flash and up to 32GB eMMC. |
Further interfaces of armStone™MX8M are WLAN (IEEE 802.11a/b/g/n), BT (2.1+EDR, 4.1 LE), Gigabit Ethernet, SD-Card, 4x USB Host, USB Device OTG, CAN, 3x Serial, 4x I²C, 2x SPI, Audio, MIPI-CSI Camera and PCIe with SIM Card slot. Two independent LVDS interfaces (24bit) and DVI are available fpr display control. As with all armStone™ single board computers, many of the signals are on common connectors or on the 66-pin feature bus. The armStone™MX8M is powered by 5V (a pluggable 12/24V adapter is offered as an accessory), the power consumption is only a few watts. With a temperature range of up to -20°C - +70°C, the armStone™MX8M can also be used outdoors. Linux Buildroot/ YoctoAn adapted Linux Buildroot/ Yocto is available. Bootloader, device tree, adapted interface drivers and all tools necessary for development are available, as well as various security functions. With the F&S project guarantee, F&S Elektronik Systeme accompanies the customer from the project start to the successful completion of the project. |
