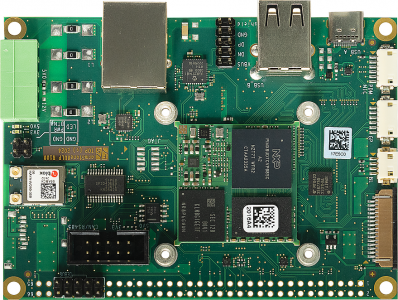

armStone™MX8ULP
Single Board Computer PicoITX with NXP i.MX 8ULP
|
For the start of development, we recommend: |
| armStone™MX8ULP | ||
| State | Q4/2024 | |
| CPU | ||
| CPU | NXP i.MX 8ULP | |
| Core | ARM Cortex-A35 Cortex-M33 Hifi 4 DSP |
|
| No of Cores | 2x A35 + M33 + Hifi 4 DSP | |
| Frequency | 800MHz + 216MHz + 600MHz | |
| L2-Cache | 500kB | |
| GPU | 3D/2D, ES™ 3.1, CL™, VG™ 1.1 | |
| Operating System | ||
| Linux | Yocto (uboot installiert) |
|
| Real Time | FreeRTOS | |
| Memory | ||
| Flash | 64 kbit EEPROM | |
| eMMC | max. 64GB | |
| RAM | max. 2GB LPDDR4x32 | |
| Interfaces | ||
| SD-Card | 1x SDIO | |
| Ethernet | 1x 100 Mbit | |
| WiFi | WIFI 6 | |
| BT | 5.2 | |
| USB Host | 4x | |
| USB Device | 1x Type-C (USB 2.0) | |
| CAN | 1x | |
| UART | 3x | |
| I2C | 4x | |
| SPI | 2x | |
| Audio | IN/ OUT/ MIC/ Headphone/ I2S | |
| Digital I/O | max. 32 | |
| ADC | 4x | |
| Touch Panel | via I2C | |
| Camera analog/digital | MIPI-CSI (2 lanes) | |
| RTC | PCF85263ATL | |
| Display | ||
| LVDS | 8 Lanes | |
| MIPI-DSI | 4 Lanes | |
| Common | ||
| Supply Voltage | 5V DC/±5% | |
| Power Consumption | t.b.d. | |
| Operating Temperature | 0°C - +70°C -20°C - +85°C -40°C - +85°C |
|
| Size | 100x72x15mm (LxBxH) |
|
| Weight | ~50g | |
| Long Term Availability | 2035 |
| - | - | |
| Operating System | - | - |
| Memory | - | - |
| Interfaces | - | - |
| Display | - | - |
| Common | - | - |
Software
 |
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € | ||
|
Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux |
1,000,- € |
Displays
 |
7” LVDS Display with PCAP Touch (long-term available) 7” LVDS LCD Display with PCAP Touch SKU: LCD.7.LVDS.1 |
95,- € | ||
 |
10” LVDS Display with PCAP Touch (long-term available) 10” LVDS LCD Display with PCAP Touch SKU: LCD.10.LVDS.1 |
130,- € | ||
 |
3.5" MIPI-DSI Display with PCAP Touch (long-term available) 3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch) SKU: B.LCD.22 |
80,- € |
Cables
 |
LVDS/MIPI Adapter Cable LVDS/MIPI cable with two 30pin connectors each (JAE X30HL-B to JAE X30HL-B) SKU: B.MKAB.44 |
22,- € | ||
 |
LVDS Cable LVDS cable with JAE FI X30 on one side and open ends on the other side SKU: B.MKAB.53 |
22,- € | ||
| Backlight Cable Backlight cable for connecting the 7"/10" LVDS displays (LCD.7.LVDS.1 and LCD.10.LVDS.1). SKU: B.MKAB.35 |
7,- € |
Adapters
 |
MIPI Camera Kit Adapter module with camera SKU: ADP-MIPICAM1 |
100,- € |
Workshops
 |
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
Others
 |
Heat Spreader OSM Size-S Heat Spreader for cooling the OSM Size-S modules SKU: MHS.OSM.1 |
10,- € | ||
 |
Heat Sink OSM Size-S Heat sink for cooling OSM Size-S (30x30mm) modules. SKU: MHS.OSM.2 |
12,- € | ||
 |
Patch Antenna Patch antenna for WLAN/BT (2.4/ 5 GHz) for connection to F&S boards with WLAN/BT antenna socket. SKU: B.ANT.6 |
3,- € |
Variants
Starterkits
We provide a tested software environment for the armStoneMX8ULP. Part of this environment is the Linux Yocto release and the BSP for the Cortex-M33. Announcements about new versions of this package are made in the support forum.
Yocto Release Y2024.09
For the CPU NXP i.MX8 ULP F&S offers a Yocto based environment. We offer the Linux BSP fsimx8ulp-Y2024.09-pre, which is based on Yocto.
Our standard configuration, which is intended to give a first impression of the functionality of the board, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and many more.
The BSP is based on the following source code packages:
- U-Boot: 2024.04
- Linux-Kernel: 6.6.48
- Yocto: 5.0.3 Scarthgap
Also included is our cross toolchain, some sample applications, and all binaries in the default configuration.
F&S offer a virtual machine (based on VirtualBox) with an installed Linux based on the distribution Fedora 36 for free download. All packages necessary to compile our software are already installed. Also, all services (NFS, TFTP) for working with our boards are installed. Our BSP is unpacked and precompiled in the correct directories. With this virtual machine it doesn't matter if you use Windows or Linux as host. Simply download the VHD, import it into VirtualBox and development can begin immediately.
➜ More information about the new Yocto release
Start Your Development in Less Than an Hour - F&S Development Machine - Fedora 36
Fedora 36 is a VirtualBox Appliance based on Fedora 36, provided by F&S.
You will need less than an hour to start your development with this machine!
It is available for our customers for free.
VirtualBox is a high performance product for enterprise customers, it is also the only professional solution that is freely available as Open Source Software under the terms of the GNU General Public License (GPL) version 2.
The F&S Development Machine contains installed Board Support Packages for:
- fsimx8mp-Y2023.09 (/home/developer/fsimx8mp-Y2023.09)
- fsimx8mm-Y2023.10 (/home/developer/fsimx8mm-Y2023.10)
- fsimx8mm-B2023.11 (/home/developer/fsimx8mm-B2023.11)
- fsimx8mn-Y2024.02 (/home/developer/fsimx8mn-B2024.02)
More BSP will be included. Please see our support forum for updates.
The F&S toolchain is installed, the source code is extracted and ready to run. Needed system packages and essential tools are installed, too.
Besides that, it contains a configured environment for Qt development (Qt) with cross-compile/debug kit, deployment strategy and demo application.
Please notice that it is required to register on our website to download this machine.
➜ Download F&S Development Machine - Fedora 26
➜ Quickstart Dokumentation
Sorry, there are no files to show.
armStoneMX8ULP - Hardware
- armStoneMX8MP Hardware Documentation (1 MB, pdf) - 17/12/2024
Usage
By downloading you accept our general terms and conditions.
armStoneMX8ULP - Linux
- Advice for Linux on PC (2 MB, pdf) - 10/01/2018
- Quickstart with FS Development Machine (1 MB, pdf) - 06/05/2020
- F&S Secure Boot (534 KB, pdf) - 19/03/2020
- Application Development with Eclipse (2.4 MB, pdf) - 18/10/2022
- Application Development with QT (2.1 MB, pdf) - 16/01/2024
- Application Development with Crank (485 KB, pdf) - 28/07/2022
- Steps Required For Creating A Progress Bar In Linux (473 KB, pdf) - 12/07/2019
- Linux on F&S Boards (2.9 MB, pdf) - 20/12/2023
- Mono on F&S Boards (2.6 MB, pdf) - 17/11/2023
- DOTNET on F&S Boards (1.1 MB, pdf) - 19/06/2024
- Visual Studio Code C/C++ Application Development (455 KB, pdf) - 29/05/2024
- FreeRTOS on FSiMX8MP Boards (673 KB, pdf) - 02/09/2022
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Variants
Starterkit
Link to our Forum
Support finden Sie jederzeit in unserem Forum.
Newest Contributions
|
16 Dec, 17:51 |
Repartitioning NAND Flash (via Yocto/ Patch) |
|
12 Dec, 09:21 |
SPIDEV probe function not called |
|
11 Dec, 12:16 |
CANscan: Powerful CAN Bus Testing and Communication Tool with Avalonia UI |
|
10 Dec, 09:13 |
request to introduce a github repo also for the toolchain with corresponding history |
|
05 Dec, 06:29 |
WEC 2013: How to close UDP Ports 137 and 138 / how to disable NetBIOS over TCP/IP |
|
04 Dec, 12:48 |
New i.MX8MP GPU Driver |
|
04 Dec, 09:32 |
Prevent efusA9 with WEC 2013 from sending Device Info |
|
03 Dec, 08:58 |
Change to winter time |
|
02 Dec, 15:12 |
Question: eMMC vs NAND storage |
|
30 Nov, 11:59 |
armStone A5 in a Plexlog Datalogger |
| Energy Saving Single Board Computer |
|---|
|
armStoneMX8ULP – Compact Performance with Cutting-Edge Connectivity The armStoneMX8ULP is a powerful single board computer in a compact Pico-ITX format, based on the energy-efficient NXP i.MX8ULP processor. Equipped with a dual-core Cortex-A35, integrated graphics, and advanced features, it provides an ideal platform for industrial applications, IoT, and HMI. With Wi-Fi 5, Bluetooth 5, and a wide range of interfaces including USB, Ethernet, and serial ports (CAN, RS485, UART, I2C, SPI), the armStoneMX8ULP offers maximum flexibility and connectivity while maintaining minimal space and power requirements. It supports displays with RGB, LVDS, or MIPI-DSI interfaces. By using the NT24V4 power supply, the input voltage range can be extended from 5V to 13–36V. The perfect solution for your demanding projects! |
