Starterkit SMARC™MX8MP Linux
|

SMARC™MX8MP-V4I-LIN
NXP i.MX8M Plus Quad 1.6GHz VPU NPU ISP, 2GB LPDDR4, 32GB eMMC, 2xLVDS, SECO, RTC, 2x Gbit LAN, USB Hub, WLAN/BT 2.4/5GHz, 64kB EEPROM, -25...+85°C
SKU: FSSM8MP-V4I-LIN

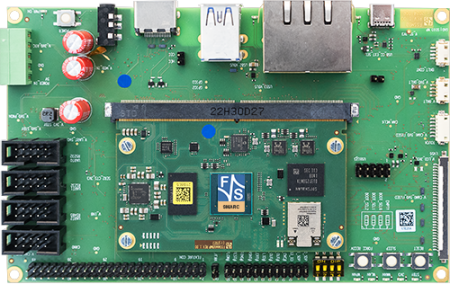

SMARC™ Baseboard
To connect USB 2.0 (OTG), SD-Card, Serial, I²C, Ethernet, CAN, mPCIe, Audio (In/ Out/ Mic/ Headphone), MIPI-CSI and MIPI-DSI / LVDS.
SKU: FSSMBB-FERT1B

7” LVDS Display with PCAP Touch (long-term available)
7” LVDS LCD Display with PCAP Touch
SKU: LCD.7.LVDS.1

LVDS/MIPI Adapter Cable
LVDS/MIPI cable with two 30pin connectors each (JAE X30HL-B to JAE X30HL-B)
SKU: B.MKAB.44
Backlight Kabel
4 wire between armStone, SMARC-SINTF & PicoCoreBBDSI backlight connector and Backlight input of Display.
SKU: B.MKAB.65

Patch Antenna
Patch antenna for WLAN/BT (2.4/ 5 GHz) for connection to F&S boards with WLAN/BT antenna socket.
SKU: B.ANT.6
Software
![]() |
Secure Boot as a Service The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme. SKU: Linux-SBS |
500,- € | ||
![]() |
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € | ||
![]() |
Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux |
1,000,- € |
Displays and Display Kits
![]() |
7” LVDS Display with PCAP Touch (long-term available) 7” LVDS LCD Display with PCAP Touch SKU: LCD.7.LVDS.1 |
95,- € | ||
![]() |
10” LVDS Display with PCAP Touch (long-term available) 10” LVDS LCD Display with PCAP Touch SKU: LCD.10.LVDS.1 |
130,- € | ||
![]() |
3.5" MIPI-DSI Display with PCAP Touch (long-term available) 3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch) SKU: B.LCD.22 |
80,- € |
Cable
![]() |
LVDS/MIPI Adapter Cable LVDS/MIPI cable with two 30pin connectors each (JAE X30HL-B to JAE X30HL-B) SKU: B.MKAB.44 |
22,- € | ||
![]() |
LVDS Cable LVDS cable with JAE FI X30 on one side and open ends on the other side SKU: B.MKAB.53 |
22,- € | ||
Backlight Cable Backlight cable for connecting the 7"/10" LVDS displays (LCD.7.LVDS.1 and LCD.10.LVDS.1). SKU: B.MKAB.35 |
7,- € | |||
![]() |
Capacitive Touch Cable 6-pin cable with matching connector for connecting an I2C touch to F&S boards SKU: B.MKAB.47 |
10,- € |
Adapter
![]() |
Power Adapter To supply armStone™ and PicoCore™ modules with 24V. SKU: ADP-NT24V3 |
40,- € |
Workshops
![]() |
Secure Boot as a Package Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software. SKU: WS-SBP |
500,- € | ||
![]() |
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request |
Other Accessories
![]() |
Patch Antenna Patch antenna for WLAN/BT (2.4/ 5 GHz) for connection to F&S boards with WLAN/BT antenna socket. SKU: B.ANT.6 |
3,- € | ||
![]() |
MXM-3 Plug Connector This connector enables the contact of various SMARC modules via the gold finger contacts of the assembly. SKU: B.CON.MXM3.1 |
Request | ||
![]() |
Heat Sink SMARC Heat Sink for cooling SMARC Boards. SKU: MHS.SMARC.1 |
Request | ||
![]() |
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € |
Variants
![]() |
SMARC™MX8MP-V3-LIN NXP i.MX8M Plus Quad Lite 1.8GHz, 1GB LPDDR4, 8GB eMMC, 2x LVDS, RTC, 1x Gbit LAN, 64kB EEPROM, no Security, no USB Hub, no WLAN, 0...+70°C SKU: FSSM8MP-V3-LIN |
Request | ||
![]() |
SMARC™MX8MP-V4-LIN NXP i.MX8M Plus Quad Lite 1.8GHz, 2GB LPDDR4, 32GB eMMC, 2xLVDS, SECO, RTC, 2x Gbit LAN, USB Hub, WLAN/BT 2.4/5GHz, 64kB EEPROM, 0...+70°C SKU: FSSM8MP-V4-LIN |
Request | ||
![]() |
SMARC™MX8MP-V4I-LIN NXP i.MX8M Plus Quad 1.6GHz VPU NPU ISP, 2GB LPDDR4, 32GB eMMC, 2xLVDS, SECO, RTC, 2x Gbit LAN, USB Hub, WLAN/BT 2.4/5GHz, 64kB EEPROM, -25...+85°C SKU: FSSM8MP-V4I-LIN |
Request |
Starterkit
![]() |
Starterkit SMARC™MX8MP Linux Evaluation kit für FS SMARC™MX8MP with base board, 7" display with PCAP touch, cable kit, access data for documentation and software SKU: FSSM8MP-SKIT-LIN |
360,- € |
Yocto Release Y2024.07
For the CPU NXP i.MX8M Plus F&S offers a Yocto based environment. We offer the Linux BSP fsimx8mp-Y2024.07, which is based on Yocto.
Our standard configuration, which is intended to give a first impression of the functionality of the board, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and many more.
The BSP contains the source code packages of U-Boot (2021.04), Linux kernel (based on 5.15.160) and Yocto (4.0.20 Kirkstone) adapted by F&S. Also included is our cross toolchain, some sample applications, and all binaries in the default configuration. Last but not least, detailed documents on the hardware are included, as well as the First Steps documentation for an easy start.
F&S offer a virtual machine (based on VirtualBox) with an installed Linux based on the distribution Fedora 36 for free download. All packages necessary to compile our software are already installed. Also, all services (NFS, TFTP) for working with our boards are installed. Our BSP is unpacked and precompiled in the correct directories. With this virtual machine it doesn't matter if you use Windows or Linux as host. Simply download the VHD, import it into VirtualBox and development can begin immediately.
➜ More information about the new Yocto release Y2024.07
Development start in under an hour
F&S Development Machine - Fedora 36
For a quick start into development with Linux we provide a VirtualBox-based virtual hard disk VHD for download. The VHD uses Fedora 36as Linux distribution.
With this machine you can start your development in less than an hour.
The machine is free of charge for our customers.
VirtualBox is a powerful product for corporate customers and at the same time the only professional solution which is freely available as Open Source Software under the terms of the GNU General Public License Version 2.
The F&S Development Machine contains pre-installed board support packages for fsimx8mm, fsimx8mn and fsimx8mp (64 bit CPU).
The appropriate F&S toolchain is installed in the VHD, the source code is extracted and ready to use.
Necessary system packages and tools are also already installed.
Furthermore, it contains a configured environment for QT development with cross-compile/debug kit, deployment strategy and demo application.
Note: To download the Development Machine, you must be registered on our website.
➜ More information about the F&S Development Machine in the F&S Support Forum
➜ Download F&S Development Machine - Fedora 36
➜ Quickstart Documentation
FSSM8MP - Product Flyer
- Quick Facts (310 KB, pdf) - 30/10/2024
- Customer Specific Boards (93 KB, pdf) - 20/09/2017
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
FSSM8MP - Hardware
- FSSM8MP Hardware Documentation (424 KB, pdf) - 25/04/2024
- FSSM8MP 3D Step Model (1.5 MB, zip) - 06/02/2025
- SGeT SMARC standard - (external link)
- Carrier Board FSSMBB Hardware Documentation (522 KB, pdf) - 13/02/2025
- Carrier Board FSSMBB Schematic (2.4 MB, pdf) - 05/09/2024
- Carrier Board FSSMBB 3D Files (5.7 MB, zip) - 06/02/2025
- SMARC Cooling Solution (359 KB, pdf) - 22/07/2024
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
FSSM8MP - Linux
- Advice for Linux on PC (2 MB, pdf) - 10/01/2018
- Linux First Steps (1.5 MB, pdf) - 06/09/2024
- Quickstart with FS Development Machine (1 MB, pdf) - 06/05/2020
- Application Development with Eclipse (2.4 MB, pdf) - 18/10/2022
- Application Development with QT5 (2.1 MB, pdf) - 16/01/2024
- Steps Required For Creating A Progress Bar In Linux (473 KB, pdf) - 12/07/2019
- Linux on F&S Boards (2.9 MB, pdf) - 20/12/2023
- DOTNET on F&S Boards (1.1 MB, pdf) - 19/06/2024
- Visual Studio Code C/C++ Application Development (455 KB, pdf) - 29/05/2024
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Variants
![]() |
SMARC™MX8MP-V3-LIN NXP i.MX8M Plus Quad Lite 1.8GHz, 1GB LPDDR4, 8GB eMMC, 2x LVDS, RTC, 1x Gbit LAN, 64kB EEPROM, no Security, no USB Hub, no WLAN, 0...+70°C SKU: FSSM8MP-V3-LIN |
Request | ||
![]() |
SMARC™MX8MP-V4-LIN NXP i.MX8M Plus Quad Lite 1.8GHz, 2GB LPDDR4, 32GB eMMC, 2xLVDS, SECO, RTC, 2x Gbit LAN, USB Hub, WLAN/BT 2.4/5GHz, 64kB EEPROM, 0...+70°C SKU: FSSM8MP-V4-LIN |
Request | ||
![]() |
SMARC™MX8MP-V4I-LIN NXP i.MX8M Plus Quad 1.6GHz VPU NPU ISP, 2GB LPDDR4, 32GB eMMC, 2xLVDS, SECO, RTC, 2x Gbit LAN, USB Hub, WLAN/BT 2.4/5GHz, 64kB EEPROM, -25...+85°C SKU: FSSM8MP-V4I-LIN |
Request |
Starterkit
![]() |
Starterkit SMARC™MX8MP Linux Evaluation kit für FS SMARC™MX8MP with base board, 7" display with PCAP touch, cable kit, access data for documentation and software SKU: FSSM8MP-SKIT-LIN |
360,- € |
