PMOD7A-ANC-WCE

Achtung: Dieses Produkt steht nicht mehr für Neuentwicklungen zur Verfügung!

Computer On Module mit Samsung S5PV210 CPU



PMOD7A-ANC-WCE
Status keine Neuentwicklungen
CPU
Typ Samsung Cortex-A8
Kern Cortex-A8
Frequenz 1GHz
Multimedia CPU, 2D, 3D, MFC
Betriebssystem
Windows WCE 6.0 Core Lizenz
Speicher
Flash 128MB
RAM 256MB
Schnittstellen
SD-Karte on-board/ extern
Ethernet 1x 10/ 100MB
USB Host 1-2 (2.0)
USB Device 1 (2.0)
CAN 1
I2C 1
SPI opt.
Audio In/ Out
Digital I/O max. 64
Touch Panel 4-Draht, analog resistiv
Display
RGB
CRT/DVI 0/DVI
CSTN
Allgemein
Stromversorgung +3,3V DC/ ±5%
Leistungsaufnahme 3W typ.
Betriebstemperaturbereich -25 - +85°C (L1), 0°C - +85°C (L2)
Größe 80mm x 50mm x 9mm (L x B x H)
Gewicht ca. 20g

Windows Embedded Lifetime

Feature Available until  End of Mainstream Support End of Extended Support
Windows Embedded Compact 2013 31.05.2028  10.09.2018 10.10.2023
Windows Embedded Compact 7 28.02.2026  12.04.2016 13.04.2021
Windows CE 6.0 28.02.2022  09.04.2013 10.04.2018

Windows Embedded CE 6.0 R3/ Compact 7

Windows Embedded CE 6.0 R3 oder Windows Embedded Compact 7 bietet Bootloader, Schnittstellentreiber und Kernel (mit z.B. Silverlight, Mediaplayer oder IE). Die Schnittstellentreiber fast aller angebotenen Schnittstellen stehen schon fertig zur Verfügung. Mühsames Arbeiten mit dem Platformbuilder entfällt, diese Arbeit haben wir Ihnen schon abgenommen. Estellen Sie Ihre Software mit Visual Studio .NET in den Sprachen C, C++, C# oder VB.NET. Verwenden Sie Schnittstellen wie z.B. I²C auf die gleiche Weise wie eine RS232 Schnittstelle ohne sich mit der darunterliegenden Hardware auseinandersetzen zu müssen. Konfigurieren Sie das Display und andere Einstellungen mit dem F&S Konfigurationstool.

Unter WCE 6.0 und Compact 7 steht Ihnen unser FailSafe Flash File System F3S zur Verfügung.

Windows Embedded Features for FSV210

General

Feature Description
.NET Support Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework
AnalogIn Stream driver to easily access the analog inputs
Audio Codec Support for Microphone, LineIn and LineOut.
Implements Mixer interface and special F&S mixer control panel applet to easily change settings.
BusEnum2 Support for asynchronous loading of drivers. Use events to start loading of drivers.
Broadcast Stream driver
Boards can be easily identified and configured over LAN connection
CAN Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication.
Digital I/O  Stream driver to configure pins as input, output or interrupt.
Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry.
Display Display driver can be configured by registry settings without modifying operating system.
Display Multi-Monitor Support
Adjustable by registry
Display 2D software acceleration using NEON co-processor
Multiple overlays with alpha blending
Display 2D hardware acceleration
3D OpenGL ES 1.1 and 2.0 hardware acceleration
Multiple overlays with alpha blending
Multiple monitor support (incl. 2D acceleration and Video support)
Firmware Update Software to update Bootloader and/or operating system from running operating system.
Software Update Program to update application and registry settings from USB stick, SD card or other source. Includes automatic detection.
Can incorporate with Firmware Update
I²C Stream driver
Support for hardware I²C controller (NI2C)
Support for using GPIOs as I²C (I²C)
JPEG Stream driver
Hardware accelerated JPEG encoder/decoder
Keyboard Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409
Matrix keyboard support: Use IO pins for keyboard
SPI Stream driver
Support for hardware SPI controller
Touch Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others
Extended USB mouse driver to accept absolute coordinates
USB Host EHCI and OHCI driver
USB Device
KBDHID Extended MS kbdhid - Support for all keys on the keyboard
MOUTOUCHHID Support for absolute coordinates
Power Management Support for screen saver and touch activation
PWM Stream driver
Video Streaming Filter framework for streaming video over HTTP
VoIP Voice over IP sample solution

File System

Feature Description
F&S BinFS Bug fixed BinFS file system for XIP images
F3S F&S Secure Flash File System
Optimized throughput on all file operations
Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector)
Transaction-based concept already cooperates with a lot of applications
Filesystem
Filter Driver		 Used to limit access to file system.
Possible restrictions: Move, Delete, Rename
FAT/TFAT Microsoft Windows Embedded FAT/TFAT solution.

Services

Feature Description
Telnet Server Enabled by default. Easy access to command shell.
FTP Server
HTTPD Server Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera)
OpenSSH Offers SSH server functionality for Windows Embedded. Based on OpenSSH
SFTP
SCP
SMTP
SSH SCP/SFTP server SSH Library (also used from SMTP).
SMTP SMTP library to send EMail

Tools

Feature Description
Bootscreen Showing custom image during boot.
Control Panel Standard Windows Embedded Control Panel with additional tools.
CE Remote Display Driver and application to access desktop of device remotely.
ndcucfg Command line configuration tool.
Can be used locally, over Telnet connection and over serial connection.
Registry editing
Reading/writing of boot loaders and splash screen
User administration
Certificate administration
....
Usage:
* Can be used in own applications as DLL.
* As a command line tool from telnet or serial debug console
Update tool Update of boot loader
Update on WinCE image
Registry changes
Update of user application
Runs from SD/USB/LAN
F&S 2D control utility Control panel applet
Change 2D acceleration on the fly
F&S Board Config Control panel applet
Check hardware revision, version of boot loader, version of WinCE image and much more.
Change system startup and registry.
F&S Audio Mixer Control panel applet
Change audio features like volume, bass, treble, input ...
F&S HDMI config utility Command line tool
Configure HDMi interface on the fly
Change HDMI resolution
Change position and size of layers
Change priority, color key and blending
F&S SSH/SMTP control utility Control panel applet
Start stop SSHD service
Send test EMail by SMTP
F&S USB Loader Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information.
Can be used to update software or to automate production.

Multimedia

Feature Description
Codec Filter Hardware accelerated DirectShow Filter
Max. Resolution: 1920x1080
Formats: ITU-T H.264, ISO/IEC 14496-10, ISO/IEC 14496-2 MPEG4
Camera Filter Max. Resolution: 8192x8192
Supported: Cameras: OVM9665, OVM7690
Supported PINs: Preview, Capture, Still
MJPEG Filter Hardware accelerated MJPEG filter.

Flyer PicoMOD7A A4 Deutsch (653 KB, pdf)

PicoMOD7A - Hardware


PicoMOD7A - Linux


PicoMOD7A - Windows Embedded CE/Compact


Es gibt keine Dateien anzuzeigen.


PicoMOD7A - Miscellaneous

  • Camera Interface Documentation (Windows Embedded)

PicoMOD7A - Display

PicoMOD7A - Product Flyer

Variante

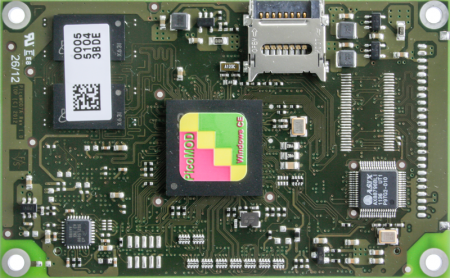

PicoMOD7A RGB TOP Windows PMOD7A-ANC-WCE
Samsung S5PV210 Cortex-A8, 256MB RAM, 128MB Flash, 1x Ethernet, 1x CAN, Audio, Touch, RGB, CSTN, DVI, 0°C - +85°C, 3,3V Versorgung, Windows Embedded CE 6.0 R3
Bestellnr.: PMOD7A-ANC-WCE		 Anfrage
