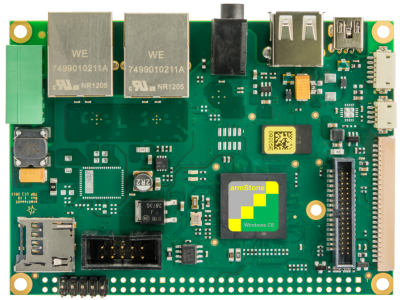

aStoneA5-V1-WEC7

Single Board Computer im PicoITX Formfaktor mit NXP Vybrid Cortex-A5 CPU

Für den Start in die Entwicklung empfehlen wir:

Starterkit armStone™A5 Windows
  179,- €
ohne MWSt.

armStoneA5-V2-W13, Kabelkit, 7“ EDT RGB TFT mit resistivem Touch inkl. Adapter und Kabeln, Power Adapter, Zugangsdaten zu Dokumentation und Software



Bitte beachten Sie die Verfügbarkeiten der Windows Lizenzen.

End of Life Windows CE 6.0: 26.02.2022

End of Life Windows Compact 2013: 26.02.2028

aStoneA5-V1-WEC7
Status Produktion
CPU
Typ NXP Vybrid
Kern Cortex-A5
Anzahl der Kerne Single-Core
Frequenz 500MHz
L2-Cache 512KB
GPU NEON
Betriebssystem
Windows WEC 7
Speicher
Flash 128MB
RAM 256MB
Schnittstellen
SD-Karte 1x microSD on board
Ethernet 1x 10/100Mb
IEEE 1588
USB Host 1x
USB Device 1x
CAN 1x
UART 3x
I2C 1x
SPI 1x
Audio Line In/Out/Mic
Digital I/O max. 66
Touch Panel 4-wire, analog resistive;
PCAP-Touch via I2C
Display
RGB 18bit
LVDS 18bit
Allgemein
Stromversorgung 5V/8-14V DC / ±5%
Leistungsaufnahme 3W typ.
Betriebstemperaturbereich 0°C - +70°C
Größe 100x72x15mm
(LxBxH)
Gewicht ~55g
Minimale Verfügbarkeit 2028

Zubehör

ADP NT24V2 OBLIQUE TOP Power Adapter
Ermöglicht es, die armStone™ und PicoCore™ Module mit bis zu 24V zu versorgen.
Bestellnr.: ADP-NT24V3		 40,- €

software accessory Software .NET Treiber
Treiberpaket zur Nachrüstung, besteht aus C# Treibern für I²C/ SPI/ CAN, sowie dem SPI Treiber in C++.
Bestellnr.: WCE-DOTNET		 500,- €

software accessory UpDate Software
Das Programmpaket ermöglicht ein sicheres und einfaches Update Ihres Applikationsprogramms und des Betriebssystems über USB Stick oder SD Card.
Bestellnr.: WCE-UPDATE		 500,- €

software accessory Boot Screen
Zeigt dem Anwender während der Bootphase ein hinterlegtes Startbild (BMP File) an.
Bestellnr.: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Erstellung eines kundenspezifischen Kernels. Die Windows CE Komponenten und Registry Einträge (z.B. Display) werden vom Kunden festgelegt. Vom Kunden gestellte Software kann ebenfalls aufgespielt werden.
Bestellnr.: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
Das Failsafe Flash Filesystem F3S gewährleistet Transaktionssicherheit auf Dateiebene und garantiert Ihnen so die Beständigkeit der Daten im Falle von Stromausfällen oder anderen Störungen.
Bestellnr.: WCE-F3S		 1,000,- €

USBSTICK1 USB Stick
USB Memory Stick mit aktuell üblicher Speichergrösse (2GB+) und aufgedrucktem F&S Logo. Getestet wurde dieser USB Stick an allen aktuellen F&S Boards.
Bestellnr.: USBSTICK.1		 20,- €

I2C Extension I2C Erweiterung
Schaltung zur externen Erweiterung mit GPIOs, AID, PWM, Matrixtastatur. Diese externe Schaltung wird über den I²C-Bus angeschlossen.
Bestellnr.: NDCU-ADP/I2C		 80,- €

armStone efus RGB Kit Displaykit RGB 2
7" WVGA Display mit RGB Schnittstelle und Touchpanel, Anschlusskabel (40pol Filmkabel), Displayadapter und Touchkabel
Bestellnr.: aSt-RGBKIT		 170,- €

aStone ADP UNI1 OBLIQUE TOP NEU armStone Erweiterung
Leitet die Schnittstellen des 66pin Steckverbinders auf Standardstecker.
Bestellnr.: aStone-ADP-UNI1		 130,- €

resistive Touch Kit Resistives Touch Kit
Für den Anschluss eines resistiven Touchpanels an F&S Boards mit 4pol Touchbuchse.
Bestellnr.: SINTF-ADP-RESTOUCH		 35,- €

armStone Adapter DVI armStone™/efus™/PicoCore™ DVI Adapter
Zum Anschluss der armStone™, efus™ oder PicoCore™ an einen DVI/HDMI Monitor.
Bestellnr.: aStone-ADP-DVI		 50,- €

ET070080 B.LCD.15 Display 7" RGB Display mit resistivem Touch
7" TFT (800x480) EDT ET070080DH6
Bestellnr.: B.LCD.15		 120,- €

B.MKAB.23 40poliges Filmkabel
Filmkabel, A40pol., 0,5mm, l=200mm für Displays
Zum Anschluss des 7" EDT Displays (B.LCD.15)
Bestellnr.: B.MKAB.23		 10,- €

aSt-ADP-MIT1 Adapter für Endrich iSi50 Displays
Adapter zum Anschluss eines Endrich iSi50 Displays an F&S Boards
Bestellnr.: aSt-ADP-MIT1		 50,- €

linux windows embedded compact workshop Workshops
Workshops für F&S Boards mit Windows Embedded Compact oder Linux - Einstiegsworkshops - Qt 5 - Asymmetrisches Multiprocessing - Secure Boot
Bestellnr.: NDCU-WS1		 Anfrage
SINTF ADP EDTTOUCH2 PCAP Touch Kit für EDT
Zum Anschluss eines EDT PCAP Touch
Bestellnr.: ADP-EDTTOUCH2		 35,- €

software accessory Display Anpassung (RGB oder LVDS Display unter Windows)
Erstellung eines Treibers für den Touchcontroller unter WCE7 oder WEC13 für Ihr F&S Board.

Bestellnr.: EW-SW-RGB-LVDS-Windows		 500,- €


Varianten

armStoneA5 TOP linux aStoneA5-V1-LIN
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, Ethernet, CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 5V Versorgung, Linux Buildroot
Bestellnr.: aStoneA5-V1-LIN		 Anfrage
armStoneA5 TOP windows aStoneA5-V1-W13
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, Ethernet, CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 5V Versorgung, Windows Embedded Compact 2013
Bestellnr.: aStoneA5-V1-W13		 Anfrage
armStoneA5 TOP windows aStoneA5-V1-WEC7
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, Ethernet, CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 5V Versorgung, Windows Embedded Compact 7
Bestellnr.: aStoneA5-V1-WEC7		 Anfrage
armStoneA5 TOP linux aStoneA5-V2-LIN
NXP Vybrid Cortex-A5 + Cortex-M4, 256MB RAM, 128MB Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 5V Versorgung, Linux Buildroot, MQX
Bestellnr.: aStoneA5-V2-LIN		 Anfrage
armStoneA5 TOP windows aStoneA5-V2-W13
NXP Vybrid Cortex-A5 + Cortex-M4, 256MB RAM, 128MB Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 5V Versorgung, Windows Embedded Compact 2013, MQX
Bestellnr.: aStoneA5-V2-W13		 Anfrage

Starterkits

Windows Embedded Lifetime

Feature Available until  End of Mainstream Support End of Extended Support
Windows Embedded Compact 2013 31.05.2028  10.09.2018 10.10.2023
Windows Embedded Compact 7 28.02.2026  12.04.2016 13.04.2021
Windows CE 6.0 28.02.2022  09.04.2013 10.04.2018

Windows Embedded Compact 2013

Als erste Firma überhaupt, können wir Ihnen WEC 2013 für Vybrid Prozessoren anbieten. Das hochflexible harte Echtzeitbetriebsystem bietet Kernel, Schnittstellentreiber, Bootloader und nutzt alle Features einer modernen ARM CPU wie ARMv7 THUMB2 Befehlssatz oder NEON Coprozessor.
Fertige Images und das BSP finden Sie in unserem Downloadbereich.
Die Entwicklung erfolgt mit den aktuellen Microsoft Tools wie Visual Studio 2015 (C, C++, C# oder VB.NET) und Expression Blend 5.
Schnittstellen wie z.B. I²C, CAN oder SPI können auf die gleiche Weise wie eine RS232 Schnittstelle verwendet werden.
Mithilfe von XAML for Windows Embedded trennen Sie Visualisierung und Programm auf einfache Weise.

Auch unter Compact 2013 steht Ihnen unser FailSafe Flash File System F3S zur Verfügung.

Windows Embedded Features for Vybrid

General

Feature Description Vybrid WEC 2013
.NET Support Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework ✔ ✔
AnalogIn Stream driver to easily access the analog inputs ✔ ✔
Audio Codec Support for Microphone, LineIn and LineOut.
Implements Mixer interface and special F&S mixer control panel applet to easily change settings.		 ✔ ✔
BusEnum2 Support for asynchronous loading of drivers. Use events to start loading of drivers.  ✔ ✔
Broadcast Stream driver
Boards can be easily identified and configured over LAN connection		 ✔ ✔
CAN Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication. ✔ ✔
Digital I/O  Stream driver to configure pins as input, output or interrupt.
Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry.		 ✔ ✔
Display Display driver can be configured by registry settings without modifying operating system. ✔ ✔
Display Multi-Monitor Support
Adjustable by registry		   ✔
Display 2D software acceleration using NEON co-processor
Multiple overlays with alpha blending 		 ✔ ✔
Display 2D hardware acceleration
3D OpenGL ES 1.1 and 2.0 hardware acceleration
Multiple overlays with alpha blending
Multiple monitor support (incl. 2D acceleration and Video support)
Firmware Update Software to update Bootloader and/or operating system from running operating system. ✔ ✔
Software Update Program to update application and registry settings from USB stick, SD card or other source.
Includes automatic detection. Can incorporate with Firmware Update		 ✔ ✔
I²C Stream driver
Support for hardware I²C controller (NI2C)
Support for using GPIOs as I²C (I²C)		 ✔ ✔
Keyboard Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409
Matrix keyboard support: Use IO pins for keyboard		 ✔ ✔
SPI Stream driver
Support for hardware SPI controller		 ✔ ✔
Touch Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others
Extended USB mouse driver to accept absolute coordinates		 ✔ ✔
USB Host EHCI and OHCI driver ✔ ✔
USB Device   ✔ ✔
KBDHID Extended MS kbdhid - Support for all keys on the keyboard ✔ ✔
MOUTOUCHHID Support for absolute coordinates ✔ ✔
Power Management Support for screen saver and touch activation ✔ ✔
PWM Stream driver ✔ ✔
Video Streaming Filter framework for streaming video over HTTP ✔ ✔
VoIP Voice over IP sample solution ✔
QT 4.8x Support for QT 4.8. framework. ✔

File System

Feature Description Vybrid WEC 2013
F&S BinFS Bug fixed BinFS file system for XIP images ✔ ✔
F3S F&S Secure Flash File System
Optimized throughput on all file operations
Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector)
Transaction-based concept already cooperates with a lot of applications  		 ✔ ✔
Filesystem
Filter Driver		 Used to limit access to file system.
Possible restrictions: Move, Delete, Rename		 ✔ ✔
Filesystem Redirect Driver Redirects file system access from one directory to another. ✔ ✔
FAT/TFAT Microsoft Windows Embedded FAT/TFAT solution. ✔ ✔
NAND Driver 16 bit hardware ECC ✔ ✔

Services

Feature Description Vybrid WEC 2013
Telnet Server Enabled by default. Easy access to command shell. ✔ ✔
FTP Server   ✔ ✔
HTTPD Server Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera) ✔ ✔
OpenSSH Offers SSH server functionality for Windows Embedded. Based on OpenSSH
SFTP
SCP
SMTP		 ✔ ✔
SSH SCP/SFTP server SSH Library (also used from SMTP).  ✔ ✔
SMTP SMTP library to send EMail ✔ ✔

Tools

Feature Description Vybrid WEC 2013
Bootscreen Showing custom image during boot. ✔ ✔
Control Panel Standard Windows Embedded Control Panel with additional tools. ✔ ✔
CE Remote Display Driver and application to access desktop of device remotely. ✔ ✔
ndcucfg Command line configuration tool.
Can be used locally, over Telnet connection and over serial connection.
Registry editing
Reading/writing of boot loaders and splash screen
User administration
Certificate administration
....
Usage:
* Can be used in own applications as DLL.
* As a command line tool from telnet or serial debug console		 ✔ ✔
Update tool Update of boot loader
Update on WinCE image
Registry changes
Update of user application
Runs from SD/USB/LAN		 ✔ ✔
F&S 2D control utility Control panel applet
Change 2D acceleration on the fly		 ✔ ✔
F&S Board Config Control panel applet
Check hardware revision, version of boot loader, version of WinCE image and much more.
Change system startup and registry.		 ✔ ✔
F&S Audio Mixer Control panel applet
Change audio features like volume, bass, treble, input ...		 ✔ ✔
F&S SSH/SMTP control utility Control panel applet
Start stop SSHD service
Send test EMail by SMTP		 ✔ ✔
F&S USB Loader Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information.
Can be used to update software or to automate production.		 ✔ ✔
F&S Mfg Tool Modified NXP Tool for board bring up and software installation ✔ ✔
