Product Overview



armStone



PicoCore



 efus

armStoneA9r2 TOP Linux2



PicoCOREMX7ULP 1Produktuebersicht2





efusMX8X TOP Produktuebersicht2

  • 100x72mm
  • Single Voltage 5V, 12V optional
  • LVDS-TFT, DVI
  • Feature Connector 2,54mm
  • PicoITX - Single Board Computer
  • NXP i.MX 8M, NXP i.MX 6, NXP Vybrid, Samsung Cortex--A8

  • 35x40mm
  • Single Voltage 5V
  • RGB, LVDS, MIPI, HDMI
  • two plug connectors, each 80/100 Pin
  • WLAN, BT
  • NXP i.MX 8M Plus, i.MX 8M Nano, i.MX 8M Mini, i.MX 6ULL, i.MX 6SoloX, i.MX 7ULP, i.MX RT1050

    • 47x62mm
    • Single Voltage 5V
    • RGB, LVDS, DVI
    • MXM2 Goldfinger Connector,
      230 Pins, 0,5mm
    • Camera, PCIe, SATA, WLAN, BT
    • NXP i.MX 8DualX/ QuadXPlus, NXP i.MX 6UL/ULL, NXP i.MX 6, NXP i.MX 6SoloX, NXP QorlQ LS1012A, Renesas RZ/G1C

 QBliss



 PicoCOM



 PicoMOD

   QBlissA9 TOP Produktuebersicht2



 PicoCOMA9X TOP LIN Produktuebersicht2





 PicoMODA9 TOP Produktuebersicht2

    • Qseven Standard
    • 70x70mm
    • Single Voltage 5V
    • LVDS-TFT, DVI-D
    • MXM2 Goldfinger Connector,
      230 Pins, 0,5mm
    • NXP i.MX 6

  • 40x50mm
  • plug connector,
    80Pins, 0,8 Pitch
  • Single Voltage 3,3V
  • up to 1GB SLC NAND and up to 32GB eMMC
  • TFT/Touch, 1x/2x LAN, Audio, I2C, CAN ...
  • NXP i.MX 6UL, Samsung ARM 926, NXP Vybrid, NXP i.MX 6SoloX, NXP i.MX 6ULL

    • 80x50mm
    • Single Voltage 3,3V
    • TFT, LVDS, DVI-D
    • one plug connector,
      140 Pins, 0,8 Pitch
    • Address-/Data-Bus
    • Camera Interface
    • NXP i.MX 6, NXP Vybrid, Samsung Cortex-A8

 NetDCU



 Accessories

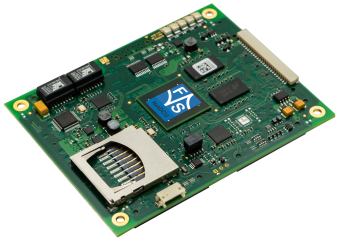

 NetDCUA9 TOP2






  • 100x80mm
  • Single Voltage 5V
  • STN, CSTN, TFT
  • robust 2.54 plug connector
  • no external hardware necessary
  • NXP i.MX 6, NXP Vybrid, Marvell PXA270, Samsung S5PV210

    • Software
    • Displays
    • Cables
    • Connectors

Boardfamilies

Boardfamily

armStone™

efus™

PicoCore™

QBliss

PicoCOM™

PicoMOD

NetDCU

Boardtype

SBC

 COM

 COM

COM

COM

COM

SOM

Baseboard complexity

-

 easy

 easy

advanced

easy

easy

very easy

CPU Performance up to (Cores)

Cortex-A9/A53 (4)

Cortex-A9/A35 (4)

Cortex-A7/A9/A53 (4)

 Cortex-A9 (4)

Cortex-A7/ A9 (1)

Cortex-A9

Cortex-A9

Windows

   ✔

Linux

✔

 ✔

Standard

PicoITX
Form factor

FS Logo 2014 icon ohne rand100px

FS Logo 2014 icon ohne rand100px Qseven
second source
FS Logo 2014 icon ohne rand100px FS Logo 2014 icon ohne rand100px

FS Logo 2014 icon ohne rand100px

LCD Interface

RGB
LVDS

RGB
LVDS

RGB, LVDS, MIPI-DSI

 LVDS

RGB

RGB
LVDS

RGB
LVDS

Monitor

DVI

DVI

 DVI

 DVI

-

DVI

-

Colour depth up to

24Bit

24Bit

 24Bit

 24Bit

18Bit

24Bit

24Bit

Resolution up to

FullHD

FullHD

 FullHD

 FullHD

WXGA

WXGA

WXGA

DATA-BUS

-

-

 -

 -

-

Camera

✔

 ✔

-

-

Ethernet

2x

2x

 2x

 2x

2x

1x

2x

WLAN/BT

-

-

-

-

Power supply

5V

5V

 5V

 5V

3,3V

3,3V

5V

Size(mm)

100x72

47x62.1

 35x40

 70x70

40x50

80x50

100x80

Plug Connector

66pin

MXM-2 230pin

 2x 80/100pin

 MXM-2
230pin

80pin

140pin

142pin



F&S Board Strategy

If there is a need for more processor power or more interfaces during the development phase or a later redesign, this can lead to a serious problem. But not with F&S boards. Pin- and software-compatible boards are available in every board family. Further boards are added annually and supplement the board family or replace discontinued boards (after 10 years at the earliest).

With this board strategy, the customer does not take any risk.

Depending on the customer's needs, one of the seven board families can be used; each board family meets different needs.

Strategie-Clipart
Garantie-Clipart

F&S Project Guarantee

F&S Elektronik Systeme offers its customers a project guarantee.
Together, all problems that arise during development are solved (hardware as well as software) and wishes are fulfilled. The aim is to complete the customer's project successfully and to continue to support the project throughout its entire duration, even after the start of series production.
Another important point of the project guarantee is the long-term availability of each module for at least 10 years.
This project guarantee paved the way for F&S Boards in many applications of well-known customers throughout Europe.

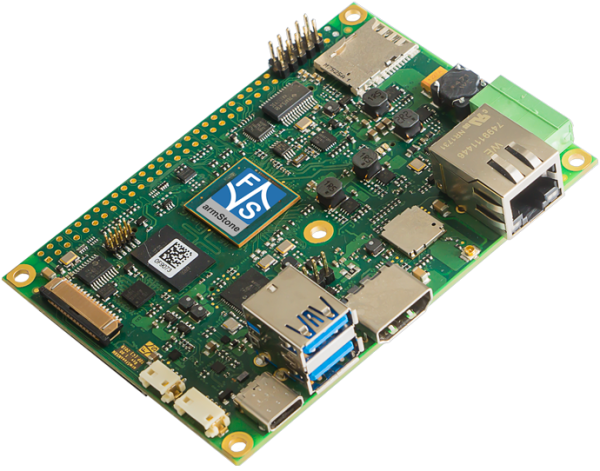

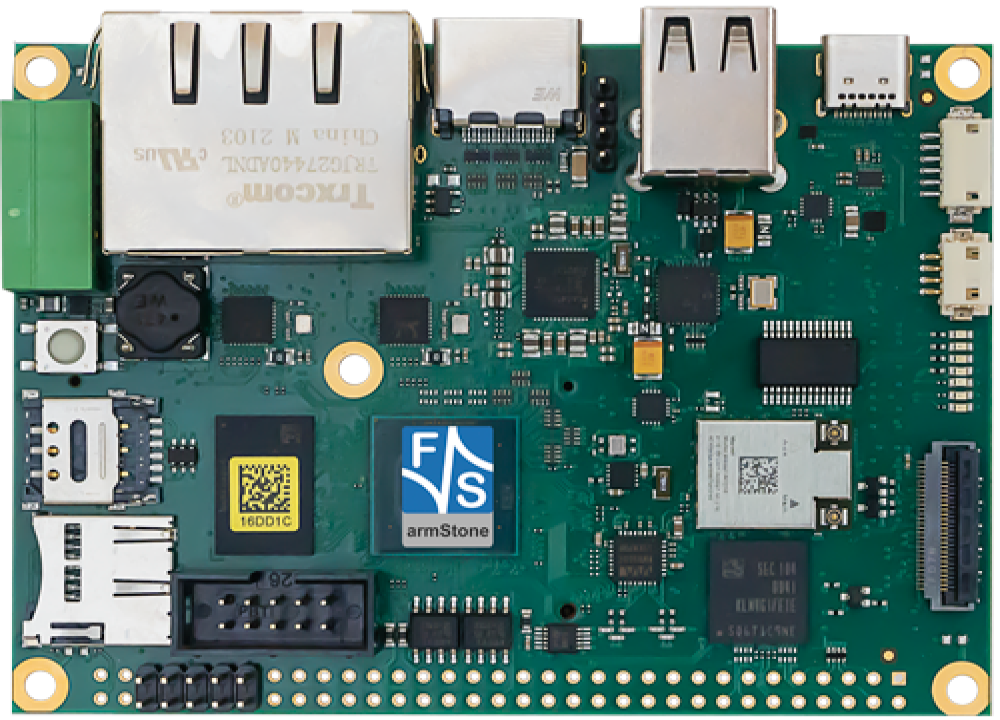

armStone™

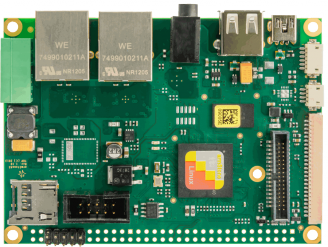

armStoneA5 TOP

Solutions with Computer on Module (COM) need a base board; a Single Board Computer (SBC) in an established form factor offers an alternative. The armStone™ modules in PicoITX form factor are perfectly suited for developing small, but high-performance applications.

Characteristics

  • 100 x 72mm
  • Single Voltage 5V
  • LVDS TFT, HDMI
  • Feature Connector 2,54mm
  • PicoITX – Single Board Computer

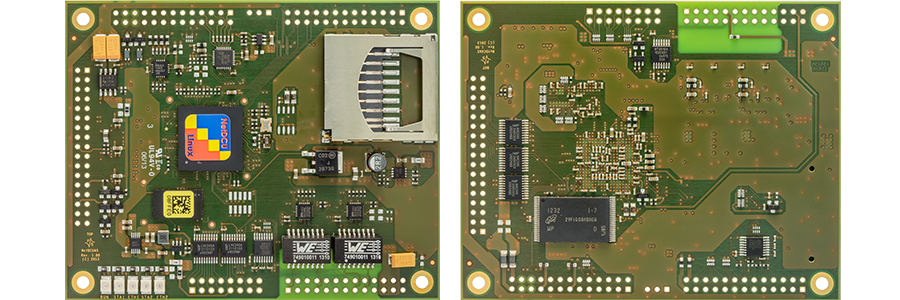

NetDCU

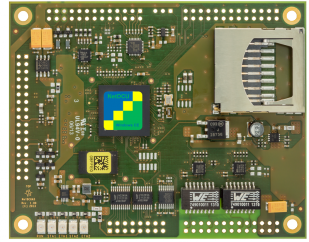

NetDCUA5 TOP WCE


The NetDCU standard has a size of 80x100mm, including easy and robust 2.54mm connectors and 5V single supply. Only a very simple base board is needed additionally. Even the driver components for RS232, buffer for display signals and the Ethernet transformer are already available. The product range goes from Cortex-A5 - 500MHz to Cortex-A9 - 1GHz. All NetDCUs are pin compatible and therefore easy to exchange / scale.

Characteristics

  • 100 x 80mm
  • Single Voltage 5V
  • STN, CSTN, TFT
  • Robust 2,54mm Connector
  • Very Easy Carrier Board
  • No External Hardware Required

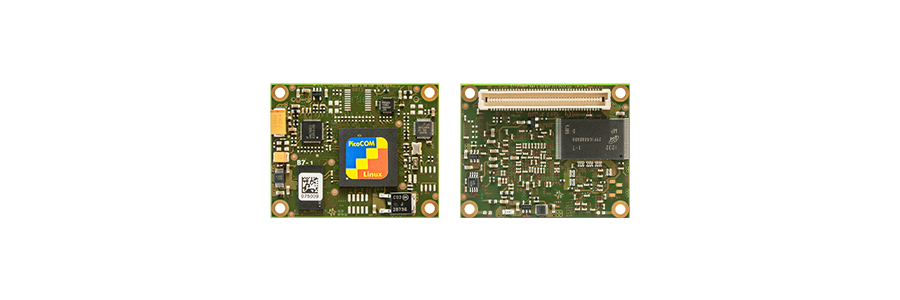

PicoCOM

PicoCOMA5 TOP

The PicoCOM form factor has a size of 40x50mm, is extremely compact and low-priced. It has a reliable 80pol SMD connector and 3.3V single supply. Only a simple base board is necessary additionally. The base board only needs driver components (RS232, RS485, CAN, Ethernet transformer) and bushes. The product range goes from ARM9-240MHz up to Cortex-A9 - 1GHz. All PicoCOM boards are pin compatible and therefore easy to exchange/ scale.

Characteristics

  • 40 x 50mm
  • Single Voltage 3,3V
  • CPU from ARM9 to Cortex-A9
  • TFT
  • Low Cost
  • One Connector Only, 80 Pins, 0,8 Pitch

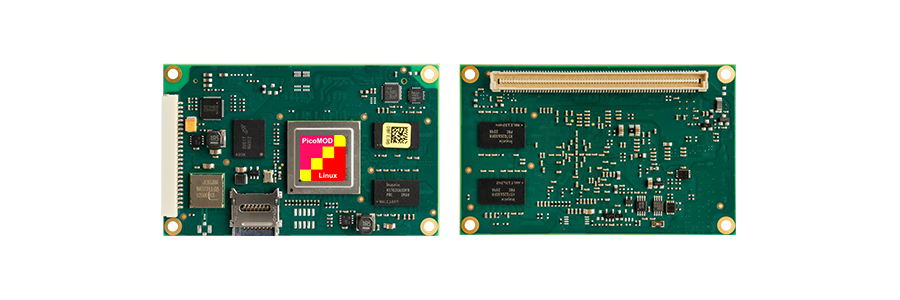

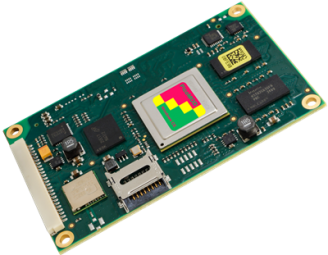

PicoMOD


The PicoMOD standard has a size of 50x80mm (credit card sized), a reliable 140pol SMD connector, 3.3V single supply and only a (simple) base board is necessary additionally. On the base board only the driver components (RS232, RS458, CAN, Ethernet transformer) and the bushes are missing. The current product range goes from ARM9-400MHz up to Cortex-A9 - 1GHz. All PicoMOD boards are pin compatible and therefore easy to exchange/ scale.

Characteristics

  • 80 x 50mm
  • Single Voltage 3,3V
  • TFT, LVDS, DVI-D
  • High Flexibility
  • One Connector Only, 140 Pins,
    0,8 Pitch
  • Address- / Data- Bus
  • Camera Interface

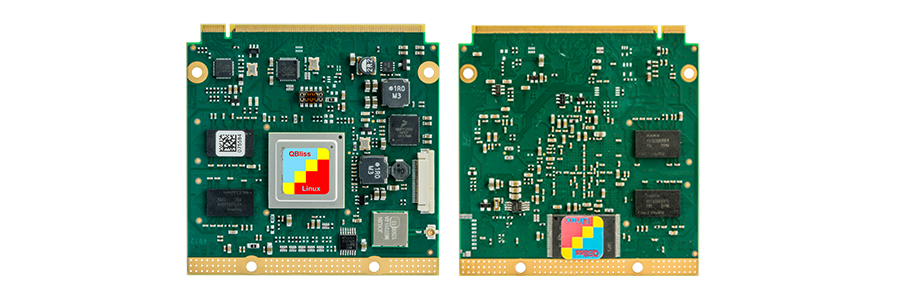

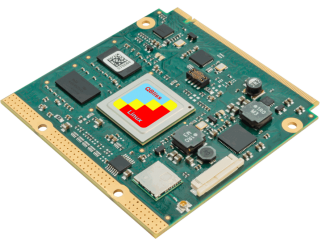

QBliss




F&S Elektronik Systeme was one of the first board manufacturers introducing a Qseven form factor board with RISC-CPU.

Difference to Qseven with ATOM:

  • short booting time (5-8s)
  • low input power (3W)
  • low license fees (for Windows Embedded Compact).

 Characteristics

  • 70 x70mm
  • Single Voltage 5V
  • LVDS - TFT, DVI-D
  • Goldfinger Connector, 230 Pins, 0,5mm
  • Cortex-A9
  • Qseven Standard

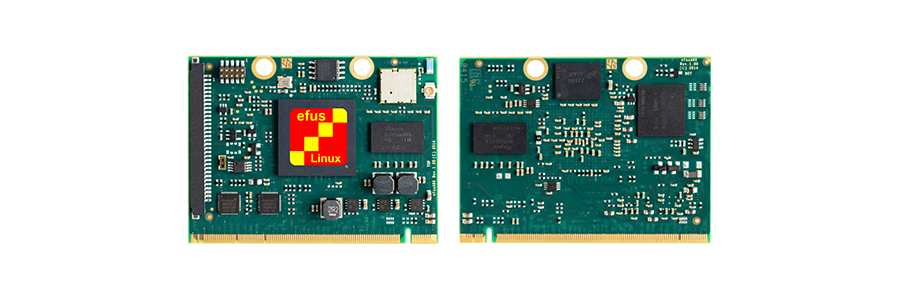

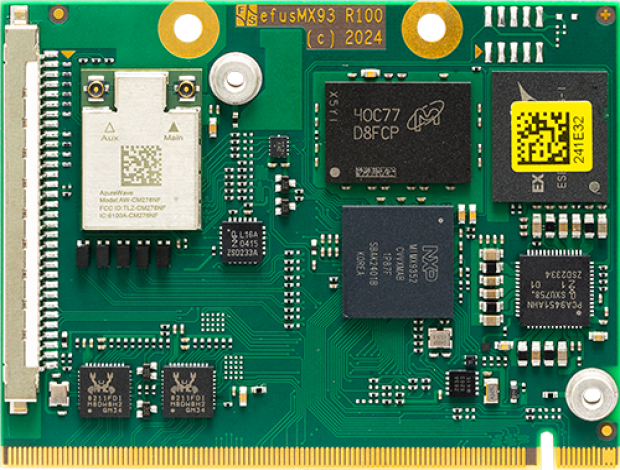

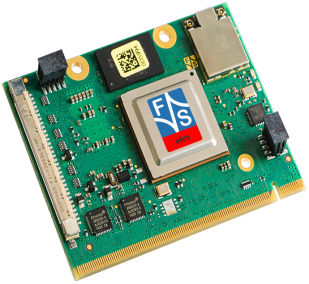

efus™

efusA9 TOP WCE

The efus™ standard has a size of 47 x 62mm only. It is equipped with finger-type contacts for a common 230 on MXM2 edge connector (inexpensive and certified for automotive).

The efus™ circuit board can be extended with wireless modules laterally(WLAN, Z-Wave, ZigBee, EnOcean) without having to change the layout of the CPU area.

Characteristics

  • 47 x 62mm
  • Single Voltage 5V
  • RGB/LVDS/DVI
  • MXM2 Goldfinger Connector, 230 pins, 0,5mm
  • Camera, PCIe, SATA

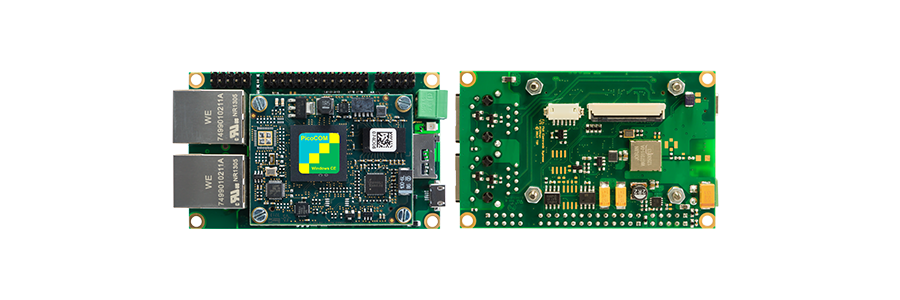

 PicoCore™

PicoCOREMX7ULP 1Produktuebersicht2

35x40mm, small board-to-board distance (1.5mm), connectors: 2x100pin, 1.5mm to 3mm height or 2x 80Pin, 1.5mm to 4mm height, 5V single supply, additionally you need a very simple base board. PicoCore™ System on Modules are ideal for small and low power processors from NXP, such as i.MX 8M Mini/ Nano or i.MX 8M Plus. Up to 4 Cortex®-A53 cores and one Cortex®-M4/M7 core are available on the ARM-based PicoCore™ form factor.

Features

  • Form Factor 35x40mm
  • Single Voltage 5V
  • Display interface
  • two plug connectors, 80/100 Pin each
  • WLAN, BT
  • NXP i.MX 6ULL, i.MX 6SoloX, i.MX 7ULP,
    i.MX 8M Mini, i.MX 8M Nano, i.MX 8M Plus, i.MX RT1050
  • FreeRTOS
  • Linux Buildroot, Yocto
  • Windows Embedded Compact
  • Secure Boot, Encrypted Boot, Cloud Security

Software, Add-Ons and Support

All boards are supported by the operating systems Windows Embedded Compact 7/2013, Windows Embedded CE 6.0 R3 and Linux. Bootloader, kernel, interface drivers, SDK (partly BSP) are available for every module. Windows is developed with Visual Studio (C++, C#, VB.NET) and Expression Blend (XAML for Embedded). As an alternative, we also offer Linux with current kernel, uboot, interface drivers and Buildroot Support (QT, Gstreamer, JAVA VM…).
For a quick start of development, starterkits with standard connectors and helpful accessories (cables, displays, adapters,...) are offered.
A four-hour workshop and support via phone, e-mail and the F&S Forum complement the excellent F&S Support offer.
