PicoCore™ 80

Computer on Module Produktfamilie

Features

  • Form Factor 35x40mm
  • Single Voltage 5V
  • two plug connectors, 80 Pin each
  • WLAN 802.11 ac, BT 5.0
  • NXP i.MX 6ULL, i.MX 6SoloX, i.MX 7ULP,  i.MX RT1050
  • Linux Buildroot, Yocto
  • FreeRTOS for Cortex-M
  • Windows Embedded Compact on request
  • Secure Boot, Encrypted Boot, Cloud Security, OTA Update

Additional PicoCore™ boards with 2x 100 pin connectors and NXP i.MX 6ULL/ i.MX8M Mini/ i.MX 8M Nano/ i.MX 8M Plus processors can be found here. PicoCore™

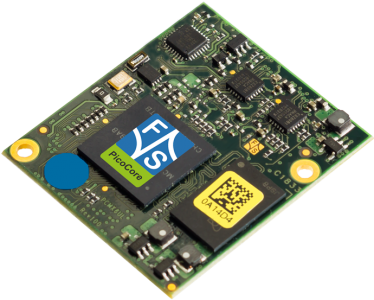

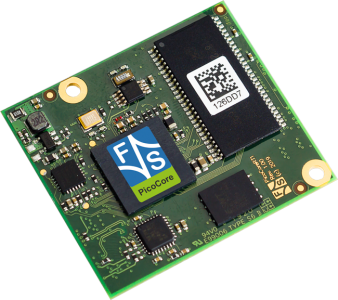

PicoCore™RT1 PicoCore™MX7ULP PicoCore™MX6UL PicoCore™MX6SX
State Samples Production Production Production
CPU - - - -
CPU NXP i.MX RT1050 NXP i.MX 7ULP NXP i.MX 6ULL NXP i.MX 6SoloX
Core ARM Cortex-M7 ARM Cortex-A7 + Cortex-M4 ARM Cortex-A7 ARM Cortex-A9 + Cortex-M4
No of Cores 1 1 + M4 1 1 + M4
Frequency max. 600MHz max. 720MHz max. 900MHz max. 800MHz + 200MHz
L2-Cache 32KB 256KB 128KB 256KB
GPU 2D 3D, 2D - 3D, 2D
Operating System - - - -
Linux - Yocto, Buildroot
(uboot installed)
Buildroot/ Yocto
(uboot installiert)
Buildroot/ Yocto
(uboot installiert)
Windows - - auf Anfrage on request
Real Time FreeRTOS FreeRTOS - FreeRTOS
Memory - - - -
Flash - max. 64MB QSPI
max. 32GB eMMC
max. 512MB SLC
oder max. 32GB eMMC
max. 512MB SLC NAND
oder max. 32GB eMMC
RAM - max. 1GB LPDDR3 max. 1GB DDR3L max. 1GB DDR3L
Interfaces - - - -
SD-Card 1x external 1x external 1x extern 1x extern
Ethernet 1 - max. 2x max. 2x 100/1000Mb
WiFi - 802.11 ac/a/b/g/n - -
BT - 5.0 LE - -
USB Host 1 - 1x 1x
USB Device 1x OTG 2.0 1x OTG 1x 1x OTG 2.0
CAN max. 2x - max. 2x max. 2x
UART max. 3x 5x max. 6x max. 5x
I2C max. 4x 3x max. 4x max. 3x
SPI max. 2x 1x max. 4x max. 2x
Audio Line In/ Out/ Mic/ Headphone/I2S Line In/ Out/ Mic/ Headphone Line In/ Out/ Mic/ Headphone/ I2S Line In/ Out/ Mic/ Headphone/I2S
Touch Panel analog resistive and PCAP Touch ext. via I2C analog resistive and PCAP Touch ext. via I2C analog resistive und PCAP Touch ext. via I2C analog resistive and PCAP Touch ext. via I2C
RTC 1x external IC external IC external IC
additional Interfaces PWM, ADC, GPIO - max. 8x PWM,
SPDIF, ESAI,
3x SAI, SSI ADR/ DATA Bus
max. 8x PWM,
SPDIF, ESAI,
SAI, SSI ADR/ DATA Bus
Display - - - -
RGB 16bit - 24bit 16/ 24bit
LVDS - - -
MIPI-DSI - - -
Common - - - -
Supply Voltage +3.8V bis 5.5VDC +5VDC/ ±5% / 4.2V Battery +3.8V bis 5.5VDC +3.8V bis 5.5VDC
Power Consumption 1W typ. 0,3W typ. 1-2W typ. 2W typ.
Operating Temperature 0°C - +70°C
opt. -40°C - +85°C
0°C - +70°C
opt. -20°C - +85°C
0°C - +70°C
opt. -20°C - +85°C
0°C - +70°C
opt. -20°C - +85°C
Size 35x40mm
(LxB)
35x40mm
(LxB)
35x40mm
(LxB)
35x40mm
(LxB)
Weight ~10g ~10g ~10g ~10g
Long Term Availability 2031 2029 2031 2030
PicoCore™RT1 PicoCore™MX7ULP PicoCore™MX6UL PicoCore™MX6SX

The compact PicoCore™ Computer on Module form factor is characterized by its small size of only 35 x 40 mm and a very low board-to-board distance starting at 1.5mm.

The PicoCore™ embedded modules are robust, have low power dissipation, and high performance. They are ideally suited for portable devices in medical and industrial technology, multimedia applications or even secure cloud connections.
A Cortex®-A53 core and a Cortex®-M4/M7 core are available on the ARM-based PicoCore™ form factor. Integrated 3D and 2D hardware acceleration is included in the processor.

SLC NAND Flash and alternatively eMMC are offered as memory. The two 80-pin connectors enable a variety of interfaces such as 1x SD card slot, 1-2 Gigabit Ethernet, 2x USB, CAN, max. 4x I2C, 2x SPI, max. 6x UART, audio (Line In/ Out/ Mic/ Headphone or I2S), GPIO and PWM for camera connection.
I2C is used to connect a touch panel. A WLAN/BT module is also available as an option for some versions.

We provide you with optimal support for your software development. Comprehensive, ready-to-run development kits with display are available for every PicoCore™ module.

F&S engineers provide support via our forum, telephone, and e-mail. Furthermore, we offer extensive services in the areas of Over-The-Air UpdateSecure BootAsymmetric Multiprocessing, and much more.
