Qseven/QBliss

Features

  • Qseven Standard
  • 70x70mm
  • Single Voltage 5V
  • LVDS-TFT, DVI-D
  • MXM2 Goldfinger Connector,
    230 Pins, 0,5mm


QBlissA9 QBlissA9r2
State Production Production
CPU - -
CPU NXP i.MX 6 NXP i.MX 6
Core ARM Cortex-A9 ARM Cortex-A9
No of Cores Solo/DualLite/Quad Solo/DualLite/Quad/QuadPlus
Frequency max 1.2GHz max 1GHz
L2-Cache max. 1MB max. 1MB
GPU 2D 600Mpix/s 3D 1000Mpix/s
VPU 1080p60 1080p60
Operating System - -
Linux Buildroot
Yocto
Buildroot
Yocto
Windows WEC 7
WEC 2013
WEC 7
WEC 2013
Memory - -
Flash max. 32GB (SD-Card) max. 1GB SLC
max. 32GB eMMC
RAM max. 4GB max. 4GB DDR3
Interfaces - -
SD-Card 1x extern 1x extern
Ethernet 10/100/1000Mb
IEEE 1588
10/100/1000Mb
IEEE 1588
USB Host 4x 4x
USB Device 1x 1x
CAN 1x 1x
UART 1x 1x
I2C 2x 2x
SPI 1x 1x
Audio AC97 AC97
Digital I/O - max. 66
Touch Panel via I2C via AC97
Camera analog/digital 0/1 0/2x MIPI-CSI
PCIe 1x 1x
SATA 1x 1x
Display - -
LVDS 2x 18/24bit 2x 24bit
CRT/DVI 0/DVI 0/DVI
Common - -
Supply Voltage +5VDC/ ±5% +5V DC/ ±5%
Power Consumption - 4W typ.
Operating Temperature 0°C - +70°C
opt. -20°C - +85°C
opt. -40°C - +85°C
0°C - +70°C
opt. -20°C - +85°C
opt. -40°C - +85°C
Size 70x70x11mm
(lxbxd)
70x70x11mm
(LxBxH)
Weight ~25g ~25g
Long Term Availability 2027 2027

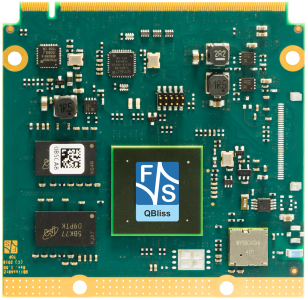

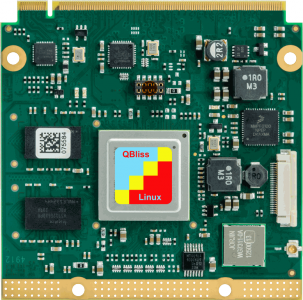

QBlissA9 QBlissA9r2

The Qseven form factor was defined by the board manufacturers Congatec, MSC and Seco. Meanwhile the member list is a couple of pages long.

Initially, Qseven was designed for Intel ATOM CPUs. We deal with with RISC CPUs and operating systems like Windows Embedded CE and embedded Linux for more than 10 years.

This knowledge resulted in compact form factors like PicoMOD (80mm x 50mm) and PicoCOM (40mm x 50mm).

We now offer -as one of the first manufacturers- a RISC board in the Qseven form factor. It offers customers using a Qseven with ATOM CPU the opportunity to switch to a compatible board with RISC CPU. More than 90% of the Qseven Standard (70mm x 70mm) designated interfaces get served. So QBliss is applicable in many Qseven applications instantly without having to change hardware.

So why should a customer switch from Qseven with ATOM to one with RISC?
It has a lot to commend it:

  • Low power (less than 3 Watt)
  • Short booting time (5-8s)
  • Low license costs for Windows Embedded CE 6.0 R3 or Windows Embedded Compact 7
  • Inexpensive Price

More applications become available especially in mobile devices where compactness, energy-saving, low-cost, robustness and reliability are important factors.

More information about Qseven.
