NetDCU

  • 100x80mm
  • robuste 2.54 Steckverbinder
  • Single Voltage 5V
  • Skalierbar: bis zu 1.7GHz Cortex-A55 (i.MX 93)
  • RGB und LVDS Display-Schnittstelle
  • sehr einfaches Basisboard
  • kostenlose Entwicklungsunterstützung inkl. Schaltplan-Review
  • Linux Buildroot, Yocto
  • Windows IoT Enterprise (i.MX93)
  • Secure Boot, A/B Update
Neu: NetDCU93 mit NXP i.MX93

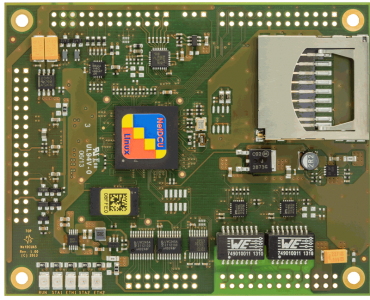

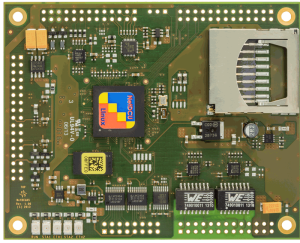

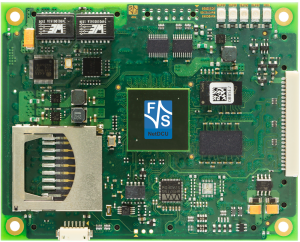

NetDCUA5 NetDCUA7 NetDCUA9 NetDCU93
Status NRND Production EOL Production
CPU - - - -
Typ NXP Vybrid NXP i.MX6ULL NXP i.MX 6 NXP i.MX 93
Kern ARM Cortex-A5 + Cortex-M4 ARM Cortex-A7 ARM Cortex-A9 ARM Cortex-A55
Cortex-M33
NPU
Anzahl Kerne Single-/Dual-Core 1 Solo/ DualLite 2x A55 + M33 + NPU
Frequenz max. 500MHz + 167MHz max. 900MHz max. 1000MHz 1.7GHz + 250MHz
L2-Cache 512KB 128kB max. 1MB 2x64kB L2 + 256kB L3
NPU - - - 0.5 TOPS
GPU NEON PXP 2D 600Mpcl/s PXP
Multimedia - - 1080p60 -
Security - - - -
Secure Element - - - Edgelock Secure Enclave
Betriebssystem - - - -
Linux Buildroot Yocto Buildroot/Yocto
(uboot installiert)
Yocto
(uboot installed)
Windows WCE 6.0
WEC 2013
WEC 2013 WEC 7
WEC 2013
(Bootloader installiert)
11 IoT Enterprise
(UEFI installed)
Echtzeit - - - FreeRTOS, QNX, Zephyr
Speicher - - - -
RAM max. 512MB max. 1GB max. 4GB max. 2GB LPDDR4
x16
Flash max. 1GB max. 512MB NAND max. 512MB SLC NAND EEPROM
eMMC - max. 64GB max. 32GB eMMC max. 128GB
Schnittstellen - - - -
SD-Karte 1x on-board SD-Slot 1x on-board 1x on-board
Ethernet 2x 10/100Mb
IEEE1588
2x 100Mbit Phy 10/100Mb
IEEE1588
2x 10/100Mb
IEEE1588
WLAN - - - IEEE 802.11ax
(2.4/ 5GHz)
BT - - - 5.4
USB Host 1x 1x 1x 1x 2.0
USB Device 1x 1x 1x 1x OTG 2.0
CAN 2x 2x 2x 2x
UART 3x 3x RS232 3x 3x RS232
1x RS485
I2C 1x 1x 1x 1x
SPI 1x 1x 1x 1x
Digital I/O max. 21 max. 21 max. 21
ADC - 4x - 4x (12bit)
Audio Line In/Out/Mic Line In/Out/Mic Line In/Out/Mic Line In/Out/Mic
RTC - - - PCF85263ATL
sonstige Schnittstellen - FS-Bus (8bit A/D bus) - FS-Bus (8bit A/D bus)
Display - - - -
RGB 18bit 18bit 24bit 24 Bit
LVDS - - 24bit 1x 4 Lanes
Touch Panel 4-wire, analog resistive
PCAP Touch via I2C
4-wire, analog resistive
PCAP Touch via I2C
4-wire, analog resistive
PCAP Touch via I2C
4-wire, analog resistive
PCAP Touch via I2C
Allgemein - - - -
V_IN +5V DC/ ±5% +5V DC/ ±5% +5V DC/ ±5% +5V DC/ ±5%
T_AMB 0°C - +70°C
-25°C - +85°C
0°C - +70°C
-40°C - +85°C
-25°C - +85°C -25°C - +85°C
Größe 100x80x11mm 100x80x11mm 100x80x11mm 100x80x19,5mm
Verfügbarkeit 2027+
Windows: May, 2028
2035+
Windows: May, 2028
- 2038+
NetDCUA5 NetDCUA7 NetDCUA9 NetDCU93

Teure PC-Lösungen müssen nicht sein.
NetDCU ist die Lowcost Embedded Computer Plattform.

Moderne Maschinen, Produktionsanlagen, Meß- und Steuerungssysteme liefern immer mehr und immer komplexere Daten, die überwacht und angezeigt werden müssen. Umgekehrt sind zur Steuerung dieser Anlagen umfangreiche Einstellungen notwendig. Wir haben für dieses Einsatzgebiet innovative Lösungen entwickelt.

Die NetDCU ist eine auf einem leistungsfähigen RISC-Prozessor (PowerPC, ARM, XScale, MIPS) basierende industrietaugliche Baugruppe zur Visualisierung und Steuerung komplexer Systeme.
