Windows IoT Enterprise
Windows 10/11 IoT Enterprise
Langfristige Betriebssystemunterstützung
Ein besonders Merkmal von Windows IoT Enterprise ist die langfristige Betriebssystemunterstützung (LTSC). Diese Version bietet eine optionale Unterstützung von bis zu 10 Jahren, was eine stabile und verlässliche Plattform für Ihre Geräte gewährleistet.
Großes Ökosystem
Mit Windows IoT Enterprise haben Sie Zugriff auf Tausende von bestehenden Apps und können ein riesiges Ökosystem nutzen. Verwenden Sie Ihre bestehenden C# .Net-Anwendungen und entwicklen Sie sie weiter.
Sicherheit und Schutz
Nutzen Sie vorhandene, unternehmensgerechte Geräteverwaltungs-Tools, um Ihre Geräte auf dem neuesten Stand zu halten und zuverlässig zu betreiben. Funktionen wie Secure Boot und Over-the-Air-Updates sind integriert, um Ihre Geräte zu schützen und sicherzustellen, dass sie immer auf dem neuesten Stand sind.
Multi-Cloud-Konnektivität
Windows IoT Enterprise ermöglicht Multi-Cloud-Konnektivität, was eine nahtlose Integration und Verwaltung Ihrer Geräte in verschiedenen Cloud-Umgebungen erlaubt.
Kontaktieren Sie uns
|
Für weitere Informationen zu Funktionen und Verfügbarkeit von Windows IoT Enterprise auf F&S Modulen stehen wir Ihnen gerne zur Verfügung.(Forum) |
![]() |
| armStoneMX8MP-V5-W10 | NetDCU93 | PicoCOM93-V5I | PicoCore™MX8MP-V5I | PicoCore™MX93-V5I | |
| Status | Production | Production | Samples | Production | Production |
| CPU | - | - | - | - | - |
| Typ | NXP i.MX 8M Plus | NXP i.MX 93 | NXP i.MX 93 | NXP i.MX 8M Plus | NXP i.MX 93 |
| Kern | ARM Cortex-A53 Cortex-M7 |
ARM Cortex-A55 Cortex-M33 NPU |
ARM Cortex-A55 Cortex-M33 NPU |
ARM Cortex-A53 Cortex-M7 NPU, ISP, HIFI4 |
ARM Cortex-A55 Cortex-M33 NPU |
| Anzahl Kerne | 4x A53 + M7 | 2x A55 + M33 + NPU | 2x A55 + M33 + NPU | 4x A53 + 1x M7 | 2x A55 + M33 |
| Frequenz | 1.8GHz + 800MHz | 1.7GHz + 250MHz | 1.7GHz + 250MHz | 1.6GHz + 800MHz | 1.7GHz + 250MHz |
| L2-Cache | 512kB | 2x64kB L2 + 256kB L3 | 2x64kB L2 + 256kB L3 | 512KB | 2x64kB L2 + 256kB L3 |
| NPU | 2.3 TOPS | 0.5 TOPS | 0.5 TOPS | 2.3 TOPS | 0.5 TOPS |
| GPU | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | PXP | PXP | 3D/2D graphic acceleration ES 3.1/3.0, CL™ 1.2 VG™ 1.1 | PXP |
| VPU | - | - | - | 1080p60, h.265/4, VP9, VP8 Video Encode: 1080p60, h.265/4 |
- |
| Security | - | - | - | - | - |
| Secure Element | - | Edgelock Secure Enclave | Edgelock Secure Enclave | SE050 | Edgelock Secure Enclave |
| Betriebssystem | - | - | - | - | - |
| Linux | - | Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
| Windows | 10 Iot Enterprise (UEFI installed) |
11 IoT Enterprise (UEFI installed) |
11 IoT Enterprise (UEFI installed) |
10 IoT Enterprise (UEFI installed) |
11 IoT Enterprise (UEFI installed) |
| Echtzeit | - | FreeRTOS, QNX, Zephyr | - | - | FreeRTOS, QNX, Zephyr |
| Speicher | - | - | - | - | - |
| RAM | 4GB LPDDR4 | max. 2GB LPDDR4 x16 |
2GB LPDDR4 x16 |
4GB LPDDR4 | 2GB LPDDR4 |
| Flash | EEPROM | EEPROM | 64kbit EEPROM | 2k EEPROM | EEPROM |
| eMMC | 64GB | max. 128GB | 64GB | 32GB | 64GB |
| Schnittstellen | - | - | - | - | - |
| SD-Karte | 1x µSD Slot | 1x on-board | 1x SDIO | 2x SDIO | 2x SDIO |
| Ethernet | 2x Gbit | 2x 10/100Mb IEEE1588 |
1x 10/100MB | 2x 100/1000Mb | 2x 100/1000 Mb |
| WLAN | - | IEEE 802.11ax (2.4/ 5GHz) |
- | - | - |
| BT | - | 5.4 | - | - | - |
| USB Host | 4x 2.0 | 1x 2.0 | 1x 2.0 | 1x 3.0 | 1x 2.0 |
| USB Device | 1x (USB 2.0) | 1x OTG 2.0 | 1x OTG 2.0 | 1x OTG 3.0 | 1x OTG 2.0 |
| CAN | 2x | 2x | 1x CAN-FD | 2x | 2x CAN-FD |
| UART | 3x | 3x RS232 1x RS485 |
3x | max. 4x | 8x |
| I2C | 4x | 1x | 2x | max. 4x | 6x |
| SPI | 2x | 1x | 1x | max. 2x | 8x |
| Audio | I2S | Line In/Out/Mic | Line In/Out opt. I2S |
Line In/ Out/ Mic/ Headphone | Line In/ Out/ Mic/ Headphone |
| Digital I/O | max. 32 | max. 21 | |||
| ADC | 4x | 4x (12bit) | - | - | 4x |
| Touch Panel | via I2C or USB | 4-wire, analog resistive PCAP Touch via I2C |
TSC2004 | via I2C or USB | via I2C or USB |
| Kamera | 1x MIPI-CSI | - | - | 2x MIPI-CSI | MIPI-CSI (2 lanes) |
| PCIe | - | - | - | 1x PCIe 3.0 (1 lane) |
- |
| RTC | PCF85263ATL | PCF85263ATL | PCF85263ATL | PCF85263ATL | PCF85263ATL |
| sonstige Schnittstellen | 4x PWM | FS-Bus (8bit A/D bus) | - | max. 4x PWM, SPDIF, ESAI, SAI, SSI | max. 4x PWM, SPDIF, ESAI, SAI, SSI |
| Display | - | - | - | - | - |
| RGB | - | 24 Bit | 18 Bit | - | - |
| LVDS | 1x 4 lanes | 1x 4 Lanes | - | 1x 4 Lanes | 1x 4 Lanes |
| CRT/DVI | DVI | - | - | - | - |
| MIPI-DSI | 4x lanes | - | - | 1x 4 Lanes | 1x 4 Lanes |
| Allgemein | - | - | - | - | - |
| V_IN | 5V DC / ±5% opt. 24V DC |
+5V DC/ ±5% | +3,3V DC/ ±5% | +4.5V - 5.5VDC | +3.8V bis 5.5VDC |
| T_AMB | 0°C-+70°C | -25°C - +85°C | -25°C - +85°C | -25°C - +85°C | -25°C - +85°C |
| Größe | 100x72x15mm | 100x80x19,5mm | 40x50mm | 35x40mm | 35x40mm |
| Verfügbarkeit | 2032 | 2038+ | 2038+ | 2032 | 2038+ |
| armStoneMX8MP-V5-W10 | NetDCU93 | PicoCOM93-V5I | PicoCore™MX8MP-V5I | PicoCore™MX93-V5I |
Link zum Forum
Support finden Sie jederzeit in unserem Forum.
Aktuelle Beiträge
Windows IoT Meets FreeRTOS: Real Time CAN Communication on the i.MX93
For our own board based on the NXP i.MX93, running Windows IoT LTSC 11, we rely consistently on the official NXP BSP. It is proven, well maintained, and covers most interfaces reliably. But for the CAN interface, we reached a point where the supplied driver no longer met our requirements. As soon as packet rates increased and the application processor was under heavy load at the same time, performance dropped noticeably. It was the fact that the entire communication ran through the application processor and its Windows scheduler. Under load, when other applications, I/O, and background processes compete for CPU time, a non real time operating system is inherently at a disadvantage for time critical bus protocols.
The idea: process CAN where real time belongs

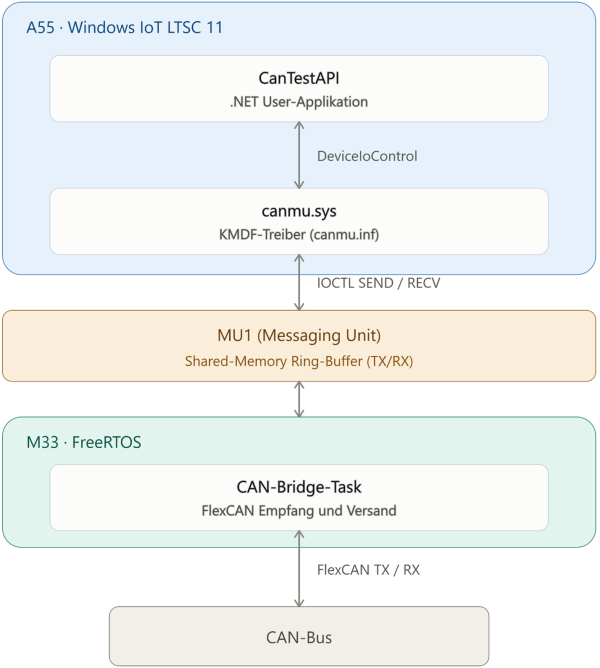

Our answer was to move the entire CAN processing to the previously unused Cortex M33. A FreeRTOS program we developed runs there and drives the FlexCAN controller directly, with a fixed, high interrupt priority, fully decoupled from the Windows scheduler and its load. A core that previously had no function at all now handles exactly the task it is best suited for: deterministic real time response to bus events.
How the two worlds work together
To let the M33 communicate with the Windows side, we use two mechanisms the i.MX93 provides for exactly this purpose:
- The Messaging Unit (MU1) as a hardware interrupt channel between the cores. No polling, just genuine event driven notification in both directions.
- A shared memory region with two lock free ring buffers, one per direction, used to exchange CAN frames as a compact 20 byte structure. The buffers are designed so that the write and read indices are each modified by only one side, a deliberately simple and robust design that avoids the need for additional locking.
On the FreeRTOS side, this is handled by dedicated, clearly separated tasks. A receive task passes frames from the FlexCAN interrupt routine through an internal queue into the shared memory ring and triggers an interrupt on the Windows side through the MU registers. A transmit task, in turn, is woken by an MU interrupt as soon as Windows has placed a frame on the bus. A third task continuously monitors the connection status along with counters for sent, received, and faulty frames, so the state of the bridge is observable at all times.

On the A55 side we developed our own KMDF driver, canmu.sys, which maps the MU registers and the shared memory region and exposes a simple IOCTL interface to the application layer for sending frames, receiving frames, and querying status. Anyone who wants to use CAN on our board never has to deal with the complexity of the core to core communication underneath. They simply talk to the driver through DeviceIoControl, exactly as our own test application, CanTestAPI, demonstrates.
The result
With this architecture we specifically addressed the weaknesses of the original solution:
- Stable performance even under high system load, because time critical bus processing is now fully decoupled from the Windows scheduler.
- Deterministic, real time capable behavior, since FreeRTOS on the M33 runs with a fixed interrupt priority and without competing for CPU time with other Windows processes.
- Optimal use of existing hardware, since a processor core that was previously unused now makes a real functional contribution, without any additional components.
- A simple, stable interface for application development that fully encapsulates the underlying complexity.
The real highlight: two worlds, one seamless system
