Windows IoT Enterprise
Windows 10/11 IoT Enterprise
Windows IoT Enterprise provides full Windows applications in a compact form factor and offers a cost-effective, energy-efficient solution ideal for compact and fanless devices. This solution is perfect for various applications, from industrial systems to AI applications.
Long-term Operating System Support
A key feature of Windows IoT Enterprise is its long-term operating system support (LTSC). This version offers optional support for up to 10 years, ensuring a stable and reliable platform for your devices.
Extensive Ecosystem
With Windows IoT Enterprise, you can access thousands of existing apps and leverage a vast ecosystem. Use your existing C# .Net applications and continue to develop them.
Future Enhancements
Future versions of Windows IoT Enterprise will support GPU acceleration for Chrome/Edge, WPF applications, and video playback optimizations.
Security and Protection
Take advantage of enterprise-grade device management tools to keep your devices up to date and running reliably. Features such as Secure Boot and over-the-air updates are integrated to protect your devices and ensure they are always up to date.
Multi-Cloud Connectivity
Windows IoT Enterprise enables multi-cloud connectivity, allowing seamless integration and management of your devices across various cloud environments.
Contact Us
For more information on the features and availability of Windows IoT Enterprise on F&S modules, please check our support forum or feel free to contact us.
armStoneMX8MP-V5-W10 | PicoCore™MX93-V5I-W11 | ||
Status | Produktion | Q4/2024 | |
CPU | - | - | - |
Typ | NXP i.MX 8M Plus | NXP i.MX 93 | |
Kern | ARM Cortex-A53 + Cortex-M7 | ARM Cortex-A55 Cortex-M33 NPU |
|
Anzahl der Kerne | 4x A53 + M7 | 2x A55 + M33 | |
Frequenz | 1,8GHz + 800MHz | 1,7GHz + 250MHz | |
L2-Cache | - | 2x64kB L2 + 256kB L3 | |
GPU | 3D/2D, ES 3.1/3.0, CL™ 1.2 VG™ 1.1 | PXP | |
VPU | - | - | |
Betriebssystem | - | - | - |
Windows | 10 Iot Enterprise (UEFI installiert) |
11 IoT Enterprise (UEFI installiert) |
|
Echtzeit | FreeRTOS | FreeRTOS | |
Speicher | - | - | - |
Flash | - | EEPROM | |
eMMC | 64GB eMMC | 64GB | |
RAM | 4GB LPDDR4 | 2GB LPDDR4 | |
Schnittstellen | - | - | - |
SD-Karte | 2 | 2x | |
Ethernet | 2x 1000 Mbit | 2x 100/1000 Mb | |
WLAN | - | - | |
BT | - | - | |
USB Host | 4x | 1x 2.0 | |
USB Device | 1 (USB3.0) | 1x OTG 2.0 | |
CAN | 2x | 2x CAN-FD | |
UART | 3x | 8x | |
I2C | 4x | 6x | |
SPI | 2x | 8x | |
Audio | IN/ OUT/ MIC/ Headphone | Line In/ Out/ Mic/ Headphone | |
Digital I/O | max. 32 | - | |
ADC | - | 4x | |
Touch Panel | via I2C | via I2C | |
Kamera analog/digital | 0/MIPI-CSI | MIPI-CSI | |
RTC | 1 | PCF85263ATL | |
sonstige Schnittstellen | 4x PWM, SPDIF, ESAI, SAI, SSI, 4x AnalogIn | max. 4x PWM, SPDIF, ESAI, SAI, SSI | |
Display | - | - | - |
LVDS | FullHD, 24 Bit | 1x 24 Bit | |
CRT/DVI | 0/ DVI 1080p | - | |
MIPI-DSI | 4x lanes | 1x 4 Lanes | |
Allgemein | - | - | - |
Stromversorgung | 5V DC/±5% | +3.8V bis 5.5VDC | |
Leistungsaufnahme | 4W typ. | 3W typ. | |
Betriebstemperaturbereich | 0°C-+70°C | -20°C - +85°C | |
Größe | 100x72x15mm (LxBxH) |
35x40mm (LxB) |
|
Gewicht | ~60g | ~10g | |
Minimale Verfügbarkeit | 2036 | 2035 | |
armStoneMX8MP-V5-W10 | PicoCore™MX93-V5I-W11 |

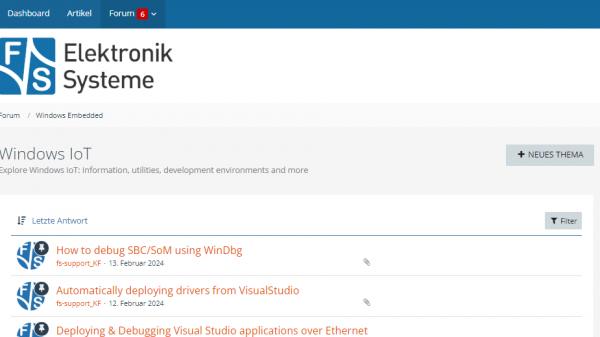

Link zum Forum
Support finden Sie jederzeit in unserem Forum.
