NDCU14-ANC-LIN

Note: This Product Is No Longer Available For New Developments!

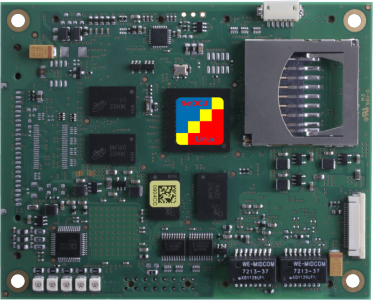

System On Module with Samsung S5PV210 CPU

	NDCU14-ANC-LIN
State	no new developments
CPU
CPU	Samsung S5PV210
Frequency	1GHz
GPU	PowerVR SGX540
Video	MPEG4-1080p
Operating System
Linux	3.3
Memory
Flash	128MB Flash (1GB opt.)
RAM	256MB RAM
Interfaces
Ethernet	1x 10/ 100MB
USB Host	1
USB Device	1
CAN	1
I2C	2
SPI	1
Audio	In/ Out/ Mic
Digital I/O	21
Touch Panel	4-wire, analogue resistive capacitive Touch via I2C
Display
CRT/DVI	+ WXGA
Common
Supply Voltage	+5V DC/ ±5%
Power Consumption	5W typ.
Operating Temperature	0°C - +70°C
Size	100mm x 80mm x 11mm (l x b x d)
Weight	about 50g

The Linux BSP (multiplatform-linux-f+s-V2.0) contains the customized Linux Kernel Source Code (v3.3.7), the customized U-Boot Source Code (2012.07) and a customized Buildroot (2012.08), as well as our Cross-Toolchain. The package also holds our standard binaries of the Linux Kernel Images, U-Boot and a UBIFS Root Filesystem. For a first impression, the Root Filesystem based on Buildroot has the following features installed:

Busybox 1.20.x, gdb 6.8, alsa-utils, gstreamer, madplay, directFB, fbv, X.Org rel-7.5, Matchbox, feh, X11vnc, openssl, openssh, freetype, glib2, tslib, libv4l, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp

The BSP also contains our First-Step documentation and example applications.
