PCOM1-LIN
Note: This Product Is No Longer Available For New Developments!

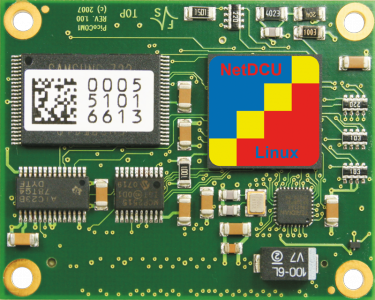

Computer On Module with ATMEL ARM9 CPU
|
|
|
| PCOM1-LIN | ||
| State | No New Developments | |
| CPU | ||
| CPU | ATMEL | |
| Core | ARM 926 EJ | |
| Frequency | 210 MHz | |
| Video | CPU | |
| Operating System | ||
| Linux | 2.6 (Emlix Eval/ Pro) (uboot installed) |
|
| Memory | ||
| Flash | 64MB | |
| RAM | 32MB SDRAM | |
| Interfaces | ||
| SD-Card | extern | |
| Ethernet | 10/ 100MB | |
| USB Host | 1-2 (2.0 FS) | |
| USB Device | 0-1 (2.0 FS) | |
| CAN | CAN2.0 | |
| UART | 1x with modem signal, baudrate 115200 1x with RTS/ CTS, max. baudrate 115200 1x mit max. baudrate 115200 |
|
| I2C | 1 | |
| SPI | opt. | |
| Audio | 1x Audio Codec Line Out (L/ R) 1x Audio Codec Line In (L/ R) 3x Analog In (10Bit resolution) |
|
| Display | ||
| Common | ||
| Supply Voltage | +3,3V | |
| Operating Temperature | -20°C - +85°C | |
| Size | 40mm x 50mm(l x b) |
 |
