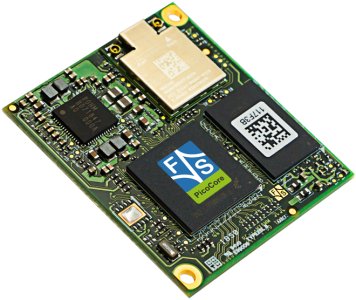

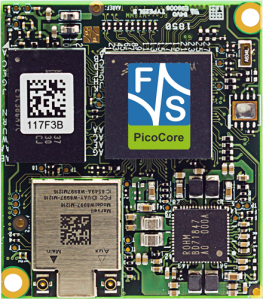

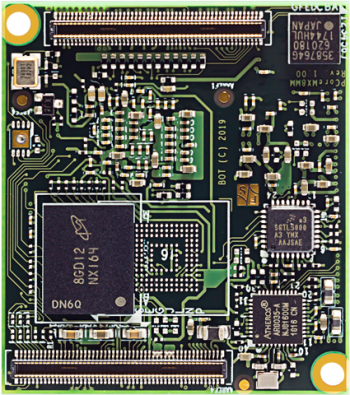

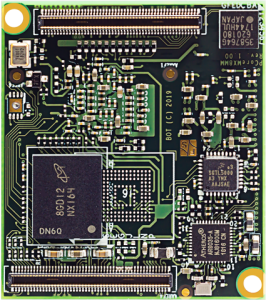

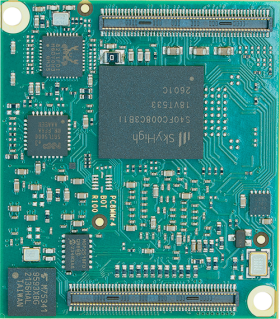

PicoCore™MX8MM
Computer On Module with NXP i.MX 8M Mini CPU
|
For the start of development, we recommend The PicoCore™MX8MM is mentioned in the February issue of Computer&Automation. Read the article (German only) on page 21. The digital magazine Elektroniknet also reports on the PicoCore™MX8MM. Read the article here (German only). |

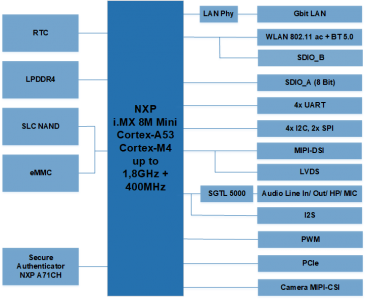

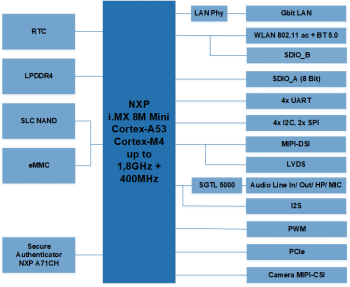

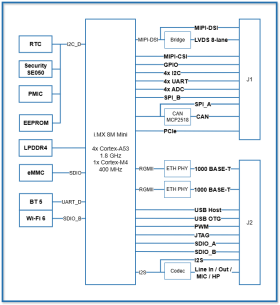

PicoCore™MX8MM | ||
State | Production | |
CPU | ||
CPU | NXP i.MX 8M Mini | |
Core | ARM Cortex-A53 + Cortex-M4 | |
No of Cores | 1, 2, 4 +M4 | |
Frequency | max. 1,8GHz + 400MHz | |
L2-Cache | 512KB | |
GPU | 2D GC328, 3D GCNanoUltra (1 shader) | |
VPU | 1080p60 HEVC H.265, VP9, H.264, VP8 | |
Operating System | ||
Linux | Buildroot/ Yocto (uboot installed) |
|
Real Time | FreeRTOS | |
Memory | ||
Flash | max. 512MB SLC NAND or max. 32GB eMMC |
|
RAM | max. 4GB LPDDR4/DDR3L | |
Interfaces | ||
SD-Card | 1x external | |
Ethernet | max. 2x 100/1000Mb opt. RGMII |
|
WiFi | 802.11 ac/a/b/g/n | |
BT | 5.0 LE | |
USB Host | 1x | |
USB Device | 1x OTG 2.0 | |
CAN | 1x | |
UART | max. 4x | |
I2C | max. 4x | |
SPI | max. 2x | |
Audio | Line In/ Out/ Mic/ Headphone/I2S | |
Touch Panel | analog resistive and PCAP touch ext. via I2C | |
Camera analog/digital | MIPI CSI | |
PCIe | 1x | |
RTC | external | |
additional Interfaces | max. 4x PWM, Watchdog, SPDIF, ESAI, SAI, SSI |
|
Display | ||
LVDS | 1-2x 24bit | |
MIPI-DSI | 1x 4 Lanes | |
Common | ||
Supply Voltage | +3.8V bis 5.5VDC | |
Power Consumption | 3W typ. | |
Operating Temperature | 0°C - +70°C opt. -20°C - +85°C |
|
Size | 35x40mm (LxB) |
|
Weight | ~10g | |
Long Term Availability | 2034 |

PicoCore™MX8MM-V1-LIN | PicoCore™MX8MM-V2-LIN | PicoCore™MX8MM-V3-LIN | PicoCore™MX8MM-V4-LIN | PicoCore™MX8MM-V5-LIN | PicoCore™MX8MM-V6-LIN | |
State | Production; MOQ 500 pieces | Production | Production | Production | Production | Production |
CPU | - | - | - | - | - | - |
CPU | NXP i.MX 8M Mini | NXP i.MX 8M Mini | NXP i.MX 8M Mini | NXP i.MX 8M Mini | NXP i.MX 8M Mini | NXP i.MX 8M Mini |
Core | ARM Cortex-A53 + Cortex-M4 | ARM Cortex-A53 + Cortex-M4 | ARM Cortex-A53 + Cortex-M4 | ARM Cortex-A53 + Cortex-M4 | ARM Cortex-A53 + Cortex-M4 | ARM Cortex-A53 + Cortex-M4 |
No of Cores | 4 | 4 | 4 | 4 | 4 | 4 |
Frequency | max. 1,8GHz + 400MHz | max. 1,8GHz + 400MHz | max. 1,8GHz + 400MHz | max. 1,8GHz + 400MHz | max. 1,8GHz + 400MHz | max. 1,8GHz + 400MHz |
L2-Cache | 512KB | 512KB | 512KB | 512KB | 512KB | 512KB |
GPU | 2D GC328, 3D GCNanoUltra (1 shader) | 2D GC328, 3D GCNanoUltra (1 shader) | 2D GC328, 3D GCNanoUltra (1 shader) | 2D GC328, 3D GCNanoUltra (1 shader) | 2D GC328, 3D GCNanoUltra (1 shader) | 2D GC328, 3D GCNanoUltra (1 shader) |
VPU | 1080p60 HEVC H.265, VP9, H.264, VP8 | 1080p60 HEVC H.265, VP9, H.264, VP8 | 1080p60 HEVC H.265, VP9, H.264, VP8 | 1080p60 HEVC H.265, VP9, H.264, VP8 | 1080p60 HEVC H.265, VP9, H.264, VP8 | 1080p60 HEVC H.265, VP9, H.264, VP8 |
Operating System | - | - | - | - | - | - |
Linux | Buildroot/ Yocto (uboot installed) |
Buildroot/ Yocto (uboot installed) |
Buildroot/ Yocto (uboot installed) |
Buildroot/ Yocto (uboot installed) |
Buildroot/ Yocto (uboot installed) |
Buildroot/ Yocto (uboot installed) |
Real Time | FreeRTOS | FreeRTOS | FreeRTOS | FreeRTOS | FreeRTOS | FreeRTOS |
Memory | - | - | - | - | - | - |
Flash | 4GB eMMC | 4GB eMMC | 512MB SLC NAND | 4GB eMMC | 256MB SLC NAND | 256MB SLC NAND 2k Bit EEPROM |
RAM | 1GB LPDDR4 | 1GB LPDDR4 | 1GB LPDDR4 | 1GB LPDDR4 | 512MB DDR3L | 512MB DDR3L |
Interfaces | - | - | - | - | - | - |
SD-Card | 1x external | 1x external | 1x external | 1x external | 2x extern | 2x extern |
Ethernet | RGMII | 1x 100/1000Mb | 1x 100/1000Mb | 1x 100/1000Mb | 2x 100/1000Mb | 2x 100/1000Mb |
WiFi | - | - | 802.11 ac/a/b/g/n | 802.11 ac/a/b/g/n | - | - |
BT | - | - | 5.0 LE | 5.0 LE | - | - |
USB Host | 1x | 1x | 1x | 1x | 1x | 1x |
USB Device | 1x OTG 2.0 | 1x OTG 2.0 | 1x OTG 2.0 | 1x OTG 2.0 | 1x OTG 2.0 | 1x OTG 2.0 |
CAN | - | - | - | - | 1x CAN-FD | 1x CAN-FD |
UART | max. 4x | max. 4x | max. 4x | max. 4x | max. 4x | max. 4x |
I2C | max. 4x | max. 4x | max. 4x | max. 4x | max. 4x | max. 4x |
SPI | max. 2x | max. 2x | max. 2x | max. 2x | max. 2x | max. 2x |
Audio | I2S | Line In/ Out/ Mic/ Headphone | Line In/ Out/ Mic/ Headphone | Line In/ Out/ Mic/ Headphone | Line In/ Out/ Mic/ Headphone | Line In/ Out/ Mic/ Headphone |
Touch Panel | analog resistive and PCAP touch ext. via I2C | analog resistive and PCAP touch ext. via I2C | analog resistive and PCAP touch ext. via I2C | analog resistive and PCAP touch ext. via I2C | analog resistive and PCAP touch ext. via I2C | analog resistive and PCAP touch ext. via I2C |
Camera analog/digital | MIPI CSI | MIPI CSI | MIPI CSI | MIPI CSI | MIPI CSI | MIPI CSI |
PCIe | 1x | 1x | 1x | 1x | 1x | 1x |
RTC | external | external | external | external | external | external |
additional Interfaces | max. 4x PWM, Watchdog, SPDIF, ESAI, SAI, SSI | max. 4x PWM, Watchdog, SPDIF, ESAI, SAI, SSI | max. 4x PWM, Watchdog, SPDIF, ESAI, SAI, SSI |
max. 4x PWM, Watchdog, SPDIF, ESAI, SAI, SSI |
max. 4x PWM, Watchdog, SPDIF, ESAI, SAI, SSI |
Security: A71CH |
Display | - | - | - | - | - | - |
LVDS | - | 2x 24 Bit | 2x 24bit | 2x 24bit | 2x 24bit | - |
MIPI-DSI | 1x 4 Lanes | - | - | - | - | 4 lanes |
Common | - | - | - | - | - | - |
Supply Voltage | +3.8V bis 5.5VDC | +3.8V bis 5.5VDC | +3.8V bis 5.5VDC | +3.8V bis 5.5VDC | +3.8V bis 5.5VDC | +3.8V bis 5.5VDC |
Power Consumption | 2W typ. | 3W typ. | 3W typ. | 3W typ. | 3W typ. | 3W typ. |
Operating Temperature | 0°C - +70°C | 0°C - +70°C | 0°C - +70°C | 0°C - +70°C | 0°C - +70°C | 0°C - +70°C |
Size | 35x40mm (LxB) |
35x40mm (LxB) |
35x40mm (LxB) |
35x40mm (LxB) |
35x40mm (LxB) |
35x40mm (LxB) |
Weight | ~10g | ~10g | ~10g | ~10g | ~10g | ~10g |
Long Term Availability | 2034 | 2034 | 2034 | 2034 | 2034 | 2034 |
PicoCore™MX8MM-V1-LIN | PicoCore™MX8MM-V2-LIN | PicoCore™MX8MM-V3-LIN | PicoCore™MX8MM-V4-LIN | PicoCore™MX8MM-V5-LIN | PicoCore™MX8MM-V6-LIN |
![]() |
