PMOD7A-ANC-LIN

Note: This Product Is No Longer Available For New Developments!

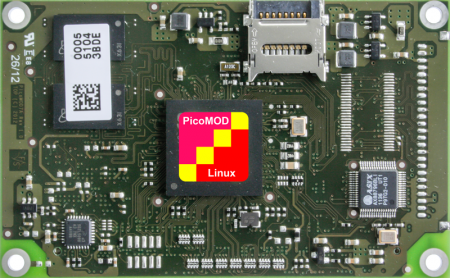

Computer On Module with Samsung S5PV210 CPU

	PMOD7A-ANC-LIN
State	no new developments
CPU
CPU	Samsung S5PV210
Core	Cortex-A8
Frequency	1GHz
Video	CPU, 2D, 3D, MFC
Operating System
Linux	Linux
Memory
Flash	128MB
RAM	256MB
Interfaces
SD-Card	on-board/ extern
Ethernet	1x 10/ 100MB
USB Host	1-2 (2.0)
USB Device	1 (2.0)
CAN	1
I2C	1
SPI	opt.
Audio	In/ Out
Digital I/O	max. 64
Touch Panel	4-wire, analogue resistive
Display
RGB	
CRT/DVI	HDMI
CSTN	x
Common
Supply Voltage	+3,3V DC/ ±5%
Power Consumption	3W typ.
Operating Temperature	-25 - +85°C (L1), 0°C - +85°C (L2)
Size	80mm x 50mm x 9mm (l x b x d)
Weight	about 20g

The Linux BSP (multiplatform-linux-f+s-V2.0) contains the customized Linux Kernel Source Code (v3.3.7), the customized U-Boot Source Code (2012.07) and a customized Buildroot (2012.08), as well as our Cross-Toolchain. The package also holds our standard binaries of the Linux Kernel Images, U-Boot and a UBIFS Root Filesystem. For a first impression, the Root Filesystem based on Buildroot has the following features installed:

Busybox 1.20.x, gdb 6.8, alsa-utils, gstreamer, madplay, directFB, fbv, X.Org rel-7.5, Matchbox, feh, X11vnc, openssl, openssh, freetype, glib2, tslib, libv4l, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp

The BSP also contains our First-Step documentation and example applications.
