FS 8MM OSM-SF

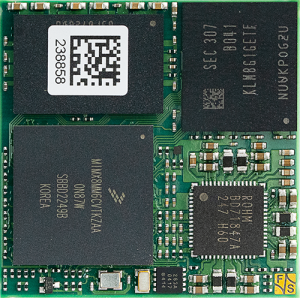

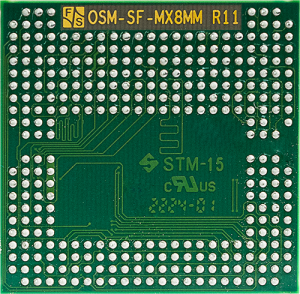

OSM size S with NXP i.MX 8M Mini Processor
|
|
Für den Start in die Entwicklung empfehlen wir: |
The news platform CNX-Software reports on the OSM module FS 8MM by F&S. Read the article here.
| FS 8MM OSM-SF | ||
| State | Samples | |
| CPU | ||
| CPU | NXP i.MX 8M Mini | |
| Core | ARM Cortex-A53 Cortex-M4 |
|
| No of Cores | 1/2/4 A53 + M4 | |
| Frequency | max. 1.8GHz + 400MHz | |
| L2-Cache | 512kB | |
| GPU | 2D, 3D | |
| VPU | 1080p60 HEVC H.265, VP9, H.264, VP8 | |
| Operating System | ||
| Linux | Yocto (uboot installed) |
|
| Real Time | FreeRTOS | |
| Memory | ||
| Flash | 64 kbit EEPROM | |
| eMMC | max. 64GB | |
| RAM | max. 8GB LPDDR4 | |
| Interfaces | ||
| SD-Card | 2x SDIO | |
| Ethernet | 1x RGMII | |
| USB Host | 1x OTG 2.0 | |
| USB Device | 1x OTG 2.0 | |
| UART | 4x | |
| I2C | 4x | |
| SPI | 2x | |
| Audio | 1x I2S | |
| Digital I/O | 22 GPIO_A/_B/_C |
|
| Touch Panel | Touch via I2C | |
| Camera analog/digital | MIPI-CSI (4 lanes) |
|
| PCIe | 1x | |
| RTC | PCF85263ATL | |
| additional Interfaces | 3x PWM, BL-PWM | |
| Display | ||
| MIPI-DSI | 1x 4 Lanes | |
| Common | ||
| Supply Voltage | 5V DC/±5% | |
| Power Consumption | 3W typ. | |
| Operating Temperature | 0°C - +70°C -25°C - +85°C -40°C - +85°C |
|
| Size | 30x30mm | |
| Weight | ~5g | |
| Long Term Availability | 2034 |
| FS 8MM OSM-SF-V1I | FS 8MM OSM-SF-V2I | |
| State | Samples | Samples |
| CPU | - | - |
| CPU | NXP i.MX 8M Mini | NXP i.MX 8M Mini |
| Core | ARM Cortex-A53 Cortex-M4 |
ARM Cortex-A53 Cortex-M4 |
| No of Cores | 1/2/4 A53 + M4 | 1/2/4 A53 + M4 |
| Frequency | 1,6GHz + 400MHz | 1,6GHz + 400MHz |
| L2-Cache | 512kB | 512kB |
| GPU | 2D, 3D | 2D, 3D |
| VPU | 1080p60 HEVC H.265, VP9, H.264, VP8 | 1080p60 HEVC H.265, VP9, H.264, VP8 |
| Operating System | - | - |
| Linux | Yocto (uboot installed) |
Yocto (uboot installed) |
| Real Time | FreeRTOS | FreeRTOS |
| Memory | - | - |
| Flash | 64 kbit EEPROM | 64 kbit EEPROM |
| eMMC | 8GByte | 16GByte |
| RAM | 1GByte LPDDR4 | 2GByte LPDDR4 |
| Interfaces | - | - |
| SD-Card | 2x SDIO | 2x SDIO |
| Ethernet | 1x RGMII | 1x RGMII |
| USB Host | 1x OTG 2.0 | 1x OTG 2.0 |
| USB Device | 1x OTG 2.0 | 1x OTG 2.0 |
| UART | 4x | 4x |
| I2C | 4x | 4x |
| SPI | 2x | 2x |
| Audio | 1x I2S | 1x I2S |
| Digital I/O | 22 GPIO_A/_B/_C |
22 GPIO_A/_B/_C |
| Touch Panel | Touch via I2C | Touch via I2C |
| Camera analog/digital | MIPI-CSI (4 lanes) |
MIPI-CSI (4 lanes) |
| PCIe | 1x | 1x |
| RTC | PCF85263ATL | PCF85263ATL |
| additional Interfaces | 3x PWM, BL-PWM | 3x PWM, BL-PWM |
| Display | - | - |
| MIPI-DSI | 1x 4 Lanes | 1x 4 Lanes |
| Common | - | - |
| Supply Voltage | 5V DC/±5% | 5V DC/±5% |
| Power Consumption | 3W typ. | 3W typ. |
| Operating Temperature | -20°C - +85°C | -20°C - +85°C |
| Size | 30x30mm | 30x30mm |
| Weight | ~5g | ~5g |
| Long Term Availability | 2034 | 2034 |
| FS 8MM OSM-SF-V1I | FS 8MM OSM-SF-V2I |
 |
Starterkit FS 8MM OSM-SF Linux Evaluation kit for FS 8MM OSM-SF with baseboard, OSM-Adapter, cable kit, MIPI-DSI to LVDS adapter, 7" LVDS Display and access data to documentation and software. SKU: OSM8MM-SKIT-LIN |
