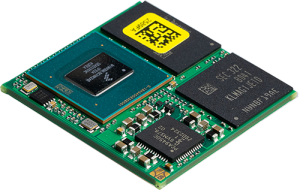

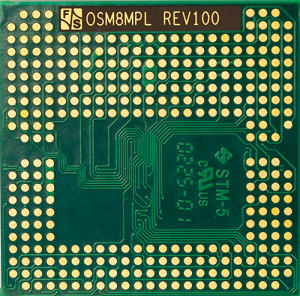

FS 8MP OSM-SF
OSM Size-S with NXP i.MX 8M Plus CPU
|
|
For the start of development, we recommend: |
| FS 8MP OSM-SF | ||
| State | Samples | |
| CPU | ||
| CPU | NXP i.MX 8M Plus | |
| Core | ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
|
| No of Cores | 4x A53 + M7 | |
| Frequency | max. 1.8GHz + 800MHz | |
| L2-Cache | 512kB | |
| NPU | 2.3 TOPS | |
| GPU | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | |
| VPU | Decode: 1080p60 H.265, H.264, VP9, VP8 Encode: 1080p60 H.265, H.264 |
|
| Security | ||
| Operating System | ||
| Linux | Yocto (uboot installed) |
|
| Real Time | FreeRTOS | |
| Memory | ||
| Flash | 64 kbit EEPROM | |
| eMMC | max. 64GB | |
| RAM | max. 8GB LPDDR4 x32 |
|
| Interfaces | ||
| SD-Card | 2x SDIO | |
| Ethernet | 2x RGMII | |
| USB Host | 1x OTG 3.0 | |
| USB Device | 1x OTG 2.0 | |
| CAN | 2x CAN-FD | |
| UART | 4x | |
| I2C | 3x | |
| SPI | 2x | |
| Audio | 2x I2S | |
| Digital I/O | 24 GPIO_A/_B/_C |
|
| Touch Panel | via I2C or USB | |
| Camera | MIPI CSI (4 lanes) |
|
| PCIe | 1x PCIe 3.0 (1 lane) |
|
| RTC | PCF85263ATL | |
| More | 3x PWM, BL-PWM | |
| Display | ||
| LVDS | 1x 4 lanes | |
| CRT/DVI | DVI | |
| MIPI-DSI | 1x 4 lanes | |
| Common | ||
| V_IN | 5V DC/±5% | |
| T_AMB | 0°C - +70°C -25°C - +85°C -40°C - +85°C |
|
| Size | 30x30mm | |
| Availability | 2036+ |
| FS 8MP OSM-SF-V2I | |
| State | Q1/2025 |
| CPU | - |
| CPU | NXP i.MX 8M Plus |
| Core | ARM Cortex-A53 + Cortex-M7 |
| No of Cores | 1, 2, 4 + M7 |
| Frequency | 1.6GHz + 800MHz |
| L2-Cache | 512kB |
| GPU | 3D/2D, ES 3.1/3.0, CL™ 1.2 VG™ 1.1 |
| VPU | 1080p60, h.265/4, VP9, VP8 |
| Security | - |
| Operating System | - |
| Linux | Yocto (uboot installiert) |
| Real Time | FreeRTOS |
| Memory | - |
| Flash | 64 kbit EEPROM |
| eMMC | 16GByte |
| RAM | 2GByte LPDDR4 |
| Interfaces | - |
| SD-Card | 2x SDIO |
| Ethernet | 2x RGMII |
| USB Host | 1x OTG 2.0 |
| USB Device | 1x OTG 3.0 |
| CAN | 2x CAN-FD |
| UART | 4x |
| I2C | 4x |
| SPI | 2x |
| Audio | 2x I2S |
| Digital I/O | 22 GPIO_A/_B/_C |
| Touch Panel | Touch via I2C |
| Camera | MIPI-CSI (4 lanes) |
| PCIe | 1x |
| RTC | PCF85263ATL |
| More | 3x PWM, BL-PWM |
| Display | - |
| LVDS | 1x 4 Lanes |
| Common | - |
| V_IN | 5V DC/±5% |
| T_AMB | -25°C - +85°C |
| Size | 30x30mm (LxB) |
| Availability | 2034 |
| FS 8MP OSM-SF-V2I |
 |
Starter Kit FS 8MP OSM-SF Linux Evaluation kit for FS 8MP OSM-SF with base board, OSM-Adapter, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8MP-SKIT-LIN |
360,- € |
Variants
|
FS 8MP OSM-SF-V2I NXP i.MX 8M Plus Quad, 2GB LPDDR4 RAM, 16GB eMMC, 2x RGMII, MIPI-CSI, PCIe, LVDS, -25°C - +85°C, Linux Yocto, FreeRTOS SKU: OSM8MPL-V2I |
Request | ||
Starterkit
|
Starter Kit FS 8MP OSM-SF Linux Evaluation kit for FS 8MP OSM-SF with base board, OSM-Adapter, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8MP-SKIT-LIN |
360,- € |
Software
| Architecture | Type | Release Name | Bootloader | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|
| FSIMX8MP | FreeRTOS | fsimx8mp-V2024.09 | sdk-2.15.0 |
|
||||
| FSIMX8MP | Yocto | fsimx8mp-Y2025.12 | U-Boot 2024.04 | Linux 6.6.112 | Yocto 5.0.14 Scarthgap | |||
| FSIMX8MP | Yocto | fsimx8mp-Y2024.07 | U-Boot 2021.04 | Linux 5.15.160 | Yocto 4.0 Kirkstone |
Yocto
For i.MX8M Plus, F&S has adapted Yocto. In addition, F&S provide a BSP for FreeRTOS. This FreeRTOS BSP makes it easier to use features of Cortex-M7.
Yocto has established itself as the standard for Linux build environments in recent years. Our standard configuration, which is intended to give a first impression of the module's functionality, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, X11R7, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and much more.
F&S also offers a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora distribution for free download. All packages necessary to translate our software are already installed. All services (NFS, TFTP) for working with our boards are also installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it doesn't matter whether you use Windows or Linux as the host. Simply download the VHD, import it into VirtualBox and development can begin immediately.
FreeRTOS
In addition to the 4 Cortex-A53 cores, the NXP i.MX8M Plus CPU also has a Cortex-M7 core. The Cortex-M7 core is particularly suitable for real-time tasks or for power saving.
F&S offers a completely tested BSP for the use of the Cortex-M7 for FreeRTOS or Bare Metal application.
Start Your Development in Less Than an Hour - F&S Development Machine - Fedora 40
Fedora 40 is a VirtualBox Appliance based on Fedora 40, provided by F&S.
You will need less than an hour to start your development with this machine!
It is available for our customers for free.
VirtualBox is a high performance product for enterprise customers, it is also the only professional solution that is freely available as Open Source Software under the terms of the GNU General Public License (GPL) version 2.
The F&S toolchain is installed, the source code is extracted and ready to run. Needed system packages and essential tools are installed, too.
Besides that, it contains a configured environment for Qt development (Qt) with cross-compile/debug kit, deployment strategy and demo application.
Please notice that it is required to register on our website to download this machine.
FS 8MP OSM-SF - Product Flyer
- Quick Facts (715 KB, pdf) - 29/07/2025
Usage
By downloading you accept our general terms and conditions.
FS 8MP OSM-SF - Linux
- Linux First Steps (7.2 MB, pdf) - 26/09/2025
- Linux on F&S Boards (2.9 MB, pdf) - 20/12/2023
- Application Development with QT (2.1 MB, pdf) - 29/07/2025
- DOTNET on F&S Boards (924 KB, pdf) - 26/12/2025
- Visual Studio Code C/C++ Application Development (455 KB, pdf) - 29/05/2024
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
FS 8MP OSM-SF - Hardware
- FS 8MM OSM-SF Hardware Documentation (314 KB, pdf) - 02/05/2025
- OSM Implementation Guide (1.9 MB, pdf) - 13/08/2025
- OSM Cooling Solution (592 KB, pdf) - 16/04/2024
- OSM Carrier Board Design (1.2 KB, txt) - 28/08/2025
- OSM Carrier Board Design Library (16 MB, zip) - 03/09/2025
- Hardware Documentation ADP-OSM-BB (366 KB, pdf) - 29/07/2025
- SGeT OSM standard - (external link)
- Customer Specific Boards (93 KB, pdf) - 20/09/2017
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
FS OSM-SF - SKIT
- Carrier board PCoreBBDSI Hardware Documentation (703 KB, pdf) - 26/06/2025
- Carrier board PCoreBBDSI Schematic (2.9 MB, pdf) - 27/03/2025
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Varianten
|
FS 8MP OSM-SF-V2I NXP i.MX 8M Plus Quad, 2GB LPDDR4 RAM, 16GB eMMC, 2x RGMII, MIPI-CSI, PCIe, LVDS, -25°C - +85°C, Linux Yocto, FreeRTOS SKU: OSM8MPL-V2I |
Request | ||
Starterkit
|
Starter Kit FS 8MP OSM-SF Linux Evaluation kit for FS 8MP OSM-SF with base board, OSM-Adapter, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8MP-SKIT-LIN |
360,- € |
