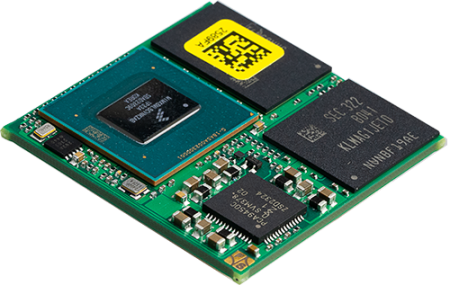

Starterkit FS 8MP OSM-SF Linux



Starterkit FS 8MP OSM-SF Linux
  360,- €
Tax not included

Starter kit for FS 8MP OSM-SF with baseboard, OSM adapter, cable kit, MIPI-DSI to LVDS adapter, 7” LVDS display, heat spreader, access data for documentation and software

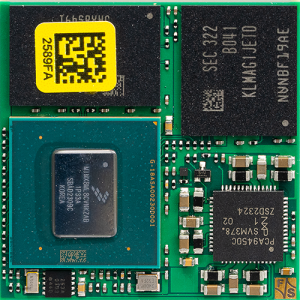

OSM8MPL Rev100 TOP
FS 8MP OSM-SF-V2I
NXP i.MX 8M Plus Quad, 2GB LPDDR4 RAM, 16GB eMMC, 2x RGMII, MIPI-CSI, PCIe, LVDS, -25°C - +85°C, Linux Yocto, FreeRTOS
SKU: OSM8MP-V2I

PCoreBBDSI FERT2 TOP
PicoCore™100 Baseboard
For connecting USB 3.0 (OTG), SD card, serial, I²C, Ethernet, CAN, mPCIe, audio (In/ Out/ Mic/ Headphone), 2x MIPI-CSI and MIPI-DSI / LVDS.
SKU: PCoreBBDSI-FERT4B

ADP OSM BB Rev100 TOP
OSM-Baseboard-Adapter
Connects an OSM module with its baseboard
SKU: ADP-OSM-BB

starterkit cable kit
Cable Kit
USB Device Cable, Ethernet Cable, RS232 Adapter, Nullmodem Cable, Power Plug and USB Stick with access code to software and documentation (necessary to start the development).
SKU: SINTF-CABKIT4

LCD 7 LVDS 1 front web
7” LVDS Display with PCAP Touch (long-term available)
7” LVDS LCD Display with PCAP Touch
SKU: LCD.7.LVDS.1

B.MKAB
LVDS/MIPI Adapter Cable
LVDS/MIPI cable with two 30pin connectors each (JAE X30HL-B to JAE X30HL-B)
SKU: B.MKAB.44


Backlight Cable
Backlight cable for connecting the 7"/10" LVDS displays (LCD.7.LVDS.1 and LCD.10.LVDS.1).
SKU: B.MKAB.35


MIPI-DSI to LVDS Adapter
Allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket.
SKU: ADP-MIPI2LVDS1

MHS.OSM.1 TOP
Heat Spreader OSM Size-S
Heat Spreader for cooling the OSM Size-S modules
SKU: MHS.OSM.1

Variants

OSM8MPL Rev100 TOP FS 8MP OSM-SF-V2I
NXP i.MX 8M Plus Quad, 2GB LPDDR4 RAM, 16GB eMMC, 2x RGMII, MIPI-CSI, PCIe, LVDS, -25°C - +85°C, Linux Yocto, FreeRTOS
SKU: OSM8MP-V2I		 Request

Starterkit

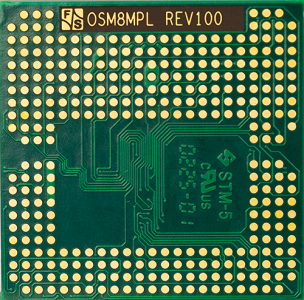

OSM8MPL Rev100 BOT Starterkit FS 8MP OSM-SF Linux
Starter kit for FS 8MP OSM-SF with baseboard, OSM adapter, cable kit, MIPI-DSI to LVDS adapter, 7” LVDS display, heat spreader, access data for documentation and software
SKU: OSM8MP-SKIT-LIN		 360,- €


Yocto Release Y2024.07

For the CPU NXP i.MX8M Plus F&S offers a Yocto based environment. We offer the Linux BSP fsimx8mp-Y2024.07, which is based on Yocto.

Our standard configuration, which is intended to give a first impression of the functionality of the board, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and many more.

The BSP contains the source code packages of U-Boot (2021.04), Linux kernel (based on 5.15.160) and Yocto (4.0.20 Kirkstone) adapted by F&S. Also included is our cross toolchain, some sample applications, and all binaries in the default configuration. Last but not least, detailed documents on the hardware are included, as well as the First Steps documentation for an easy start.

F&S offer a virtual machine (based on VirtualBox) with an installed Linux based on the distribution Fedora 36 for free download. All packages necessary to compile our software are already installed. Also, all services (NFS, TFTP) for working with our boards are installed. Our BSP is unpacked and precompiled in the correct directories. With this virtual machine it doesn't matter if you use Windows or Linux as host. Simply download the VHD, import it into VirtualBox and development can begin immediately.

➜ More information about the new Yocto release Y2024.07

Development start in under an hour
F&S Development Machine - Fedora 36


For a quick start into development with Linux we provide a VirtualBox-based virtual hard disk VHD for download. The VHD uses Fedora 36as Linux distribution.

With this machine you can start your development in less than an hour.

The machine is free of charge for our customers.

login screen

VirtualBox is a powerful product for corporate customers and at the same time the only professional solution which is freely available as Open Source Software under the terms of the GNU General Public License Version 2.
The F&S Development Machine contains pre-installed board support packages for fsimx8mm, fsimx8mn and fsimx8mp (64 bit CPU).
The appropriate F&S toolchain is installed in the VHD, the source code is extracted and ready to use.
Necessary system packages and tools are also already installed.
Furthermore, it contains a configured environment for QT development with cross-compile/debug kit, deployment strategy and demo application.

qtcreator debugging 400px

Note: To download the Development Machine, you must be registered on our website.

➜ More information about the F&S Development Machine in the F&S Support Forum
➜ Download F&S Development Machine - Fedora 36
➜ Quickstart Documentation

FS 8MP OSM-SF - Product Flyer

FS 8MP OSM-SF - Linux

FS 8MP OSM-SF - Hardware
