FS 91 OSM-SF

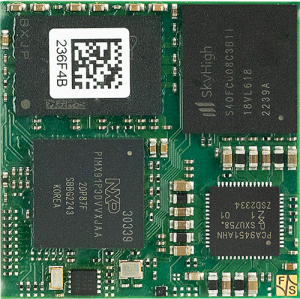

OSM Size S with NXP i.MX 91 Prozessor

For the start of development, we recommend:

Starterkit FS 91 OSM-SF Linux
  260,- €
Tax not included

FS 91 OSM-SF-V1I-LIN, base board, OSM-Adapter, cable kit, heat spreader, access data to documentation and software

FS 91 OSM-SF
State Q4/2024
CPU
CPU NXP i.MX 91
Core ARM Cortex-A55
No of Cores 1x A55
Frequency 1.4GHz
L2-Cache 256kB L2
Operating System
Linux Yocto
(uboot installed)
Memory
Flash 64 kbit EEPROM
eMMC max. 64GB
RAM max. 2GB LPDDR4 x16
Interfaces
SD-Card 1x SDIO
Ethernet 2x RGMII
USB Host 1x OTG 2.0
USB Device 1x OTG 2.0
CAN 2x CAN-FD
UART 4x
I2C 3x
SPI 2x
Audio I2S
Digital I/O 10
GPIO_A+_C[4..7]
ADC 2x
RTC PCF85263ATL
additional Interfaces 2x PWM, BL-PWM
Display
Common
Supply Voltage 5V DC/±5%
Power Consumption 3W typ.
Operating Temperature 0°C - +70°C
-25°C - +85°C
-40°C - +85°C
Size 30x30mm
Weight ~5g
Long Term Availability 2040


FS 91 OSM-SF-V1I
State Q4/2024
CPU -
CPU NXP i.MX 91
Core ARM Cortex-A55
No of Cores 1x A55
Frequency 1,4GHz
L2-Cache 256kB L2
Operating System -
Linux Yocto (uboot installiert)
Memory -
Flash 64 kbit EEPROM
eMMC 8GB eMMC
RAM 1GB LPDDR4 x16
Interfaces -
SD-Card 1x external
Ethernet 2x RGMII
USB Host 1x 2.0 OTG
USB Device 1x 2.0 OTG
CAN 2x CAN-FD
UART 4x
I2C 3x
SPI 2x
Audio I2S
Digital I/O 10
GPIO_A+_C[4..7]
ADC 2x
RTC 1x
additional Interfaces 2x PWM, 2x ADC, SPDIF, ESAI, SAI, SSI
Display -
Common -
Supply Voltage 5V DC/+-5%
Power Consumption 3W typ.
Operating Temperature -20°C - +85°C
Size 30x30 mm (LxB)
Weight ~7g
Long Term Availability 2035
FS 91 OSM-SF-V1I

PCoreBBDSI OSM BB OSM93 FERT21 Rev100 Starterkit FS 91 OSM-SF Linux
FS 91 OSM-SF-V1I-LIN, base board, OSM-Adapter, cable kit, heat spreader, access data to documentation and software
SKU: OSM91-SKIT1		 260,- €


Software

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €


Cables

B.MKAB47 Capacitive Touch Cable
6-pin cable with matching connector for connecting an I2C touch to F&S boards
SKU: B.MKAB.47		 10,- €


Workshops

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request
linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €


Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €

MHS.OSM.1 TOP Heat Spreader OSM Size-S
Heat Spreader for cooling the OSM Size-S modules
SKU: MHS.OSM.1		 10,- €


Variants

OSM91 TOP FS 91 OSM-SF-V1I
NXP i.MX91 Cortex®-A55 @ 1.4GHz, 1GB LPDDR4, 8GB eMMC, EEPROM, 2x RGMII, 2x CAN, RTC, -20°C - +85°C, Linux
SKU: OSM91-V1I		 Request

Starterkit

PCoreBBDSI OSM BB OSM93 FERT21 Rev100 Starterkit FS 91 OSM-SF Linux
FS 91 OSM-SF-V1I-LIN, base board, OSM-Adapter, cable kit, heat spreader, access data to documentation and software
SKU: OSM91-SKIT1		 260,- €


Yocto Release Y2024.09

For the CPU NXP i.MX93 F&S offers a Yocto based environment. We offer the Linux BSP fsimx93-Y2024.09-pre, which is based on Yocto.

Our standard configuration, which is intended to give a first impression of the functionality of the board, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and many more.

The BSP is based on the following source code packages:

  • U-Boot: 2024.04
  • Linux-Kernel:  6.6.48
  • Yocto: 5.0.3 Scarthgap

Also included is our cross toolchain, some sample applications, and all binaries in the default configuration.

F&S offer a virtual machine (based on VirtualBox) with an installed Linux based on the distribution Fedora 36 for free download. All packages necessary to compile our software are already installed. Also, all services (NFS, TFTP) for working with our boards are installed. Our BSP is unpacked and precompiled in the correct directories. With this virtual machine it doesn't matter if you use Windows or Linux as host. Simply download the VHD, import it into VirtualBox and development can begin immediately.

➜ More information about the new Yocto release

FS 91 OSM-SF - Product Flyer

FS 91 OSM-SF - Hardware

FS 91 OSM-SF - Linux



Variants

OSM91 TOP FS 91 OSM-SF-V1I
NXP i.MX91 Cortex®-A55 @ 1.4GHz, 1GB LPDDR4, 8GB eMMC, EEPROM, 2x RGMII, 2x CAN, RTC, -20°C - +85°C, Linux
SKU: OSM91-V1I		 Request

Starterkit

PCoreBBDSI OSM BB OSM93 FERT21 Rev100 Starterkit FS 91 OSM-SF Linux
FS 91 OSM-SF-V1I-LIN, base board, OSM-Adapter, cable kit, heat spreader, access data to documentation and software
SKU: OSM91-SKIT1		 260,- €


OSM with NXP i.MX 91

The SDT.05 standardization group was founded at SGET with the aim of defining a standard for a direct soldering module. The founding members were IESY GmbH, F&S Elektronik Systeme GmbH and Kontron AG. The advantages of an OSM module are the machine assembly, a lot of performance and functions in a small space. The cost and risk of using plugs are eliminated. Our OSM module in size S is ideally suited for NXP's i.MX 91 application processors.

The i.MX91 CPU is a slimmed-down i.MX93 CPU. The number of industrial interfaces is identical for both. in contrast to the i.MX93, the i.MX91 only has a Corftex-A55 core, does not have an L3 cache and the Cortex-M33 is not available. The display unit also only supports RGB displays without PXP. This makes the i.MX91 very similar to the i.MX6ULL.

NXP has not skimped on security That means the EdgeLock® Secure Enclave  ntroduced with the i.MX8ULP is also present in the i.MX91.





The OSM module from F&S, using the iMX 91, utilizes the same PCB as the OSM with iMX93, making it 100% pin compatible The only difference is the absence of the MIPI-DSI or LVDS interface. The signals for the RGB interface are only accessible via other I/O functions.

➜ more informationen about NXPs i.MX 91

NF&S Electronics also offers the development and production of a suitable baseboard in addition to the OSM module, and then delivers the complete unit soldered, tested, and optionally with customer-installed software, so that only unpacking, installation, and powering on are required.

The operating system adapted for the OSM modules is Linux Linux Yocto supports all interfaces, ensuring straightforward software development without extensive hardware knowledge

Entwicklungsboard

We offer a ready-to-use OSM starter kit with OSM modules, baseboard, cables, and access to documentation and software for an easy entry into development The software includes the Board Support Package.

The offer is rounded off by a wide range of software services, workshops and free support via the forum, email and telephone.
