NXP i.MX 8M Plus
Machine Learning, Vision and Advanced Multimedia
|
|
F&S offers several modules with the i.MX8M Plus:

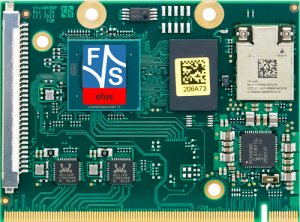

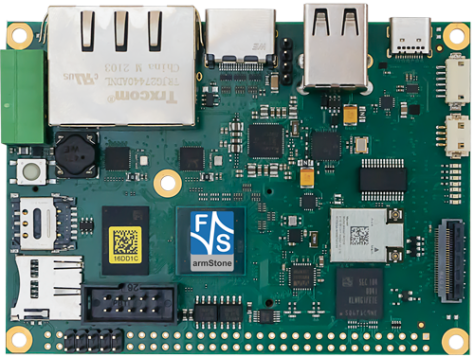

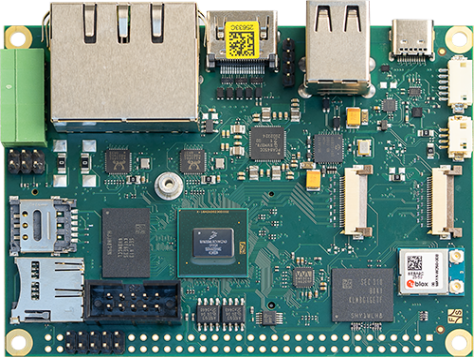

armStoneMX8MP, efusMX8MP, PicoCoreMX8MP, and OSM8MP
 |
 |
 |
|

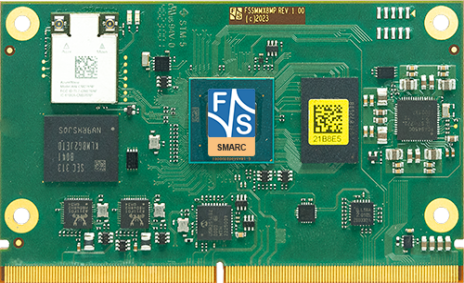

| armStone™MX8MP | SMARC™MX8MP | efus™MX8MP | PicoCore™MX8MP | FS 8MP OSM-SF | |
| State | Production | Production | Production | Production | Samples |
| CPU | - | - | - | - | - |
| CPU | NXP i.MX 8M Plus | NXP i.MX 8M Plus | NXP i.MX 8M Plus | NXP i.MX 8M Plus | NXP i.MX 8M Plus |
| Core | ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
| No of Cores | 4x A53 + M7 | 4x A53 + M7 | 4x A53 + M7 | 4x A53 + M7 | 4x A53 + M7 |
| Frequency | max. 1.8GHz + 800MHz | max. 1.8GHz + 800MHz | max. 1.8GHz + 800MHz | max. 1.8GHz + 800MHz | max. 1.8GHz + 800MHz |
| L2-Cache | 512kB | 512kB | 512kB | 512kB | 512kB |
| NPU | 2.3 TOPS | 2.3 TOPS | 2.3 TOPS | 2.3 TOPS | 2.3 TOPS |
| GPU | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 |
| VPU | 1080p60, h.265/4, VP9, VP8 Video Encode: 1080p60, h.265/4 |
1080p60, h.265/4, VP9, VP8 Video Encode: 1080p60, h.265/4 |
1080p60, h.265/4, VP9, VP8 Video Encode: 1080p60, h.265/4 |
1080p60, h.265/4, VP9, VP8 Video Encode: 1080p60, h.265/4 |
1080p60, h.265/4, VP9, VP8 Video Encode: 1080p60, h.265/4 |
| Operating System | - | - | - | - | - |
| Linux | Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
| Windows | 10 Iot Enterprise (UEFI installed) |
10 IoT Enterprise (UEFI installed) |
- | 10 IoT Enterprise (UEFI installed) |
- |
| Real Time | FreeRTOS | FreeRTOS | FreeRTOS | FreeRTOS | FreeRTOS |
| Memory | - | - | - | - | - |
| Flash | EEPROM | 64k EEPROM | EEPROM max. 512MB QSPI NAND |
EEPROM | 64 kbit EEPROM |
| eMMC | max. 64GB | max. 64GB | max. 64GB | max. 64GB | max. 64GB |
| RAM | max. 8GB LPDDR4 x32 |
max. 8GB LPDDR4 x32 |
max. 8GB LPDDR4 x32 |
max. 8GB LPDDR4 x32 |
max. 8GB LPDDR4 x32 |
| Interfaces | - | - | - | - | - |
| SD-Card | 1x µSD Slot | 1x SDIO | max. 2x SDIO | max. 2x SDIO | 2x SDIO |
| Ethernet | 2x Gbit | 2x 100/1000 Mbit | 2x 100/1000Mb | max. 2x 100/1000Mb opt. RGMII |
2x RGMII |
| WiFi | 802.11 ac/a/b/g/n (2.4/ 5GHz) |
802.11 ac/a/b/g/n (2.4/ 5GHz) |
802.11 ac/a/b/g/n (2.4/ 5GHz) |
802.11 ac/a/b/g/n (2.4/ 5GHz) |
- |
| BT | 5.3 | 5.3 | 5.3 | 5.3 | - |
| USB Host | 4x 2.0 | 1x (3.2) + 3x (2.0) | 1x USB 3.0 OTG | 1x 3.0 | 1x OTG 3.0 |
| USB Device | 1 (USB3.0) | 1x OTG 2.0 | 1x USB 3.0 OTG | 1x OTG 3.0 | 1x OTG 2.0 |
| CAN | 2x | 2x CAN-FD | 2x CAN-FD | max. 2x | 2x CAN-FD |
| UART | 3x | 4x | 4x | max. 4x | 4x |
| I2C | 4x | 5x | 2x | max. 4x | 3x |
| SPI | 2x | 2x | 2x | max. 2x | 2x |
| Audio | IN/ OUT/ MIC/ Headphone opt. I2S |
2x I2S | I2S | Line In/ Out/ Mic/ Headphone opt. I2S |
2x I2S |
| Digital I/O | max. 32 | 24 GPIO_A/_B/_C |
|||
| ADC | 4x | - | 4x | - | - |
| Touch Panel | via I2C or USB | via I2C or USB | via I2C or USB | via I2C or USB | via I2C or USB |
| Camera | MIPI-CSI (4 lanes) |
1-2x MIPI-CSI (1x 4 lanes), (1x 2 lanes) |
1x MIPI-CSI (4 lanes) |
2x MIPI-CSI (4 lanes) |
MIPI CSI (4 lanes) |
| PCIe | 1x with SIM Card Slot | 1x PCIe 3.0 (1 lane) |
1x PCIe 3.0 (1 lane) |
1x PCIe 3.0 (1 lane) |
1x PCIe 3.0 (1 lane) |
| RTC | PCF85263ATL | PCF85263ATL | PCF85263ATL | PCF85263ATL | PCF85263ATL |
| More | RS485, 4x PWM, SECO | - | - | max. 4x PWM, SPDIF, ESAI, SAI, SSI | 3x PWM, BL-PWM |
| Display | - | - | - | - | - |
| RGB | - | - | 18 Bit | - | - |
| LVDS | 2x 4 lanes | 2x 4 lanes | 2x 4 lanes | 2x 4 lanes | 1x 4 lanes |
| CRT/DVI | DVI | DVI | DVI | DVI | DVI |
| MIPI-DSI | 1x 4 lanes | 1x 4 lanes | 1x 4 lanes | 1x 4 lanes | 1x 4 lanes |
| Common | - | - | - | - | - |
| Supply Voltage | 5V DC / ±5% opt. 24V DC |
5V DC/±5% | +5VDC/ ±5% | +3.8V bis 5.5VDC | 5V DC/±5% |
| Power Consumption | 4W typ. | 4 Watt | 3W typ. | 3W typ. | 3W typ. |
| Operating Temperature | 0°C - +70°C -25°C - +70°C |
0°C - +70°C -25°C - + 85°C -40°C - + 85°C |
0°C - +70°C -25°C - +70°C -40°C - +70°C |
0°C - +70°C -25°C - +85°C -40°C - +85°C |
0°C - +70°C -25°C - +85°C -40°C - +85°C |
| Size | 100x72x15mm | 82x50mm | 47x62.1x11mm | 35x40mm | 30x30mm |
| Weight | ~60g | ~20g | ~15g | ~10g | ~6g |
| Long Term Availability | 2036 | 2036 | 2036 | 2036 | 2036 |
| armStone™MX8MP | SMARC™MX8MP | efus™MX8MP | PicoCore™MX8MP | FS 8MP OSM-SF |
