i.MX8ULP
NXP’s Ultra Low Power SoC
|
F&S offers various modules with i.MX8ULP:
armStoneMX8ULP, PicoCoreMX8ULP, SolderCore8ULP and OSM8ULP
 |
 |
 |
➜ learn more about NXP i.MX 8ULP
| armStone™MX8ULP | PicoCore™MX8ULP | FS 8ULP OSM-SF | |
| State | Samples | Samples | Samples |
| CPU | - | - | - |
| CPU | NXP i.MX 8ULP | NXP i.MX 8ULP | NXP i.MX 8ULP |
| Core | ARM Cortex-A35 Cortex-M33 Hifi 4 DSP |
ARM Cortex-A35 Cortex-M33 Hifi 4 DSP |
ARM Cortex-A35 Cortex-M33 Hifi 4 DSP |
| No of Cores | 2x A35 + 1x M33 + DSP | 2x A35 + 1x M33 + DSP | 2x A35 + 1x M33 + DSP |
| Frequency | 800MHz + 216MHz + 600MHz | 800MHz + 216MHz + 600MHz | 800MHz + 216MHz + 600MHz |
| L2-Cache | 512kB | 512kB | 512kB |
| GPU | 2D, 3D: ES™ 3.1, CL™, VG™ 1.1 | 2D, 3D: ES™ 3.1, CL™, VG™ 1.1 | 2D, 3D: ES™ 3.1, CL™, VG™ 1.1 |
| Operating System | - | - | - |
| Linux | Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
| Real Time | FreeRTOS | FreeRTOS | FreeRTOS |
| Memory | - | - | - |
| Flash | 64 kbit EEPROM | 2 kbit EEPROM | 64 kbit EEPROM |
| eMMC | max. 64GB | max. 64GB | max. 64GB |
| RAM | max. 2GB LPDDR4 x32 |
max. 2GB LPDDR4 x32 |
max. 2GB LPDDR4 x32 |
| Interfaces | - | - | - |
| SD-Card | µSD Slot | max. 2x SDIO | 1x SDIO |
| Ethernet | 1x 100 Mbit | 1x 100Mb opt. RMII |
1x RMII |
| WiFi | WIFI 6 | 802.11 ac/a/b/g/n (2.4/ 5GHz) |
- |
| BT | 5.2 | 5.3 | - |
| USB Host | 4x | 1x 2.0 | 1x OTG 2.0 |
| USB Device | 1x Type-C (USB 2.0) | 1x OTG 2.0 | 1x OTG 2.0 |
| CAN | 1x | 1x | 1x |
| UART | 3x | max. 4x | 5x |
| I2C | 4x | max. 4x | 3x |
| SPI | 2x | max. 3x | 2x |
| Audio | Line IN/ OUT/ MIC/ Headphone opt. I2S |
Line In/ Out/ Mic/ Headphone opt. I2S |
2x I2S |
| Digital I/O | max. 32 | - | 20 GPIO_A/_B/_C[4..7] |
| ADC | 4x | 2x (12 Bit) | - |
| Touch Panel | via I2C or USB | via I2C or USB | via I2C or USB |
| Camera analog/digital | MIPI-CSI (2 lanes) |
MIPI-CSI (2 lanes) |
MIPI-CSI (2 lanes) |
| RTC | PCF85263ATL | PCF85263ATL | PCF85263ATL |
| additional Interfaces | RS485 | PWM, Wachtdog SPDIF/DMIC |
5x PWM, BL-PWM |
| Display | - | - | - |
| RGB | - | 24 Bit | 18 (24) bit 1V8 or 3V3 |
| LVDS | 8 Lanes | - | - |
| MIPI-DSI | 1x 4 Lanes | 1x 4 Lanes | 1x 4 Lanes |
| Common | - | - | - |
| Supply Voltage | 5V DC/±5% | +3.8V bis 5.5VDC | 5V DC/±5% |
| Power Consumption | t.b.d. | 1W typ. | 2W typ. |
| Operating Temperature | 0°C - +70°C -25°C - +85°C -40°C - +85°C |
0°C - +70°C -25°C - +85°C -40°C - +85°C |
0°C - +70°C -25°C - +85°C -40°C - +85°C |
| Size | 100x72x15mm | 35x40mm | 30x30mm |
| Weight | ~50g | ~10g | ~5g |
| Long Term Availability | 2038 | 2038 | 2038 |
| armStone™MX8ULP | PicoCore™MX8ULP | FS 8ULP OSM-SF |
FS Solutions
- FS 8ULP OSM-SF (355 KB, pdf) - 17/10/2024
- PicoCoreMX8ULP (526 KB, pdf) - 01/05/2024
- NXP i.MX 8ULP - (external link)
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Experience groundbreaking energy efficiency without performance compromises with the NXP i.MX 8ULP
Whether extending the battery life of portable devices or optimizing power consumption in industrial environments, the i.MX8ULP sets the standard for energy-efficient computing, ensuring your devices run longer and smarter.
But that's not all – security is more critical than ever in today's connected world. Leverage the Secure Enclave feature to protect your data from unauthorized access and malicious attacks. Safeguard sensitive information with confidence, knowing that your system is equipped with robust security measures built directly into the i.MX 8ULP.
armStoneMX8ULP
 |
Starterkit armStone™MX8ULP Linux Starter kit with armStoneMX8ULP, cable kit, antenna, power adapter, access data for documentation and software SKU: aStone8ULP-SKIT-LIN |
300,- € |

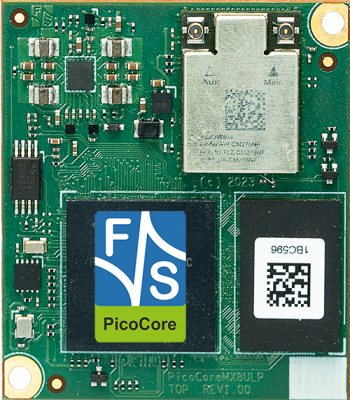

PicoCoreMX8ULP
 |
Starterkit PicoCore™MX8ULP Linux Evaluation Kit PicoCore™MX8ULP mit Basisboard, MIPI-DSI zu LVDS Adapter, 7" LVDS Display, Kabelkit, Zugangsdaten zu Dokumentation und Software SKU: PCore8ULP-SKIT-LIN |
360,- € |

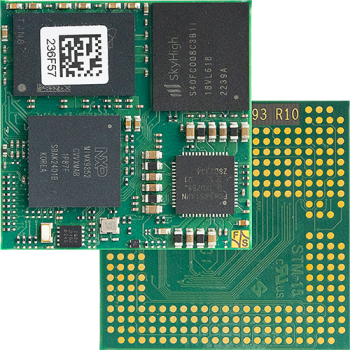

FS 8ULP OSM-SF
 |
Starterkit FS 8ULP OSM-SF Linux Evaluation kit for FS 8ULP OSM-SF with base board, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8ULP-SKIT1 |
360,- € |
