i.MX93
Secure, Power Efficient and Edge AI Ready
|

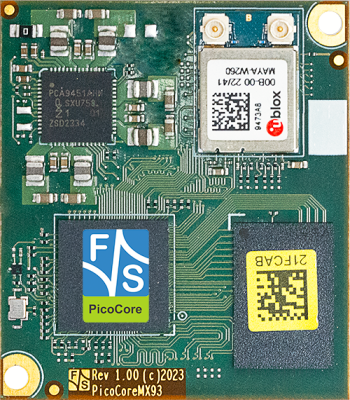

F&S offers three modules with i.MX93: efus, PicoCore and OSM
 |
 |
 |
➜ learn more about NXP i.MX 93
| efus™MX93 | PicoCore™MX93 | FS 93 OSM-SF | |
| State | Q1/2025 | Production | Production |
| CPU | - | - | - |
| CPU | NXP i.MX 93 | NXP i.MX 93 | NXP i.MX 93 |
| Core | ARM Cortex-A55 Cortex-M33 NPU |
ARM Cortex-A55 Cortex-M33 NPU |
ARM Cortex-A55 Cortex-M33 NPU |
| No of Cores | 2x A55 + M33 + NPU | 2x A55 + M33 + NPU | 2x A55 + M33 + NPU |
| Frequency | 1.7GHz + 250MHz | 1.7GHz + 250MHz | 1.7GHz + 250MHz |
| L2-Cache | 2x64kB L2 + 256kB L3 | 2x64kB L2 + 256kB L3 | 2x64kB L2 + 256kB L3 |
| GPU | PXP | PXP | PXP |
| Operating System | - | - | - |
| Linux | Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
| Windows | 11 IoT Enterprise (UEFI installed) |
11 IoT Enterprise (UEFI installed) |
- |
| Real Time | FreeRTOS | FreeRTOS | FreeRTOS |
| Memory | - | - | - |
| Flash | EEPROM | EEPROM | 64 kbit EEPROM |
| eMMC | max. 64GB | max. 64GB | max. 64GB |
| RAM | max. 2GB LPDDR4 x16 |
max. 2GB LPDDR4 x16 |
max. 2GB LPDDR4 x16 |
| Interfaces | - | - | - |
| SD-Card | max. 2x SDIO | max. 2x SDIO | 1x SDIO |
| Ethernet | max. 2x 100/1000Mb | max. 2x 100/1000Mb opt. RGMII |
2x RGMII |
| WiFi | 802.11 ac/a/b/g/n (2.4/ 5GHz) |
WIFI6 | - |
| BT | 5.3 | 5.2 | - |
| USB Host | 1x USB 2.0 OTG | 1x 2.0 | 1x OTG 2.0 |
| USB Device | 1x USB 2.0 OTG | 1x OTG 2.0 | 1x OTG 2.0 |
| CAN | 2x CAN-FD | max. 2x CAN-FD | 2x CAN-FD |
| UART | 8x | max. 8x | 5x |
| I2C | 6x | max. 6x | 3x |
| SPI | 8x | max. 8x | 2x |
| Audio | I2S | Line In/ Out/ Mic/ Headphone opt. I2S |
1x I2S |
| Digital I/O | - | - | 12 GPIO_A+_C[4..7] |
| ADC | 4x | 4x | 2x |
| Touch Panel | via I2C or USB | via I2C or USB | via I2C or USB |
| Camera analog/digital | MIPI-CSI (2 lanes) |
MIPI-CSI (2 lanes) |
MIPI-CSI (2 lanes) |
| RTC | PCF85263ATL | PCF85263ATL | PCF85263ATL |
| additional Interfaces | - | max. 4x PWM, SPDIF, ESAI, SAI, SSI | 2x PWM, BL-PWM |
| Display | - | - | - |
| RGB | 18 Bit | 18 Bit | - |
| LVDS | 1x 4 Lanes | 1x 4 Lanes | 1x 4 Lanes |
| MIPI-DSI | - | 1x 4 Lanes | 1x 4 Lanes |
| Common | - | - | - |
| Supply Voltage | +5VDC/ ±5% | +3.8V bis 5.5VDC | 5V DC/±5% |
| Power Consumption | 3W typ. | 3W typ. | 3W typ. |
| Operating Temperature | 0°C - +70°C -25°C - +85°C -40°C - +85°C |
0°C - +70°C -25°C - +85°C -40°C - +85°C |
0°C - +70°C -25°C - +85°C -40°C - +85°C |
| Size | 47x62.1x11mm | 35x40mm | 30x30mm |
| Weight | ~15g | ~10g | ~5g |
| Long Term Availability | 2038 | 2038 | 2038 |
| efus™MX93 | PicoCore™MX93 | FS 93 OSM-SF |
FS Solutions
- FS 93 OSM-SF (376 KB, pdf) - 17/10/2024
- PicoCoreMX93 (527 KB, pdf) - 18/04/2024
- efusMX93
- NXP i.MX 93 - (external link)
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
efusMX93
 |
Starterkit efus™MX93 Linux Evaluation kit for efus™MX93 with efus™ module, carrier board, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: efusMX93-SKIT-LIN |
360,- € |
PicoCoreMX93
 |
Starterkit PicoCore™MX93 Linux PicoCoreMX93 with Baseboard and cable, incl. PicoCoreMX93-V4XI-LIN, carrier board, Cable Kit, 7" LVDS display with PCAP Touch and cable kit, access to documentation and software SKU: PCoreMX93-SKIT-LIN |
360,- € | ||
 |
Starterkit PicoCore™MX93 W11 PicoCoreMX93 with Baseboard and cable, incl. PicoCoreMX93-V5I-W11, carrier board, Cable Kit, 7" LVDS display with PCAP Touch and cable kit, access to documentation and software SKU: PCoreMX93-SKIT-W11 |
360,- € |
FS 93 OSM-SF
 |
Starterkit FS 93 OSM-SF Linux FS 93 OSM-SF-V1I-LIN, carrier board, OSM adapter, cable kit, 7" LVDS display with PCAP touch, heat spreader + heat sink, access data to documentation and software SKU: OSM93-SKIT-LIN |
360,- € |
