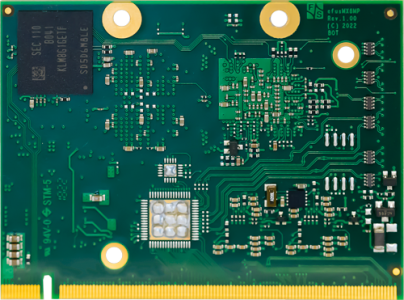

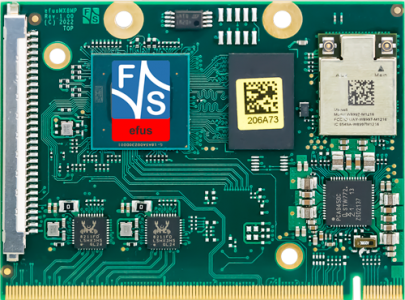

efus™MX8MP
Computer On Module mit NXP i.MX 8M Plus CPU
|
Für den Start in die Entwicklung empfehlen wir: |
efus™MX8MP | ||
Status | Muster | |
CPU | ||
Typ | NXP i.MX 8Dual/ Quad Mini Plus | |
Kern | ARM Cortex-A53 + -M7 | |
Anzahl der Kerne | 2x, 4x A53 +M7 | |
Frequenz | 1.8GHz + 800MHz | |
L2-Cache | 512KB | |
GPU | 3D/2D, ES 3.1/3.0, CL™ 1.2, VG™ 1.1, Machine Learning ML |
|
VPU | 1080p60, h.265/4, VP9, VP8, Video Encode: 1080p60, h.265/4 |
|
Betriebssystem | ||
Linux | Yocto (uboot installiert) |
|
Echtzeit | FreeRTOS | |
Speicher | ||
Flash | max. 512MB QSPI NAND max. 64GB eMMC |
|
RAM | max. 8GB LPDDR4 | |
Schnittstellen | ||
SD-Karte | max. 2x extern | |
Ethernet | 2x 100/1000Mb | |
WLAN | 802.11ac/a/b/g/n | |
BT | 5.0 LE mit Antennenbuchse | |
USB Host | 1x USB 3.0 OTG | |
USB Device | 1x USB 2.0 OTG | |
CAN | 2x CAN-FD | |
UART | 4x | |
I2C | 2x | |
SPI | 2x | |
Audio | I2S | |
Touch Panel | analog resistive und PCAP Touch ext. via I2C | |
Kamera analog/digital | 0/ MIPI-CSI2 | |
PCIe | 1x PCIe 3.0 (1 lane) | |
RTC | on board/ extern IC | |
Display | ||
RGB | 18 Bit | |
LVDS | 2x 24bit (max.1080p) |
|
CRT/DVI | -/FullHD | |
MIPI-DSI | 1x 4 lanes | |
Allgemein | ||
Stromversorgung | +5VDC/ ±5% | |
Leistungsaufnahme | 3W typ. | |
Betriebstemperaturbereich | 0°C - +70°C -20°C - +85°C -40°C - +85°C |
|
Größe | 47x62.1x11mm (LxBxH) |
|
Gewicht | ~15g | |
Minimale Verfügbarkeit | 2035 |
efus™MX8MP-V3XI-LIN | efus™MX8MP-V4-LIN | efus™MX8MP-V5-LIN | |
Status | Muster | Muster | Muster |
CPU | - | - | - |
Typ | NXP i.MX 8M Plus Quad | NXP i.MX 8M Plus QuadLite | NXP i.MX 8M Plus QuadLite |
Kern | ARM Cortex-A53 + -M7 | ARM Cortex-A53 + -M7 | ARM Cortex-A53 + -M7 |
Anzahl der Kerne | 4x A53 + 1x M7 | 4x A53 + 1x M7 | 4x A53 + 1x M7 |
Frequenz | 1.6 GHz + 800MHz | 1.8 GHz + 800MHz | 1.8 GHz + 800MHz |
L2-Cache | 512KB | 512KB | 512KB |
GPU | 3D/2D, ES 3.1/3.0, CL™ 1.2, VG™ 1.1, Machine Learning ML |
3D/2D, ES 3.1/3.0, CL™ 1.2, VG™ 1.1, Machine Learning ML |
3D/2D, ES 3.1/3.0, CL™ 1.2, VG™ 1.1, Machine Learning ML |
VPU | 1080p60, h.265/4, VP9, VP8, Video Encode: 1080p60, h.265/4 |
- | - |
Betriebssystem | - | - | - |
Linux | Yocto (uboot installiert) |
Yocto (uboot installiert) |
Yocto (uboot installiert) |
Echtzeit | FreeRTOS | FreeRTOS | FreeRTOS |
Speicher | - | - | - |
Flash | max. 512MB QSPI NAND max. 64GB eMMC |
256MB QSPI NAND | max. 512MB QSPI NAND max. 64GB eMMC |
eMMC | 4GB | 8GB | 8GB |
RAM | 1GB LPDDR4 | 2GB LPDDR4 | 2GB LPDDR4 |
Schnittstellen | - | - | - |
SD-Karte | max. 2x extern | max. 2x extern | max. 2x extern |
Ethernet | 2x 100/1000Mb | 2x 100/1000Mb | 2x 100/1000Mb |
WLAN | - | 802.11ac/a/b/g/n | 802.11ac/a/b/g/n |
BT | - | 5.0 LE mit Antennenbuchse | 5.0 LE mit Antennenbuchse |
USB Host | 1x USB 3.0 OTG | 1x USB 3.0 OTG | 1x USB 3.0 OTG |
USB Device | 1x USB 2.0 OTG | 1x USB 2.0 OTG | 1x USB 2.0 OTG |
CAN | 2x CAN-FD | 2x CAN-FD | 2x CAN-FD |
UART | 4x | 4x | 4x |
I2C | 2x | 2x | 2x |
SPI | 2x | 2x | 2x |
Audio | I2S | I2S | I2S |
Touch Panel | analog resistive und PCAP Touch ext. via I2C | analog resistive und PCAP Touch ext. via I2C | analog resistive und PCAP Touch ext. via I2C |
Kamera analog/digital | 0/ MIPI-CSI2 | 0/ MIPI-CSI2 | 0/ MIPI-CSI2 |
PCIe | 1x PCIe 3.0 (1 lane) | 1x PCIe 3.0 (1 lane) | 1x PCIe 3.0 (1 lane) |
RTC | extern RTC | extern RTC | extern RTC |
sonstige Schnittstellen | 4x ADC | 4x ADC | - |
Display | - | - | - |
RGB | 18 Bit | 18 Bit | - |
LVDS | Dual Channel | Dual Channel | Dual Channel |
CRT/DVI | -/ FullHD | -/FullHD | -/FullHD |
Allgemein | - | - | - |
Stromversorgung | +5VDC/ ±5% | +5VDC/ ±5% | +5VDC/ ±5% |
Leistungsaufnahme | 3W typ. | 3W typ. | 3W typ. |
Betriebstemperaturbereich | -40°C - +85°C | 0°C - +70°C | 0°C - +70°C |
Größe | 47x62.1x11mm (LxBxH) |
47x62.1x11mm (LxBxH) |
47x62.1x11mm (LxBxH) |
Gewicht | ~15g | ~15g | ~15g |
Minimale Verfügbarkeit | 2035 | 2035 | 2035 |
efus™MX8MP-V3XI-LIN | efus™MX8MP-V4-LIN | efus™MX8MP-V5-LIN |
Starterkit efus™MX8MP Linux efus™MX8MP-V5-LIN, Basisboard, Display, Kabelkit, Zugangsdaten zu Dokumentation und Software Bestellnr.: efusMX8MP-SKIT-LIN |
360,- € |
tbd
Yocto Release Y2022.12
For the CPU NXP i.MX8M Plus F&S offers a Yocto based environment. We offer the Linux BSP fsimx8mp-Y2022.12, which is based on Yocto.
Our standard configuration, which is intended to give a first impression of the functionality of the board, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and many more.
The BSP contains the source code packages of U-Boot (2020.04), Linux kernel (based on 5.4.70) and Yocto (3.0 Zeus) adapted by F&S. Also included is our cross toolchain, some sample applications, and all binaries in the default configuration. Last but not least, detailed documents on the hardware are included, as well as the First Steps documentation for an easy start.
F&S offer a virtual machine (based on VirtualBox) with an installed Linux based on the distribution Fedora 27 for free download. All packages necessary to compile our software are already installed. Also, all services (NFS, TFTP) for working with our boards are installed. Our BSP is unpacked and precompiled in the correct directories. With this virtual machine it doesn't matter if you use Windows or Linux as host. Simply download the VHD, import it into VirtualBox and development can begin immediately.
➜ More information about the new Yocto release Y2022.12
Development start in under an hour
F&S Development Machine - Fedora 27
For a quick start into development with Linux we provide a VirtualBox-based virtual hard disk VHD for download. The VHD uses Fedora 27 as Linux distribution.
With this machine you can start your development in less than an hour.
The machine is free of charge for our customers.
VirtualBox is a powerful product for corporate customers and at the same time the only professional solution which is freely available as Open Source Software under the terms of the GNU General Public License Version 2.
The F&S Development Machine contains pre-installed board support packages for fsimx8mm and fsimx8mp (64 bit CPU).
The appropriate F&S toolchain is installed in the HVD, the source code is extracted and ready to use.
Necessary system packages and tools are also already installed.
Furthermore, it contains a configured environment for QT development (QT5) with cross-compile/debug kit, deployment strategy and demo application.
Note: To download the Development Machine, you must be registered on our website.
➜ More information about the F&S Development Machine in the F&S Support Forum
➜ Download F&S Development Machine - Fedora 27
➜ Quickstart Documentation
efusMX8MP - Product Flyer
- English (708 KB, pdf) - 16.05.2023
- efus Standard (678 KB, pdf) - 30.10.2015
- Customer Specific Boards (93 KB, pdf) - 20.09.2017
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
efusMX8MP - Hardware
- efusMX8MP Hardware Documentation
- efusMX8MP Starterkit Hardware Documentation (3.7 MB, pdf) - 18.09.2020
- Starterkit Design Files (1.2 MB, zip) - 21.09.2020
- 3D Step-Model
- Design Guide (918 KB, pdf) - 15.04.2019
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
efusMX8MP - Linux
- efusMX8MP Linux First Steps (1.2 MB, pdf) - 07.09.2023
- Advice for Linux on PC (2 MB, pdf) - 10.01.2018
- GPIO Reference Card
- Application Development with Eclipse (2.4 MB, pdf) - 18.10.2022
- Application Development with QT (2.1 MB, pdf) - 31.10.2023
- Application Development with Crank (485 KB, pdf) - 28.07.2022
- Steps Required For Creating A Progress Bar In Linux (473 KB, pdf) - 12.07.2019
- Linux on F&S Boards (2.9 MB, pdf) - 15.11.2023
- Mono on F&S Boards
- DOTNET on F&S Boards (251 KB, pdf) - 28.04.2023
- FreeRTOS on FSiMX8MP Boards (673 KB, pdf) - 02.09.2022
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Verwendung
Mit dem Download akzeptieren Sie unsere Allgemeinen Geschäftsbedingungen.
Varianten
![]() |
efus™MX8MP-V5-LIN NXP i.MX 8M Plus QuadLite ARM Cortex-A53 + Cortex-M7, 2GB RAM, 8GB eMMC, 2x Gb Ethernet, 2x CAN, Audio, WLAN, BT, MIPI-CSI Kamera, LVDS, HDMI, 0°C - +70°C, 5V Versorgung, Linux Yocto, FreeRTOS Bestellnr.: efusMX8MP-V5-LIN |
Anfrage | ||
![]() |
efus™MX8MP-V3XI-LIN NXP i.MX 8M Plus Quad ARM Cortex-A35 + Cortex-M4, 1GB RAM, 4GB eMMC, 2x Gb Ethernet, 2x CAN, 4x ADC, MIPI-CSI Kamera, RGB, 2x LVDS, DVI, -40°C - +85°C, 5V Versorgung, Linux Yocto, FreeRTOS Bestellnr.: efusMX8MP-V3XI-LIN |
Anfrage | ||
![]() |
efus™MX8MP-V4-LIN NXP i.MX 8M Plus QuadLite ARM Cortex-A53 + Cortex-M7, 2GB RAM, 8GB eMMC, 256 QSPI NAND, 2x Gb Ethernet, 2x CAN, Audio, WLAN, BT, MIPI-CSI Kamera, LVDS, DVI, 0°C - +70°C, 5V Versorgung, Linux Yocto, FreeRTOS Bestellnr.: efusMX8MP-V4-LIN |
Anfrage |
Starterkits
Starterkit efus™MX8MP Linux efus™MX8MP-V5-LIN, Basisboard, Display, Kabelkit, Zugangsdaten zu Dokumentation und Software Bestellnr.: efusMX8MP-SKIT-LIN |
360,- € |
Link zum Forum
Support finden Sie jederzeit in unserem Forum.
Aktuelle Beiträge
06 Dec, 15:45 |
Grafik/ Starter-Kit |
04 Dec, 16:41 |
Starting M7 from Linux freezes the system (U-boot prepare_mcore is missing) |
30 Nov, 14:17 |
i.MX8M-Mini Linux Release Y2023.10 (Yocto 4.0) |
28 Nov, 10:34 |
New F&S Development Machine - Fedora30 |
28 Nov, 10:31 |
Change uboot environment parameters from userspace (YOCTO Kirskstone) |
28 Nov, 10:16 |
New F&S Development Machine - Fedora27 |
28 Nov, 10:11 |
Fix for repo tool on older F&S Development Machines |
21 Nov, 12:53 |
LVDS-Display PicoCore MX8MP-V2-LIN HW-Rev. 1.0 vs Rev 1.1 |
18 Nov, 11:07 |
i.MX8M-Mini Linux Release B2023.11 (Buildroot 2023.02) |
18 Nov, 11:06 |
New F&S Development Machine - Fedora36 |
Easy, Functional.. | ..Universal, Small | |
---|---|---|
Die efus™MX8MP ist ein weiteres kompaktes und leistungsstarkes Modul im efus™ Formfaktor. Einfaches BasisboardZusammen mit einem einfachen Basisboard (EasyLayout), passt der nur 47 x 62mm kleine efus™ Standard auch in kompakte Gehäuse. NXP i.MX 8M PlusDer i.MX 8M Plus erweitert die skalierbare Produktpalette der i.MX 8 Serie. Der i.MX 8MP mit ARM Cortex-A53 und -M7 enthält gängige Subsysteme und Architekturen und bietet eine hohe Integrationsfähigkeit für Grafik, Video, Bildverarbeitung und Audio. Er ist der ideale Partner, wenn Sicherheit und Leistungseffizienz im Vordergrund stehen. |
Langzeitverfügbarkeit bis 2035Ein weiteres Merkmal des NXP i.MX 8MP ist die lange Verfügbarkeit bis mindestens 2035. Zahlreiche SchnittstellenDas Modul bietet Schnittstellen wie SD-Karte, 2x Gbit Ethernet, 4x Serielle, USB 3.0 Host/2.0 Device, 2x CAN, 2x I²C, 2x SPI und I2S Audio, sowie MIPI-CSI Kamera. Für die drahtlose Kommunikation bietet das Modul WLAN und Bluetooth an. LCD TFTs können über RGB, MIPI-DSI, 24Bit LVDS oder DVI angeschlossen werden. Touch ist extern über I²C verfügbar. Das angepasste Betriebssystem (Linux Yocto) unterstützt alle Schnittstellen, dadurch kann eine einfache Softwareentwicklung ohne große Hardwarekenntnisse gewährleistet werden. |
