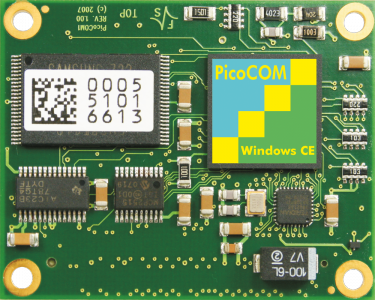

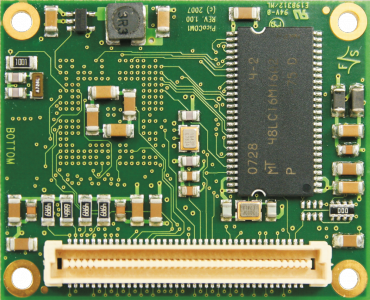

PicoCOM1
Note: This Product Is No Longer Available For New Developments!
Computer On Module with ATMEL ARM9 CPU
|
|
|
| PicoCOM1 | ||
| State | No New Developments | |
| CPU | ||
| CPU | ATMEL | |
| Core | ARM 926 EJ | |
| Frequency | 210 MHz | |
| Video | CPU | |
| Operating System | ||
| Linux | 2.6 (Emlix Eval/ Pro) (uboot installed) |
|
| Windows | WCE 6.0 R3 (Bootloader installed) |
|
| Memory | ||
| Flash | 32MB+ | |
| RAM | 32MB+ | |
| Interfaces | ||
| SD-Card | extern | |
| Ethernet | 10/ 100MB | |
| USB Host | 1-2 (2.0 FS) | |
| USB Device | 0-1 (2.0 FS) | |
| CAN | 1 | |
| UART | 1x with modem signal, baudrate 115200 1x with RTS/ CTS, max. baudrate 115200 1x mit max. baudrate 115200 |
|
| I2C | 1 | |
| SPI | opt. | |
| Audio | 1x Audio Codec Line Out (L/ R) 1x Audio Codec Line In (L/ R) 3x Analog In (10Bit resolution) |
|
| Display | ||
| Common | ||
| Supply Voltage | +3,3V | |
| Operating Temperature | -20°C - +85°C | |
| Size | 40mm x 50mm(l x b) |
| PCOM1-WCE60 | PCOM1-LIN | |
| State | No New Developments | No New Developments |
| CPU | - | - |
| CPU | ATMEL | ATMEL |
| Core | ARM 926 EJ | ARM 926 EJ |
| Frequency | 210 MHz | 210 MHz |
| Video | CPU | CPU |
| Operating System | - | - |
| Linux | - | 2.6 (Emlix Eval/ Pro) (uboot installed) |
| Windows | WCE 6.0 R3 (Bootloader installed) |
- |
| Memory | - | - |
| Flash | 64MB | 64MB |
| RAM | 32MB SDRAM | 32MB SDRAM |
| Interfaces | - | - |
| SD-Card | extern | extern |
| Ethernet | 1 | 10/ 100MB |
| USB Host | 1-2 (2.0 FS) | 1-2 (2.0 FS) |
| USB Device | 0-1 (2.0 FS) | 0-1 (2.0 FS) |
| CAN | CAN2.0 | CAN2.0 |
| UART | 1x with modem signal, baudrate 115200 1x with RTS/ CTS, max. baudrate 115200 1x mit max. baudrate 115200 |
1x with modem signal, baudrate 115200 1x with RTS/ CTS, max. baudrate 115200 1x mit max. baudrate 115200 |
| I2C | 1 | 1 |
| SPI | opt. | opt. |
| Audio | Audio | 1x Audio Codec Line Out (L/ R) 1x Audio Codec Line In (L/ R) 3x Analog In (10Bit resolution) |
| Display | - | - |
| Common | - | - |
| Supply Voltage | +3,3V | +3,3V |
| Operating Temperature | -20°C - +85°C | -20°C - +85°C |
| Size | 40mm x 50mm(l x b) | 40mm x 50mm(l x b) |
| PCOM1-WCE60 | PCOM1-LIN |
 |
UpDate Software This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card. SKU: WCE-UPDATE |
500,- € | ||
|
Software .NET Drivers Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++. SKU: WCE-DOTNET |
500,- € | ||
|
Custom Kernel Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added. SKU: WCE-CUSTIMAGE |
500,- € | ||
|
Failsafe Flash Filesystem (F3S) The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing. SKU: WCE-F3S |
1,000,- € | ||
 |
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € | ||
 |
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
 |
I2C Erweiterung Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus. SKU: NDCU-ADP/I2C |
80,- € | ||
For PicoCOM1, two different LINUX distributions are available:
- Free Evaluation Edition
- Professional Edition with costs
Evaluation Edition
This BSP edition is free for customers but not supported by emlix. This version was designed for evaluating hardware with Linux as an operating system.
This version was created for testing purposes only. It does not contain all drivers and it cannot be guaranteed that all drivers run smoothly. Neither emlix nor F&S offer support. Installing the software happens at the customer's risk. Potential problems occurring when installing this software lie in the user's own responsibilities. Hardware damages or deleted bootloaders are not a warranty case.
Professional Edition
Professional BSP was designed for the usage in development projects.
Support and free updates make it possible for Professional Edition customers to integrate updates and bug fixes easily.
Compared to the Evaluation Edition, the following features are included (i.a.):
- SPI display
- USB Device driver, Ethernet and file storage
- UBI/ UBIFS/ Squashfs
- e2fsprogs
- e2 packager including tooling
- deployer
- e2sb (fronted for e2 packager)
- dhcp client and server
- eclipse IDE Pro
- mpg123
- duma
- gdb6 on target
- canfestival
- ppp
- ntp
- sqlite
- udev
- Icd4linux
- Start-up Support
- Updates (12 months)
emlix package manager - e2 packager - is one of the interesting features of the Professional Edition, since it is dealing with ressources responsibly. Thanks to appendant tooling, self-designed software can be embedded safely and comfortably into the package administration of the Target.
Supply
Both Linux editions are available on www.emlix.de
Windows Embedded Lifetime
| Feature | Available until | End of Mainstream Support | End of Extended Support |
| Windows Embedded Compact 2013 | 31.05.2028 | 10.09.2018 | 10.10.2023 |
| Windows Embedded Compact 7 | 28.02.2026 | 12.04.2016 | 13.04.2021 |
| Windows CE 6.0 | 28.02.2022 | 09.04.2013 | 10.04.2018 |
Windows Embedded CE 6.0 R3
Windows Embedded CE 6.0 R3 on PicoCOM1 offers bootloader, kernels (e.g. with Silverlight, Mediaplayer or IE). Interface drivers for almost every offered interface are ready to use.
Take further use of your Windows kowledge by creating your software with Visual Studio .NET in the languages C, C++, C# or VB.NET.
Use interfaces like I²C the same way like a RS232 interface without having to handle the underlying hardware.
Configure the display and other settings with the F&S configuration tool.
Our FailSafe Flash File System F3S is also available for WCE 6.0.
PicoCOM1 - Hardware
- Starterkit Schematic and BOM (148 KB, pdf) - 24/08/2012
- Hardware Documentation (175 KB, pdf) - 07/11/2012
- Startinterface Documentation (95 KB, pdf) - 27/05/2022
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
PicoCOM1 - Linux
- Advice for Linux on PC (2 MB, pdf) - 10/01/2018
Usage
By downloading you accept our general terms and conditions.
PicoCOM1 - Windows Embedded CE/Compact
- First Steps (311 KB, pdf) - 15/04/2008
- Device Driver documentation (230 KB, pdf) - 11/04/2011
- CAN Software-Interface (967 KB, pdf) - 23/03/2015
- I2C Driver documentation (393 KB, pdf) - 13/01/2017
- Native SPI Driver documentation (185 KB, pdf) - 16/07/2009
- Native SPI Device Driver (2.2 MB, pdf) - 13/03/2013
- Native SPI Device Driver old
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Sorry, there are no files to show.
PicoCOM1 - Miscellaneous
- Workshop Flyer (113 KB, pdf) - 17/03/2009
- Product Change Notification (89 KB, pdf) - 25/10/2013
- Ethernet Routing Guidelines
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
PicoCOM1 - Display
- SPI-LCD-Driver Flyer (290 KB, pdf) - 28/04/2008
- Display Settings from Datasheet (11 KB, pdf) - 19/11/2009
- Display Driver (SPIFLAT) documentation (355 KB, pdf) - 17/09/2008
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Variants
 |
PCOM1-WCE60 32MB SDRAM, 64MB Flash, Ethernet, CAN2.0, Audio, Windows CE 6.0 SKU: PCOM1-WCE60 |
Request | ||
 |
PCOM1-LIN 64MB SDRAM, 32MB Flash, Ethernet, CAN2.0, Audio, Embedded Linux SKU: PCOM1-LIN |
Request | ||
Accessories
|
UpDate Software This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card. SKU: WCE-UPDATE |
500,- € | ||
|
Software .NET Drivers Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++. SKU: WCE-DOTNET |
500,- € | ||
|
Custom Kernel Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added. SKU: WCE-CUSTIMAGE |
500,- € | ||
|
Failsafe Flash Filesystem (F3S) The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing. SKU: WCE-F3S |
1,000,- € | ||
|
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € | ||
|
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
|
I2C Erweiterung Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus. SKU: NDCU-ADP/I2C |
80,- € | ||
Link to the Forum
You will always find support in our Forum.
Recent Contributions
|
20 Dec, 13:46 |
New Yocto Release fsimx6sx-Y2024.12 |
|
20 Dec, 13:45 |
New F&S Development Machine - Fedora36-arm32 |
|
20 Dec, 10:00 |
Howto initramfs with yocto on efusA7ULL |
|
19 Dec, 16:22 |
Repartitioning NAND Flash (via Yocto/ Patch) |
|
12 Dec, 09:21 |
SPIDEV probe function not called |
|
11 Dec, 12:16 |
CANscan: Powerful CAN Bus Testing and Communication Tool with Avalonia UI |
|
10 Dec, 09:13 |
request to introduce a github repo also for the toolchain with corresponding history |
|
05 Dec, 06:29 |
WEC 2013: How to close UDP Ports 137 and 138 / how to disable NetBIOS over TCP/IP |
|
04 Dec, 12:48 |
New i.MX8MP GPU Driver |
|
04 Dec, 09:32 |
Prevent efusA9 with WEC 2013 from sending Device Info |
| Description | Description | |
|---|---|---|
|
PicoCOM1 was the first member of a new product family. The customer receives the processing power of a 32Bit CPU combined with the comfort and functionality of Windows Embedded CE or Linux for the price of a common 8/16Bit μP-System. For Medical and Technical EngineeringThe module with integrated operating system is based on ARM9 technology and a surface area of only 20cm² (40mm x 50mm). This compact module is suitable for hand-held products and as an additional communication module for existing industrial (-20°C - +85°C) and medical applications. It provides an easy way to upgrade these already available devices with USB (Memory Stick/ ActiveSync), Ethernet (FTP/ HTTP/ Telnet Server) and Audio (VoIP/ WAV/ MP3). Small and InexpensiveThe PicoCOM family by F&S offer the user a small and inexpensive communication processor. |
Standard Interfacesmain criteria when developing the concept was to offer the user a large number of standardized interfaces, which are all supported by the integrated operating system. It makes it easier for the user to realize his communication task in software, without needing to have larger hardware knowledge. It should be equally easy from hardware-side to handle the module. The complete power management (power supply, reset) is found on the assembly. A 80 poles plug connector connects the module to the user's application. The application only needs necessary driver components for existing or wanted interfaces.
|
