Starterkit PicoCOM93

Starterkit PicoCOM93 Linux
  299,- €
Tax not included

PicoCOM93, Carrier board, 7" Display mit Touch, Kabelkit

With the starter kit, you have the option to connect external peripherals to the PicoCOM93 during the development phase. As a plug-in module, it routes all signals to an 80-pin connector.

The baseboard included in the kit exposes all interfaces of the PicoCOM93 to standard sockets or pin headers.

The starter kit is delivered with Linux preinstalled. For testing purposes, it is also possible to install an operating system other than the preinstalled one (e.g., Debian, QNX, or Win11 IoT) and use it to develop software for the PicoCOM93.

The starter kit consists of a baseboard with a mounted PicoCOM93 and a cable set. The baseboard provides connection options for the following interfaces: Ethernet, USB Host, USB Device, 2x RS232, SD card, I²C, SPI, audio (line in, line out), and digital I/O ports. A 5V power supply is required. The starter kit also includes a 7" WVGA TFT with a resistive touch panel (ET070080) and the matching display adapter with flat cable and touch cable. Documentation and software are available in our download area.

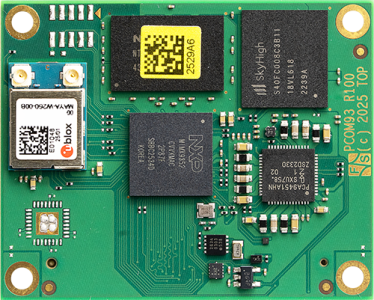

PicoCOM93-V3I-LIN
NXP i.MX93 Dual Cortex®-A55 @ 1.7GHz 1GB LPDDR4, 8GB eMMC, 1x 100Mbit LAN Phy, Audio Codec, RGB, TI Touch, CAN, EEPROM, RTC, no Wi-Fi 6/BT, no SECO, -25°C - +85°C, Linux
SKU: PCOM93-V3I-LIN

PCOM STARTINTF2 TOP
PicoCOMA5/A9X/A7 Base Board
Offers connection options for Ethernet, USB Host, USB Device, 2x RS232, SD Karte, I²C, SPI, Audio (Line In, Line Out) and E/A-Ports.
SKU: PCOM4-SKIT-FERT1

starterkit cable kit
Cable Kit

SKU: SINTF-CABKIT

ET070080 B.LCD.15 Display
7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15

B.MKAB.23
40poles Film Cable
Film Cable, A40pol., 0,5mm, l=200mm for displays
To connect a 7" EDT Display (B.LCD.15)
SKU: B.MKAB.23

Software

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €


Displays and Displaykits

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15		 120,- €

B.LCD.18 7" RGB Display with PCAP Touch
7" TFT (800x480) Display Endrich MI0700AJT-54CP with capacitive Touch
SKU: B.LCD.18		 150,- €

armStone efus RGB Kit Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT		 170,- €

armStone efus RGB Kit Displaykit RGB 2
7" WVGA Display with RGB interface and touch panel, connection cable (40pol film cable), display adapter and touch cable
SKU: aSt-RGBKIT		 170,- €

KIT TFT 7RGB Displaykit 7" RGB - PCAP Touch
7" Display with RGB interface and capacitive touch panel, connection cable (50pol film cable) and display adapter.
SKU: KIT-TFT-7RGB		 210,- €


Touch kits

resistive Touch Kit armStoneA9 Resistive Touch Kit 2
For the connection of a resistive touch panel to boards with 6pol Hirose socket.
SKU: SINTF-ADP-RTI2C		 Request
SINTF ADP EDTTOUCH2 PCAP Touch Kit for EDT
Kit to connect an EDT PCAP touch panel
SKU: ADP-EDTTOUCH2		 35,- €


Cable

B.MKAB47 Capacitive Touch Cable
6-pin cable with matching connector for connecting an I2C touch to F&S boards
SKU: B.MKAB.47		 10,- €


Adapters

I2C Extension I2C Erweiterung
Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus.
SKU: NDCU-ADP/I2C		 80,- €

Adapter RGB to DVI NetDCU/ PicoCOM DVI Adapter
Connects NetDCUA5/ PicoCOMA5/ A9X to a DVI/ HDMI screen.
SKU: ADP-RGB2DVI		 50,- €


Workshops

linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


Software

Architecture Type Release Name Bootloader Kernel OS Help File Software VM
FSIMX93 Yocto fsimx93-Y2025.08 U-Boot 2024.04 Linux 6.6.101 Yocto 5.0.11 Scarthgap

Yocto

For the CPU NXP i.MX93 F&S offers a Yocto based environment. In addition, F&S provide a BSP for FreeRTOS. This FreeRTOS BSP makes it easier to use features of Cortex-M33.

Yocto has established itself as the standard for Linux build environments in recent years. Our standard configuration, which is intended to give a first impression of the module's functionality, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, X11R7, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and much more.

F&S also offers a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora distribution for free download. All packages necessary to translate our software are already installed. All services (NFS, TFTP) for working with our boards are also installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it doesn't matter whether you use Windows or Linux as the host. Simply download the VHD, import it into VirtualBox and development can begin immediately.

FreeRTOS

In addition to the 2 Cortex-A55 cores, the NXP i.MX 93 SoC also has a Cortex-M33 core. The Cortex-M33 core is particularly suitable for real-time tasks or for power saving.
F&S offers a completely tested BSP for the use of the Cortex-M33 for FreeRTOS or Bare Metal application.
