PicoMOD7A

Note: This Product Is No Longer Available For New Developments!

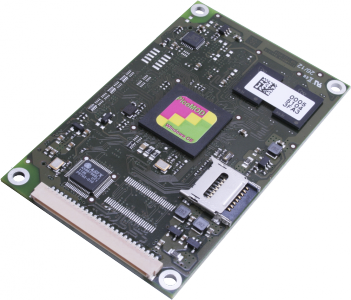

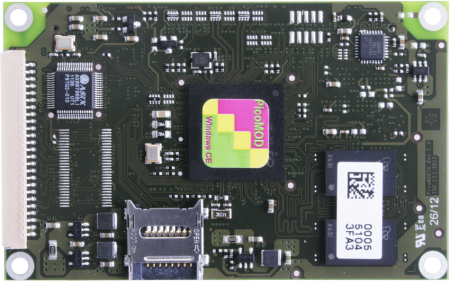

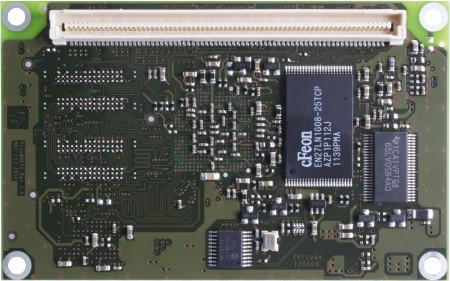

Computer On Module with Samsung S5PV210 CPU



PicoMOD7A
State no new developments
CPU
CPU Samsung S5PV210
Core Cortex-A8
Frequency 1GHz
Video CPU, 2D, 3D, MFC
Operating System
Windows WCE 6.0 R3/ WEC 7
Memory
Flash 128MB/ 1GB Flash
RAM 256/ 512MB DDR2 RAM
Interfaces
SD-Card on-board/ extern
Ethernet 10/ 100MB
USB Host 1-2 (2.0)
USB Device 1 (2.0)
CAN 1
I2C 1
SPI opt.
Audio In/ Out
Digital I/O max. 64
Touch Panel 4-wire, analogue resistive
Display
RGB
LVDS
CRT/DVI HDMI
CSTN x
Common
Supply Voltage +3,3V DC/ ±5%
Power Consumption 3W typ.
Operating Temperature -25 - +85°C (L1), 0°C - +85°C (L2)
Size 80mm x 50mm x 9mm (l x b x d)
Weight about 20g


PMOD7A-ANC-WCE PMOD7A-ANC-LIN PMOD7A-512DANC-W7 PMOD7A-ANCL1-WCE PMOD7A-ANCL1-LIN PMOD7A-512DANCL1W7 PMOD7A-512DANCL2W7
State no new developments no new developments no new developments no new developments no new developments no new developments no new developments
CPU - - - - - - -
CPU Samsung S5PV210 Samsung S5PV210 Samsung S5PV210 Samsung S5PV210 Samsung S5PV210 Samsung S5PV210 Samsung S5PV210
Core Cortex-A8 Cortex-A8 Cortex-A8 Cortex-A8 Cortex-A8 Cortex-A8 Cortex-A8
Frequency 1GHz 1GHz 1GHz 1GHz 1GHz 1GHz 1GHz
Video CPU, 2D, 3D, MFC CPU, 2D, 3D, MFC CPU, 2D, 3D, MFC CPU, 2D, 3D, MFC CPU, 2D, 3D, MFC CPU, 2D, 3D, MFC CPU, 2D, 3D, MFC
Operating System - - - - - - -
Linux - Linux - - Linux - -
Windows WCE 6.0 Core Lizenz - WEC7 CE7 Lizenz WCE 6.0 Core Lizenz - WEC7 CE7 Lizenz WEC7 CE7 Lizenz
Memory - - - - - - -
Flash 128MB 128MB 128MB 128MB 128MB 128MB 128MB
RAM 256MB 256MB 512MB 256MB 256MB 512MB 512MB
Interfaces - - - - - - -
SD-Card on-board/ extern on-board/ extern on-board/ extern on-board/ extern on-board/ extern on-board/ extern on-board/ extern
Ethernet 1x 10/ 100MB 1x 10/ 100MB 1x 10/ 100MB 1x 10/ 100MB 1x 10/ 100MB 1x 10/ 100MB 1x 10/ 100MB
USB Host 1-2 (2.0) 1-2 (2.0) 1-2 (2.0) 1-2 (2.0) 1-2 (2.0) 1-2 (2.0) 1-2 (2.0)
USB Device 1 (2.0) 1 (2.0) 1 (2.0) 1 (2.0) 1 (2.0) 1 (2.0) 1 (2.0)
CAN 1 1 1 1 1 1 1
I2C 1 1 1 1 1 1 1
SPI opt. opt. opt. opt. opt. opt. opt.
Audio In/ Out In/ Out In/ Out In/ Out In/ Out In/ Out In/ Out
Digital I/O max. 64 max. 64 max. 64 max. 64 max. 64 max. 64 max. 64
Touch Panel 4-wire, analogue resistive 4-wire, analogue resistive 4-wire, analogue resistive 4-wire, analogue resistive 4-wire, analogue resistive 4-wire, analogue resistive 4-wire, analogue resistive
Display - - - - - - -
RGB - - - -
LVDS - - - 8Bit 6Bit 6Bit 8Bit
CRT/DVI HDMI HDMI HDMI HDMI HDMI HDMI HDMI
CSTN x x x x x x x
Common - - - - - - -
Supply Voltage +3,3V DC/ ±5% +3,3V DC/ ±5% +3,3V DC/ ±5% +3,3V DC/ ±5% +3,3V DC/ ±5% +3,3V DC/ ±5% +3,3V DC/ ±5%
Power Consumption 3W typ. 3W typ. 3W typ. 3W typ. 3W typ. 3W typ. 3W typ.
Operating Temperature -25 - +85°C (L1), 0°C - +85°C (L2) -25 - +85°C (L1), 0°C - +85°C (L2) -25 - +85°C (L1), 0°C - +85°C (L2) -25 - +85°C (L1), 0°C - +85°C (L2) -25 - +85°C (L1), 0°C - +85°C (L2) -25 - +85°C (L1), 0°C - +85°C (L2) -25 - +85°C (L1), 0°C - +85°C (L2)
Size 80mm x 50mm x 9mm (l x b x d) 80mm x 50mm x 9mm (l x b x d) 80mm x 50mm x 9mm (l x b x d) 80mm x 50mm x 9mm (l x b x d) 80mm x 50mm x 9mm (l x b x d) 80mm x 50mm x 9mm (l x b x d) 80mm x 50mm x 9mm (l x b x d)
Weight about 20g about 20g about 20g about 20g about 20g about 20g about 20g
PMOD7A-ANC-WCE PMOD7A-ANC-LIN PMOD7A-512DANC-W7 PMOD7A-ANCL1-WCE PMOD7A-ANCL1-LIN PMOD7A-512DANCL1W7 PMOD7A-512DANCL2W7

The Linux BSP (multiplatform-linux-f+s-V2.0) contains the customized Linux Kernel Source Code (v3.3.7), the customized U-Boot Source Code (2012.07) and a customized Buildroot (2012.08), as well as our Cross-Toolchain. The package also holds our standard binaries of the Linux Kernel Images, U-Boot and a UBIFS Root Filesystem. For a first impression, the Root Filesystem based on Buildroot has the following features installed:

Busybox 1.20.x, gdb 6.8, alsa-utils, gstreamer, madplay, directFB, fbv, X.Org rel-7.5, Matchbox, feh, X11vnc, openssl, openssh, freetype, glib2, tslib, libv4l, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp

The BSP also contains our First-Step documentation and example applications.

Windows Embedded Lifetime

Feature Available until  End of Mainstream Support End of Extended Support
Windows Embedded Compact 2013 31.05.2028  10.09.2018 10.10.2023
Windows Embedded Compact 7 28.02.2026  12.04.2016 13.04.2021
Windows CE 6.0 28.02.2022  09.04.2013 10.04.2018

Windows Embedded CE 6.0 R3/Compact 7

Windows CE6.0/R3 or Windows Embedded Compact 7 offers Bootloader, interface drivers and kernel (with e.g. Silverlight, Mediaplayer or IE). Interface drivers for almost every offered interface are ready to use (an access code for this software is shipped with the starter kit). Hard work with PlatformBuilder is unnecessary, since we already did that. Create your software with Visual Studio .NET (not shipped with the starterkit) in C, C++, C# or VB.NET. Use interfaces like I²C in the same way like a RS232 interface, without having to handle the underlying hardware. Configure the display and other settings with the F&S configuration tool. This is software development at its easiest.

Our FailSafe Flash File System F3S is also available for WCE 6.0 and in Compact 7.

Windows Embedded Features for FSV210

General

Feature Description
.NET Support Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework
AnalogIn Stream driver to easily access the analog inputs
Audio Codec Support for Microphone, LineIn and LineOut.
Implements Mixer interface and special F&S mixer control panel applet to easily change settings.
BusEnum2 Support for asynchronous loading of drivers. Use events to start loading of drivers.
Broadcast Stream driver
Boards can be easily identified and configured over LAN connection
CAN Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication.
Digital I/O  Stream driver to configure pins as input, output or interrupt.
Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry.
Display Display driver can be configured by registry settings without modifying operating system.
Display Multi-Monitor Support
Adjustable by registry
Display 2D software acceleration using NEON co-processor
Multiple overlays with alpha blending
Display 2D hardware acceleration
3D OpenGL ES 1.1 and 2.0 hardware acceleration
Multiple overlays with alpha blending
Multiple monitor support (incl. 2D acceleration and Video support)
Firmware Update Software to update Bootloader and/or operating system from running operating system.
Software Update Program to update application and registry settings from USB stick, SD card or other source. Includes automatic detection.
Can incorporate with Firmware Update
I²C Stream driver
Support for hardware I²C controller (NI2C)
Support for using GPIOs as I²C (I²C)
JPEG Stream driver
Hardware accelerated JPEG encoder/decoder
Keyboard Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409
Matrix keyboard support: Use IO pins for keyboard
SPI Stream driver
Support for hardware SPI controller
Touch Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others
Extended USB mouse driver to accept absolute coordinates
USB Host EHCI and OHCI driver
USB Device
KBDHID Extended MS kbdhid - Support for all keys on the keyboard
MOUTOUCHHID Support for absolute coordinates
Power Management Support for screen saver and touch activation
PWM Stream driver
Video Streaming Filter framework for streaming video over HTTP
VoIP Voice over IP sample solution

File System

Feature Description
F&S BinFS Bug fixed BinFS file system for XIP images
F3S F&S Secure Flash File System
Optimized throughput on all file operations
Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector)
Transaction-based concept already cooperates with a lot of applications
Filesystem
Filter Driver		 Used to limit access to file system.
Possible restrictions: Move, Delete, Rename
FAT/TFAT Microsoft Windows Embedded FAT/TFAT solution.

Services

Feature Description
Telnet Server Enabled by default. Easy access to command shell.
FTP Server
HTTPD Server Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera)
OpenSSH Offers SSH server functionality for Windows Embedded. Based on OpenSSH
SFTP
SCP
SMTP
SSH SCP/SFTP server SSH Library (also used from SMTP).
SMTP SMTP library to send EMail

Tools

Feature Description
Bootscreen Showing custom image during boot.
Control Panel Standard Windows Embedded Control Panel with additional tools.
CE Remote Display Driver and application to access desktop of device remotely.
ndcucfg Command line configuration tool.
Can be used locally, over Telnet connection and over serial connection.
Registry editing
Reading/writing of boot loaders and splash screen
User administration
Certificate administration
....
Usage:
* Can be used in own applications as DLL.
* As a command line tool from telnet or serial debug console
Update tool Update of boot loader
Update on WinCE image
Registry changes
Update of user application
Runs from SD/USB/LAN
F&S 2D control utility Control panel applet
Change 2D acceleration on the fly
F&S Board Config Control panel applet
Check hardware revision, version of boot loader, version of WinCE image and much more.
Change system startup and registry.
F&S Audio Mixer Control panel applet
Change audio features like volume, bass, treble, input ...
F&S HDMI config utility Command line tool
Configure HDMi interface on the fly
Change HDMI resolution
Change position and size of layers
Change priority, color key and blending
F&S SSH/SMTP control utility Control panel applet
Start stop SSHD service
Send test EMail by SMTP
F&S USB Loader Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information.
Can be used to update software or to automate production.

Multimedia

Feature Description
Codec Filter Hardware accelerated DirectShow Filter
Max. Resolution: 1920x1080
Formats: ITU-T H.264, ISO/IEC 14496-10, ISO/IEC 14496-2 MPEG4
Camera Filter Max. Resolution: 8192x8192
Supported: Cameras: OVM9665, OVM7690
Supported PINs: Preview, Capture, Still
MJPEG Filter Hardware accelerated MJPEG filter.

Flyer PicoMOD7A A4 Englisch (576 KB, pdf)
Flyer PicoMOD7A LVDS A4 Englisch (593 KB, pdf)

PicoMOD7A - Hardware


PicoMOD7A - Linux


PicoMOD7A - Windows Embedded CE/Compact


Sorry, there are no files to show.


PicoMOD7A - Miscellaneous

  • Camera Interface Documentation (Windows Embedded)

PicoMOD7A - Display

Variants

PicoMOD7A RGB TOP Windows PMOD7A-ANC-WCE
256MB -RAM, 128MB Flash, Audio, Ethernet, CAN, RGB, WCE 6.0 Core license
SKU: PMOD7A-ANC-WCE		 Request
PicoMOD7A TOP RGB Linux PMOD7A-ANC-LIN
256MB -RAM, 128MB Flash, Audio, Ethernet, CAN, RGB, Linux
SKU: PMOD7A-ANC-LIN		 Request
PicoMOD7A RGB TOP Windows PMOD7A-512DANC-W7
512MB -RAM, 128MB Flash, Audio, Ethernet, CAN, RGB, WEC7 CE7 license
SKU: PMOD7A-512DANC-W7		 Request
PicoMOD7A LVDS TOP Windows PMOD7A-ANCL1-WCE
256MB RAM, 128MB Flash, Audio, Ethernet, CAN, 6Bit LVDS, WCE 6.0 Core license
SKU: PMOD7A-ANCL1-WCE		 Request
PicoMOD7A LVDS TOP Linux PMOD7A-ANCL1-LIN
256MB RAM, 128MB Flash, Audio, Ethernet, CAN, 6Bit LVDS, Linux
SKU: PMOD7A-ANCL1-LIN		 Request
PicoMOD7A LVDS TOP Windows PMOD7A-512DANCL1W7
512MB RAM, 128MB Flash, Audio, Ethernet, CAN, 6Bit LVDS, WEC7 CE7 license
SKU: PMOD7A-512DANCL1W7		 Request
PicoMOD7A LVDS TOP Windows PMOD7A-512DANCL2W7
512MB RAM, 128MB Flash, Audio, Ethernet, CAN, 8Bit LVDS, WEC7 CE7 license
SKU: PMOD7A-512DANCL2W7		 Request

Description Interfaces

Especially for TFT

The latest member of the PicoMOD family fits especially in applications where a TFT with XGA/WXGA resolution has to be controlled or where videos up to 1080p have to be played.

Wide Range of Applications

Many new developments in medicine and industry require a high CPU performance with 2D/3D acceleration and layering technique. Examples for devices in medical engineering are X-ray-, therapy-, microscopy-, respiration-, LASER-, dental-, high frequency surgery- and depilation applications. Industrial applications are for example: MMI, POI, building automation, professional coffee machines, ovens and smokers, access control, time control, analyzers, vending machines, gambling machines, advertisement panels, data log and VoiceOverIP systems.

For all MMIs with a display (QVGA/ XGA/ WXGA), controlling elements (resistive/ capacitive touch, keypad, control knob) and communication interfaces (Ethernet, USB, CAN, Serial, Audio, I²C, SPI, I/ O), the PicoMOD7 or another member of the PicoMOD product family fits. Of course, PicoMOD7A is pin compatible to PicoMOD3/4/ 6 and 7.



Fully Equipped

The core of PicoMOD7A is a Samsung Cortex-A8 CPU with 1GHz.

Special features of this processor are the video performance (MPEG4/ H264 Decoder 1080p, 2D/ 3D, 5 Window Layer), PowerVR SGX540 and the FPU.

The PicoMOD7A offers 128MB (1GB opt.) Flash, 256/ 512MB DDR2 RAM and signals for 3x serial, 2x USB, I²C, SPI, I/ O, Audio, CAN, Ethernet and SD Card signals, as well as a touch controller (4-wire resistive).

All common capacitive touch controllers can be connected via I²C. Plus, the PicoMOD7A comes with a flexible display interface, which is typical for F&S.

All common TFT displays from 320 x 240 up to 1280 x 80 (WXGA) can be controlled. The RGB version of PicoMOD7A has a RGB interface, the LVDS version comes with a 1-channel LVDS interface (6Bit and 8Bit). For the connection of your display we have display drivers available. To create your own display cables and adapters, we offer a pin assignment table for RGB and LVDS.

PicoMOD7A is supplied with 3.3V, the consumption power is lower than 3W. A robust 140-pol plug connectors plugs PicoMOD7A on the customer's application base board.
