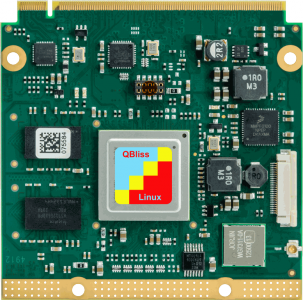

QBlissA9

Qseven with NXP i.MX 6 CPU

For the start of the development, we recommend:

Starterkit QBlissA9 Linux
  599,- €
Tax not included

QBlissA9-V4-LIN, base board, cable kit, access data to documentation and software


Starterkit QBlissA9 Windows
  599,- €
Tax not included

QBlissA9-V4-WEC7, base board, cable kit, access data to documentation and software

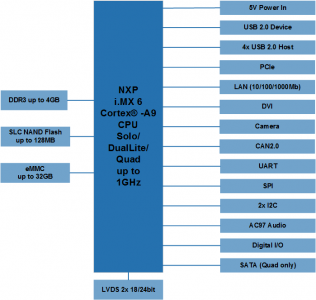

QBlissA9
State Production
CPU
CPU NXP i.MX 6
Core ARM Cortex-A9
No of Cores Solo/DualLite/Quad
Frequency max 1GHz
L2-Cache max. 1MB
GPU 2D 600Mpix/s
VPU 1080p60
Operating System
Linux Buildroot
Yocto
Windows WEC 7
WEC 2013
Memory
Flash max. 1GB SLC NAND
max. 32GB (uSD-Card)
RAM max. 4GB
Interfaces
SD-Card 1x extern
Ethernet 10/100/1000Mb
IEEE 1588
USB Host 4x
USB Device 1x
CAN 1x
UART 1x
I2C 2x
SPI 1x
Audio AC97
Touch Panel via I2C
Camera analog/digital 0/1
PCIe 1x
SATA 1x
Display
LVDS 2x 18/24bit
CRT/DVI 0/DVI
Common
Supply Voltage +5VDC/ ±5%
Operating Temperature 0°C - +70°C
opt. -20°C - +85°C
Size 70x70x11mm
(lxbxd)
Weight ~25g
Long Term Availability 2035


QBlissA9-V1I-LIN QBlissA9-V1I-WEC7 QBlissA9-V4-LIN QBlissA9-V4-WEC7
State Production Production Production Production
CPU - - - -
CPU NXP i.MX 6 NXP i.MX 6 NXP i.MX 6 NXP i.MX 6
Core ARM Cortex-A9 ARM Cortex-A9 ARM Cortex-A9 ARM Cortex-A9
No of Cores Solo Solo Quad Quad
Frequency 1GHz 1GHz 1GHz 1GHz
L2-Cache 512KB 512KB 1MB 1MB
GPU 2D 600Mpix/s 2D 600Mpix/s
OpenGL 53Mtri/s, 266Mpix/s		 2D 600Mpix/s 2D 600Mpix/s
VPU 1080p30 1080p30 1080p60 1080p60
Operating System - - - -
Linux Buildroot
Yocto		 - Buildroot
Yocto		 -
Windows - WEC 7 - WEC 7
Memory - - - -
Flash 256MB 256MB 256MB
SLC NAND		 256MB
RAM 512MB 512MB 1GB 1GB
Interfaces - - - -
SD-Card 1x on-board 1x on-board 1x extern 1x extern
Ethernet 10/100/1000Mb
IEEE 1588		 10/100/1000Mb
IEEE 1588		 10/100/1000Mb
IEEE 1588		 10/100/1000Mb
IEEE 1588
USB Host 4x 4x 4x 4x
USB Device 1x 1x 1x 1x
CAN 1x 1x 1x 1x
UART 1x 1x 1x 1x
I2C 2x 2x 2x 2x
SPI 1x 1x 1x 1x
Audio AC97 AC97 AC97 AC97
Touch Panel via I2C via I2C via I2C via I2C
Camera analog/digital 0/1 0/1 0/1 0/1
PCIe 1x 1x 1x 1x
SATA - - 1x 1x
Display - - - -
LVDS 2x 18/24bit 2x 18/24bit 2x 18/24bit 2x 18/24bit
CRT/DVI 0/DVI 0/DVI 0/DVI 0/DVI
Common - - - -
Supply Voltage +5VDC/ ±5% +5VDC/ ±5% +5VDC/ ±5% +5VDC/ ±5%
Operating Temperature -25°C - +85°C -25°C - +85°C 0°C - +85°C 0°C - +85°C
Size 70x70x11mm
(lxbxd)		 70x70x11mm
(lxbxd)		 70x70x11mm
(lxbxd)		 70x70x11mm
(lxbxd)
Weight ~25g ~25g ~25g ~25g
Long Term Availability 2035 2035 2035 2035
QBlissA9-V1I-LIN QBlissA9-V1I-WEC7 QBlissA9-V4-LIN QBlissA9-V4-WEC7

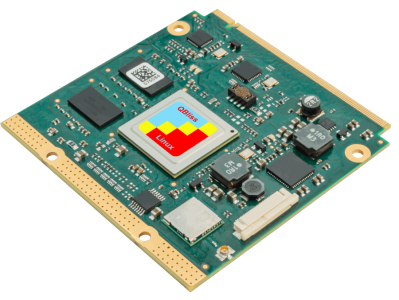

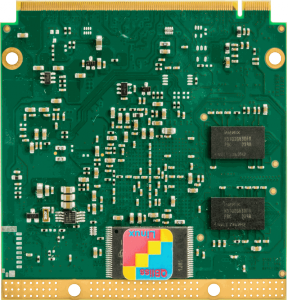

QBlissA9 Startinterface OBLIQUE Bottom Windows Starterkit QBlissA9 Windows
QBlissA9-V4-WEC7, base board, cable kit, access data to documentation and software
SKU: QBlissA9-SKIT-WIN		 599,- €


Software



software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €

software accessory Display Customization (MIPI-DSI Display under Linux)
Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board.
The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display.

SKU: EW-SW-MIPI-DSI-Linux		 1,000,- €

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €


Display

Touch Kit

resistive Touch Kit Resistive Touch Kit
For connecting a resistive Touch panel to F&S boards with 4-poles touch connector.
SKU: SINTF-ADP-RESTOUCH		 35,- €


Plug Connector

Foxconn MXM 2 Connector MXM-2 Connector
For connecting efus™- or QBliss-modules via goldfinger contacts.
SKU: B.MST.2R230PL.1		 43,- €


Workshops

linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


Variants

QBlissA9 TOP Windows QBlissA9-V4-WEC7
NXP i.MX 6Quad Cortex-A9, 1GB RAM, 256MB Flash, Gb Ethernet, CAN, Audio, PCIe, SATA, digital Camera, Touch, LVDS, DVI, 0°C - +85°C, 5V Supply, Windows Embedded Compact 7
SKU: QBlissA9-V4-WEC7		 Request
QBlissA9 TOP Linux QBlissA9-V4-LIN
NXP i.MX 6Quad Cortex-A9, 1GB RAM, 256MB Flash, Gb Ethernet, CAN, Audio, PCIe, SATA, digital Camera, Touch, LVDS, DVI, 0°C - +85°C, 5V Supply, Linux Buildroot/Yocto
SKU: QBlissA9-V4-LIN		 Request
QBlissA9 TOP Windows QBlissA9-V1I-WEC7
NXP i.MX 6Solo Cortex-A9, 512MB RAM, 256MB Flash, Gb Ethernet, CAN, Audio, PCIe, digital Camera, Touch, 2x LVDS, DVI, -25°C - +85°C, 5V Supply, Windows Embedded Compact 7
SKU: QBlissA9-V1I-WEC7		 Request
QBlissA9 TOP Linux QBlissA9-V1I-LIN
NXP i.MX 6Solo Cortex-A9, 512MB RAM, 256MB Flash, Gb Ethernet, CAN, Audio, PCIe, digital Camera, Touch, 2x LVDS, DVI, -25°C - +85°C, 5V Supply, Linux Buildroot/Yocto
SKU: QBlissA9-V1I-LIN		 Request

Starterkits

QBlissA9 Startinterface OBLIQUE Bottom Windows Starterkit QBlissA9 Windows
QBlissA9-V4-WEC7, base board, cable kit, access data to documentation and software
SKU: QBlissA9-SKIT-WIN		 599,- €


Buildroot and Yocto

The Linux BSP "fsimx6-B2020.04" is based on Buildroot, a software for creating root file systems. About 1400 different software packages can be added to the root file system using menu control. The range of functions ranges from simple libraries and utilities to a complete Java environment to complete graphical environments such as Qt, Wayland/Weston or X11, including applications such as an HTML5-capable web browser. In this way, it is very easy to put together a customized Linux system.

As an alternative to Buildroot, there is also a Yocto-based environment. We offer the Linux BSP fsimx6-Y2020.03, which is based on Yocto.

Our standard configuration, which should give a first impression of the functional scope of the module, contains the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, X11R7, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and much more

Both BSPs include the source code packages from U-Boot (2018.03), Linux kernel (based on 4.9.88) and Buildroot (2019.05.01) or Yocto (2.4) adapted by F&S. In addition, our cross toolchain is included, some sample applications and all binaries in the standard configuration. And last but not least, detailed documents on the hardware are included as well as the first steps documentation for easy entry.

F&S also offers a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora 27 distribution for free download. All packages necessary to translate our software are already installed. All services (NFS, TFTP) for working with our boards are also installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it doesn't matter whether you use Windows or Linux as the host. Simply download the VHD, import it into VirtualBox and development can begin immediately.

➜ More information about the new Buildroot Release B2020.04
➜ More information about the new YOCTO release Y2020.03

Windows Embedded Lifetime

Feature Available until  End of Mainstream Support End of Extended Support
Windows Embedded Compact 2013 31.05.2028  10.09.2018 10.10.2023
Windows Embedded Compact 7 28.02.2026  12.04.2016 13.04.2021
Windows CE 6.0 28.02.2022  09.04.2013 10.04.2018

Windows Embedded Compact 7

Windows Embedded Compact 7 offers bootloaders, kernels (e.g. with Silverlight, Mediaplayer or IE) and interface drivers for almost every offered interface are ready to use.
Hard work with platform builder can be dropped, we already did that for you.
Create your software with Visual Studio .NET in the languages C, C++, C# or VB.NET.
Use interfaces like I²C the same way like a RS232 interface without having to handle the underlying hardware.
Configure the display and other settings with the F&S configuration tool.

Our FailSafe Flash File System F3S is also available on Compact 7.

Windows Embedded Features for i.MX6

General

Feature Description i.MX6 WEC 2013
.NET Support Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework ✔ ✔
AnalogIn Stream driver to easily access the analog inputs ✔ ✔
Audio Codec Support for Microphone, LineIn and LineOut.
Implements Mixer interface and special F&S mixer control panel applet to easily change settings.		 ✔ ✔
BusEnum2 Support for asynchronous loading of drivers. Use events to start loading of drivers.  ✔ ✔
Broadcast Stream driver
Boards can be easily identified and configured over LAN connection		 ✔ ✔
CAN Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication. ✔ ✔
Digital I/O  Stream driver to configure pins as input, output or interrupt.
Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry.		 ✔ ✔
Display Display driver can be configured by registry settings without modifying operating system. ✔ ✔
Display Multi-Monitor Support
Adjustable by registry		 ✔  ✔
Display 2D software acceleration using NEON co-processor
Multiple overlays with alpha blending 		 ✔ ✔
Display 2D hardware acceleration
3D OpenGL ES 1.1 and 2.0 hardware acceleration
Multiple overlays with alpha blending
Multiple monitor support (incl. 2D acceleration and Video support)		 ✔  ✔
Firmware Update Software to update Bootloader and/or operating system from running operating system. ✔ ✔
Software Update Program to update application and registry settings from USB stick, SD card or other source.
Includes automatic detection. Can incorporate with Firmware Update		 ✔ ✔
I²C Stream driver
Support for hardware I²C controller (NI2C)
Support for using GPIOs as I²C (I²C)		 ✔ ✔
Keyboard Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409
Matrix keyboard support: Use IO pins for keyboard		 ✔ ✔
SPI Stream driver
Support for hardware SPI controller		 ✔ ✔
Touch Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others
Extended USB mouse driver to accept absolute coordinates		 ✔ ✔
USB Host EHCI and OHCI driver ✔ ✔
USB Device   ✔ ✔
KBDHID Extended MS kbdhid - Support for all keys on the keyboard ✔ ✔
MOUTOUCHHID Support for absolute coordinates ✔ ✔
Power Management Support for screen saver and touch activation ✔ ✔
PWM Stream driver ✔ ✔
Video Streaming Filter framework for streaming video over HTTP ✔ ✔
VoIP Voice over IP sample solution ✔

File System

Feature Description i.MX6 WEC 2013
F&S BinFS Bug fixed BinFS file system for XIP images ✔ ✔
F3S F&S Secure Flash File System
Optimized throughput on all file operations
Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector)
Transaction-based concept already cooperates with a lot of applications  		 ✔ ✔
Filesystem
Filter Driver		 Used to limit access to file system.
Possible restrictions: Move, Delete, Rename		 ✔ ✔
FAT/TFAT Microsoft Windows Embedded FAT/TFAT solution. ✔ ✔
NAND Driver 16 bit hardware ECC   ✔

Services

Feature Description i.MX6 WEC 2013
Telnet Server Enabled by default. Easy access to command shell. ✔ ✔
FTP Server   ✔ ✔
HTTPD Server Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera) ✔ ✔
OpenSSH Offers SSH server functionality for Windows Embedded. Based on OpenSSH
SFTP
SCP
SMTP		 ✔ ✔
SSH SCP/SFTP server SSH Library (also used from SMTP).  ✔ ✔
SMTP SMTP library to send EMail ✔ ✔

Tools

Feature Description i.MX6 WEC 2013
Bootscreen Showing custom image during boot. ✔ ✔
Control Panel Standard Windows Embedded Control Panel with additional tools. ✔ ✔
CE Remote Display Driver and application to access desktop of device remotely. ✔ ✔
ndcucfg Command line configuration tool.
Can be used locally, over Telnet connection and over serial connection.
Registry editing
Reading/writing of boot loaders and splash screen
User administration
Certificate administration
....
Usage:
* Can be used in own applications as DLL.
* As a command line tool from telnet or serial debug console		 ✔ ✔
Update tool Update of boot loader
Update on WinCE image
Registry changes
Update of user application
Runs from SD/USB/LAN		 ✔ ✔
F&S 2D control utility Control panel applet
Change 2D acceleration on the fly		 ✔ ✔
F&S Board Config Control panel applet
Check hardware revision, version of boot loader, version of WinCE image and much more.
Change system startup and registry.		 ✔ ✔
F&S Audio Mixer Control panel applet
Change audio features like volume, bass, treble, input ...		 ✔ ✔
F&S SSH/SMTP control utility Control panel applet
Start stop SSHD service
Send test EMail by SMTP		 ✔ ✔
F&S USB Loader Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information.
Can be used to update software or to automate production.		 ✔ ✔
F&S Mfg Tool Modified NXP Tool for board bring up and software installation ✔ ✔

QBlissA9 - Product Flyer


QBlissA9 - Hardware


QBlissA9 - Linux


QBlissA9 - Windows Embedded CE/Compact


Sorry, there are no files to show.


QBlissA9 - Display

Variants

QBlissA9 TOP Windows QBlissA9-V4-WEC7
NXP i.MX 6Quad Cortex-A9, 1GB RAM, 256MB Flash, Gb Ethernet, CAN, Audio, PCIe, SATA, digital Camera, Touch, LVDS, DVI, 0°C - +85°C, 5V Supply, Windows Embedded Compact 7
SKU: QBlissA9-V4-WEC7		 Request
QBlissA9 TOP Linux QBlissA9-V4-LIN
NXP i.MX 6Quad Cortex-A9, 1GB RAM, 256MB Flash, Gb Ethernet, CAN, Audio, PCIe, SATA, digital Camera, Touch, LVDS, DVI, 0°C - +85°C, 5V Supply, Linux Buildroot/Yocto
SKU: QBlissA9-V4-LIN		 Request
QBlissA9 TOP Windows QBlissA9-V1I-WEC7
NXP i.MX 6Solo Cortex-A9, 512MB RAM, 256MB Flash, Gb Ethernet, CAN, Audio, PCIe, digital Camera, Touch, 2x LVDS, DVI, -25°C - +85°C, 5V Supply, Windows Embedded Compact 7
SKU: QBlissA9-V1I-WEC7		 Request
QBlissA9 TOP Linux QBlissA9-V1I-LIN
NXP i.MX 6Solo Cortex-A9, 512MB RAM, 256MB Flash, Gb Ethernet, CAN, Audio, PCIe, digital Camera, Touch, 2x LVDS, DVI, -25°C - +85°C, 5V Supply, Linux Buildroot/Yocto
SKU: QBlissA9-V1I-LIN		 Request

Starterkits

QBlissA9 Startinterface OBLIQUE Bottom Windows Starterkit QBlissA9 Windows
QBlissA9-V4-WEC7, base board, cable kit, access data to documentation and software
SKU: QBlissA9-SKIT-WIN		 599,- €

QBlissA9 Startinterface OBLIQUE Bottom Linux Starterkit QBlissA9 Linux
QBlissA9-V4-LIN, base board, cable kit, access data to documentation and software
SKU: QBlissA9-SKIT-LIN		 599,- €


Description Description

Long-Term Availablility

QBlissA9 runs on the NXP i.MX6 Quad-Core ARM Cortex-A9 CPU.
A highlight of this CPU is its long availability for more than 15 years (NXP Product Longevity Program).

Multimedia CPU

Especially for multimedia, additional hardware units are available in i.MX6, relieving the CPU significantly and having a positive effect on fluid displaying and low power consumption.



The QBlissA9, based on the i.MX6, holds up to 4GByte DDR3 SDRAM, 32GByte Flash and Gigabit Ethernet on module. Further interfaces are USB 2.0 Host, USB 2.0 Device, CAN, I²C, SPI, AC97, SDIO, PCIe, serial interfaces, as well as 2-channel LVDS (up to WUXGA - 1920x1200) and DVI (up to HD1080).

High-End Computer Graphic

The QBlissA9 allows an unprecedented combination of high-end computer graphic at simultaneously extremely low power loss.

The i.MX6 CPU is available with Single- and Dual-Core in the same housing. Therefore, more QBlissA9 versions in different performance classes are disposable.

Support

Telefon: +49 711 123722 0

Info: info@fs-net.de
Verkauf: sales@fs-net.de
Kunden-Support: support@fs-net.de
Webmaster: webmaster@fs-net.de

LinkedIn icon youtube icon twitter icon maps icon email icon

Anschrift

F&S Elektronik Systeme GmbH
Untere Waldplätze 23
70569 Stuttgart - Germany

Contact us

Datenschutzerklärung |  Disclaimer |  Impressum |  AGB |  Bestellhinweise
