SMARC™™
- SMARC™ 2.2 standard, 50 x 82 mm
- MXM3 goldfinger connector
- Power supply: 5V
- 3.3V I/O voltage
- Standardized interfaces
- F&S cooling solution
- Scalable:
NXP i.MX 8M Plus, NXP i.MX 95 - Free development support including schematic review
- Comprehensive software support
What are the advantages of F&S SMARC modules?
- Quality products designed and manufactured in Germany
- Designed and manufactured according to ISO 13485 (e.g. for medical applications)
- Long-term availability and professional lifecycle management
- Custom assembly options and flexible module variants
- Comprehensive ecosystem with carrier boards, BSPs, and documentation
- Price stability and an excellent price-performance ratio
F&S SMARC or F&S PicoCore – Which module suits your project?
F&S SMARC – When standardization and x86 compatibility are required
- SMARC is a widely adopted industry standard for computer modules, defined by the SGeT consortium.
- Supports both ARM and x86/64 processors including their typical interface requirements
- Thanks to its form factor (82 × 50 mm or 82 × 80 mm), there is sufficient space for high-performance processors
- Ideal for customers looking for standardization, scalability, and second source options
- Broad market availability ensures maximum flexibility for carrier board development
F&S PicoCore – Compact, scalable, ARM only
- PicoCore is a compact, proprietary form factor from F&S – designed for space-saving and efficient embedded solutions
- Optimized exclusively for ARM architectures – ideal for low-power applications
- Extensive model variety across multiple CPU generations
- Extremely compact at just 35 × 40 mm – perfect for small devices with limited installation space
- Ideal for customers who need an optimized, long-term, and streamlined solution without the overhead of standardization

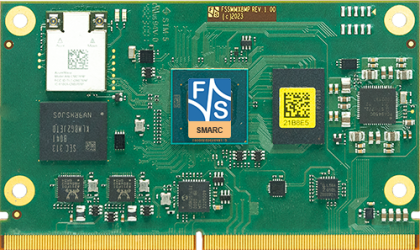

| SMARC™MX8MP | SMARC™MX95 | SMARC™MX95 AI | |
| State | Production | Q2/2026 | Q2/2026 |
| CPU | - | - | - |
| CPU | NXP i.MX 8MP | NXP i.MX 95 | NXP i.MX 95 |
| Core | ARM Cortex-A53 + Cortex-M7 | ARM Cortex-A55 Cortex-M7 Cortex-M33 NPU |
ARM Cortex-A55 Cortex-M7 Cortex-M33 NPU, ISP |
| No of Cores | Dual/ Quad | 2x/4x/6x A55 | 6x A55 + M7 |
| Frequency | max. 1.8GHz | max. 2.0GHz | max. 2.0GHz |
| L2-Cache | - | 2x/4x/6x 64kB L2 + 512kB L3 | 2x/4x/6x 64kB L2 + 512kB L3 |
| NPU | - | - | 2 TOPs eIQ® Neutron |
| GPU | NPU (AI) OpenGL / CL / VG | NPU (AI) OpenGL / CL / VG | 3D ARM Mali G310, 2D |
| VPU | Encode / Decode 1080p60 | Encode / Decode 4Kp60, H.265, H.264 | Encode / Decode 4Kp60, H.265, H.264 |
| Security | - | - | - |
| Secure Element | - | - | SE050, SLB9673, Edgelock Secure Enclave |
| Operating System | - | - | - |
| Linux | Yocto | YOCTO (uboot installed) |
YOCTO (uboot installed) |
| Memory | - | - | - |
| RAM | max. 8GB LPDDR4 | max. 8GB LPDDR4 | max. 8GB LPDDR5 x32 |
| Flash | max. 64k EEPROM | 64k EEPROM | 64k EEPROM |
| eMMC | max. 64GB | max. 64GB | max. 64GB |
| Interfaces | - | - | - |
| SD-Card | 1x optional | 2xSDIO | 1x SDIO |
| Ethernet | 2x 100/1000 Mbit | 2x 100/1000 Mbit | 2x 100/1000 Mbit |
| WiFi | IEEE 802.11 a/b/g/n/ac | IEEE 802.11 a/b/g/n/ac | $ |
| BT | - | - | $ |
| USB Host | 4x | 4x | 1x 3.0 |
| USB Device | 1x OTG | 1x OTG | 1x OTG 2.0 |
| CAN | 2x | 2x | 2x CAN-FD |
| UART | 4x | 4x | 4x |
| I2C | 5x | 5x | 5x |
| SPI | 2x | 2x | 2x |
| Audio | 2x I2S | 2x I2S | 2x I2S |
| Digital I/O | x | x | |
| Touch Panel | analog reistive and PCAP Touch ext. via I2C | via I2C or USB | via I2C or USB |
| Camera | 0/1-2x MIPI-CSI | 1-2x MIPI-CSI | 1-2x MIPI-CSI (1x 4 lanes), (1x 2 lanes) |
| PCIe | 1x | 1x | 1x PCIe 3.0 (1 lane) |
| RTC | x | PCF85263ATL | PCF85263ATL |
| More | BT 5 | - | 2x ADC IN, 1x TAMPER |
| Display | - | - | - |
| LVDS | 2x 24bit | 2x 24bit | 2x 4 lanes |
| CRT/DVI | 0/DVI (4k) | DVI (4k) | - |
| MIPI-DSI | - | - | 1x 4 lanes |
| Common | - | - | - |
| V_IN | 5V DC/±5% | 5V DC/±5% | 5V DC/±5% |
| T_AMB | -20°C - + 85°C opt. -40°C - + 85°C |
0°C - +70°C -25°C - + 85°C -40°C - + 85°C |
0°C - +70°C -25°C - + 85°C -40°C - + 85°C |
| Size | 82x50mm (LxB) |
82x50mm | 82x50mm |
| Availability | 2035 | 2039 | 2039+ |
| SMARC™MX8MP | SMARC™MX95 | SMARC™MX95 AI |
FS SMARC
- SMARC Cooling Solution (359 KB, pdf) - 22/07/2024
- SGeT SMARC standard - (external link)
Usage
By downloading you accept our general terms and conditions.
FS SMARC - Quick Facts
- FSSM8MP (642 KB, pdf) - 05/08/2025
- FSSM95AI (379 KB, pdf) - 05/03/2026
- FSSM95S (305 KB, pdf) - 28/11/2025
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Extensive product documentation is provided alongside each product.
 |
Starterkit SMARC™MX8MP Linux Evaluation kit für FS SMARC™MX8MP with base board, 7" display with PCAP touch, cable kit, access data for documentation and software SKU: FSSM8MP-SKIT-LIN |
360,- € |
| Architecture | Type | Release Name | NBoot | Bootloader | UEFI | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|---|---|
| FSIMX8MP | Yocto | fsimx8mp-Y2025.12 | U-Boot 2024.04 | Linux 6.6.112 | Yocto 5.0.14 Scarthgap | |||||
| FSIMX8MP | Windows | iMX8MP_W10_V120 | nboot-fsimx8mp-iot-2024.06.1 | U-Boot uboot-fsimx8mp-iot-2024.08 | uefiIMX8MP_X_12 | 1.2 | Windows 10 Iot LTSC 2021 |
|
||
| FSIMX8MP | FreeRTOS | fsimx8mp-V2024.09 | sdk-2.15.0 |
|
||||||
| FSIMX8MP | Yocto | fsimx8mp-Y2024.07.2 | U-Boot v2021.04-fs1.3 | Linux v5.15.197-2.2.0-fs1.0 | Yocto 4.0.32 Kirkstone |
| Architecture | Type | Release Name | NBoot | Bootloader | UEFI | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|---|---|
| FSiMX95 | Yocto | fsimx95 | Linux 6.12.49 | Yocto 6.12 Walnascar |
|
|
|
| Architecture | Type | Release Name | NBoot | Bootloader | UEFI | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|---|---|
| FSiMX95 | Yocto | fsimx95 | Linux 6.12.49 | Yocto 6.12 Walnascar |
|
|
|
