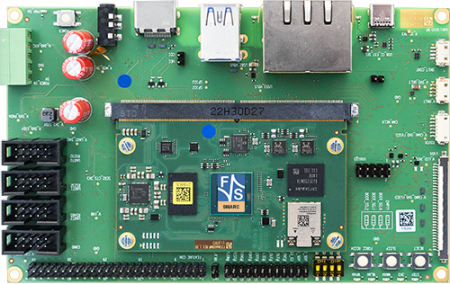

Starterkit SMARC™MX8MP Linux



Starterkit SMARC™MX8MP Linux
  360,- €
Tax not included

Evaluation kit für FS SMARC™MX8MP with base board, 7" display with PCAP touch, cable kit, access data for documentation and software

FSSMMX8MP TOP
SMARC™MX8MP-V4I-LIN
NXP i.MX8M Plus Quad 1.6GHz VPU NPU ISP, 2GB LPDDR4, 32GB eMMC, 2xLVDS, SECO, RTC, 2x Gbit LAN, USB Hub, WLAN/BT 2.4/5GHz, 64kB EEPROM, -25...+85°C
SKU: FSSM8MP-V4I-LIN

FSSMMX8MP FSSMBB TOP small
SMARC™ Baseboard
To connect USB 2.0 (OTG), SD-Card, Serial, I²C, Ethernet, CAN, mPCIe, Audio (In/ Out/ Mic/ Headphone), MIPI-CSI and MIPI-DSI / LVDS.
SKU: FSSMBB-FERT1B

LCD 7 LVDS 1 front web
7” LVDS Display with PCAP Touch (long-term available)
7” LVDS LCD Display with PCAP Touch
SKU: LCD.7.LVDS.1

B.MKAB
LVDS/MIPI Adapter Cable
LVDS/MIPI cable with two 30pin connectors each (JAE X30HL-B to JAE X30HL-B)
SKU: B.MKAB.44


Backlight Kabel
4 wire between armStone, SMARC-SINTF & PicoCoreBBDSI backlight connector and Backlight input of Display.
SKU: B.MKAB.65

starterkit cable kit
Cable Kit

SKU: SINTF-CABKIT

bant6
Patch Antenna
Patch antenna for WLAN/BT (2.4/ 5 GHz) for connection to F&S boards with WLAN/BT antenna socket.
SKU: B.ANT.6

MHS.SMARC.1 Board Oblique
Heat Sink SMARC
Heat Sink for cooling SMARC Boards.
SKU: MHS.SMARC.1

Software

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €

software accessory Display Customization (MIPI-DSI Display under Linux)
Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board.
The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display.

SKU: EW-SW-MIPI-DSI-Linux		 1,000,- €


Displays and Display Kits

LCD 7 LVDS 1 front web 7” LVDS Display with PCAP Touch (long-term available)
7” LVDS LCD Display with PCAP Touch
SKU: LCD.7.LVDS.1		 89,- €

LCD 10 LVDS 1 front web 10” LVDS Display with PCAP Touch (long-term available)
10” LVDS LCD Display with PCAP Touch
SKU: LCD.10.LVDS.1		 130,- €

BLCD22front 3.5" MIPI-DSI Display with PCAP Touch (long-term available)
3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch)
SKU: B.LCD.22		 80,- €


Cable

B.MKAB LVDS/MIPI Adapter Cable
LVDS/MIPI cable with two 30pin connectors each (JAE X30HL-B to JAE X30HL-B)
SKU: B.MKAB.44		 22,- €

B.MKAB53 LVDS Cable
LVDS cable with JAE FI X30 on one side and open ends on the other side
SKU: B.MKAB.53		 22,- €

Backlight Cable
Backlight cable for connecting the 7"/10" LVDS displays (LCD.7.LVDS.1 and LCD.10.LVDS.1).
SKU: B.MKAB.35		 7,- €

B.MKAB47 Capacitive Touch Cable
6-pin cable with matching connector for connecting an I2C touch to F&S boards
SKU: B.MKAB.47		 10,- €


Adapter

ADP NT24V2 OBLIQUE TOP Power Adapter
To supply armStone™ and PicoCore™ modules with 24V.
SKU: ADP-NT24V3		 40,- €


Workshops

linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Other Accessories

bant6 Patch Antenna
Patch antenna for WLAN/BT (2.4/ 5 GHz) for connection to F&S boards with WLAN/BT antenna socket.
SKU: B.ANT.6		 3,- €

B.CON.MXM3.1 MXM-3 Plug Connector
This connector enables the contact of various SMARC modules via the gold finger contacts of the assembly.
SKU: B.CON.MXM3.1		 Request
MHS.SMARC.1 Board Oblique Heat Sink SMARC
Heat Sink for cooling SMARC Boards.
SKU: MHS.SMARC.1		 Request
USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


Variants

FSSMMX8MP TOP SMARC™MX8MP-V3-LIN
NXP i.MX8M Plus Quad Lite 1.8GHz, 1GB LPDDR4, 8GB eMMC, 2x LVDS, RTC, 1x Gbit LAN, 64kB EEPROM, no Security, no USB Hub, no WLAN, 0...+70°C
SKU: FSSM8MP-V3-LIN		 Request
FSSMMX8MP TOP SMARC™MX8MP-V4-LIN
NXP i.MX8M Plus Quad Lite 1.8GHz, 2GB LPDDR4, 32GB eMMC, 2xLVDS, SECO, RTC, 2x Gbit LAN, USB Hub, WLAN/BT 2.4/5GHz, 64kB EEPROM, 0...+70°C
SKU: FSSM8MP-V4-LIN		 Request
FSSMMX8MP TOP SMARC™MX8MP-V4I-LIN
NXP i.MX8M Plus Quad 1.6GHz VPU NPU ISP, 2GB LPDDR4, 32GB eMMC, 2xLVDS, SECO, RTC, 2x Gbit LAN, USB Hub, WLAN/BT 2.4/5GHz, 64kB EEPROM, -25...+85°C
SKU: FSSM8MP-V4I-LIN		 Request
FSSMMX8MP TOP SMARC™MX8MP-V2-LIN

SKU: FSSM8MP-V2-LIN		 Request

Starterkit

FSSMMX8MP FSSMBB TOP Starterkit SMARC™MX8MP Linux
Evaluation kit für FS SMARC™MX8MP with base board, 7" display with PCAP touch, cable kit, access data for documentation and software
SKU: FSSM8MP-SKIT-LIN		 360,- €


Yocto

Architecture Type Release Name Bootloader Kernel OS Help File Software VM
FSIMX8MP FreeRTOS fsimx8mp-V2024.09 sdk-2.15.0
FSIMX8MP Yocto osm8mp-Y2025.04 U-Boot 2021.04 Linux 5.15.160 Yocto 4.0.20 Kirkstone
FSIMX8MP Yocto fsimx8mp-Y2024.07 U-Boot 2021.04 Linux 5.15.160 Yocto 4.0 Kirkstone

For i.MX8M Plus, F&S has adapted Yocto. In addition, F&S provide a BSP for FreeRTOS. This FreeRTOS BSP makes it easier to use features of Cortex-M7.

Yocto has established itself as the standard for Linux build environments in recent years. Our standard configuration, which is intended to give a first impression of the module's functionality, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, X11R7, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and much more.

F&S also offers a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora distribution for free download. All packages necessary to translate our software are already installed. All services (NFS, TFTP) for working with our boards are also installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it doesn't matter whether you use Windows or Linux as the host. Simply download the VHD, import it into VirtualBox and development can begin immediately.

FreeRTOS

In addition to the 4 Cortex-A53 cores, the NXP i.MX8M Plus CPU also has a Cortex-M7 core. The Cortex-M7 core is particularly suitable for real-time tasks or for power saving.
F&S offers a completely tested BSP for the use of the Cortex-M7 for FreeRTOS or Bare Metal application.

Development start in under an hour
F&S Development Machine - Fedora 36


For a quick start into development with Linux we provide a VirtualBox-based virtual hard disk VHD for download. The VHD uses Fedora 36as Linux distribution.

With this machine you can start your development in less than an hour.

The machine is free of charge for our customers.

login screen

VirtualBox is a powerful product for corporate customers and at the same time the only professional solution which is freely available as Open Source Software under the terms of the GNU General Public License Version 2.
The F&S Development Machine contains pre-installed board support packages for fsimx8mm, fsimx8mn and fsimx8mp (64 bit CPU).
The appropriate F&S toolchain is installed in the VHD, the source code is extracted and ready to use.
Necessary system packages and tools are also already installed.
Furthermore, it contains a configured environment for QT development with cross-compile/debug kit, deployment strategy and demo application.

qtcreator debugging 400px

Note: To download the Development Machine, you must be registered on our website.

➜ More information about the F&S Development Machine in the F&S Support Forum
➜ Download F&S Development Machine - Fedora 36
➜ Quickstart Documentation
