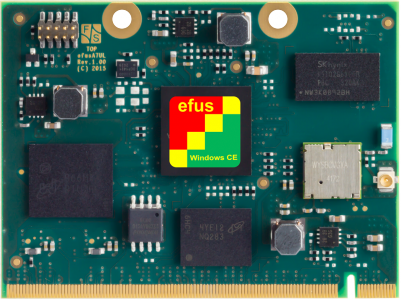

efus™A7UL-V2-W13

Computer On Module with NXP i.MX 6UltraLite CPU

For the start of development, we recommend:

Starterkit efus™A7UL Windows
  360,- €
Tax not included

efusA7UL-V4-W13, base board, cable kit, 7" EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software

efus™A7UL-V2-W13
State Production
CPU
CPU NXP i.MX 6UltraLite
Core ARM Cortex-A7
No of Cores 1
Frequency 528MHz
L2-Cache 128KB
Operating System
Windows WEC 2013
(Bootloader installed)
Memory
Flash 256MB NAND
eMMC max. 32GB
RAM 256MB
Interfaces
SD-Card 2x extern
Ethernet 1x 10/100Mb
USB Host 1x
USB Device 1x
CAN 2x
UART 4x
I2C 2x
SPI 2x
Touch Panel analog resistive and PCAP Touch ext. via I2C
RTC on board/ external IC
Display
RGB 18/24bit
Common
Supply Voltage +5VDC/ ±5%
Power Consumption 1,5W typ.
Operating Temperature 0°C - +70°C
Size 47x62.1x11mm
(LxBxH)
Weight ~15g
Long Term Availability 2028 (WinCE)

efusA7UL SINTF OBLIQUE TOP WCE Starterkit efus™A7UL Windows
efusA7UL-V4-W13, base board, cable kit, 7" EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: efusA7UL-SKIT-WCE		 360,- €


Software

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €

software accessory Display Customization (MIPI-DSI Display under Linux)
Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board.
The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display.

SKU: EW-SW-MIPI-DSI-Linux		 1,000,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €


Displays and Display Kit

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15		 120,- €

B.LCD.18 7" RGB Display with PCAP Touch
7" TFT (800x480) Display Endrich MI0700AJT-54CP with capacitive Touch
SKU: B.LCD.18		 150,- €

armStone efus RGB Kit Displaykit RGB 2
7" WVGA Display with RGB interface and touch panel, connection cable (40pol film cable), display adapter and touch cable
SKU: aSt-RGBKIT		 170,- €


Touch Kits

resistive Touch Kit Resistive Touch Kit
For connecting a resistive Touch panel to F&S boards with 4-poles touch connector.
SKU: SINTF-ADP-RESTOUCH		 35,- €

SINTF ADP EDTTOUCH2 PCAP Touch Kit for EDT
Kit to connect an EDT PCAP touch panel
SKU: ADP-EDTTOUCH2		 35,- €


Cables

B.MKAB.23 40poles Film Cable
Film Cable, A40pol., 0,5mm, l=200mm for displays
To connect a 7" EDT Display (B.LCD.15)
SKU: B.MKAB.23		 10,- €

B.MKAB.23 50poles Film Cable
Cable for 7" RGB Endrich Display (B.LCD.18)
FFC cable, A50pol., pitch=0,5mm, l=200mm
SKU: B.MKAB.41		 10,- €


Adapters

I2C Extension I2C Erweiterung
Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus.
SKU: NDCU-ADP/I2C		 80,- €

armStone Adapter DVI armStone™/ efus™/ PicoCore™ DVI Adapter
Connects armStone™, efus™ or PicoCore™ to a DVI/ HDMI screen.
SKU: aStone-ADP-DVI		 50,- €

aSt-ADP-MIT1 Adapter for Endrich iSi50 Displays
Adapter to connect Endrich iSi50 displays to F&S boards
SKU: aSt-ADP-MIT1		 50,- €


Plug Connector

Foxconn MXM 2 Connector MXM-2 Connector
For connecting efus™- or QBliss-modules via goldfinger contacts.
SKU: B.MST.2R230PL.1		 43,- €


Workshops

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request
linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €


Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €

B.MST.VR.5 efus™ Latch
Allows to mount efus™ modules on the base board.
SKU: B.MST.VR.5		 36,- €

Patch Antenne Patch Antenna
Patch antenna for WLAN/ BT (2.4 GHz) to connect F&S modules with WLAN/ BT antenna socket
SKU: B.ANT.5		 10,- €


Windows Embedded Lifetime

Feature Available until  End of Mainstream Support End of Extended Support
Windows Embedded Compact 2013 31.05.2028  10.09.2018 10.10.2023
Windows Embedded Compact 7 28.02.2026  12.04.2016 13.04.2021
Windows CE 6.0 28.02.2022  09.04.2013 10.04.2018

Windows Embedded Compact 2013

The highly flexible and hard real-time operating system has kernel, interface drivers and bootloader. It benefits from all the features of a modern CPU, such as ARMv7 THUMB2 command structure or NEON co-processor.
Complete images and the BSP are available in our download area.
Development is done with the latest Microsoft tools like Visual Studio 2015 (C, C++, C# or VB.NET) and Expression Blend 5.
Interfaces like I²C, CAN or SPI can be used in the same way like a RS232 interface.
XAML for Windows Embedded helps to separate visualisation and program the easy way.
Our FailSafe Flash File System F3S is also available in Compact 2013.

Windows Embedded Features for i.MX6

General

Feature Description i.MX6 WEC 2013
.NET Support Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework ✔ ✔
AnalogIn Stream driver to easily access the analog inputs ✔ ✔
Audio Codec Support for Microphone, LineIn and LineOut.
Implements Mixer interface and special F&S mixer control panel applet to easily change settings.		 ✔ ✔
BusEnum2 Support for asynchronous loading of drivers. Use events to start loading of drivers.  ✔ ✔
Broadcast Stream driver
Boards can be easily identified and configured over LAN connection		 ✔ ✔
CAN Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication. ✔ ✔
Digital I/O  Stream driver to configure pins as input, output or interrupt.
Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry.		 ✔ ✔
Display Display driver can be configured by registry settings without modifying operating system. ✔ ✔
Display Multi-Monitor Support
Adjustable by registry		 ✔  ✔
Display 2D software acceleration using NEON co-processor
Multiple overlays with alpha blending 		 ✔ ✔
Display 2D hardware acceleration
3D OpenGL ES 1.1 and 2.0 hardware acceleration
Multiple overlays with alpha blending
Multiple monitor support (incl. 2D acceleration and Video support)		 ✔  ✔
Firmware Update Software to update Bootloader and/or operating system from running operating system. ✔ ✔
Software Update Program to update application and registry settings from USB stick, SD card or other source.
Includes automatic detection. Can incorporate with Firmware Update		 ✔ ✔
I²C Stream driver
Support for hardware I²C controller (NI2C)
Support for using GPIOs as I²C (I²C)		 ✔ ✔
Keyboard Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409
Matrix keyboard support: Use IO pins for keyboard		 ✔ ✔
SPI Stream driver
Support for hardware SPI controller		 ✔ ✔
Touch Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others
Extended USB mouse driver to accept absolute coordinates		 ✔ ✔
USB Host EHCI and OHCI driver ✔ ✔
USB Device   ✔ ✔
KBDHID Extended MS kbdhid - Support for all keys on the keyboard ✔ ✔
MOUTOUCHHID Support for absolute coordinates ✔ ✔
Power Management Support for screen saver and touch activation ✔ ✔
PWM Stream driver ✔ ✔
Video Streaming Filter framework for streaming video over HTTP ✔ ✔
VoIP Voice over IP sample solution ✔

File System

Feature Description i.MX6 WEC 2013
F&S BinFS Bug fixed BinFS file system for XIP images ✔ ✔
F3S F&S Secure Flash File System
Optimized throughput on all file operations
Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector)
Transaction-based concept already cooperates with a lot of applications  		 ✔ ✔
Filesystem
Filter Driver		 Used to limit access to file system.
Possible restrictions: Move, Delete, Rename		 ✔ ✔
FAT/TFAT Microsoft Windows Embedded FAT/TFAT solution. ✔ ✔
NAND Driver 16 bit hardware ECC   ✔

Services

Feature Description i.MX6 WEC 2013
Telnet Server Enabled by default. Easy access to command shell. ✔ ✔
FTP Server   ✔ ✔
HTTPD Server Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera) ✔ ✔
OpenSSH Offers SSH server functionality for Windows Embedded. Based on OpenSSH
SFTP
SCP
SMTP		 ✔ ✔
SSH SCP/SFTP server SSH Library (also used from SMTP).  ✔ ✔
SMTP SMTP library to send EMail ✔ ✔

Tools

Feature Description i.MX6 WEC 2013
Bootscreen Showing custom image during boot. ✔ ✔
Control Panel Standard Windows Embedded Control Panel with additional tools. ✔ ✔
CE Remote Display Driver and application to access desktop of device remotely. ✔ ✔
ndcucfg Command line configuration tool.
Can be used locally, over Telnet connection and over serial connection.
Registry editing
Reading/writing of boot loaders and splash screen
User administration
Certificate administration
....
Usage:
* Can be used in own applications as DLL.
* As a command line tool from telnet or serial debug console		 ✔ ✔
Update tool Update of boot loader
Update on WinCE image
Registry changes
Update of user application
Runs from SD/USB/LAN		 ✔ ✔
F&S 2D control utility Control panel applet
Change 2D acceleration on the fly		 ✔ ✔
F&S Board Config Control panel applet
Check hardware revision, version of boot loader, version of WinCE image and much more.
Change system startup and registry.		 ✔ ✔
F&S Audio Mixer Control panel applet
Change audio features like volume, bass, treble, input ...		 ✔ ✔
F&S SSH/SMTP control utility Control panel applet
Start stop SSHD service
Send test EMail by SMTP		 ✔ ✔
F&S USB Loader Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information.
Can be used to update software or to automate production.		 ✔ ✔
F&S Mfg Tool Modified NXP Tool for board bring up and software installation ✔ ✔

efusA7UL - Product Flyer


efusA7UL - Hardware


efusA7UL - Linux


efusA7UL - Windows Embedded CE/Compact


Sorry, there are no files to show.


efusA7UL - Display



Variant

efusA7UL TOP WCE efus™A7UL-V2-W13
NXP i.MX 6UltraLite ARM Cortex-A7, 256MB RAM, 256MB Flash, Ethernet, 2x CAN, Touch, RGB, 0°C - +70°C, 5V Supply, Windows Embedded Compact 2013
SKU: efusA7UL-V2-W13		 Request

Starterkit

efusA7UL SINTF OBLIQUE TOP WCE Starterkit efus™A7UL Windows
efusA7UL-V4-W13, base board, cable kit, 7" EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: efusA7UL-SKIT-WCE		 360,- €


Accessories

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €

I2C Extension I2C Erweiterung
Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus.
SKU: NDCU-ADP/I2C		 80,- €

armStone efus RGB Kit Displaykit RGB 2
7" WVGA Display with RGB interface and touch panel, connection cable (40pol film cable), display adapter and touch cable
SKU: aSt-RGBKIT		 170,- €

resistive Touch Kit Resistive Touch Kit
For connecting a resistive Touch panel to F&S boards with 4-poles touch connector.
SKU: SINTF-ADP-RESTOUCH		 35,- €

armStone Adapter DVI armStone™/ efus™/ PicoCore™ DVI Adapter
Connects armStone™, efus™ or PicoCore™ to a DVI/ HDMI screen.
SKU: aStone-ADP-DVI		 50,- €

Foxconn MXM 2 Connector MXM-2 Connector
For connecting efus™- or QBliss-modules via goldfinger contacts.
SKU: B.MST.2R230PL.1		 43,- €

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15		 120,- €

B.MKAB.23 40poles Film Cable
Film Cable, A40pol., 0,5mm, l=200mm for displays
To connect a 7" EDT Display (B.LCD.15)
SKU: B.MKAB.23		 10,- €

aSt-ADP-MIT1 Adapter for Endrich iSi50 Displays
Adapter to connect Endrich iSi50 displays to F&S boards
SKU: aSt-ADP-MIT1		 50,- €

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request
B.MST.VR.5 efus™ Latch
Allows to mount efus™ modules on the base board.
SKU: B.MST.VR.5		 36,- €

SINTF ADP EDTTOUCH2 PCAP Touch Kit for EDT
Kit to connect an EDT PCAP touch panel
SKU: ADP-EDTTOUCH2		 35,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €


Support

Telefon: +49 711 123722 0

Info: info@fs-net.de
Verkauf: sales@fs-net.de
Kunden-Support: support@fs-net.de
Webmaster: webmaster@fs-net.de

LinkedIn icon youtube icon twitter icon maps icon email icon

Anschrift

F&S Elektronik Systeme GmbH
Untere Waldplätze 23
70569 Stuttgart - Germany

Contact us

Datenschutzerklärung |  Disclaimer |  Impressum |  AGB |  Bestellhinweise
