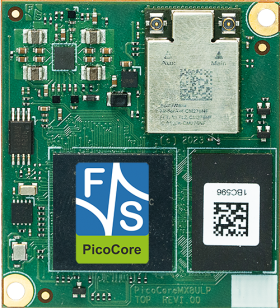

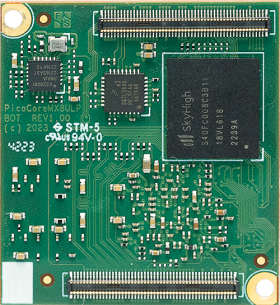

PicoCore™MX8ULP

Computer On Module with NXP i.MX 8ULP CPU

Produkt nicht vorhanden

PicoCore™MX8ULP
State Samples
CPU
CPU NXP i.MX 8ULP
Core ARM Cortex-A35 + Cortex-M33 + HIFI 4DSP
No of Cores 2x A35 + 1x M33 + DSP
Frequency 800MHz + 216MHz + 600MHz
L2-Cache 512KB
GPU 2D/ 3D, OpenGL/ CL3.1
Operating System
Linux 6.1 YOCTO (uboot installiert)
Real Time FreeRTOS
Memory
Flash 2k EEPROM
eMMC max. 64GB
RAM 2GB LPDDR4 x32
Interfaces
SD-Card max. 2x SDIO
Ethernet 1x 100Mb
opt. RMII
WiFi 802.11 ac/a/b/g/n
BT 5.0 LE
USB Host 1x 2.0
USB Device 1x OTG 2.0
CAN max. 2x
UART max. 4x
I2C max. 4x
SPI max. 2x
Audio Line In/ Out/ Mic/ Headphone opt. I2S
Touch Panel analog resistive and PCAP Touch ext. via I2C
Camera analog/digital 1x MIPI-CSI (2 Lanes)
RTC CPU or external IC
additional Interfaces PWM, Watchdog
Display
RGB 24 Bit
MIPI-DSI 1x 4 Lanes
Common
Supply Voltage +3.8V bis 5.5VDC
Power Consumption 1W typ.
Operating Temperature 0°C - +70°C
opt. -20°C - +85°C
opt. -40°C - +85°C
Size 35x40mm
(LxB)
Weight ~10g
Long Term Availability 2035


PicoCore™MX8ULP-V1I PicoCore™MX8ULP-V2I PicoCore™MX8ULP-V5I
State Q2/2024 Q2/2024 Q2/2024
CPU - - -
CPU NXP i.MX 8ULP NXP i.MX 8ULP NXP i.MX 8ULP
Core ARM Cortex-A35 + Cortex-M33 + HIFI 4DSP ARM Cortex-A35 + Cortex-M33 + HIFI 4DSP ARM Cortex-A35 + Cortex-M33 + HIFI 4DSP
No of Cores 2x A35 + 1x M33 + DSP 2x A35 + 1x M33 + DSP 2x A35 + 1x M33 + DSP
Frequency 800MHz + 216MHz + 600MHz 800MHz + 216MHz + 600MHz 800MHz + 216MHz + 600MHz
L2-Cache 512KB 512KB 512KB
GPU 2D/ 3D, OpenGL/ CL3.1 2D/ 3D, OpenGL/ CL3.1 2D/ 3D, OpenGL/ CL3.1
Operating System - - -
Linux 6.1 YOCTO (uboot installiert) 6.1 YOCTO (uboot installiert) 6.1 YOCTO (uboot installiert)
Real Time FreeRTOS FreeRTOS FreeRTOS
Memory - - -
Flash 2k EEPROM 2k EEPROM 2k EEPROM
eMMC 8GB 4GB 8GB
RAM 2GB LPDDR4 x32 1GB LPDDR4 x32 2GB LPDDR4 x32
Interfaces - - -
SD-Card 0x SDIO 1x SDIO 0x SDIO
Ethernet 1x 100Mb 100Mb 1x 100Mb
WiFi 802.11 ac/a/b/g/n - 802.11 ac/a/b/g/n
BT 5.0 LE - 5.0 LE
USB Host 1x 2.0 1x 2.0 1x 2.0
USB Device 1x OTG 2.0 1x OTG2.0 1x OTG 2.0
CAN 1x 2x 1x
UART 4x 4x 4x
I2C 4x 4x 4x
SPI 2x 1x 2x
Audio Line In/ Out/ Mic/ Headphone I2S Line In/ Out/ Mic/ Headphone
Touch Panel analog resistive and PCAP Touch ext. via I2C analog resistive and PCAP Touch ext. via I2C analog resistive and PCAP Touch ext. via I2C
Camera analog/digital 1x MIPI-CSI (2 Lanes) 1x MIPI-CSI (2 Lanes) 1x MIPI-CSI (2 Lanes)
RTC external IC external IC external IC
additional Interfaces PWM, Wachtdog
SPDIF/DMIC
2x ADC (12 Bit)		 PWM, Watchdog PWM, Wachtdog
SPDIF/DMIC
2x ADC (12 Bit)
Display - - -
RGB - 24 Bit 24 Bit
MIPI-DSI 1x 4 Lanes - -
Common - - -
Supply Voltage +3.8V bis 5.5VDC +3.8V bis 5.5VDC +3.8V bis 5.5VDC
Power Consumption 1W typ. 1W typ. 1W typ.
Operating Temperature -20°C - +85°C -20°C - +85°C -20°C - +85°C
Size 35x40mm
(LxB)		 35x40mm
(LxB)		 35x40mm
(LxB)
Weight ~10g ~10g ~10g
Long Term Availability 2035 2035 2035
PicoCore™MX8ULP-V1I PicoCore™MX8ULP-V2I PicoCore™MX8ULP-V5I

Software

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €


Displays and Display Kits

BLCD22front 3.5" MIPI-DSI Display with PCAP Touch (long-term available)
3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch)
SKU: B.LCD.22		 80,- €

B.LCD.24 FRONT 7" MIPI-DSI Display with PCAP Touch (long-term available)
7" TFT (800x1280) MIPI-DSI Display with PCAP Touch (TFT-7"-MIPI-DSI-PCAP Touch)
SKU: B.LCD.24		 100,- €


Touch-Kits

resistive Touch Kit armStoneA9 Resistive Touch Kit 2
For the connection of a resistive touch panel to boards with 6pol Hirose socket.
SKU: SINTF-ADP-RTI2C		 Request
SINTF ADP EDTTOUCH2 PCAP Touch Kit for EDT
Kit to connect an EDT PCAP touch panel
SKU: ADP-EDTTOUCH2		 35,- €


Cables

B.MKAB LVDS/MIPI Adapter Cable
LVDS/MIPI cable with two 30pin connectors each (JAE X30HL-B to JAE X30HL-B)
SKU: B.MKAB.44		 22,- €

B.MKAB47 Capacitive Touch Cable
6-pin cable with matching connector for connecting an I2C touch to F&S boards
SKU: B.MKAB.47		 10,- €

B.MKAB53 LVDS Cable
LVDS cable with JAE FI X30 on one side and open ends on the other side
SKU: B.MKAB.53		 22,- €

Backlight Cable
Backlight cable for connecting the 7"/10" LVDS displays (LCD.7.LVDS.1 and LCD.10.LVDS.1).
SKU: B.MKAB.35		 7,- €


Adapters

ADP NT24V2 OBLIQUE TOP Power Adapter
To supply armStone™ and PicoCore™ modules with 24V.
SKU: ADP-NT24V3		 40,- €

MIPI-DSI to LVDS Adapter
Allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket.
SKU: ADP-MIPI2LVDS1		 25,- €

ADP MIPI2RGB1 (quer) Adapter board MIPI-DSI (JILI30) to RGB for EDT Unified Series
Enables conversion of MIPI-DSI (JILI30) to RGB signals.
SKU: ADP-MIPI2RGB1		 30,- €


Plug Connectors

Workshops

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request
linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €


Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €

bant6 Patch Antenna
Patch antenna for WLAN/BT (2.4/ 5 GHz) for connection to F&S boards with WLAN/BT antenna socket.
SKU: B.ANT.6		 3,- €

SteelSpacerFamily WA SMSI M2 M2 5 SMD Steel Spacer for PicoCore™
Round SMD steel spacer/ Round Standoff Threaded M2x0.4 Steel 0.059" (1.50mm)
Helps you to connect your PicoCore module to the base board.
SKU: B.MSCHR.22		 70,- €

MHS.PC100.1 Board Oblique Heat Spreader PicoCore100
Heat spreader for cooling PicoCore boards.
SKU: MHS.PC100.1		 10,- €

B.MKUE.5 ASSMANN VR2032N Heat Sink PicoCore100
Heat sink for cooling PicoCore boards.
SKU: MHS.PC100.2		 12,- €






















Yocto Release Y2024.09

For the CPU NXP i.MX8 ULP F&S offers a Yocto based environment. We offer the Linux BSP fsimx8ulp-Y2024.09-pre, which is based on Yocto.

Our standard configuration, which is intended to give a first impression of the functionality of the board, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and many more.

The BSP is based on the following source code packages:

  • U-Boot: 2024.04
  • Linux-Kernel:  6.6.48
  • Yocto: 5.0.3 Scarthgap

Also included is our cross toolchain, some sample applications, and all binaries in the default configuration.

F&S offer a virtual machine (based on VirtualBox) with an installed Linux based on the distribution Fedora 36 for free download. All packages necessary to compile our software are already installed. Also, all services (NFS, TFTP) for working with our boards are installed. Our BSP is unpacked and precompiled in the correct directories. With this virtual machine it doesn't matter if you use Windows or Linux as host. Simply download the VHD, import it into VirtualBox and development can begin immediately.

➜ More information about the new Yocto release

PicoCoreMX8ULP - Product Flyer

PicoCoreMX8ULP - Linux

PicoCoreMX8ULP - Hardware

Variants

PCoreMX8ULP TOP1 PicoCore™MX8ULP-V1I

SKU: PCoreMX8ULP-V1I		 Request
PCoreMX8ULP TOP1 PicoCore™MX8ULP-V2I

SKU: PCoreMX8ULP-V2I		 Request
PCoreMX8ULP TOP1 PicoCore™MX8ULP-V5I

SKU: PCoreMX8ULP-V5I		 Request

Starterkit

Software



Displays



Touch-Kits



Cable



Adapters



Plug Connector



Workshops



Other Accessories

Link to the Forum

You will always find support in our Forum.

Recent Contributions

02 Oct, 07:09

 Linux UART_B

01 Oct, 07:25

 How to ping your F&S Board

30 Sep, 12:54

 Display Configuration in U-Boot

30 Sep, 12:16

 Display and Touch Support

30 Sep, 11:58

 Kernel downstream merge/patch strategy of F&S

28 Sep, 13:29

 New documentation "OSM Implementation Guide"

27 Sep, 12:19

 Device tree GPIO

24 Sep, 08:45

 Remote Debugging a WPF application in Visual Studio

23 Sep, 10:02

 F&S i.MX8MP FreeRTOS Release V2024.09

20 Sep, 07:10

 JTAG debugger doesn't work with i.MX8ULP PicoCore

Computer on Module with PicoCore™MX8ULP

Another member of the compact PicoCore™ Computer On Module product family is offered with NXP i.MX 8ULP CPU.
The form factor size of only 35 x 40mm enables use in compact housings. The module has excellent multimedia functions and is ideal for machine learning and industrial IoT applications thanks to its reliability.

Heterogeneous multi-core processor concept

Based on the i.MX 8M Mini CPU and the i.MX 8M Plus CPU, the i.MX 8ULP CPU from NXP complements the i.MX 8/ 9 CPU series.
A number of additional functions and interfaces have been added, such as extremely low power, Cortex-M33, RGB and MIPI-DSI as display interfaces and CAN, to name but a few.

The heterogeneous multi-core processor consists of up to two ARM® Cortex®-A35 cores (1GHz) and an additional Cortex®-M33 for real-time processing.

Displays can be connected either via a MIPI-DSI interface (4 lanes) or via RGB. The i.MX 8ULP offers 2D/ 3D GPU OpenGL/CL 3.1. This unit provides sufficient performance for a modern user interface. The extremely low-power i.MX8ULP SoC is particularly suitable for portable, battery-operated devices.
A small, compact module is therefore the ideal solution for this CPU. This SoM is available in both a consumer and an industrial version. The PicoCore™ standard (35x40 mm) uses two connectors (Hirose DF40C) with 100 pins each. This enables a compact design and a small board-to-board distance (1.5-4 mm).

➜ More information about the NXP i.MX 8ULP application processor



Equipment and interfaces

The PicoCore™MX8ULP has sufficient memory (RAM and eMMC Flash).
The module offers many interfaces on the 2x 100-pin connectors.
The PicoCore™MX8ULP has 1x 100Mb Ethernet (opt. RMII), 802.11 ax WLAN, BT 5.0LE, 1x USB Host 2.0, 1x USB Device OTG 2.0, max. 2x CAN, max. 4x UART, max. 4x I2C, max. 2x SPI and Audio Line In/ Out/ Mic/ Headphone or I2S. RTC, PWM, 4x ADC with 12 bit, SPDIF, DMIC are also available. Displays can be controlled via an RGB interface (24 bit) or MIPI-DSI interface (4 lanes). Touch panels can be connected externally via I2C.

Operating system

The operating system customised for the PicoCore™MX8ULP is Linux. Linux Yocto supports all interfaces, so that simple software development can be guaranteed without extensive hardware knowledge.
FreeRTOS is available to control the real-time kernel M33.

NXP i.MX 8ULP Linux development board

For an easy start to development, we offer a ready-to-run PicoCore™MX8ULP starter kit with embedded board, baseboard, display, cables and access to documentation and software. The software includes the board support package and toolchain for Bare Metal or FreeRTOS.
