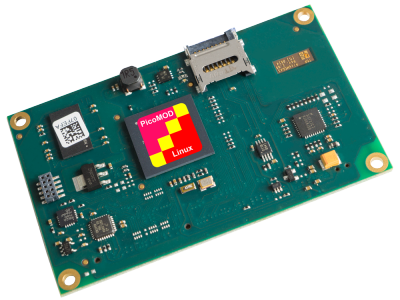

PicoMODA5

Computer On Module with NXP Vybrid CPU

For the start of development, we recommend:

Starterkit PicoMODA5 Windows
  299,- €
Tax not included

PMODA5-V1-WEC7, base board, cable kit, 7" EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software

PicoMODA5
State Production
CPU
CPU NXP Vybrid
Core ARM Cortex-A5 + Cortex-M4
No of Cores Single-/Dual-Core
Frequency max. 500MHz + 167 MHz
L2-Cache 512KB
GPU NEON
FPU
Operating System
Windows WEC 7
Memory
Flash max. 256MB
RAM 256MB
Interfaces
SD-Card 1x extern
1x on-board
Ethernet 10/100Mb
USB Host 1x
USB Device 1x
CAN 1x
UART 3-4x
I2C 1x
SPI 1x
Audio Line In/Out/Mic
Digital I/O max. 45
Touch Panel 4-wire, analog resistive
PCAP Touch via I2C
Camera analog/digital 4/0 optional
Display
RGB 18bit
Common
Supply Voltage +3,3V DC/ ±5%
Power Consumption 1W typ.
Operating Temperature 0°C - +70°C
Size 80x50mm
(lxb)
Weight ~20g
Long Term Availability 2028


PMODA5-V1-WEC7 PMODA5-V2-WEC7
State Production Production
CPU - -
CPU NXP Vybrid NXP Vybrid
Core ARM Cortex-A5 ARM Cortex-A5 + Cortex-M4
No of Cores Single-Core Dual-Core
Frequency 500MHz max. 500MHz + 167 MHz
L2-Cache 512KB 512KB
GPU NEON
FPU		 NEON
FPU
Operating System - -
Windows WEC 7 WEC 7
Memory - -
Flash 128MB 256MB
RAM 256MB 256MB
Interfaces - -
SD-Card 1x extern
1x on-board		 1x extern
1x on-board
Ethernet 10/100Mb 10/100Mb
USB Host 1x 1x
USB Device 1x 1x
CAN 1x 1x
UART 3-4x 3-4x
I2C 1x 1x
SPI 1x 1x
Audio Line In/Out/Mic Line In/Out/Mic
Digital I/O max. 45 max. 45
Touch Panel 4-wire, analog resistive
PCAP Touch via I2C		 4-wire, analog resistive
PCAP Touch via I2C
Camera analog/digital 4/0 optional 4/0 optional
Display - -
RGB 18bit 18bit
Common - -
Supply Voltage +3,3V DC/ ±5% +3,3V DC/ ±5%
Power Consumption 1W typ. 1W typ.
Operating Temperature 0°C - +70°C 0°C - +70°C
Size 80x50mm
(lxb)		 80x50mm
(lxb)
Weight ~20g ~20g
Long Term Availability 2028 2028
PMODA5-V1-WEC7 PMODA5-V2-WEC7

PicoMODA5 Startinterface OBLIQUE BOTTOM Windows Starterkit PicoMODA5 Windows
PMODA5-V1-WEC7, base board, cable kit, 7" EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: PMODA5-SKIT-WEC7		 299,- €


Software

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €


Display and Display Kit

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15		 120,- €

armStone efus RGB Kit Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT		 170,- €


Touch Kit

resistive Touch Kit Resistive Touch Kit
For connecting a resistive Touch panel to F&S boards with 4-poles touch connector.
SKU: SINTF-ADP-RESTOUCH		 35,- €


Adapter

JTAG Debug Adapter JTAG Debug Adapter
To program Cortex-M4.
SKU: ADP-CMSIS		 69,- €


Workshop

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


Windows Embedded Lifetime

Feature Available until  End of Mainstream Support End of Extended Support
Windows Embedded Compact 2013 31.05.2028  10.09.2018 10.10.2023
Windows Embedded Compact 7 28.02.2026  12.04.2016 13.04.2021
Windows CE 6.0 28.02.2022  09.04.2013 10.04.2018

Windows Embedded Compact 7

Windows Embedded Compact 7 offers Bootloader, interface drivers and kernel (with e.g. Silverlight, Mediaplayer or IE). Interface drivers for almost every offered interface are ready to use (an access code for this software is shipped with the starter kit). Hard work with PlatformBuilder is unnecessary, since we already did that. Create your software with Visual Studio .NET (not shipped with the starterkit) in C, C++, C# or VB.NET. Use interfaces like I²C in the same way like a RS232 interface, without having to handle the underlying hardware. Configure the display and other settings with the F&S configuration tool. This is software development at its easiest.

Our FailSafe Flash File System F3S is also available for Compact 7.

Windows Embedded Features for Vybrid

General

Feature Description Vybrid WEC 2013
.NET Support Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework ✔ ✔
AnalogIn Stream driver to easily access the analog inputs ✔ ✔
Audio Codec Support for Microphone, LineIn and LineOut.
Implements Mixer interface and special F&S mixer control panel applet to easily change settings.		 ✔ ✔
BusEnum2 Support for asynchronous loading of drivers. Use events to start loading of drivers.  ✔ ✔
Broadcast Stream driver
Boards can be easily identified and configured over LAN connection		 ✔ ✔
CAN Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication. ✔ ✔
Digital I/O  Stream driver to configure pins as input, output or interrupt.
Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry.		 ✔ ✔
Display Display driver can be configured by registry settings without modifying operating system. ✔ ✔
Display Multi-Monitor Support
Adjustable by registry		   ✔
Display 2D software acceleration using NEON co-processor
Multiple overlays with alpha blending 		 ✔ ✔
Display 2D hardware acceleration
3D OpenGL ES 1.1 and 2.0 hardware acceleration
Multiple overlays with alpha blending
Multiple monitor support (incl. 2D acceleration and Video support)
Firmware Update Software to update Bootloader and/or operating system from running operating system. ✔ ✔
Software Update Program to update application and registry settings from USB stick, SD card or other source.
Includes automatic detection. Can incorporate with Firmware Update		 ✔ ✔
I²C Stream driver
Support for hardware I²C controller (NI2C)
Support for using GPIOs as I²C (I²C)		 ✔ ✔
Keyboard Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409
Matrix keyboard support: Use IO pins for keyboard		 ✔ ✔
SPI Stream driver
Support for hardware SPI controller		 ✔ ✔
Touch Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others
Extended USB mouse driver to accept absolute coordinates		 ✔ ✔
USB Host EHCI and OHCI driver ✔ ✔
USB Device   ✔ ✔
KBDHID Extended MS kbdhid - Support for all keys on the keyboard ✔ ✔
MOUTOUCHHID Support for absolute coordinates ✔ ✔
Power Management Support for screen saver and touch activation ✔ ✔
PWM Stream driver ✔ ✔
Video Streaming Filter framework for streaming video over HTTP ✔ ✔
VoIP Voice over IP sample solution ✔
QT 4.8x Support for QT 4.8. framework. ✔

File System

Feature Description Vybrid WEC 2013
F&S BinFS Bug fixed BinFS file system for XIP images ✔ ✔
F3S F&S Secure Flash File System
Optimized throughput on all file operations
Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector)
Transaction-based concept already cooperates with a lot of applications  		 ✔ ✔
Filesystem
Filter Driver		 Used to limit access to file system.
Possible restrictions: Move, Delete, Rename		 ✔ ✔
Filesystem Redirect Driver Redirects file system access from one directory to another. ✔ ✔
FAT/TFAT Microsoft Windows Embedded FAT/TFAT solution. ✔ ✔
NAND Driver 16 bit hardware ECC ✔ ✔

Services

Feature Description Vybrid WEC 2013
Telnet Server Enabled by default. Easy access to command shell. ✔ ✔
FTP Server   ✔ ✔
HTTPD Server Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera) ✔ ✔
OpenSSH Offers SSH server functionality for Windows Embedded. Based on OpenSSH
SFTP
SCP
SMTP		 ✔ ✔
SSH SCP/SFTP server SSH Library (also used from SMTP).  ✔ ✔
SMTP SMTP library to send EMail ✔ ✔

Tools

Feature Description Vybrid WEC 2013
Bootscreen Showing custom image during boot. ✔ ✔
Control Panel Standard Windows Embedded Control Panel with additional tools. ✔ ✔
CE Remote Display Driver and application to access desktop of device remotely. ✔ ✔
ndcucfg Command line configuration tool.
Can be used locally, over Telnet connection and over serial connection.
Registry editing
Reading/writing of boot loaders and splash screen
User administration
Certificate administration
....
Usage:
* Can be used in own applications as DLL.
* As a command line tool from telnet or serial debug console		 ✔ ✔
Update tool Update of boot loader
Update on WinCE image
Registry changes
Update of user application
Runs from SD/USB/LAN		 ✔ ✔
F&S 2D control utility Control panel applet
Change 2D acceleration on the fly		 ✔ ✔
F&S Board Config Control panel applet
Check hardware revision, version of boot loader, version of WinCE image and much more.
Change system startup and registry.		 ✔ ✔
F&S Audio Mixer Control panel applet
Change audio features like volume, bass, treble, input ...		 ✔ ✔
F&S SSH/SMTP control utility Control panel applet
Start stop SSHD service
Send test EMail by SMTP		 ✔ ✔
F&S USB Loader Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information.
Can be used to update software or to automate production.		 ✔ ✔
F&S Mfg Tool Modified NXP Tool for board bring up and software installation ✔ ✔

PicoMODA5 - Product Flyer


PicoMODA5 - Hardware


PicoMODA5 - Windows Embedded CE/Compact


Sorry, there are no files to show.


Sorry, there are no files to show.


PicoMODA5 - Display

Variants

PicoMODA5 TOP Windows PMODA5-V1-WEC7
Freescale Vybrid Cortex-A5, 256MB RAM, 128MB Flash, Ethernet, CAN, Audio, 4x analog Camera optional, Touch, RGB, 0°C - +70°C, 3.3V Supply, Windows Embedded Compact 7
SKU: PMODA5-V1-WEC7		 Request
PicoMODA5 TOP Windows PMODA5-V2-WEC7
NXP Vybrid Cortex-A5 + Cortex-M4, 256MB RAM, 256MB Flash, Ethernet, CAN, Audio, 4x analog Camera optional, Touch, RGB, 0°C - +70°C, 3.3V Supply, Windows Embedded Compact 7, MQX
SKU: PMODA5-V2-WEC7		 Request

Starterkit

PicoMODA5 Startinterface OBLIQUE BOTTOM Windows Starterkit PicoMODA5 Windows
PMODA5-V1-WEC7, base board, cable kit, 7" EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: PMODA5-SKIT-WEC7		 299,- €


Software

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €


Display and Display Kit

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15		 120,- €

armStone efus RGB Kit Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT		 170,- €


Touch Kit

resistive Touch Kit Resistive Touch Kit
For connecting a resistive Touch panel to F&S boards with 4-poles touch connector.
SKU: SINTF-ADP-RESTOUCH		 35,- €


Adapter

JTAG Debug Adapter JTAG Debug Adapter
To program Cortex-M4.
SKU: ADP-CMSIS		 69,- €


Workshop

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


Description Hardware

The PicoMODA5 is based on a NXP Vybrid CPU, clocked at 500MHz. The board is pin compatible to its predecessor model PicoMOD6, aside from the signals of the FS-BUS.

Analog Camera

By the possibility of connecting analog cameras, the module fits perfectly for applications in the surveillance sector or as a rear view camera in the commercial vehicles sector.



The modern Cortex-A5 CPU has enough processing power to perform demanding tasks. The CPU is supported by the NEON unit and the Hardware Floatingpoint unit.

For critical real-time tasks

The Vybrid CPU has an integrated Cortex-M4 processor, which can take care of critical real-time tasks.



Support

Telefon: +49 711 123722 0

Info: info@fs-net.de
Verkauf: sales@fs-net.de
Kunden-Support: support@fs-net.de
Webmaster: webmaster@fs-net.de

LinkedIn icon youtube icon twitter icon maps icon email icon

Anschrift

F&S Elektronik Systeme GmbH
Untere Waldplätze 23
70569 Stuttgart - Germany

Contact us

Datenschutzerklärung |  Disclaimer |  Impressum |  AGB |  Bestellhinweise
