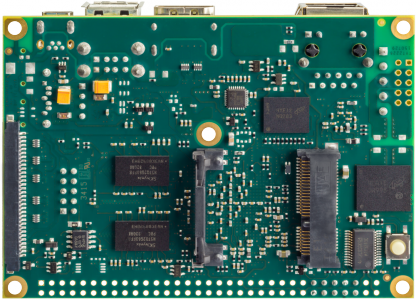

armStone™A9r2/r4
Single Board Computer in PicoITX form factor with NXP i.MX6 CPU
For the start of the development, we recommend: |
armStone™A9r2/r4 | ||
State | Production | |
CPU | ||
CPU | NXP i.MX 6 | |
Core | ARM Cortex-A9 | |
No of Cores | Solo/DualLite/Quad | |
Frequency | max. 1GHz | |
L2-Cache | max. 1MB | |
GPU | 3D, 2D 600Mpix/s | |
VPU | 1080p60 | |
Operating System | ||
Linux | Buildroot Yocto |
|
Windows | WEC 2013 | |
Memory | ||
Flash | max. 512MB SLC NAND | |
eMMC | max. 64GB | |
RAM | max. 4GB DDR3L | |
Interfaces | ||
SD-Card | uSD Slot | |
Ethernet | 1x 10/100/1000Mb IEEE1588 |
|
WiFi | WLAN only via adapter | |
BT | BT only via adapter | |
USB Host | 4x | |
USB Device | 1x | |
CAN | 2x | |
UART | 5x | |
I2C | 1x | |
SPI | 2x | |
Audio | Line In/Out/Mic | |
Digital I/O | max. 66 | |
Touch Panel | 4/5-wire, analog resistive and PCAP Touch via I2C |
|
Camera analog/digital | MIPI-CSI | |
PCIe | 1x | |
SATA | 1x | |
RTC | PCA8565 PCF85263 |
|
Display | ||
LVDS | 2x 4 lanes | |
CRT/DVI | DVI | |
Common | ||
Supply Voltage | 5V DC/±5% | |
Power Consumption | 4W typ. | |
Operating Temperature | 0°C - +70°C opt. -20°C - +85°C |
|
Size | 100x72x15mm (LxBxH) |
|
Weight | ~60g | |
Long Term Availability | 2035 |
aStoneA9r2/r4-V2I-LIN | aStoneA9r2/r4-V2I-W13 | aStoneA9r2/r4-V3-LIN | aStoneA9r2/r4-V3-W13 | aStoneA9r2/r4-V4-LIN | aStoneA9r2/r4-V4-W13 | aStoneA9r2/r4-V5-LIN | |
State | Production | Production | Production | Production | Production | Production | Production |
CPU | - | - | - | - | - | - | - |
CPU | NXP i.MX 6 | NXP i.MX 6 | NXP i.MX 6 | NXP i.MX 6 | NXP i.MX 6 | NXP i.MX 6 | NXP i.MX 6 |
Core | ARM Cortex-A9 | ARM Cortex-A9 | ARM Cortex-A9 | ARM Cortex-A9 | ARM Cortex-A9 | ARM Cortex-A9 | ARM Cortex-A9 |
No of Cores | Solo | Solo | DualLite | DualLite | Quad | Quad | DualLite |
Frequency | 1GHz | 1GHz | 1GHz | 1GHz | 1GHz | 1GHz | 1GHz |
L2-Cache | 512kB | 512KB | 512KB | 512KB | 1MB | 1MB | 512kB |
GPU | 2D 600Mpix/s OpenGL 35Mtri/s, 266Mpxl/s |
2D 600Mpix/s | 3D, 2D 600Mpix/s | 3D, 2D 600Mpix/s | 3D, 2D 600Mpix/s | 3D, 2D 600Mpix/s | 3D, 2D 600Mpix/s |
VPU | 1080p30 | 1080p30 | 1080p30 | 1080p30 | 1080p60 | 1080p60 | 1080p60 |
Operating System | - | - | - | - | - | - | - |
Linux | Buildroot Yocto |
- | Buildroot Yocto |
- | Buildroot Yocto |
- | Buildroot Yocto |
Windows | - | WEC 2013 | - | WEC 2013 | - | WEC 2013 | - |
Memory | - | - | - | - | - | - | - |
Flash | 256MB SLC | 256MB SLC | 256MB SLC | 256MB SLC | 256MB SLC | 256MB SLC | 256MB SLC |
eMMC | - | - | 4GB | 4GB | 4GB | 4GB | 4GB |
RAM | 512MB DDR3L | 512MB DDR3L | 1GB DDR3L | 1GB DDR3L | 1GB DDR3L | 1GB DDR3L | 1GB DDR3L |
Interfaces | - | - | - | - | - | - | - |
SD-Card | uSD Slot | uSD Slot | uSD Slot | uSD Slot | uSD Slot | uSD Slot | uSD Slot |
Ethernet | 1x 10/100/1000Mb IEEE1588 |
1x 10/100/1000Mb IEEE1588 |
1x 10/100/1000Mb IEEE1588 |
1x 10/100/1000Mb IEEE1588 |
1x 10/100/1000Mb IEEE1588 |
1x 10/100/1000Mb IEEE1588 |
1x 10/100/1000Mb IEEE1588 |
WiFi | - | - | WLAN only via adapter | WLAN only via adapter | WLAN only via adapter | WLAN only via adapter | - |
BT | - | - | BT only via adapter | BT only via adapter | BT only via adapter | BT only via adapter | - |
USB Host | 4x | 4x | 4x | 4x | 4x | 4x | 4x |
USB Device | 1x | 1x | 1x | 1x | 1x | 1x | 1x |
CAN | 2x | 2x | 2x | 2x | 2x | 2x | 2x |
UART | 5x | 5x | 5x | 5x | 5x | 5x | 5x |
I2C | 1x | 1x | 1x | 1x | 1x | 1x | 1x |
SPI | 2x | 2x | 2x | 2x | 2x | 2x | 2x |
Audio | Line In/Out/Mic | Line In/Out/Mic | Line In/Out/Mic | Line In/Out/Mic | Line In/Out/Mic | Line In/Out/Mic | Line In/Out/Mic |
Digital I/O | max. 66 | max. 66 | max. 66 | max. 66 | max. 66 | max. 66 | max. 66 |
Touch Panel | 4/5-wire, analog resistive and PCAP Touch via I2C |
4/5-wire, analog resistive and PCAP Touch via I2C |
4/5-wire, analog resistive and PCAP Touch via I2C |
4/5-wire, analog resistive and PCAP Touch via I2C |
4/5-wire, analog resistive and PCAP Touch via I2C |
4/5-wire, analog resistive and PCAP Touch via I2C |
4/5-wire, analog resistive and PCAP Touch via I2C |
Camera analog/digital | - | - | MIPI-CSI | MIPI-CSI | MIPI-CSI | MIPI-CSI | MIPI-CSI |
PCIe | - | - | 1x | 1x | 1x | 1x | - |
SATA | - | - | - | - | 1x | 1x | - |
RTC | PCA8565 PCF85263 |
PCA8565 PCF85263 |
PCA8565 PCF85263 |
PCA8565 PCF85263 |
PCA8565 PCF85263 |
PCA8565 PCF85263 |
PCA8565 PCF85263 |
Display | - | - | - | - | - | - | - |
LVDS | - | - | 2x 4 lanes | 2x 4 lanes | 2x 4 lanes | 2x 4 lanes | 2x 4 lanes |
CRT/DVI | DVI | DVI | DVI | DVI | DVI | DVI | DVI |
Common | - | - | - | - | - | - | - |
Supply Voltage | 5V DC/±5% | 5V DC/±5% | 5V DC/±5% | 5V DC/±5% | 5V DC/±5% | 5V DC/±5% | 5V DC/±5% |
Power Consumption | 2W typ. | 2W typ. | 3W typ. | 3W typ. | 4W typ. | 4W typ. | 4W typ. |
Operating Temperature | -20°C - +85°C | -20°C - +85°C | 0°C - +70°C | 0°C - +70°C | 0°C - +70°C | 0°C - +70°C | 0°C - +70°C |
Size | 100x72x15mm (LxBxH) |
100x72x15mm (LxBxH) |
100x72x15mm (LxBxH) |
100x72x15mm (LxBxH) |
100x72x15mm (LxBxH) |
100x72x15mm (LxBxH) |
100x72x15mm (LxBxH) |
Weight | ~60g | ~60g | ~60g | ~60g | ~60g | ~60g | ~60g |
Long Term Availability | 2035 | 2035 | 2035 | 2035 | 2035 | 2035 | 2035 |
aStoneA9r2/r4-V2I-LIN | aStoneA9r2/r4-V2I-W13 | aStoneA9r2/r4-V3-LIN | aStoneA9r2/r4-V3-W13 | aStoneA9r2/r4-V4-LIN | aStoneA9r2/r4-V4-W13 | aStoneA9r2/r4-V5-LIN |
Starterkit armStone™A9r2/r4 Linux armStoneA9r2/r4-V3-LIN, cable kit, power adapter, access data to documentation and software SKU: aStA9r2-SKIT-LIN |
280,- € | |||
Starterkit armStone™A9r2/r4 Windows armStoneA9r2/r4-V3-W13, cable kit, power adapter, access data to documentation and software SKU: aStA9r2-SKIT-W13 |
280,- € |
Software
Boot Screen Shows the device's user a starting procedure while booting (BMP File). SKU: WCE-BOOTSCREEN |
500,- € | |||
Custom Kernel Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added. SKU: WCE-CUSTIMAGE |
500,- € | |||
Software .NET Drivers Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++. SKU: WCE-DOTNET |
500,- € | |||
Failsafe Flash Filesystem (F3S) The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing. SKU: WCE-F3S |
1,000,- € | |||
UpDate Software This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card. SKU: WCE-UPDATE |
500,- € | |||
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € | |||
Display Customization (RGB orLVDS Display under Windows) Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board. SKU: EW-SW-RGB-LVDS-Windows |
500,- € |
Display
Touch Kits
Resistive Touch Kit 2 For the connection of a resistive touch panel to boards with 6pol Hirose socket. SKU: SINTF-ADP-RTI2C |
Request | |||
PCAP Touch Kit for EDT Kit to connect an EDT PCAP touch panel SKU: ADP-EDTTOUCH2 |
35,- € |
Cables
LVDS Cable LVDS cable with JAE FI X30 on one side and open ends on the other side SKU: B.MKAB.53 |
22,- € |
Adapters
I2C Erweiterung Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus. SKU: NDCU-ADP/I2C |
80,- € | |||
MIPI Camera Kit Adapter module with camera SKU: ADP-MIPICAM1 |
100,- € | |||
armStone™ Extension Routes interfaces of the 66pin feature connector to standard connectors. SKU: aStone-ADP-UNI1 |
130,- € | |||
mPCIe Module with WLAN/BT mPCIe-Full-Mini Type F1 or mPCIe-Half-Mini Type H1 module with WLAN 2.4/ 5 GHz und BT5.0 LE SKU: ADP-mPCIe-WLAN |
40,- € |
Workshop
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request |
Other Accessories
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € |
Buildroot and Yocto
The Linux BSP "fsimx6-B2020.04" is based on Buildroot, a software for creating root file systems. About 1400 different software packages can be added to the root file system using menu control. The range of functions ranges from simple libraries and utilities to a complete Java environment to complete graphical environments such as Qt, Wayland/Weston or X11, including applications such as an HTML5-capable web browser. In this way, it is very easy to put together a customized Linux system.
As an alternative to Buildroot, there is also a Yocto-based environment. We offer the Linux BSP fsimx6-Y2020.03, which is based on Yocto.
Our standard configuration, which should give a first impression of the functional scope of the module, contains the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, X11R7, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and much more
Both BSPs include the source code packages from U-Boot (2018.03), Linux kernel (based on 4.9.88) and Buildroot (2019.05.01) or Yocto (2.4) adapted by F&S. In addition, our cross toolchain is included, some sample applications and all binaries in the standard configuration. And last but not least, detailed documents on the hardware are included as well as the first steps documentation for easy entry.
F&S also offers a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora 27 distribution for free download. All packages necessary to translate our software are already installed. All services (NFS, TFTP) for working with our boards are also installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it doesn't matter whether you use Windows or Linux as the host. Simply download the VHD, import it into VirtualBox and development can begin immediately.
➜ More information about the new Buildroot Release B2020.04
➜ More information about the new YOCTO release Y2020.03
Windows Embedded Lifetime
Feature | Available until | End of Mainstream Support | End of Extended Support |
Windows Embedded Compact 2013 | 31.05.2028 | 10.09.2018 | 10.10.2023 |
Windows Embedded Compact 7 | 28.02.2026 | 12.04.2016 | 13.04.2021 |
Windows CE 6.0 | 28.02.2022 | 09.04.2013 | 10.04.2018 |
Windows Embedded Compact 2013
The highly flexible and hard real-time operating system has kernel, interface drivers and bootloader. It benefits from all the features of a modern CPU, such as ARMv7 THUMB2 command structure or NEON co-processor.
Complete images and the BSP are available in our download area.
Development is done with the latest Microsoft tools like Visual Studio 2015 (C, C++, C# or VB.NET) and Expression Blend 5.
Interfaces like I²C, CAN or SPI can be used in the same way like a RS232 interface.
XAML for Windows Embedded helps to separate visualisation and program the easy way.
Our FailSafe Flash File System F3S is also available in Compact 2013.
Windows Embedded Features for i.MX6
General
Feature | Description | i.MX6 | WEC 2013 |
.NET Support | Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework | ✔ | ✔ |
AnalogIn | Stream driver to easily access the analog inputs | ✔ | ✔ |
Audio Codec | Support for Microphone, LineIn and LineOut. Implements Mixer interface and special F&S mixer control panel applet to easily change settings. |
✔ | ✔ |
BusEnum2 | Support for asynchronous loading of drivers. Use events to start loading of drivers. | ✔ | ✔ |
Broadcast | Stream driver Boards can be easily identified and configured over LAN connection |
✔ | ✔ |
CAN | Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication. | ✔ | ✔ |
Digital I/O | Stream driver to configure pins as input, output or interrupt. Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry. |
✔ | ✔ |
Display | Display driver can be configured by registry settings without modifying operating system. | ✔ | ✔ |
Display | Multi-Monitor Support Adjustable by registry |
✔ | ✔ |
Display | 2D software acceleration using NEON co-processor Multiple overlays with alpha blending |
✔ | ✔ |
Display | 2D hardware acceleration 3D OpenGL ES 1.1 and 2.0 hardware acceleration Multiple overlays with alpha blending Multiple monitor support (incl. 2D acceleration and Video support) |
✔ | ✔ |
Firmware Update | Software to update Bootloader and/or operating system from running operating system. | ✔ | ✔ |
Software Update | Program to update application and registry settings from USB stick, SD card or other source. Includes automatic detection. Can incorporate with Firmware Update |
✔ | ✔ |
I²C | Stream driver Support for hardware I²C controller (NI2C) Support for using GPIOs as I²C (I²C) |
✔ | ✔ |
Keyboard | Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409 Matrix keyboard support: Use IO pins for keyboard |
✔ | ✔ |
SPI | Stream driver Support for hardware SPI controller |
✔ | ✔ |
Touch | Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others Extended USB mouse driver to accept absolute coordinates |
✔ | ✔ |
USB Host | EHCI and OHCI driver | ✔ | ✔ |
USB Device | ✔ | ✔ | |
KBDHID | Extended MS kbdhid - Support for all keys on the keyboard | ✔ | ✔ |
MOUTOUCHHID | Support for absolute coordinates | ✔ | ✔ |
Power Management | Support for screen saver and touch activation | ✔ | ✔ |
PWM | Stream driver | ✔ | ✔ |
Video Streaming | Filter framework for streaming video over HTTP | ✔ | ✔ |
VoIP | Voice over IP sample solution | ✔ |
File System
Feature | Description | i.MX6 | WEC 2013 |
F&S BinFS | Bug fixed BinFS file system for XIP images | ✔ | ✔ |
F3S | F&S Secure Flash File System Optimized throughput on all file operations Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector) Transaction-based concept already cooperates with a lot of applications |
✔ | ✔ |
Filesystem Filter Driver |
Used to limit access to file system. Possible restrictions: Move, Delete, Rename |
✔ | ✔ |
FAT/TFAT | Microsoft Windows Embedded FAT/TFAT solution. | ✔ | ✔ |
NAND Driver | 16 bit hardware ECC | ✔ |
Services
Feature | Description | i.MX6 | WEC 2013 |
Telnet Server | Enabled by default. Easy access to command shell. | ✔ | ✔ |
FTP Server | ✔ | ✔ | |
HTTPD Server | Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera) | ✔ | ✔ |
OpenSSH | Offers SSH server functionality for Windows Embedded. Based on OpenSSH SFTP SCP SMTP |
✔ | ✔ |
SSH SCP/SFTP server | SSH Library (also used from SMTP). | ✔ | ✔ |
SMTP | SMTP library to send EMail | ✔ | ✔ |
Tools
Feature | Description | i.MX6 | WEC 2013 |
Bootscreen | Showing custom image during boot. | ✔ | ✔ |
Control Panel | Standard Windows Embedded Control Panel with additional tools. | ✔ | ✔ |
CE Remote Display | Driver and application to access desktop of device remotely. | ✔ | ✔ |
ndcucfg | Command line configuration tool. Can be used locally, over Telnet connection and over serial connection. Registry editing Reading/writing of boot loaders and splash screen User administration Certificate administration .... Usage: * Can be used in own applications as DLL. * As a command line tool from telnet or serial debug console |
✔ | ✔ |
Update tool | Update of boot loader Update on WinCE image Registry changes Update of user application Runs from SD/USB/LAN |
✔ | ✔ |
F&S 2D control utility | Control panel applet Change 2D acceleration on the fly |
✔ | ✔ |
F&S Board Config | Control panel applet Check hardware revision, version of boot loader, version of WinCE image and much more. Change system startup and registry. |
✔ | ✔ |
F&S Audio Mixer | Control panel applet Change audio features like volume, bass, treble, input ... |
✔ | ✔ |
F&S SSH/SMTP control utility | Control panel applet Start stop SSHD service Send test EMail by SMTP |
✔ | ✔ |
F&S USB Loader | Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information. Can be used to update software or to automate production. |
✔ | ✔ |
F&S Mfg Tool | Modified NXP Tool for board bring up and software installation | ✔ | ✔ |
armStoneA9r2/r4 - Product Flyer
- English (950 KB, pdf) - 28/02/2023
- Customer Specific Boards (93 KB, pdf) - 20/09/2017
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
armStoneA9r2/r4 - Hardware
- armStoneA9r2/r4 Hardware Documentation (1.7 MB, pdf) - 20/04/2023
- Letter of Conformity (370 KB, pdf) - 16/10/2017
- 3D Step Model (6.7 MB, zip) - 09/07/2024
- Freescale NBoot Programming (924 KB, pdf) - 12/10/2015
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
armStoneA9r2/r4 - Linux
- armStoneA9r2/r4 Linux First Steps (2.4 MB, pdf) - 28/03/2024
- GPIO Reference Card (168 KB, pdf) - 20/03/2020
- Advice for Linux on PC (2 MB, pdf) - 10/01/2018
- Quickstart with FS Development Machine (1 MB, pdf) - 06/05/2020
- F&S Secure Boot (534 KB, pdf) - 19/03/2020
- Application Development with Eclipse (2.4 MB, pdf) - 18/10/2022
- Application Development with QT (2.1 MB, pdf) - 16/01/2024
- Application Development with Crank (485 KB, pdf) - 28/07/2022
- Steps Required For Creating A Progress Bar In Linux (473 KB, pdf) - 12/07/2019
- Linux on F&S Boards (2.9 MB, pdf) - 20/12/2023
- Mono on F&S Boards (2.6 MB, pdf) - 17/11/2023
- DOTNET on F&S Boards (1.1 MB, pdf) - 19/06/2024
- Visual Studio Code C/C++ Application Development (455 KB, pdf) - 29/05/2024
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
armStoneA9r2/r4 - Windows Embedded CE/Compact
- armStoneA9r2/r4 First Steps (2.5 MB, pdf) - 31/03/2016
- i.MX6 Device Driver (4.6 MB, pdf) - 02/03/2021
- CAN Device Driver (967 KB, pdf) - 23/03/2015
- I2C Device Drivers I2C+NI2C (393 KB, pdf) - 13/01/2017
- SPI Device Driver NSPI (2.2 MB, pdf) - 13/03/2013
- FTP Server Configuration (15 KB, pdf) - 30/12/2004
- TCP/IP Parameter (37 KB, pdf) - 30/12/2004
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Sorry, there are no files to show.
armStoneA9r2/r4 - Display
- Display Settings from Datasheet (11 KB, pdf) - 19/11/2009
- Display - Pin assignment list (1.5 MB, pdf) - 07/03/2012
- Display - Drivers
-
- LMT-101-9AL-PSA1U, 1280x800 Pixel (731 bytes, txt) - 21/07/2016
- CHIMEI
- CHIMEI G070Y2, 800x480 Pixel (754 bytes, txt) - 09/02/2016
- CHIMEI G070Y2, 800x480 Pixel (1.6 KB, txt) - 13/04/2016
- EDT
- EDT ET043000DH6, 480x272 Pixel (752 bytes, txt) - 04/03/2016
- EDT ET070080DH6, 800x480 Pixel (721 bytes, txt) - 29/09/2015
- EDT ETM043005BDK6, 480x272 Pixel (754 bytes, txt) - 16/03/2016
- EDT ETM070001ADH6, 800x480 Pixel (810 bytes, txt) - 04/08/2016
- EDT ET070081ADH6, 800x480 Pixel (728 bytes, txt) - 25/05/2016
- EDT ETML10100ADH6, 1024x600 Pixel (763 bytes, txt) - 04/08/2016
- EDT ETML101001DKA, 1280x800 Pixel (761 bytes, txt) - 04/08/2016
- EDT ETML121000DHA, 1280x800 Pixel (761 bytes, txt) - 04/08/2016
- EDT ETMV570G2DHU_, 640x480 Pixel (792 bytes, txt) - 13/05/2016
- Endrich
- Endrich MI0430PT-50, 480x272 Pixel (1.5 KB, txt) - 26/11/2015
- Endrich MI0570ET-53, 800x480 Pixel (1.5 KB, txt) - 04/08/2016
- Endrich MI0570ET-53, 640x480 Pixel (1.5 KB, txt) - 04/08/2016
- Endrich MI0700AJT-5X, 800x480 Pixel (1.5 KB, txt) - 27/11/2015
- Endrich MI0700B1T, 800x480 Pixel (692 bytes, txt) - 04/08/2016
- Endrich MI0700S4T-50, 800x480 Pixel (1.5 KB, txt) - 26/11/2015
- Evervision
- Evervision VGG644804-6UFLWE, 640x480 Pixel (738 bytes, txt) - 04/08/2016
- Evervision VGG804806, 800x480 Pixel (762 bytes, txt) - 07/08/2015
- Evervision VGG804807, 800x480 Pixel (808 bytes, txt) - 17/11/2014
- InnoLux
- InnoLux G057VGE, 640x480 Pixel (752 bytes, txt) - 04/07/2014
- InnoLux G065VN01, 640x480 Pixel (753 bytes, txt) - 08/04/2015
- KOE
- KOE TX09D200-VM0BAA, 640x240 Pixel (758 bytes, txt) - 04/08/2016
- KOE TX14D11VM1, 320x240 Pixel (788 bytes, txt) - 04/08/2016
- KOE TX14D14VM1BPB, 640x480 Pixel (727 bytes, txt) - 13/05/2016
- KOE TX16D20, 640x240 Pixel (758 bytes, txt) - 04/08/2016
- KOE TX23D200VMOCPA, 800x480 Pixel (734 bytes, txt) - 04/08/2016
- KOE TX23D38VMOCPA, 800x480 Pixel (774 bytes, txt) - 04/08/2016
- M101NWWB
- M101NWWB R3, 1280x800 Pixel (766 bytes, txt) - 23/07/2015
- SEP
- SEP T056640480-AOTMC, 640x480 Pixel (735 bytes, txt) - 04/08/2016
- SGD
- SGD GKVGC1MNDK2A0, 1280x800 Pixel (825 bytes, txt) - 10/03/2015
- SGD GVTSA4TNBL4E0, 800x600 Pixel (752 bytes, txt) - 31/10/2014
- SGD GVTV57SNAD1E0, 640x480 Pixel (753 bytes, txt) - 17/02/2015
- SGD GVTW70CAG2C0, 800x480 Pixel (759 bytes, txt) - 16/04/2016
- SGD GVTW70SNAG2E0, 800x480 Pixel (754 bytes, txt) - 17/02/2015
- URT
- URT UMOH9113MD-5T, 1280x800 Pixel (732 bytes, txt) - 04/08/2016
- chefree
- chefree CH057DLCL, 640x480 Pixel (768 bytes, txt) - 04/08/2016
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Variants
aStoneA9r2-V1-LIN NXP i.MX 6QuadPlus Cortex-A9, 1GB RAM, 256MB Flash, 4GB eMMC, Gb Ethernet, 2x CAN, Audio, WLAN, Bluetooth, PCIe, SATA, MIPI-CSI Camera, 2x LVDS/ DVI, 0°C-+70°C, 5V Supply, Linux Buildroot/Yocto SKU: aStoneA9r2-V1-LIN |
Request | |||
aStoneA9r2-V1-W13 NXP i.MX 6QuadPlus Cortex-A9, 1GB RAM, 256MB Flash, 4GB eMMC, Gb Ethernet, 2x CAN, Audio, WLAN, Bluetooth, PCIe, SATA, MIPI-CSI Camera, 2x LVDS/ DVI, 0°C-+70°C, 5V Supply, Windows Embedded Compact 2013 SKU: aStoneA9r2-V1-W13 |
Request | |||
aStoneA9r2/r4-V2I-W13 NXP i.MX 6Solo Cortex-A9, 512MB RAM, 256MB Flash, Gb Ethernet, 2x CAN, Audio, DVI, -20°C-+85°C, 5V Supply, Windows Embedded Compact 2013 SKU: aStoneA9r2/r4-V2I-W13 |
Request | |||
aStoneA9r2/r4-V2I-LIN NXP i.MX 6Solo Cortex-A9, 512MB RAM, 256MB Flash, Gb Ethernet, 2x CAN, Audio, DVI, -20°C-+85°C, 5V Supply, Linux Buildroot/Yocto SKU: aStoneA9r2/r4-V2I-LIN |
Request | |||
aStoneA9r2/r4-V3-LIN NXP i.MX 6DualLite Cortex-A9, 1GB RAM, 256MB Flash, 4GB eMMC, Gb Ethernet, 2x CAN, Audio, WLAN, BT, MIPI-CSI Camera, Touch, 2x LVDS/ DVI, 0°C-+70°C, 5V Supply, Linux Buildroot/Yocto SKU: aStoneA9r2/r4-V3-LIN |
Request | |||
aStoneA9r2/r4-V3-W13 NXP i.MX 6DualLite Cortex-A9, 1GB RAM, 256MB Flash, 4GB eMMC, Gb Ethernet, 2x CAN, Audio, WLAN, Bluetooth, MIPI-CSI Camera, Touch, 2x LVDS/ DVI, 0°C-+70°C, 5V Supply, Windows Embedded Compact 2013 SKU: aStoneA9r2/r4-V3-W13 |
Request | |||
aStoneA9r2/r4-V4-LIN NXP i.MX 6Quad Cortex-A9, 1GB RAM, 256MB Flash, 4GB eMMC, Gb Ethernet, 2x CAN, Audio, WLAN, Bluetooth, PCIe, SATA, MIPI-CSI Camera, 2x LVDS/ DVI, 0°C-+70°C, 5V Supply, Linux Buildroot/Yocto SKU: aStoneA9r2/r4-V4-LIN |
Request | |||
aStoneA9r2/r4-V4-W13 NXP i.MX 6Quad Cortex-A9, 1GB RAM, 256MB Flash, 4GB eMMC, Gb Ethernet, 2x CAN, Audio, WLAN, Bluetooth, PCIe, SATA, MIPI-CSI Camera, 2x LVDS/ DVI, 0°C-+70°C, 5V Supply, Windows Embedded Compact 2013 SKU: aStoneA9r2/r4-V4-W13 |
Request | |||
aStoneA9r2/r4-V5-LIN i.MX6 DualLite, 1GB RAM, 256MB Flash, 4GB eMMC, EEPROM, Audio, 1x Gbit LAN, 2xCAN, LVDS, DVI, MIPI CSI, 0°C-+70°C, 5V Supply, Linux Buildroot/Yocto SKU: aStoneA9r2/r4-V5-LIN |
Request |
Starterkits
Starterkit armStone™A9r2/r4 Linux armStoneA9r2/r4-V3-LIN, cable kit, power adapter, access data to documentation and software SKU: aStA9r2-SKIT-LIN |
280,- € | |||
Starterkit armStone™A9r2/r4 Windows armStoneA9r2/r4-V3-W13, cable kit, power adapter, access data to documentation and software SKU: aStA9r2-SKIT-W13 |
280,- € |
Software
Boot Screen Shows the device's user a starting procedure while booting (BMP File). SKU: WCE-BOOTSCREEN |
500,- € | |||
Custom Kernel Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added. SKU: WCE-CUSTIMAGE |
500,- € | |||
Software .NET Drivers Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++. SKU: WCE-DOTNET |
500,- € | |||
Failsafe Flash Filesystem (F3S) The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing. SKU: WCE-F3S |
1,000,- € | |||
UpDate Software This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card. SKU: WCE-UPDATE |
500,- € | |||
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € | |||
Display Customization (RGB orLVDS Display under Windows) Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board. SKU: EW-SW-RGB-LVDS-Windows |
500,- € |
Display
Touch Kits
Resistive Touch Kit 2 For the connection of a resistive touch panel to boards with 6pol Hirose socket. SKU: SINTF-ADP-RTI2C |
Request | |||
PCAP Touch Kit for EDT Kit to connect an EDT PCAP touch panel SKU: ADP-EDTTOUCH2 |
35,- € |
Cables
LVDS Cable LVDS cable with JAE FI X30 on one side and open ends on the other side SKU: B.MKAB.53 |
22,- € |
Adapters
I2C Erweiterung Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus. SKU: NDCU-ADP/I2C |
80,- € | |||
MIPI Camera Kit Adapter module with camera SKU: ADP-MIPICAM1 |
100,- € | |||
armStone™ Extension Routes interfaces of the 66pin feature connector to standard connectors. SKU: aStone-ADP-UNI1 |
130,- € | |||
mPCIe Module with WLAN/BT mPCIe-Full-Mini Type F1 or mPCIe-Half-Mini Type H1 module with WLAN 2.4/ 5 GHz und BT5.0 LE SKU: ADP-mPCIe-WLAN |
40,- € |
Workshop
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request |
Other Accessories
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € |
Link to the Forum
You will always find support in our Forum.
Recent Contributions
05 Dec, 06:29 |
WEC 2013: How to close UDP Ports 137 and 138 / how to disable NetBIOS over TCP/IP |
04 Dec, 12:48 |
New i.MX8MP GPU Driver |
04 Dec, 09:32 |
Prevent efusA9 with WEC 2013 from sending Device Info |
03 Dec, 08:58 |
Change to winter time |
02 Dec, 15:12 |
Question: eMMC vs NAND storage |
30 Nov, 11:59 |
armStone A5 in a Plexlog Datalogger |
29 Nov, 18:47 |
request to introduce a github repo also for the toolchain with corresponding history |
29 Nov, 14:51 |
SPIDEV probe function not called |
27 Nov, 14:10 |
NETDCU-USB Loader, F&S Driver fails to load Code 10 |
27 Nov, 13:43 |
i.MX6 CAAM - keyblob decryption fails after kernel upgrade |
The SBC... | ...with convincing equipment | |
---|---|---|
Applicable without Base BoardThe advantage of Single Board Computers (SBC) is that they can be applied without a baseboard and are especially suited for quick "Time-To-Market". armStone™A9r2/r4 uses i.MX 6Solo/DualLite/QuadPlus ARM Cortex-A9 processor (3D, 2D). Long Term AvailabilityA highlight of this CPU is its long availability of more than 15 years (NXP Product Longevity Program). Various Interfaces
|

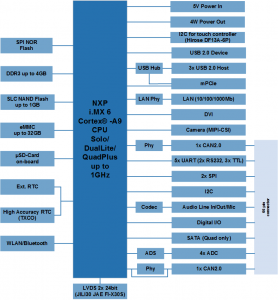

Further interfaces are Gigabit Ethernet, 4x USB 2.0 Host, USB 2.0 Device, 2x CAN, I²C, 2x SPI, Audio, SATA, PCIe, and 5x serial interfaces. For display control, 2-channel LVDS and DVI are available simultaneously (with different content). A supply voltage of 5V causes a power consumption of about 4W, so the armStone™A9r2/r4 can be applied without a fan or cooling device. |
