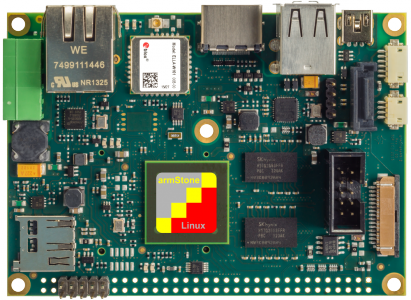

aStoneA9r2/r4-V3-LIN

Single Board Computer in PicoITX form factor with NXP i.MX 6DualLite CPU

For the start of development, we recommend:

Starterkit armStone™A9r2/r4 Windows
  280,- €
Tax not included

armStoneA9r2/r4-V3-W13, cable kit, power adapter, access data to documentation and software

aStoneA9r2/r4-V3-LIN
State Production
CPU
CPU NXP i.MX 6
Core ARM Cortex-A9
No of Cores DualLite
Frequency 1GHz
L2-Cache 512KB
GPU 3D, 2D 600Mpix/s
VPU 1080p30
Operating System
Linux Buildroot
Yocto
Memory
Flash 256MB SLC
eMMC 4GB
RAM 1GB DDR3L
Interfaces
SD-Card uSD Slot
Ethernet 1x 10/100/1000Mb
IEEE1588
WiFi WLAN only via adapter
BT BT only via adapter
USB Host 4x
USB Device 1x
CAN 2x
UART 5x
I2C 1x
SPI 2x
Audio Line In/Out/Mic
Digital I/O max. 66
Touch Panel 4/5-wire, analog resistive and
PCAP Touch via I2C
Camera analog/digital MIPI-CSI
PCIe 1x
RTC PCA8565
PCF85263
Display
LVDS 2x 4 lanes
CRT/DVI DVI
Common
Supply Voltage 5V DC/±5%
Power Consumption 3W typ.
Operating Temperature 0°C - +70°C
Size 100x72x15mm
(LxBxH)
Weight ~60g
Long Term Availability 2035



armStoneA9r2 TOP Linux Starterkit armStone™A9r2/r4 Linux
armStoneA9r2/r4-V3-LIN, cable kit, power adapter, access data to documentation and software
SKU: aStA9r2-SKIT-LIN		 280,- €


Software

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €


Display

Touch Kits

resistive Touch Kit armStoneA9 Resistive Touch Kit 2
For the connection of a resistive touch panel to boards with 6pol Hirose socket.
SKU: SINTF-ADP-RTI2C		 Request
SINTF ADP EDTTOUCH2 PCAP Touch Kit for EDT
Kit to connect an EDT PCAP touch panel
SKU: ADP-EDTTOUCH2		 35,- €


Cables

B.MKAB53 LVDS Cable
LVDS cable with JAE FI X30 on one side and open ends on the other side
SKU: B.MKAB.53		 22,- €


Adapters

I2C Extension I2C Erweiterung
Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus.
SKU: NDCU-ADP/I2C		 80,- €

ADP-MIPICAM1 MIPI Camera Kit
Adapter module with camera
SKU: ADP-MIPICAM1		 100,- €

aStone ADP UNI1 OBLIQUE TOP NEU armStone™ Extension
Routes interfaces of the 66pin feature connector to standard connectors.
SKU: aStone-ADP-UNI1		 130,- €

ADP mPCIe WLAN OBLIQUE mPCIe Module with WLAN/BT
mPCIe-Full-Mini Type F1 or mPCIe-Half-Mini Type H1 module with WLAN 2.4/ 5 GHz und BT5.0 LE

SKU: ADP-mPCIe-WLAN		 40,- €


Workshop

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


Buildroot and Yocto

The Linux BSP "fsimx6-B2020.04" is based on Buildroot, a software for creating root file systems. About 1400 different software packages can be added to the root file system using menu control. The range of functions ranges from simple libraries and utilities to a complete Java environment to complete graphical environments such as Qt, Wayland/Weston or X11, including applications such as an HTML5-capable web browser. In this way, it is very easy to put together a customized Linux system.

As an alternative to Buildroot, there is also a Yocto-based environment. We offer the Linux BSP fsimx6-Y2020.03, which is based on Yocto.

Our standard configuration, which should give a first impression of the functional scope of the module, contains the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, X11R7, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and much more

Both BSPs include the source code packages from U-Boot (2018.03), Linux kernel (based on 4.9.88) and Buildroot (2019.05.01) or Yocto (2.4) adapted by F&S. In addition, our cross toolchain is included, some sample applications and all binaries in the standard configuration. And last but not least, detailed documents on the hardware are included as well as the first steps documentation for easy entry.

F&S also offers a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora 27 distribution for free download. All packages necessary to translate our software are already installed. All services (NFS, TFTP) for working with our boards are also installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it doesn't matter whether you use Windows or Linux as the host. Simply download the VHD, import it into VirtualBox and development can begin immediately.

➜ More information about the new Buildroot Release B2020.04
➜ More information about the new YOCTO release Y2020.03

armStoneA9r2/r4 - Product Flyer


armStoneA9r2/r4 - Hardware


armStoneA9r2/r4 - Linux


armStoneA9r2/r4 - Windows Embedded CE/Compact


Sorry, there are no files to show.


armStoneA9r2/r4 - Display

Variant

armStoneA9r2 TOP Linux aStoneA9r2/r4-V3-LIN
