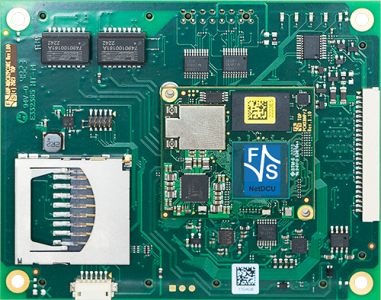

NetDCU™93-V2I
Computer On Module with NXP i.MX 93 CPU
|
|
| NetDCU™93-V2I | ||
| State | Production | |
| CPU | ||
| CPU | NXP i.MX 93 | |
| Core | ARM Cortex-A55 Cortex-M33 NPU |
|
| No of Cores | 2x A55 + M33 | |
| Frequency | 1.7GHz + 250MHz | |
| L2-Cache | 2x64kB L2 + 256kB L3 | |
| NPU | 0.5 TOPS | |
| GPU | PXP | |
| Security | ||
| Secure Element | Edgelock Secure Enclave | |
| Operating System | ||
| Linux | Yocto (uboot installed) |
|
| Windows | 11 IoT Enterprise (UEFI installed) |
|
| Real Time | FreeRTOS, QNX, Zephyr | |
| Memory | ||
| RAM | 2GB LPDDR4 | |
| Flash | EEPROM | |
| eMMC | 64GB | |
| Interfaces | ||
| SD-Card | 2x SDIO | |
| Ethernet | 2x 100/1000 Mb | |
| WiFi | - | |
| BT | - | |
| USB Host | 1x 2.0 | |
| USB Device | 1x OTG 2.0 | |
| CAN | 2x | |
| UART | 3x RS232 1x RS485 |
|
| I2C | 1x | |
| SPI | 1x | |
| Audio | Line In/Out/Mic | |
| Digital I/O | max. 21 | |
| ADC | 4x (12bit) | |
| Touch Panel | 4-wire, analog resistive PCAP Touch via I2C |
|
| RTC | PCF85263ATL | |
| More | FS-Bus (8bit A/D bus) | |
| Display | ||
| LVDS | 1x 4 Lanes | |
| Common | ||
| V_IN | +5V DC/ ±5% | |
| T_AMB | -25°C - +85°C | |
| Size | 100x80x19,5mm | |
| Availability | 2038+ |
Software
 |
Secure Boot as a Service The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme. SKU: Linux-SBS |
500,- € | ||
|
Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux |
1,000,- € | ||
|
Display Customization (RGB orLVDS Display under Windows) Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board. SKU: EW-SW-RGB-LVDS-Windows |
500,- € | ||
|
Boot Screen Shows the device's user a starting procedure while booting (BMP File). SKU: WIN-BOOTSCREEN |
500,- € | ||
|
Custom Kernel Creation of a customer-specific kernel. Components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added. SKU: WIN-CUSTIMAGE |
1,000,- € |
Displays
 |
7" RGB Display with resistive Touch 7" TFT (800x480) EDT ET070080DH6 SKU: B.LCD.15 |
130,- € | ||
 |
7” LVDS Display with PCAP Touch (long-term available) 7” LVDS LCD Display with PCAP Touch SKU: LCD.7.LVDS.1 |
89,- € | ||
 |
10” LVDS Display with PCAP Touch (long-term available) 10” LVDS LCD Display with PCAP Touch SKU: LCD.10.LVDS.1 |
130,- € |
Kabel
 |
40poles Film Cable Film Cable, A40pol., 0,5mm, l=200mm for displays To connect a 7" EDT Display (B.LCD.15) SKU: B.MKAB.23 |
10,- € |
Adapter
 |
I2C Erweiterung Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus. SKU: NDCU-ADP/I2C |
80,- € | ||
 |
NetDCU/ PicoCOM DVI Adapter Connects NetDCUA5/ PicoCOMA5/ A9X to a DVI/ HDMI screen. SKU: ADP-RGB2DVI |
50,- € |
Workshops
 |
Secure Boot as a Package Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software. SKU: WS-SBP |
500,- € | ||
|
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
Sonstiges
 |
Heat Spreader PicoCore100 Heat spreader for cooling PicoCore boards. SKU: MHS.PC100.1 |
10,- € | ||
 |
Heat Sink Heat sink with fan for cooling PicoCore boards. SKU: MHS.PC100.3 |
20,- € | ||
 |
Heat Sink Heat sink for cooling PicoCore boards. SKU: MHS.PC100.4 |
15,- € | ||
 |
USB Stick USB Memory Stick with memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € |
Varianten
 |
NetDCU™93-V2I NXP i.MX93 Dual Cortex®-A55 @ 1.7GHz 2GB LPDDR4, 64GB eMMC, Audio Codec, 2x 100Mbit LAN, 2x CAN, LVDS, RTC, 4x ADCIn, RS485, RGB LCD, res. Touch Controller, heat spreader, -25°C .. +85°C, 5V DC Versorgung, Linux Yocto, QNX oder Windows 11 IoT Enterprise SKU: ND93-V2I |
Request | ||
The following software packages are provided by F&S for the processor.
Adaptation and support for the NetDCUMX93 are available upon request.
| Architecture | Type | Release Name | NBoot | Bootloader | UEFI | Kernel | OS | Help File | Software |
|---|---|---|---|---|---|---|---|---|---|
| FSIMX93 | QNX | fsimx93-QNX800 | 2025.08.1 | U-Boot 2025.08 | 8.0.0 | ||||
| FSIMX93 | Windows | iMX93_W11_V120 | nboot-fsimx93-iot-2025.05 | U-Boot uboot-fsimx93-iot-2025.05pre.fs | uefiIMX93_X_12 | 1.2 | 11 IoT LTSC 2024 | ||
| FSIMX93 | Yocto | fsimx93-Y2025.08.1 | U-Boot 2024.04 | Linux 6.6.119 | Yocto 5.0.16 Scarthgap | ||||
| FSIMX93 | Zephyr | fsimx93-Z2026.03 | 4.3.0 |
