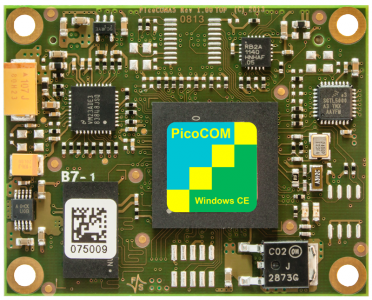

PCOMA5-V3-W13/WCE

Computer On Module with NXP Vybrid CPU

For the start od development, we recommend:

Starterkit PicoCOMA5 Windows
  299,- €
Tax not included

PicoCOMA5-V2-WCE, base board, cable kit, 7“ EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software

PCOMA5-V3-W13/WCE
State Production
CPU
CPU NXP Vybrid
Core ARM Cortex-A5
No of Cores Single-Core
Frequency 500MHz
L2-Cache 512KB
GPU NEON
FPU
Operating System
Windows WEC 2013
WCE 6.0 (Bootloader installiert)
Memory
Flash 128MB
RAM 256MB
Interfaces
SD-Card 1x extern
Ethernet 2x 10/100Mb
IEEE 1588
USB Host 1-2x
USB Device 1x
CAN 1-2x
UART 3x
I2C 1-2x
SPI 1x
Audio Line In/Out
Touch Panel 4-wire, analog resistive
PCAP-Touch via I2C
More 2x 12Bit ADC
Display
RGB 16/18bit
LVDS extern
Common
Supply Voltage +3,3V DC/ ±5%
Power Consumption 1W typ.
Operating Temperature 0°C - +70°C
Size 40x50mm
(LxB)
Weight ~10g
Long Term Availability 2028

PicoCOMA5 Startinterface oblique top windows Starterkit PicoCOMA5 Windows
PicoCOMA5-V2-WCE, base board, cable kit, 7“ EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: PCOMA5-SKIT-WCE		 299,- €

PicoCOMA5 Startinterface Top OBLIQUE Linux Starterkit PicoCOMA5 Linux
PicoCOMA5-V2-LIN, base board, cable kit, 7“ EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: PCOMA5-SKIT-LIN		 299,- €


Software

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €

software accessory Display Customization (MIPI-DSI Display under Linux)
Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board.
The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display.

SKU: EW-SW-MIPI-DSI-Linux		 1,000,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €


Displays and Display Kit

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15		 120,- €

armStone efus RGB Kit Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT		 170,- €


Touch Kit

resistive Touch Kit Resistive Touch Kit
For connecting a resistive Touch panel to F&S boards with 4-poles touch connector.
SKU: SINTF-ADP-RESTOUCH		 35,- €


Cables

B.MKAB.23 40poles Film Cable
Film Cable, A40pol., 0,5mm, l=200mm for displays
To connect a 7" EDT Display (B.LCD.15)
SKU: B.MKAB.23		 10,- €


Adapters

I2C Extension I2C Erweiterung
Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus.
SKU: NDCU-ADP/I2C		 80,- €

JTAG Debug Adapter JTAG Debug Adapter
To program Cortex-M4.
SKU: ADP-CMSIS		 69,- €

Adapter RGB to DVI NetDCU/ PicoCOM DVI Adapter
Connects NetDCUA5/ PicoCOMA5/ A9X to a DVI/ HDMI screen.
SKU: ADP-RGB2DVI		 50,- €


Workshop

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


Variants

PicoCOMA5 TOP Windows PCOMA5-V3-W13/WCE
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Windows Embedded Compact 2013
SKU: PCOMA5-V3-W13/WCE		 Request
PicoCOMA5 TOP Linux PCOMA5-V3-LIN
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Linux Buildroot
SKU: PCOMA5-V3-LIN		 Request
PicoCOMA5 TOP Windows PCOMA5-V2-W13/WCE
NXP Vybrid Cortex-A5 + Cortex-M4, 256MB RAM, 256MB Flash, Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Windows Embedded Compact 2013, MQX
SKU: PCOMA5-V2-W13/WCE		 Request
PicoCOMA5 TOP Linux PCOMA5-V2-LIN
NXP Vybrid Cortex-A5 + Cortex-M4, 256MB RAM, 256MB Flash, Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Linux Buildroot, MQX
SKU: PCOMA5-V2-LIN		 Request
PicoCOMA5 TOP Windows PCOMA5-V1-W13/WCE
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Windows Embedded Compact 2013
SKU: PCOMA5-V1-W13/WCE		 Request
PicoCOMA5 TOP Linux PCOMA5-V1-LIN
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Linux Buildroot
SKU: PCOMA5-V1-LIN		 Request
PicoCOMA5 TOP Windows PCOMA5-V1I-LIN
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, -25°C - +85°C, 3.3V Supply, Linux Buildroot/Yocto
SKU: PCOMA5-V1I-LIN		 Request
PicoCOMA5 TOP Linux PCOMA5-V3I-LIN
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, -25°C - +85°C, 3.3V Supply, Linux Buildroot
SKU: PCOMA5-V3I-LIN		 Request

Starterkits

PicoCOMA5 Startinterface oblique top windows Starterkit PicoCOMA5 Windows
PicoCOMA5-V2-WCE, base board, cable kit, 7“ EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: PCOMA5-SKIT-WCE		 299,- €

PicoCOMA5 Startinterface Top OBLIQUE Linux Starterkit PicoCOMA5 Linux
PicoCOMA5-V2-LIN, base board, cable kit, 7“ EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: PCOMA5-SKIT-LIN		 299,- €


Windows Embedded Lifetime

Feature Available until  End of Mainstream Support End of Extended Support
Windows Embedded Compact 2013 31.05.2028  10.09.2018 10.10.2023
Windows Embedded Compact 7 28.02.2026  12.04.2016 13.04.2021
Windows CE 6.0 28.02.2022  09.04.2013 10.04.2018

Windows Embedded Compact 2013

As the very first company we can offer WEC 2013 for Vybrid processors.
The highly flexible and hard real-time operating system has kernel, interface drivers and bootloader. It benefits from all the features of a modern CPU, such as ARMv7 THUMB2 command structure or NEON co-processor.
Complete images and the BSP are available in our download area.
Development is done with the latest Microsoft tools like Visual Studio 2015 (C, C++, C# or VB.NET) and Expression Blend 5.
Interfaces like I²C, CAN or SPI can be used in the same way like a RS232 interface.
XAML for Windows Embedded helps to separate visualisation and program the easy way.

Our FailSafe Flash File System F3S is also available in Compact 2013.

Windows Embedded CE 6.0 R3

Windows Embedded CE 6.0 R3 offers bootloaders, interface drivers and kernels (with e.g. Silverlight or IE).
The interface drivers of almost every offered interface are already ready to use.
Your software can be created with Visual Studio .NET in the languages C, C++, C# or VB.NET.
Interfaces like I²C can be used in the same manner like a RS232 interface, without having to handle the underlying hardware.
Display and other settings are arranged with the F&S configuration tool.

Windows Embedded Features for Vybrid

General

Feature Description Vybrid WEC 2013
.NET Support Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework ✔ ✔
AnalogIn Stream driver to easily access the analog inputs ✔ ✔
Audio Codec Support for Microphone, LineIn and LineOut.
Implements Mixer interface and special F&S mixer control panel applet to easily change settings.		 ✔ ✔
BusEnum2 Support for asynchronous loading of drivers. Use events to start loading of drivers.  ✔ ✔
Broadcast Stream driver
Boards can be easily identified and configured over LAN connection		 ✔ ✔
CAN Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication. ✔ ✔
Digital I/O  Stream driver to configure pins as input, output or interrupt.
Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry.		 ✔ ✔
Display Display driver can be configured by registry settings without modifying operating system. ✔ ✔
Display Multi-Monitor Support
Adjustable by registry		   ✔
Display 2D software acceleration using NEON co-processor
Multiple overlays with alpha blending 		 ✔ ✔
Display 2D hardware acceleration
3D OpenGL ES 1.1 and 2.0 hardware acceleration
Multiple overlays with alpha blending
Multiple monitor support (incl. 2D acceleration and Video support)
Firmware Update Software to update Bootloader and/or operating system from running operating system. ✔ ✔
Software Update Program to update application and registry settings from USB stick, SD card or other source.
Includes automatic detection. Can incorporate with Firmware Update		 ✔ ✔
I²C Stream driver
Support for hardware I²C controller (NI2C)
Support for using GPIOs as I²C (I²C)		 ✔ ✔
Keyboard Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409
Matrix keyboard support: Use IO pins for keyboard		 ✔ ✔
SPI Stream driver
Support for hardware SPI controller		 ✔ ✔
Touch Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others
Extended USB mouse driver to accept absolute coordinates		 ✔ ✔
USB Host EHCI and OHCI driver ✔ ✔
USB Device   ✔ ✔
KBDHID Extended MS kbdhid - Support for all keys on the keyboard ✔ ✔
MOUTOUCHHID Support for absolute coordinates ✔ ✔
Power Management Support for screen saver and touch activation ✔ ✔
PWM Stream driver ✔ ✔
Video Streaming Filter framework for streaming video over HTTP ✔ ✔
VoIP Voice over IP sample solution ✔
QT 4.8x Support for QT 4.8. framework. ✔

File System

Feature Description Vybrid WEC 2013
F&S BinFS Bug fixed BinFS file system for XIP images ✔ ✔
F3S F&S Secure Flash File System
Optimized throughput on all file operations
Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector)
Transaction-based concept already cooperates with a lot of applications  		 ✔ ✔
Filesystem
Filter Driver		 Used to limit access to file system.
Possible restrictions: Move, Delete, Rename		 ✔ ✔
Filesystem Redirect Driver Redirects file system access from one directory to another. ✔ ✔
FAT/TFAT Microsoft Windows Embedded FAT/TFAT solution. ✔ ✔
NAND Driver 16 bit hardware ECC ✔ ✔

Services

Feature Description Vybrid WEC 2013
Telnet Server Enabled by default. Easy access to command shell. ✔ ✔
FTP Server   ✔ ✔
HTTPD Server Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera) ✔ ✔
OpenSSH Offers SSH server functionality for Windows Embedded. Based on OpenSSH
SFTP
SCP
SMTP		 ✔ ✔
SSH SCP/SFTP server SSH Library (also used from SMTP).  ✔ ✔
SMTP SMTP library to send EMail ✔ ✔

Tools

Feature Description Vybrid WEC 2013
Bootscreen Showing custom image during boot. ✔ ✔
Control Panel Standard Windows Embedded Control Panel with additional tools. ✔ ✔
CE Remote Display Driver and application to access desktop of device remotely. ✔ ✔
ndcucfg Command line configuration tool.
Can be used locally, over Telnet connection and over serial connection.
Registry editing
Reading/writing of boot loaders and splash screen
User administration
Certificate administration
....
Usage:
* Can be used in own applications as DLL.
* As a command line tool from telnet or serial debug console		 ✔ ✔
Update tool Update of boot loader
Update on WinCE image
Registry changes
Update of user application
Runs from SD/USB/LAN		 ✔ ✔
F&S 2D control utility Control panel applet
Change 2D acceleration on the fly		 ✔ ✔
F&S Board Config Control panel applet
Check hardware revision, version of boot loader, version of WinCE image and much more.
Change system startup and registry.		 ✔ ✔
F&S Audio Mixer Control panel applet
Change audio features like volume, bass, treble, input ...		 ✔ ✔
F&S SSH/SMTP control utility Control panel applet
Start stop SSHD service
Send test EMail by SMTP		 ✔ ✔
F&S USB Loader Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information.
Can be used to update software or to automate production.		 ✔ ✔
F&S Mfg Tool Modified NXP Tool for board bring up and software installation ✔ ✔

PicoCOMA5 - Product Flyer


PicoCOMA5 - Hardware


PicoCOMA5 - Linux


PicoCOMA5 - Windows Embedded CE/Compact


Sorry, there are no files to show.


Sorry, there are no files to show.


PicoCOMA5 - Display

Variants

PicoCOMA5 TOP Windows PCOMA5-V3-W13/WCE
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Windows Embedded Compact 2013
SKU: PCOMA5-V3-W13/WCE		 Request
PicoCOMA5 TOP Linux PCOMA5-V3-LIN
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Linux Buildroot
SKU: PCOMA5-V3-LIN		 Request
PicoCOMA5 TOP Windows PCOMA5-V2-W13/WCE
NXP Vybrid Cortex-A5 + Cortex-M4, 256MB RAM, 256MB Flash, Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Windows Embedded Compact 2013, MQX
SKU: PCOMA5-V2-W13/WCE		 Request
PicoCOMA5 TOP Linux PCOMA5-V2-LIN
NXP Vybrid Cortex-A5 + Cortex-M4, 256MB RAM, 256MB Flash, Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Linux Buildroot, MQX
SKU: PCOMA5-V2-LIN		 Request
PicoCOMA5 TOP Windows PCOMA5-V1-W13/WCE
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Windows Embedded Compact 2013
SKU: PCOMA5-V1-W13/WCE		 Request
PicoCOMA5 TOP Linux PCOMA5-V1-LIN
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, 0°C - +70°C, 3.3V Supply, Linux Buildroot
SKU: PCOMA5-V1-LIN		 Request
PicoCOMA5 TOP Windows PCOMA5-V1I-LIN
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, -25°C - +85°C, 3.3V Supply, Linux Buildroot/Yocto
SKU: PCOMA5-V1I-LIN		 Request
PicoCOMA5 TOP Linux PCOMA5-V3I-LIN
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, LVDS, -25°C - +85°C, 3.3V Supply, Linux Buildroot
SKU: PCOMA5-V3I-LIN		 Request

Starterkits

PicoCOMA5 Startinterface oblique top windows Starterkit PicoCOMA5 Windows
PicoCOMA5-V2-WCE, base board, cable kit, 7“ EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: PCOMA5-SKIT-WCE		 299,- €

PicoCOMA5 Startinterface Top OBLIQUE Linux Starterkit PicoCOMA5 Linux
PicoCOMA5-V2-LIN, base board, cable kit, 7“ EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: PCOMA5-SKIT-LIN		 299,- €


Description Performance

PicoCOMA5 extends the existing PicoCOM family with a pin compatible, powerful and also inexpensive module.

For Industry and Medicine

As all other PicoCOMs, the PicoCOMA5 has a size of only 40mm x 50mm. This makes it a perfect solution for hand-held products with TFT display in industrial (-20°C - +85°C is available) and medical devices.

High efficiancy with the Cortex-A5 & Cortex-M4 CPUs

The PicoCOMA5 runs on a high-performance NXP Dual-Core Vybrid CPU - Cortex™-A5 with 400 (500)MHz and Cortex™-M4 with 133 (167)MHz.

The module can offer a large number of interfaces: Ethernet, 3x Serial, USB 2.0 Host, USB 2.0 Device, I²C, SPI, CAN 2.0, I/ O, Audio (Line IN/ OUT), SD-Card and touch panel. Alternatively there is a PicoCOMA5 version with 2x Ethernet (no Audio).
The pin assignment of the 80 poles plug connector  can be found in our hardware documenation.

An important point in development was to offer many standardized interfaces, all supported by the available OS. Therefore the user can realize his communication jobs in software without in-depth knowledge of hardware.



Of course, PicoCOMA5 offers a flexible display interface to connect most of the TFTs from QVGA (320x240) up to SVGA (800x600).

Asymmetric Multiprocessing

The Dual-Core CPU (Asymmetric Multiprocessing) by NXP builds the ideal basis for PicoCOMA5. The industrial-suited and long-time available (10 years and more) Vybrid CPU owns two cores (Cortex™-A5 - 500MHz and Cortex™-M4 - 167MHz). It supplies the user with the processor performance of a 32Bit CPU as well as with the comfort and the functions of Windows or Linux, while it has a price which is usual for 8/ 16Bit μP systems.

PicoCOMA5 can be equipped with up to 512Mbyte DRAM and with up to 1GByte Flash, but 128Mbyte NAND Flash are already enough to boot a complete Windows or Linux directly from Flash.

Easy Upgrade

The system is supplied with 3.3V (< 3 Watt). It is plugged on the customer's carrier board with a robust 80 pin connector. Customers only need to add the necessary driver components for their requested interfaces. The usage of the module is therefore very easy. All PicoCOM boards are largely compatible, using the same robust 80 pin connector, which makes upgrades to successors a simple matter.

Support

Telefon: +49 711 123722 0

Info: info@fs-net.de
Verkauf: sales@fs-net.de
Kunden-Support: support@fs-net.de
Webmaster: webmaster@fs-net.de

LinkedIn icon youtube icon twitter icon maps icon email icon

Anschrift

F&S Elektronik Systeme GmbH
Untere Waldplätze 23
70569 Stuttgart - Germany

Contact us

Datenschutzerklärung |  Disclaimer |  Impressum |  AGB |  Bestellhinweise
