PicoCOMA9X

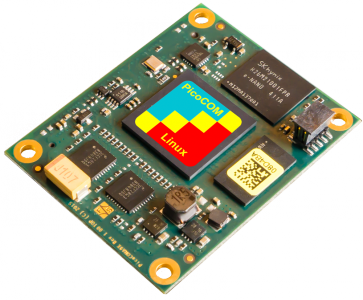

COM with NXP i.MX 6SoloX CPU

For the start of development, we recommend:

Starterkit PicoCOMA9X Linux
  360,- €
Tax not included

PicoCOMA9X-V2-LIN, base board, cable kit, 7“ EDT RGB TFT with resistive Touch incl. adapter and cables, access data to documentation and software


Starterkit PicoCOMA9X Windows
  360,- €
Tax not included

PicoCOMA9X-V2-W13/WEC7, base board, cable kit, 7“ EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software

PicoCOMA9X
State Production
CPU
CPU NXP i.MX 6SoloX
Core ARM Cortex-A9 + Cortex-M4
No of Cores 1 + M4
Frequency max. 1GHz + 200 MHz
L2-Cache 256KB
GPU NEON
FPU
Operating System
Linux Buildroot
Yocto
(uboot installed)
Windows WEC 7
WEC 2013
(EBoot installed)
Real Time FreeRTOS
Memory
Flash max. 1GB
RAM max. 512MB
Interfaces
SD-Card 1x extern
Ethernet 1-2x 10/100Mb
IEEE 1588
USB Host 1x
USB Device 1x
CAN 1-2x
UART 2-3x
I2C 1x
SPI 1x
Audio Line In/Out
Digital I/O max. 48
Touch Panel 4-wire, analog resistive
PCAP-Touch via I2C
Display
RGB 16/18bit
Common
Supply Voltage +3,3V DC/ ±5%
Power Consumption 2W typ.
Operating Temperature 0°C - +70°C
opt. -40°C - +85°C
Size 40x50mm
(LxB)
Weight ~15g
Long Term Availability 2035


PCOMA9X-V2-LIN PCOMA9X-V2-W13/WEC7 PCOMA9X-V3-LIN PCOMA9X-V3-W13 PCOMA9X-V3I-LIN PCOMA9X-V3I-W13
State Production Production Production Production Production Production
CPU - - - - - -
CPU NXP i.MX 6SoloX NXP i.MX 6SoloX NXP i.MX 6SoloX NXP i.MX 6SoloX NXP i.MX 6SoloX NXP i.MX 6SoloX
Core ARM Cortex-A9 + Cortex-M4 ARM Cortex-A9 + Cortex-M4 ARM Cortex-A9 + Cortex-M4 ARM Cortex-A9 + Cortex-M4 ARM Cortex-A9 + Cortex-M4 ARM Cortex-A9 + Cortex-M4
No of Cores 1 + M4 1 + M4 1 + M4 1 + M4 1 + M4 1 + M4
Frequency 1GHz / 200MHz 1GHz / 200MHz 1GHZ / 200MHz 1GHZ / 200MHz 800 Mhz / 200 MHz 800 Mhz / 200 MHz
L2-Cache 256KB 256KB 256KB 256KB 256KB 256KB
GPU 2D+3D GC400T 2D+3D GC400T 2D+3D GC400T 2D+3D GC400T NO GPU NO GPU
Operating System - - - - - -
Linux Buildroot
Yocto
(uboot installed)		 - Buildroot
Yocto
(uboot installed)		 - Buildroot
Yocto
(uboot installed)		 -
Windows - WEC 7
WEC 2013
(EBoot installed)		 - WEC 7
WEC 2013
(EBoot installed)		 - WEC 2013
(Bootloader installed)
Real Time FreeRTOS FreeRTOS FreeRTOS FreeRTOS FreeRTOS FreeRTOS
Memory - - - - - -
Flash 256MB 256MB 256MB 256MB 256MB 256MB
RAM 512MB 512MB 512MB 512MB 512MB 512MB
Interfaces - - - - - -
SD-Card 1x extern 1x extern 1x extern 1x extern 1x extern 1x extern
Ethernet 1x 1x 2x 2x 2x 2x
USB Host 1x 1x 1x 1x 1x 1x
USB Device 1x 1x 1x 1x 1x 1x
CAN 1x 1x 1x 1x 1x 1x
UART 2-3x 2-3x 2-3x 2-3x 2-3x 2-3x
I2C 1x 1x 1x 1x 1x 1x
SPI 1x 1x 1x 1x 1x 1x
Audio Line In/Out Line In/Out - - - -
Digital I/O max. 48 max. 48 max. 48 max. 48 max. 48 max. 48
Touch Panel 4-wire, analog resistive
PCAP-Touch via I2C		 4-wire, analog resistive
PCAP-Touch via I2C		 4-wire, analog resistive
PCAP-Touch via I2C		 4-wire, analog resistive
PCAP-Touch via I2C		 4-wire, analog resistive
PCAP-Touch via I2C		 4-wire, analog resistive
PCAP-Touch via I2C
Display - - - - - -
RGB 16/18bit 16/18bit 16/18bit 16/18bit 16/18bit 16/18bit
Common - - - - - -
Supply Voltage +3,3V DC/ ±5% +3,3V DC/ ±5% +3,3V DC/ ±5% +3,3V DC/ ±5% +3,3V DC/ ±5% +3,3V DC/ ±5%
Power Consumption 2W typ. 2W typ. 2W typ. 2W typ. 2W typ. 2W typ.
Operating Temperature 0°C - +70°C 0°C - +70°C 0°C - +70°C 0°C - +70°C -40°C - +85°C -40°C - +85°C
Size 40x50mm
(LxB)		 40x50mm
(LxB)		 40x50mm
(LxB)		 40x50mm
(LxB)		 40x50mm
(LxB)		 40x50mm
(LxB)
Weight ~15g ~15g ~15g ~15g ~15g ~15g
Long Term Availability 2035 2035 2035 2035 2035 2035
PCOMA9X-V2-LIN PCOMA9X-V2-W13/WEC7 PCOMA9X-V3-LIN PCOMA9X-V3-W13 PCOMA9X-V3I-LIN PCOMA9X-V3I-W13

PCOMA9X SINTF BOT OBLIQUE Starterkit PicoCOMA9X Linux
PicoCOMA9X-V2-LIN, base board, cable kit, 7“ EDT RGB TFT with resistive Touch incl. adapter and cables, access data to documentation and software
SKU: PCOMA9X-SKIT-LIN		 360,- €

PCOMA9X SINTF BOT OBLIQUE Starterkit PicoCOMA9X Windows
PicoCOMA9X-V2-W13/WEC7, base board, cable kit, 7“ EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: PCOMA9X-SKIT-W13		 360,- €


Software

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €

software accessory Display Customization (MIPI-DSI Display under Linux)
Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board.
The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display.

SKU: EW-SW-MIPI-DSI-Linux		 1,000,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €


Display and Display Kit

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15		 120,- €

armStone efus RGB Kit Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT		 170,- €


Touch Kit

resistive Touch Kit Resistive Touch Kit
For connecting a resistive Touch panel to F&S boards with 4-poles touch connector.
SKU: SINTF-ADP-RESTOUCH		 35,- €


Cable

B.MKAB.23 40poles Film Cable
Film Cable, A40pol., 0,5mm, l=200mm for displays
To connect a 7" EDT Display (B.LCD.15)
SKU: B.MKAB.23		 10,- €


Adapters

I2C Extension I2C Erweiterung
Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus.
SKU: NDCU-ADP/I2C		 80,- €

JTAG Debug Adapter JTAG Debug Adapter
To program Cortex-M4.
SKU: ADP-CMSIS		 69,- €

Adapter RGB to DVI NetDCU/ PicoCOM DVI Adapter
Connects NetDCUA5/ PicoCOMA5/ A9X to a DVI/ HDMI screen.
SKU: ADP-RGB2DVI		 50,- €


Workshops

linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


Buildroot and Yocto

The Linux BSP "fsimx6sx-B2024.01" is based on Buildroot, a software for creating root file systems. About 1400 different software packages can be added to the root file system using menu control. The range of functions ranges from simple libraries and utilities to a complete Java environment to complete graphical environments such as Qt or Wayland/Weston, including applications such as an HTML5-capable web browser. In this way, it is very easy to put together a customized Linux system.

As an alternative to Buildroot, there is also a Yocto-based environment. We offer the Linux BSP fsimx6sx-Y2020.03, which is based on Yocto.

Our standard configuration, which should give a first impression of the functional scope of the module, contains the following features: Busybox, gdb, alsa-utils, gstreamer, wayland-weston, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and much more

Both BSPs include the source code packages from U-Boot (2021.04), Linux kernel (based on 5.15.131) and Buildroot (2023.02.06) or Yocto (4.0) adapted by F&S. In addition, our cross toolchain is included, some sample applications and all binaries in the standard configuration. And last but not least, detailed documents on the hardware are included as well as the first steps documentation for easy entry.

F&S also offers a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora 36 distribution for free download. All packages necessary to translate our software are already installed. All services (NFS, TFTP) for working with our boards are also installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it doesn't matter whether you use Windows or Linux as the host. Simply download the VHD, import it into VirtualBox and development can begin immediately.

➜ More information about the new Buildroot Release B2024.01
➜ More information about the new YOCTO release Y2020.03

Windows Embedded Lifetime

Feature Available until  End of Mainstream Support End of Extended Support
Windows Embedded Compact 2013 31.05.2028  10.09.2018 10.10.2023
Windows Embedded Compact 7 28.02.2026  12.04.2016 13.04.2021
Windows CE 6.0 28.02.2022  09.04.2013 10.04.2018

Windows Embedded Compact 7/2013

The highly flexible and hard real-time operating system has kernel, interface drivers and bootloader. It benefits from all the features of a modern CPU, such as ARMv7 THUMB2 command structure or NEON co-processor.
Complete images and the BSP are available in our download area.
Development is done with the latest Microsoft tools like Visual Studio 2013 (C, C++, C# or VB.NET) and Expression Blend 5.
Interfaces like I²C, CAN or SPI can be used in the same way like a RS232 interface.
XAML for Windows Embedded helps to separate visualisation and program the easy way.

Our FailSafe Flash File System F3S is also available in Compact 7/2013.

Windows Embedded Features for i.MX6

General

Feature Description i.MX6 WEC 2013
.NET Support Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework ✔ ✔
AnalogIn Stream driver to easily access the analog inputs ✔ ✔
Audio Codec Support for Microphone, LineIn and LineOut.
Implements Mixer interface and special F&S mixer control panel applet to easily change settings.		 ✔ ✔
BusEnum2 Support for asynchronous loading of drivers. Use events to start loading of drivers.  ✔ ✔
Broadcast Stream driver
Boards can be easily identified and configured over LAN connection		 ✔ ✔
CAN Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication. ✔ ✔
Digital I/O  Stream driver to configure pins as input, output or interrupt.
Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry.		 ✔ ✔
Display Display driver can be configured by registry settings without modifying operating system. ✔ ✔
Display Multi-Monitor Support
Adjustable by registry		 ✔  ✔
Display 2D software acceleration using NEON co-processor
Multiple overlays with alpha blending 		 ✔ ✔
Display 2D hardware acceleration
3D OpenGL ES 1.1 and 2.0 hardware acceleration
Multiple overlays with alpha blending
Multiple monitor support (incl. 2D acceleration and Video support)		 ✔  ✔
Firmware Update Software to update Bootloader and/or operating system from running operating system. ✔ ✔
Software Update Program to update application and registry settings from USB stick, SD card or other source.
Includes automatic detection. Can incorporate with Firmware Update		 ✔ ✔
I²C Stream driver
Support for hardware I²C controller (NI2C)
Support for using GPIOs as I²C (I²C)		 ✔ ✔
Keyboard Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409
Matrix keyboard support: Use IO pins for keyboard		 ✔ ✔
SPI Stream driver
Support for hardware SPI controller		 ✔ ✔
Touch Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others
Extended USB mouse driver to accept absolute coordinates		 ✔ ✔
USB Host EHCI and OHCI driver ✔ ✔
USB Device   ✔ ✔
KBDHID Extended MS kbdhid - Support for all keys on the keyboard ✔ ✔
MOUTOUCHHID Support for absolute coordinates ✔ ✔
Power Management Support for screen saver and touch activation ✔ ✔
PWM Stream driver ✔ ✔
Video Streaming Filter framework for streaming video over HTTP ✔ ✔
VoIP Voice over IP sample solution ✔

File System

Feature Description i.MX6 WEC 2013
F&S BinFS Bug fixed BinFS file system for XIP images ✔ ✔
F3S F&S Secure Flash File System
Optimized throughput on all file operations
Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector)
Transaction-based concept already cooperates with a lot of applications  		 ✔ ✔
Filesystem
Filter Driver		 Used to limit access to file system.
Possible restrictions: Move, Delete, Rename		 ✔ ✔
FAT/TFAT Microsoft Windows Embedded FAT/TFAT solution. ✔ ✔
NAND Driver 16 bit hardware ECC   ✔

Services

Feature Description i.MX6 WEC 2013
Telnet Server Enabled by default. Easy access to command shell. ✔ ✔
FTP Server   ✔ ✔
HTTPD Server Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera) ✔ ✔
OpenSSH Offers SSH server functionality for Windows Embedded. Based on OpenSSH
SFTP
SCP
SMTP		 ✔ ✔
SSH SCP/SFTP server SSH Library (also used from SMTP).  ✔ ✔
SMTP SMTP library to send EMail ✔ ✔

Tools

Feature Description i.MX6 WEC 2013
Bootscreen Showing custom image during boot. ✔ ✔
Control Panel Standard Windows Embedded Control Panel with additional tools. ✔ ✔
CE Remote Display Driver and application to access desktop of device remotely. ✔ ✔
ndcucfg Command line configuration tool.
Can be used locally, over Telnet connection and over serial connection.
Registry editing
Reading/writing of boot loaders and splash screen
User administration
Certificate administration
....
Usage:
* Can be used in own applications as DLL.
* As a command line tool from telnet or serial debug console		 ✔ ✔
Update tool Update of boot loader
Update on WinCE image
Registry changes
Update of user application
Runs from SD/USB/LAN		 ✔ ✔
F&S 2D control utility Control panel applet
Change 2D acceleration on the fly		 ✔ ✔
F&S Board Config Control panel applet
Check hardware revision, version of boot loader, version of WinCE image and much more.
Change system startup and registry.		 ✔ ✔
F&S Audio Mixer Control panel applet
Change audio features like volume, bass, treble, input ...		 ✔ ✔
F&S SSH/SMTP control utility Control panel applet
Start stop SSHD service
Send test EMail by SMTP		 ✔ ✔
F&S USB Loader Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information.
Can be used to update software or to automate production.		 ✔ ✔
F&S Mfg Tool Modified NXP Tool for board bring up and software installation ✔ ✔

PicoCOMA9X - Product Flyer


PicoCOMA9X - Hardware

PicoCOMA9X - Linux


PicoCOMA9X - Windows Embedded CE/Compact


PicoCOMA9X - FreeRTOS


Sorry, there are no files to show.


PicoCOMA9X - Display

Variants

PicoCOMA9X TOP LIN PCOMA9X-V2-LIN
NXP i.MX 6SoloX Cortex-A9 + Cortex-M4, 512MB RAM, 256MB Flash, 1x Ethernet, 1x CAN, Audio, Touch, RGB, 0°C - +70°C, 3.3V Supply, Linux (Buildroot/Yocto), FreeRTOS
SKU: PCOMA9X-V2-LIN		 Request
PicoCOMA9X TOP WCE PCOMA9X-V2-W13/WEC7
NXP i.MX 6SoloX Cortex-A9 + Cortex-M4, 512MB RAM, 256MB Flash, 1x Ethernet, 1x CAN, Audio, Touch, RGB, 0°C - +70°C, 3.3V Supply, Windows Embedded Compact 2013 or 7, FreeRTOS
SKU: PCOMA9X-V2-W13/WEC7		 Request
PicoCOMA9X TOP LIN PCOMA9X-V3-LIN
NXP i.MX 6SoloX Cortex-A9 + Cortex-M4, 512MB RAM, 256MB Flash, 2x Ethernet, 1x CAN, Touch, RGB, 0°C - +70°C, 3.3V Supply, Linux (Buildroot/Yocto), FreeRTOS
SKU: PCOMA9X-V3-LIN		 Request
PicoCOMA9X TOP WCE PCOMA9X-V3-W13
NXP i.MX 6SoloX Cortex-A9 + Cortex-M4, 512MB RAM, 256MB Flash, 2x Ethernet, 1x CAN, Touch, RGB, 0°C - +70°C, 3.3V Supply, Windows Embedded Compact 2013, FreeRTOS
SKU: PCOMA9X-V3-W13		 Request
PicoCOMA9X TOP LIN PCOMA9X-V3I-LIN
NXP i.MX 6SoloX Cortex-A9 + Cortex-M4, 512MB RAM, 256MB Flash, 2x Ethernet, 1x CAN, Touch, RGB, 0°C - +70°C, 3.3V Supply, Linux (Buildroot/Yocto), FreeRTOS
SKU: PCOMA9X-V3I-LIN		 Request
PicoCOMA9X TOP WCE PCOMA9X-V3I-W13
NXP i.MX 6SoloX Cortex-A9 + Cortex-M4, 512MB RAM, 256MB Flash, 2x Ethernet, 1x CAN, Touch, RGB, -40°C - +85°C, 3.3V Supply, Windows Embedded Compact 2013, FreeRTOS
SKU: PCOMA9X-V3I-W13		 Request

Starterkits

PCOMA9X SINTF BOT OBLIQUE Starterkit PicoCOMA9X Linux
PicoCOMA9X-V2-LIN, base board, cable kit, 7“ EDT RGB TFT with resistive Touch incl. adapter and cables, access data to documentation and software
SKU: PCOMA9X-SKIT-LIN		 360,- €

PCOMA9X SINTF BOT OBLIQUE Starterkit PicoCOMA9X Windows
PicoCOMA9X-V2-W13/WEC7, base board, cable kit, 7“ EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software
SKU: PCOMA9X-SKIT-W13		 360,- €


Software

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET		 500,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE		 500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN		 500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE		 500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S		 1,000,- €

software accessory Secure Boot as a Service
The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme.
SKU: Linux-SBS		 500,- €

software accessory Display Customization (RGB or LVDS display under Linux)
Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board.
The DeviceTree contains the appropriate entries for your display.
SKU: EW-SW		 700,- €

software accessory Display Customization (MIPI-DSI Display under Linux)
Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board.
The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display.

SKU: EW-SW-MIPI-DSI-Linux		 1,000,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows		 500,- €


Display and Display Kit

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15		 120,- €

armStone efus RGB Kit Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT		 170,- €


Touch Kit

resistive Touch Kit Resistive Touch Kit
For connecting a resistive Touch panel to F&S boards with 4-poles touch connector.
SKU: SINTF-ADP-RESTOUCH		 35,- €


Cable

B.MKAB.23 40poles Film Cable
Film Cable, A40pol., 0,5mm, l=200mm for displays
To connect a 7" EDT Display (B.LCD.15)
SKU: B.MKAB.23		 10,- €


Adapters

I2C Extension I2C Erweiterung
Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus.
SKU: NDCU-ADP/I2C		 80,- €

JTAG Debug Adapter JTAG Debug Adapter
To program Cortex-M4.
SKU: ADP-CMSIS		 69,- €

Adapter RGB to DVI NetDCU/ PicoCOM DVI Adapter
Connects NetDCUA5/ PicoCOMA5/ A9X to a DVI/ HDMI screen.
SKU: ADP-RGB2DVI		 50,- €


Workshops

linux windows embedded compact workshop Secure Boot as a Package
Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software.
SKU: WS-SBP		 500,- €

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1		 Request

Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1		 20,- €


Description Description

For Industry and Medicine

PicoCOMA9X is another compact and high-performance module in PicoCOM form factor. The PicoCOM form factor is perfectly suited for applications in medicine and industry with a compact design. PicoCOM has a size of 40 x 50mm only and fits even into a top-hat rail housing.

High Efficiany with Cortex-A9 & Cortex-M4

PicoCOMA9X is based on a NXP single-core applications processor from the very successful i.MX 6 series and has a Cortex-A9 core,as well as a Cortex-M4 core.
NEON, FPU and OpenGL are available, ensuring software compatibility to other i.MX 6 application processors.

SoloX is the second processor in NXP’s portfolio which supports Asymmetric Multiprocessing. Both cores (A9+M4) are connected to the internal bus fabric and have the possibility to access all peripherals.
In addition to Vybrid, SoloX comes with Resource Domain Controller which makes it easier to protect memory or other peripherals from each other.



The module offers the following interfaces: Ethernet, 2x Serial, USB 2.0 Host, USB 2.0 Device, I²C, SPI, CAN2.0, I/ O, Audio (Line IN/OUT), SD Card and Touch Panel (resistive and capacitive).

An important point in development was to offer many standardized interfaces, all supported by the available OS. Therefore the user can realize his communication jobs in software without in-depth knowledge of hardware.

Of course, PicoCOMA9X offers a flexible display interface to connect common TFTs (up to XGA 1024x768).

PicoCOMA9X can be equipped with up to 512Mbyte DRAM and with up to 1GByte Flash.

Easy Upgrade

The system is supplied with 3.3V (< 3 Watt). It is plugged on the customer's carrier board with a robust 80 pin connector. Customers only need to add the necessary driver components for their requested interfaces. The usage of the module is therefore very easy. All PicoCOM boards are largely compatible, using the same robust 80 pin connector, which makes upgrades to successors a simple matter.

Support

Phone:(+49)(0)711 123722-0
Fax:(+49)(0)711 123722-99

Info: info@fs-net.de
Sales: sales@fs-net.de
Support: support@fs-net.de
Webmaster: webmaster@fs-net.de

LinkedIn icon youtube icon twitter icon maps icon email icon

Address

F&S Elektronik Systeme GmbH
Untere Waldplätze 23
D-70569 Stuttgart

Contact us
Privacy policy |  Disclaimer |  Imprint |  GTC |  Ordering hint
